Description

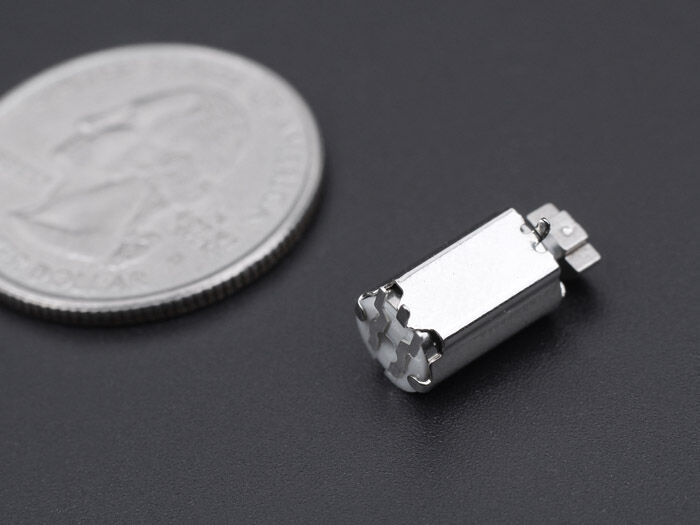

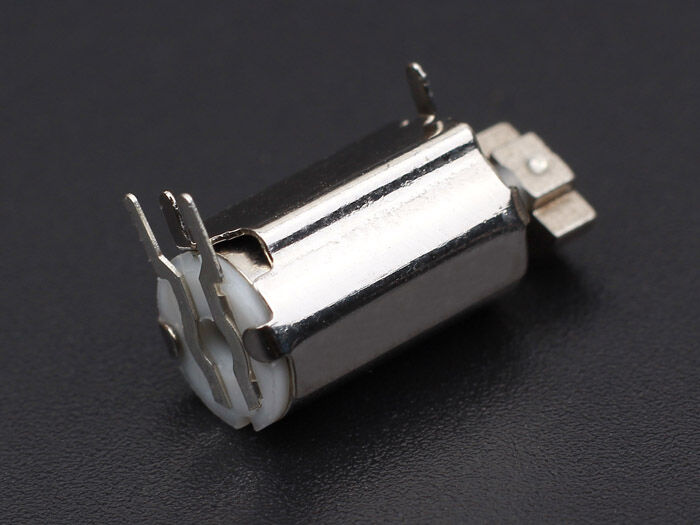

This mini vibration motor worked at 1.3VDC can be used for multipurposes.
Note：Not suitable for precision instruments.
Specification:
Operating condition
|
Item |
Specification |
Condition remark |
|
|
2-1 |
Rated voltage |
1.3VDC |
|
|
2-2 |
Operating voltage |
0.9～1.6VDC |
|
|
2-3 |
Rated load |
Vibraton weight |
As soecufued in outline drawing |
|
2-4 |
Rated speed |
9000±1500rpm |
|
|
2-5 |
Rotation |
CW（clockwize） |
|
|
2-6 |
Motor Position |
All position |
|
|
2-7 |
Operating environment |
-20¬60°C 10¬90%Rh |
|
|
2-8 |
Storage environment |
-40~80°C 5~95%Eh |
No condensation of moisture |
Measuremen codition
|
Item |
Specification |
Condition remark |
|
|
3-1 |
Temperature |
20±2°C |
|
|
3-2 |
Humidity |
65±5%RH |
|
|
3-3 |
Motor position |
Moror shaft horizontal |
Lock the motor in a test fixture |
All date are based on the measurement under the temperature of 20°C and humidity65%andRH.hower.the langes of temperature5¬35°C and humiddity45¬85%RH are to be applicable as long as long as no problems.

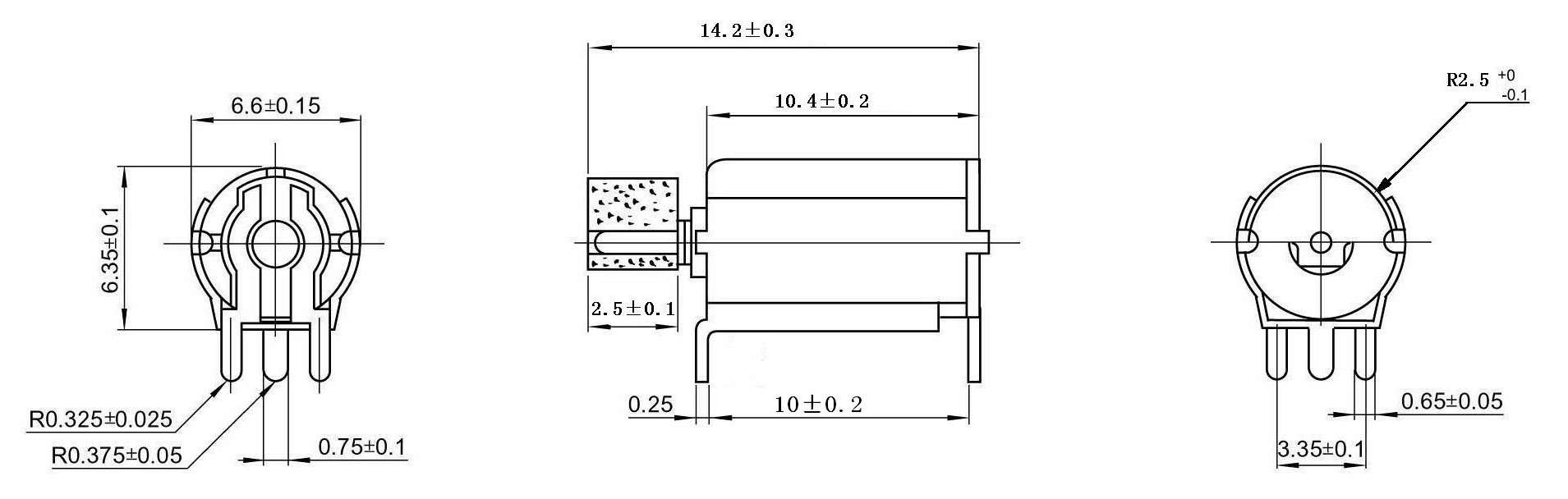

Dimension:
