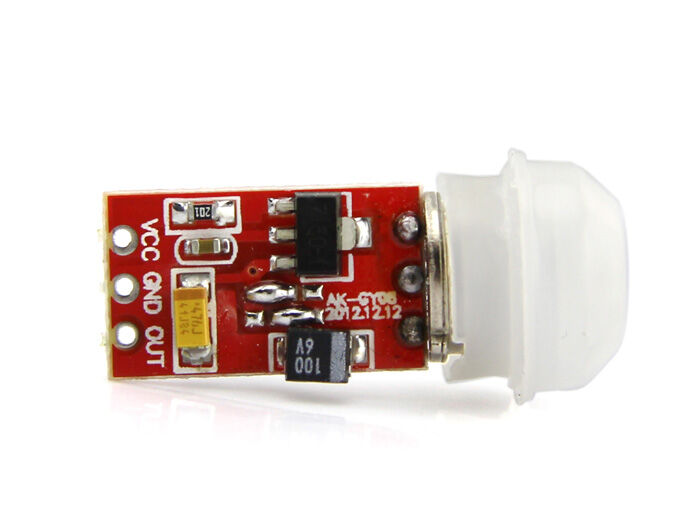

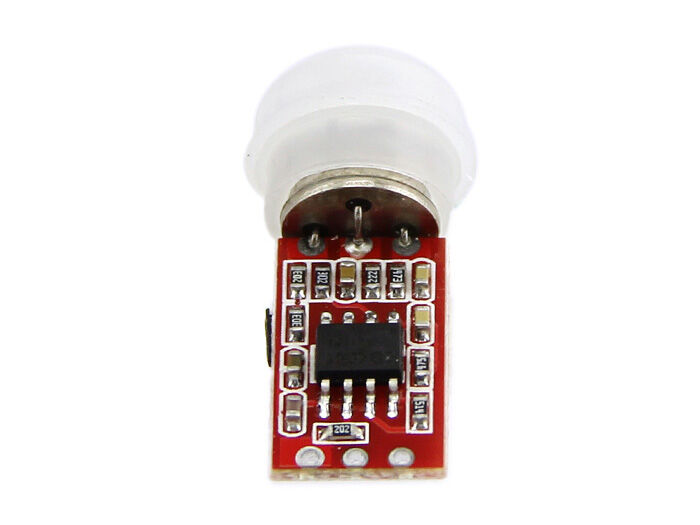

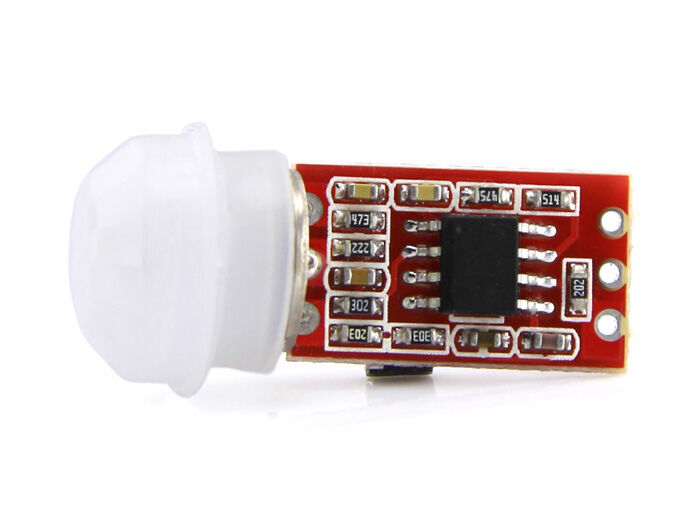

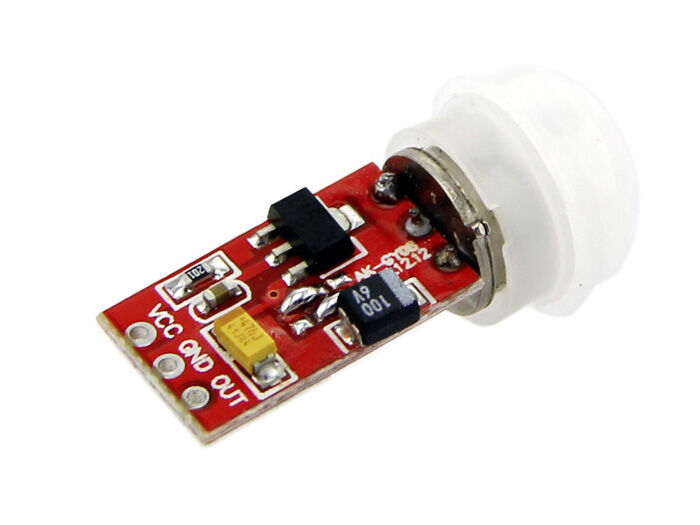

Mini PIR Motion Sensor Module

Description

This is a mini passive infrared sensor that it can sense movement of people, animals, or other objects. It features high sensitivity and instant reaction, commonly be used in burglar alarms and automatically-activated lighting systems.

The PIR Motion Sensor Series includes several products that will meet your different needs:

Want to know more about how the PIR sensor works with  Arduino and Raspberry pi, please click here to view the blog. If you need tutorials for operating the sensor, please click here to view the wiki.

Features

• High sensitivity

• Instant reaction

• Low quiescent current

• Compact layout design

Specifications

• Input voltage: DC 3-6V

• Quiescent current: < 55uA

• Detecting angle: < 100degree

• Detecting distance: approx.7m/23 feet

• Level output voltage: 3V/high, 0V/low

• Trigger signal: High

• Holding time: 20s

• Operating temperature: -10-40℃

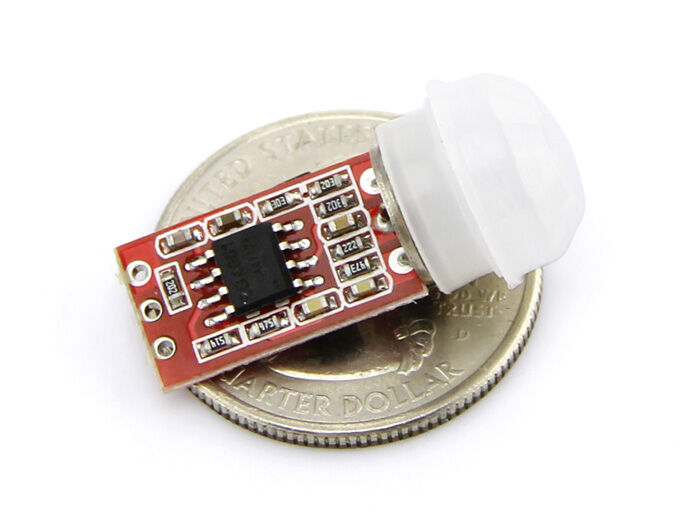

• Dimensions: 28 x 13 x 13mm
