Description

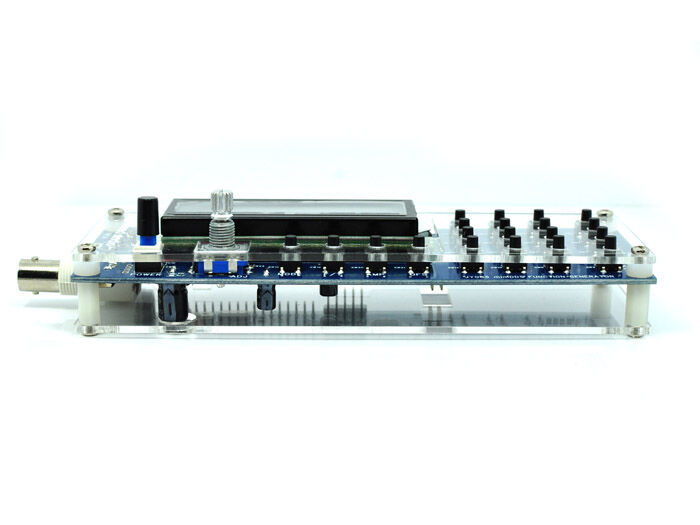

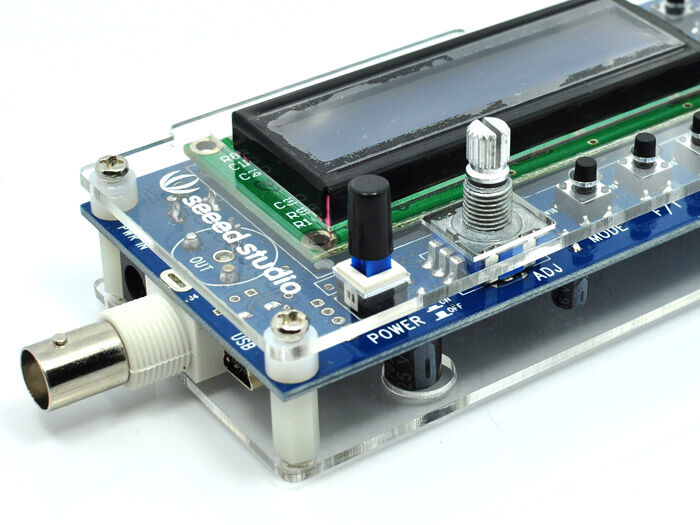

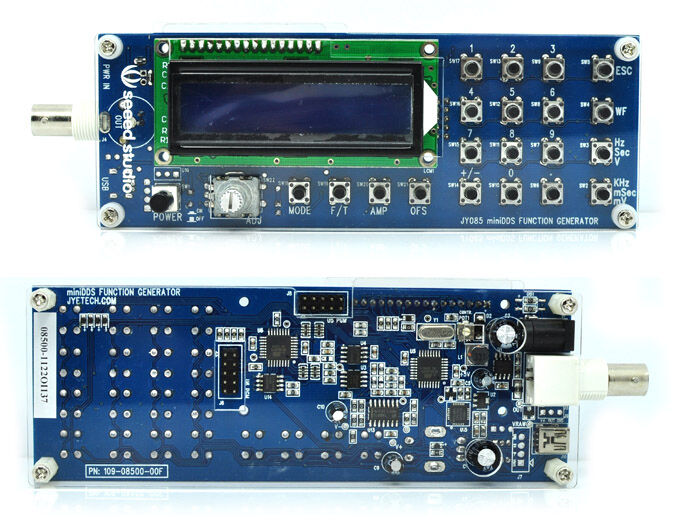

This is a low cost yet versatile function generator capable of producing many different waveforms. As an easy-to-use tool operation of FG085 is very simple and straightforward. It is an ideal test/experiment tool for electronics hobbyists and students.
Specification
- Frequency range: 0 – 200KHz (Sine)
- Frequency resolution: 1Hz
- Period resolution: 1ms
- Amplitude range: 0 – 10V peak-to-peak
- Offset range: -5V – +5V
- Memory depth: 256 bytes
- Sample rate: 2.5Msps
- Output impedance: 50 ohm
- Power supply voltage: DC 15V
- Current consumption: < 150mA (without loading)
- Dimension: 155 X 55 X 30 mm
- Net weight: 100 gram
Features implemented as of current firmware
- Generating continuous Sine, Square, Triangle, Ramp (up and down), and Staircase (up and down) signals
- Generating servo test/control signals with user defined pulse width, amplitude, and cycle [ NEW ]
- Setting of frequency (or period), amplitude, and offset is done with digits – quick and straightforward
- Frequency (period), amplitude, and offset can be incrementally adjusted up and down with rotary encoder
- Settings are memorized after power down.
- Can be used as an adjustable DC voltage source by setting amplitude to 0
Features to be implemented (hardware support already in place)
- Generating arbitrary signals
- Generating special test signals NTSC/PAL video synchronous signal, and more
- Generating sweeping signal with continuous phase
- USB connection for waveform download and control
- Programmable frequency, amplitude, and offset
- Synchrous output
- Burst output at trig
