Description
Note
We have released the Raspberry Pi High Quality Camera and this lens is supported by this camera.
Features
- High Level of zoom for macroscopic applications
- Adjustable magnification ring up to 300x
- Thumbscrew Adjustment for easy fitting
- Front and back covers for protection
Description

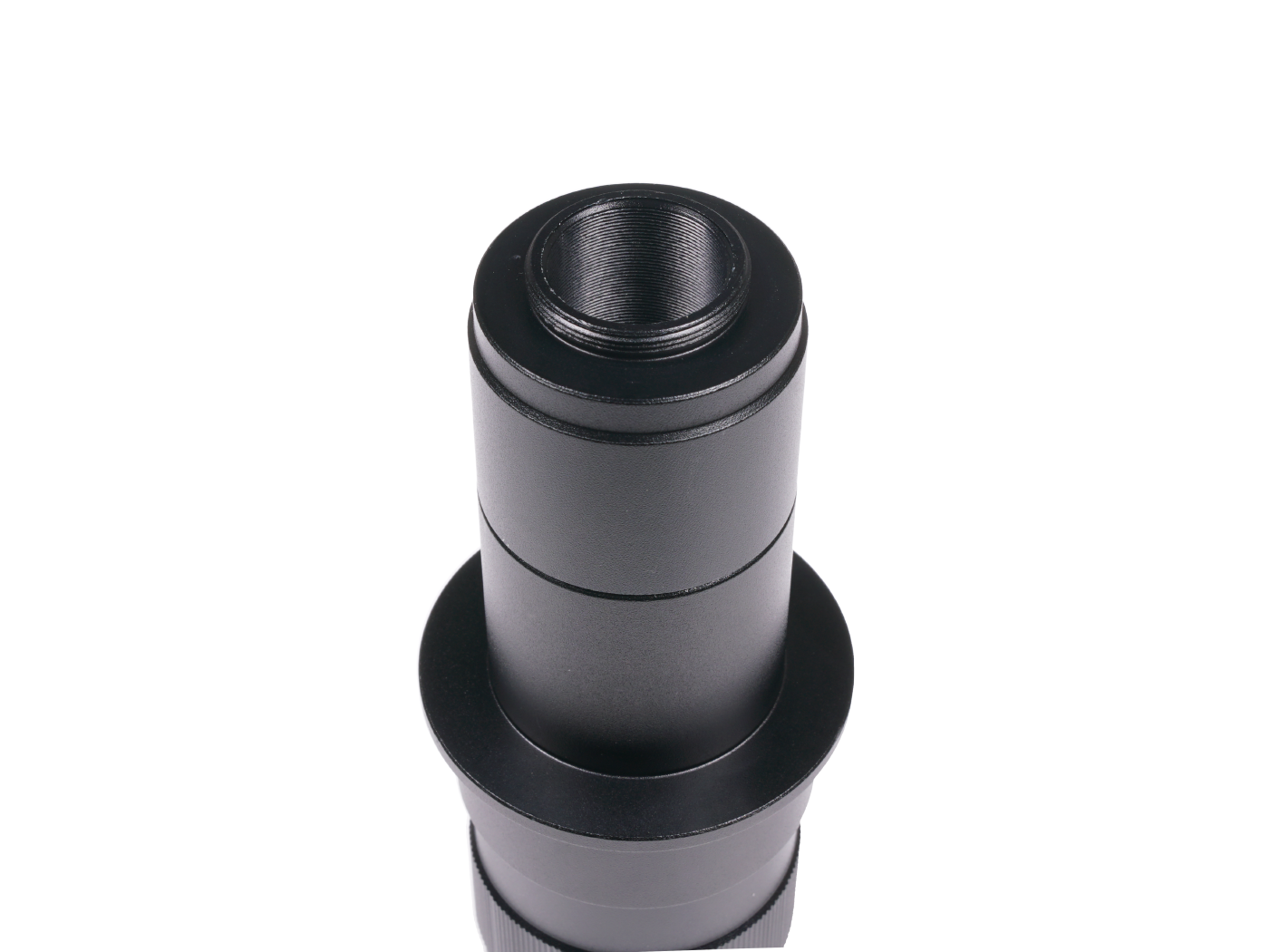

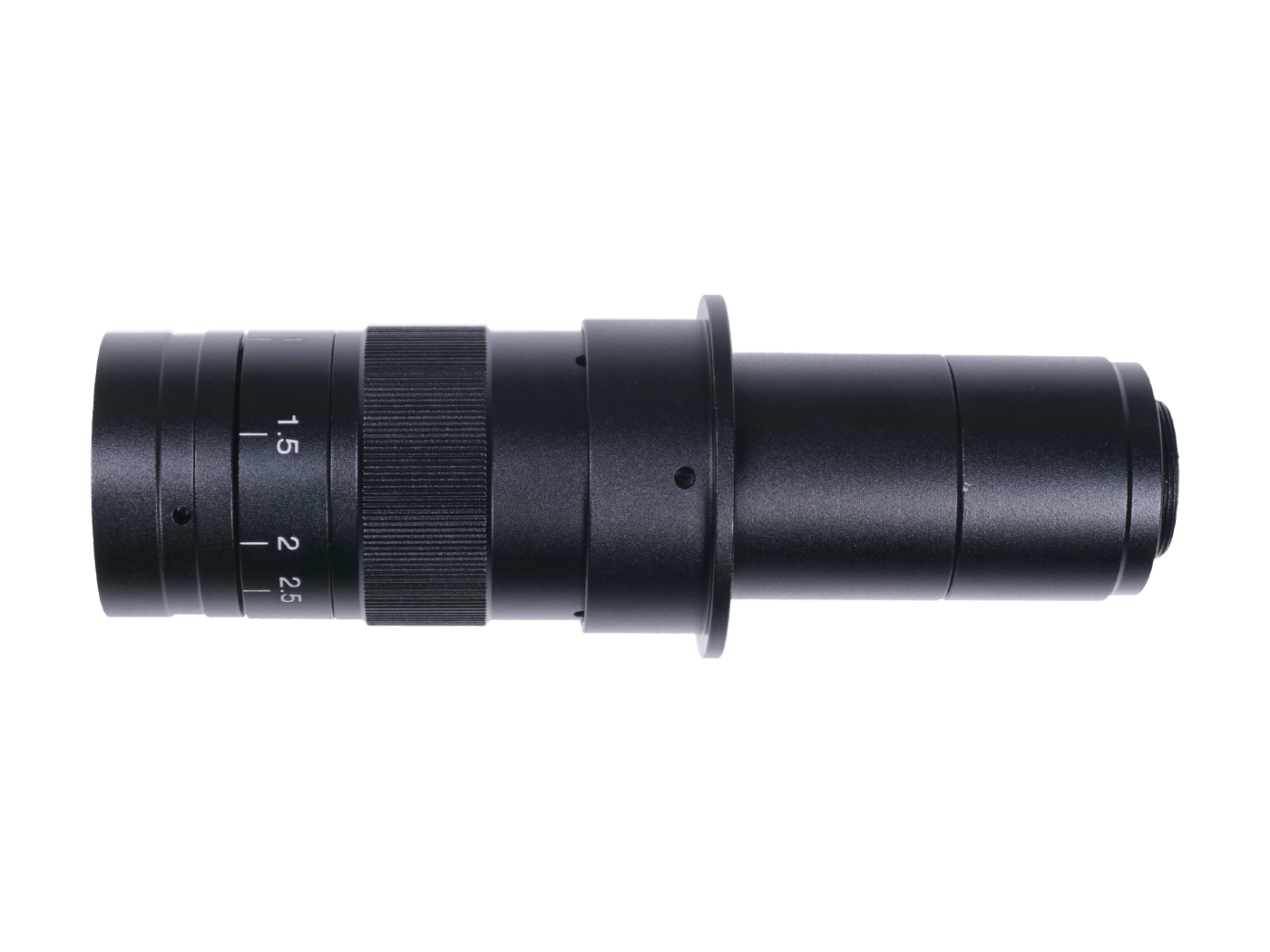

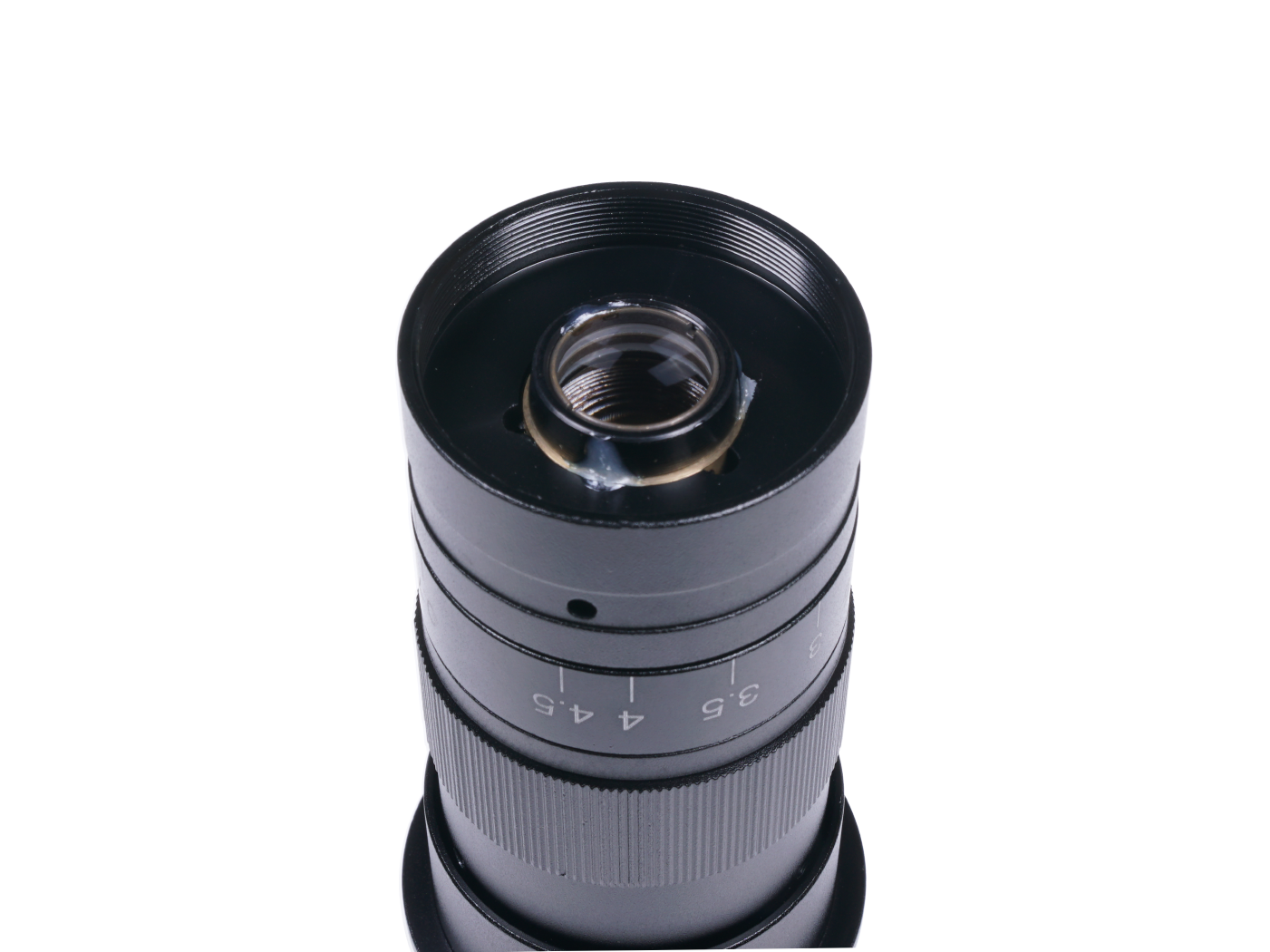

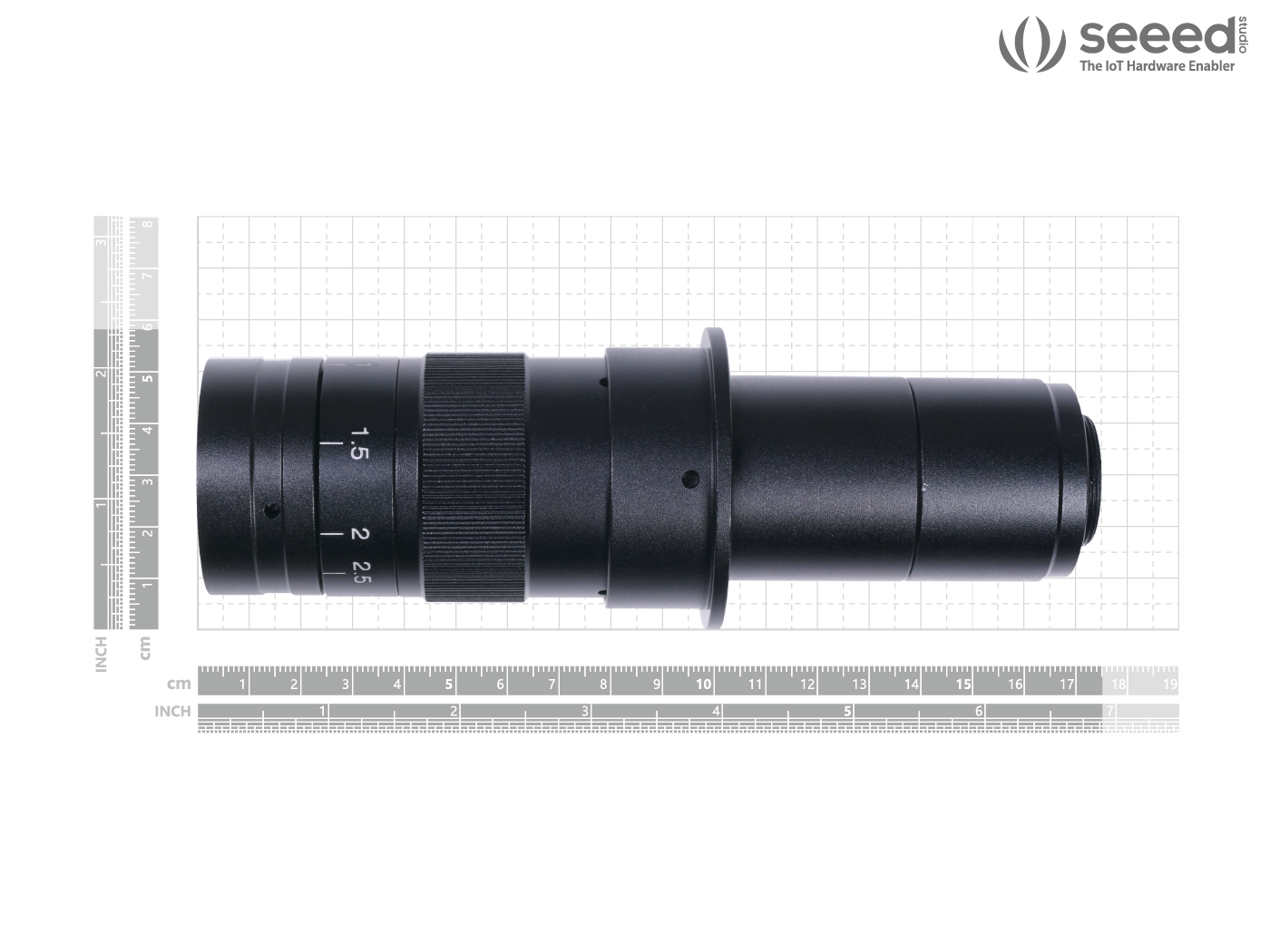

This is a 300x Microscope Lens which is suitable to use with the Raspberry Pi High Quality Camera. It has a high level of zoom and can be used for macroscopic applications. t has an adjustment magnification ring whoch supports magnification up to 300x. The lens can be easily screwed into the Raspberry Pi High Quality Camera. Also, it comes with front and back covers for protection when it’s not in use.
Comparison of different lenses compatible with Raspberry Pi High Quality Camera
| 113990818 | 101990643 | 114992274 | 114992275 | 114992276 | 114992278 | |
|---|---|---|---|---|---|---|
| Image Format | 1/2″ | 1″ | 1/2″ | 1/2″ | 1″ | 1/2.3″ |
| Focal Length | 6mm | 16mm | 25mm | 35mm | 50mm | 8-50mm |
| Resolution | 3 Megapixel | 10 Megapixel | 10 Megapixel | 10 Megapixel | 8 Megapixel | 3 Megapixel |
| Aperture | F1.2 | F1.4 to F16 | F1.4 to F16 | F1.7 to F16 | F1.4 to F16 | F1.4 to F16 |
| Mount Type | CS | C | C | C | C | C |
| Angle of View | 63° | 1″ 44.6°× 33.6° 2/3″ 30.0°× 23.2° 1/1.8” 24.7°× 18.6° 1/2″ 21.8°× 16.4° |
19.6° | 14.3*10.7° | 14.5*10.9° | Wide: 41.8°x30.8° / Tele: 6.42°x4.80° |
| Minimum Object Distance | 0.2m | 0.2m | 0.3m | 0.35m | 0.5m | 0.5m |
Parts List
1 x 300X Microscope Lens for Raspberry Pi High Quality Camera with C Mount
