MCX Probe Kit (X1 X10) for DSO Quad

Description

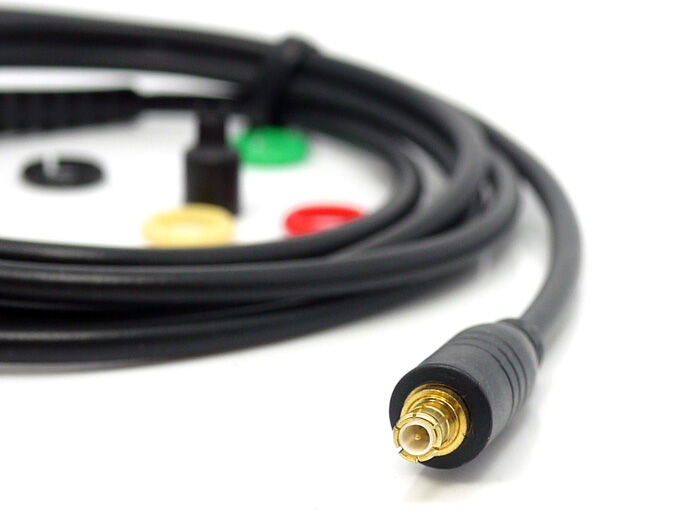

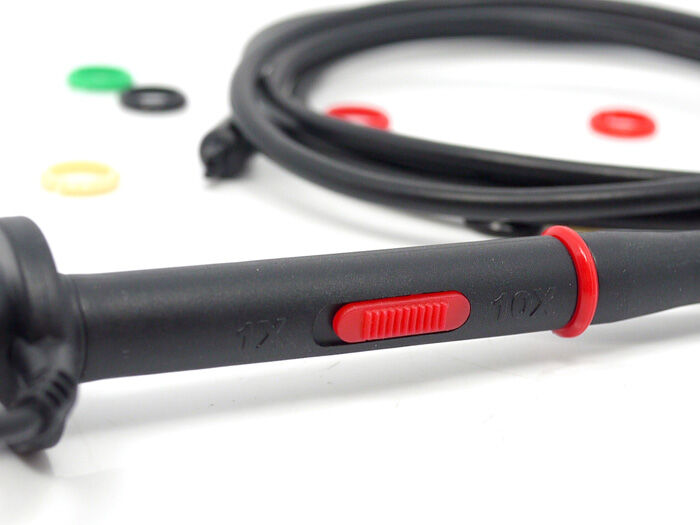

This MCX Probe kit is designed for use with our DSO Quad. It includes a 60MHz professional probe with hook and tip as well as ground lead and marker ring.  There's also a switch for you to shift from X1 mode to X10 mode.

Specification

• Oscilloscope input capacity  10pF – 40pF

• Attenation  1:1   10:1

• Input capacity  98pF ±10% @1:1,  33pF ±4PF @ 10:1

• Internal resistance  12Ω±10% @1:1 9MΩ ± 1％ @10:1

• Bandwidth  20MHZ(±3dB)@1:1  60MHZ(±3dB)@10:1

• Max input voltage 600V(AC p-p) or 200V(DC+AC p-p)
