Description
Feature
- Plug-and-play LTE Cat 4 wireless communication module: Support 2G/3G/4G communication, mounted with standard mini PCIe, ready to use
- Broad network Compatibility and Applicability: Supports various mobile communication network technologies, including LTE-FDD, WCDMA
- Built-in multiple GNSS: Includes GPS/GLONASS/BDS/Galileo/QZSS. Satisfies the need for fast and accurate positioning in different environmental conditions.
- Low Power Consumption: The power consumption of the sleep model is as low as 1.67 mA, and Idle power consumption as low as 18.51 mA
- Support EMEA/Southeast Asia operators
Description

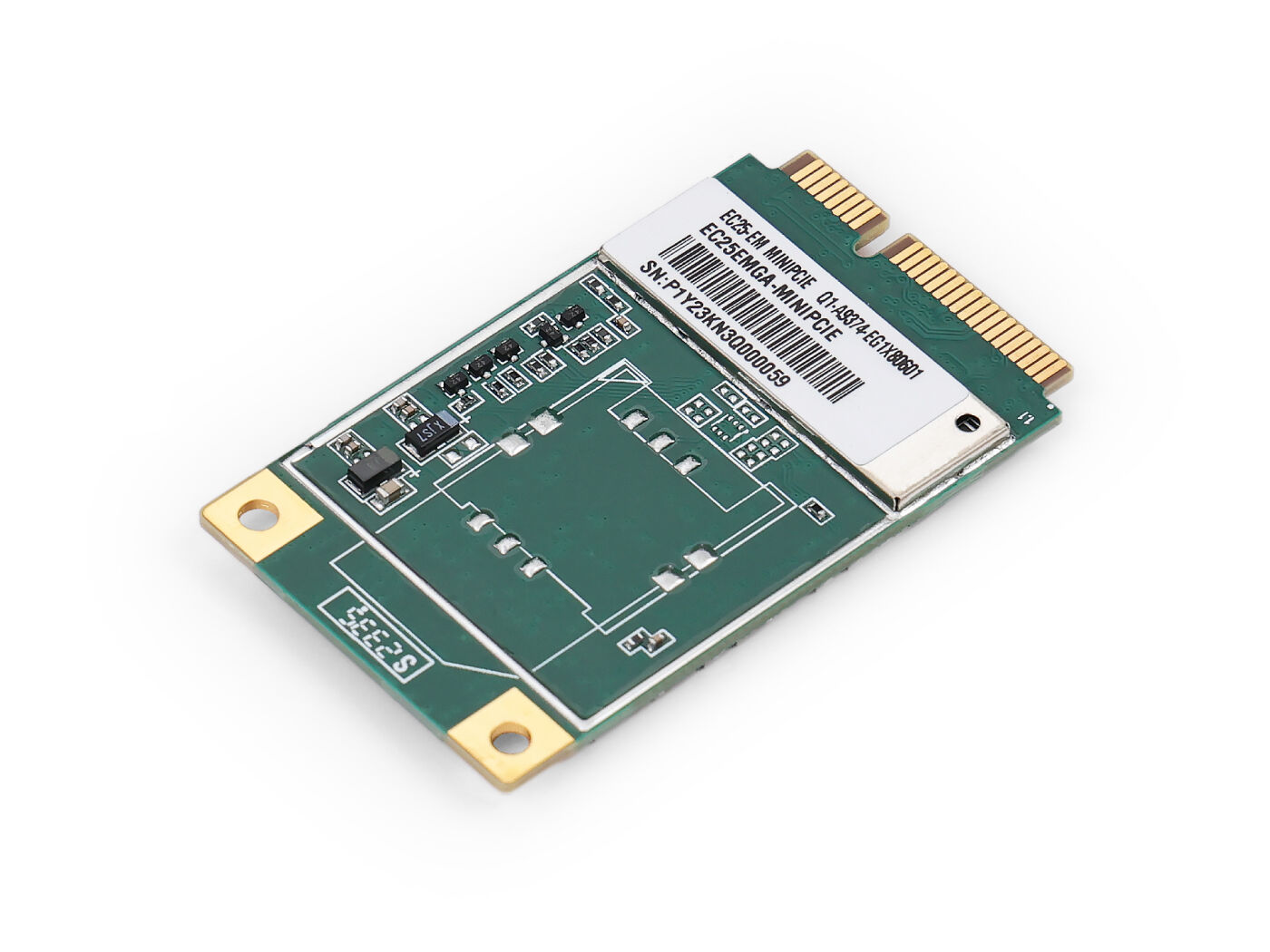

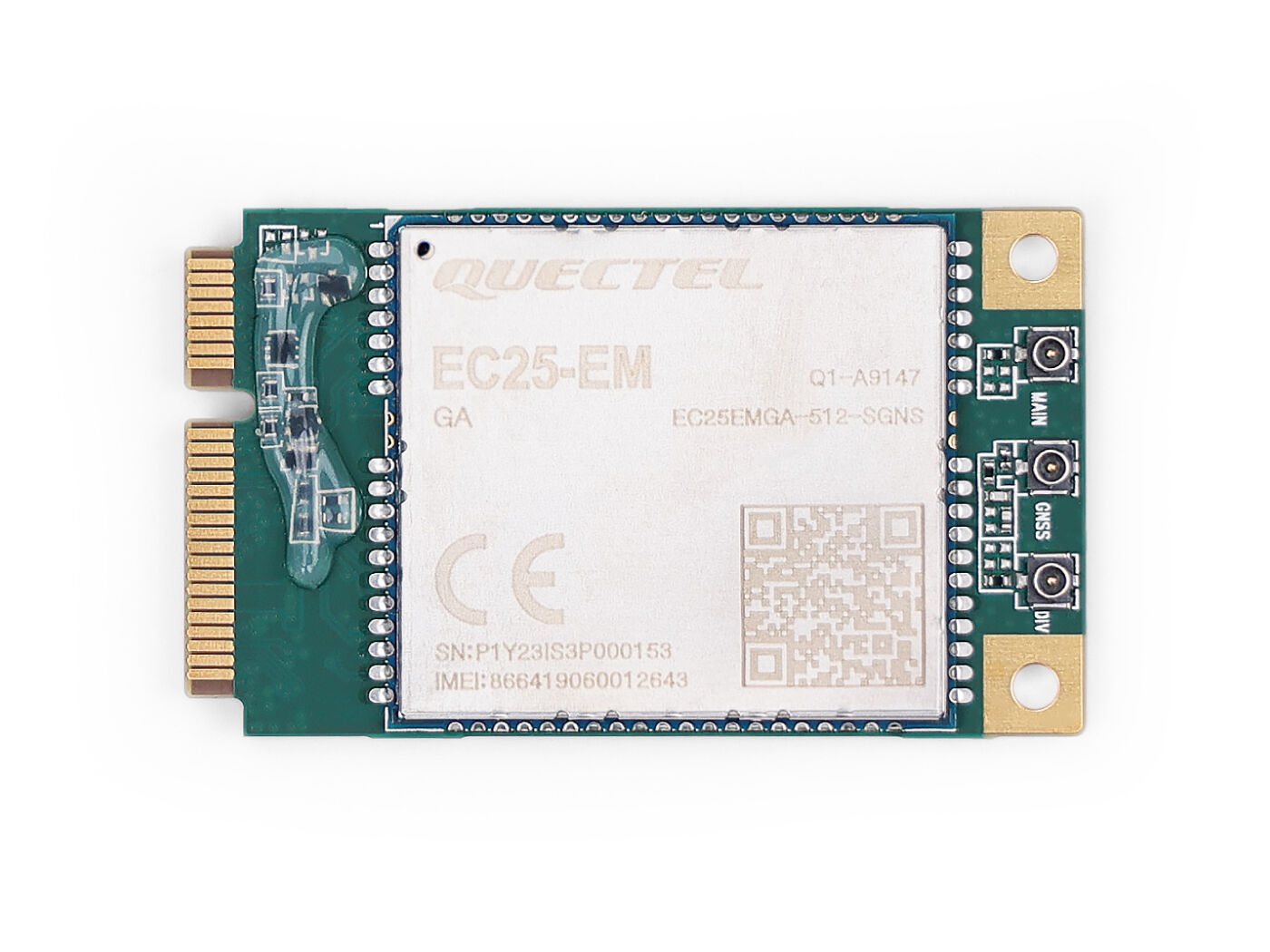

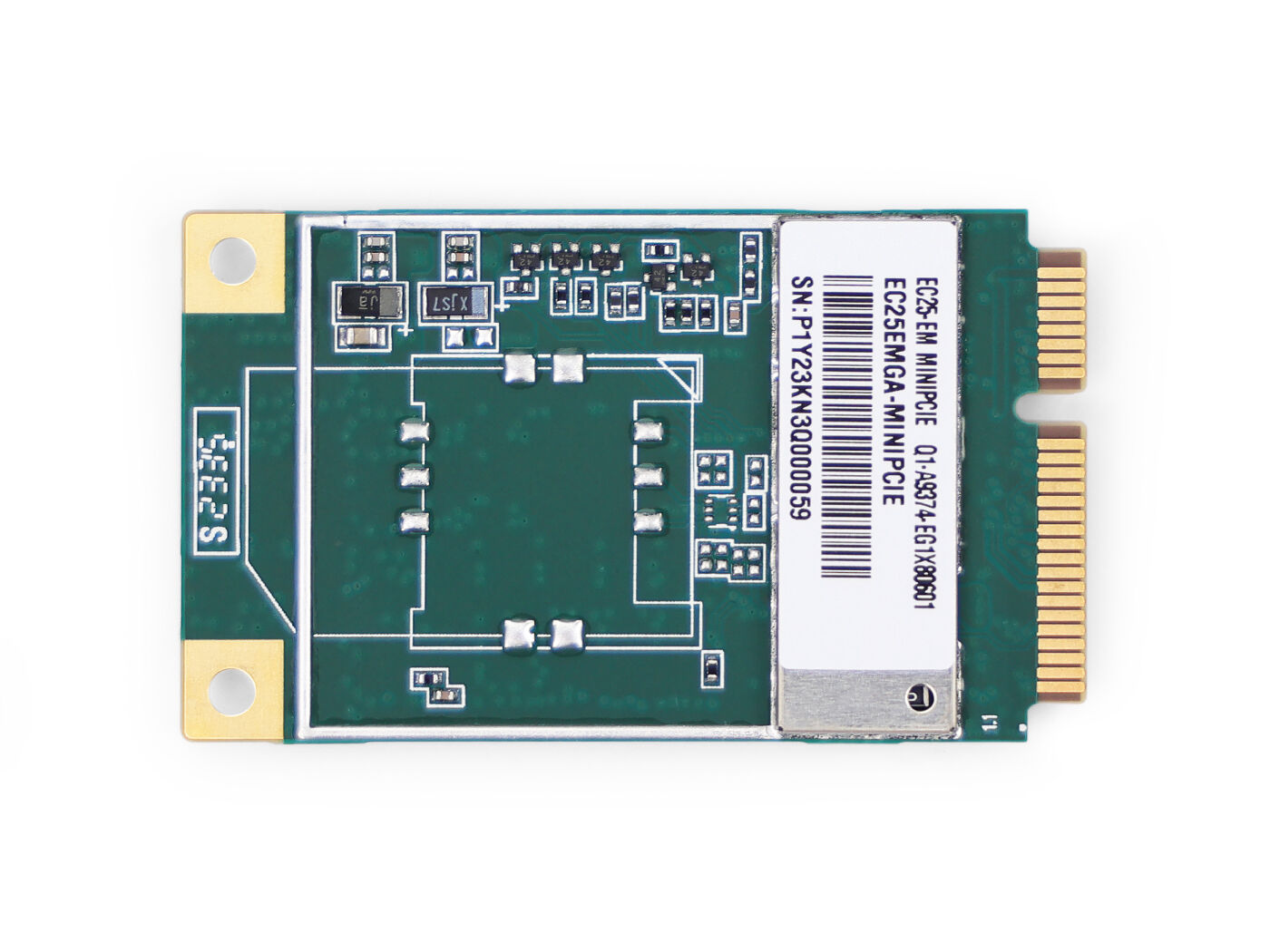

The LTE Cat 4 EC25-EMGA-mini-PCIe is a Mini PCIe module from Quectel designed for M2M and IoT applications. It features PCI Express® Mini Card standard interface and supports EMEA/Southeast Asia operators. It is suitable for LTE network connections that require stability and reliability.
This module supports multiple mobile communication network technologies, including LTE-FDD and WCDMA. LTE-FDD is the mainstream mobile communication technology standard of the 4G era, while WCDMA is the mainstream mobile communication technology of the 2G and 3G eras. This module ensures normal operation even in remote areas without 3G and 4G networks.
Based on Qualcomm’s advanced IZat™ positioning technology (Gen8C Lite), LTE Cat 4 EC25-EMGA-mini-PCIe integrates multiple types of GNSS receivers, supporting GPS, GLONASS, BDS, Galileo, and QZSS positioning technologies, enabling faster, more accurate, and more reliable positioning.
The LTE Cat 4 EC25-EMGA-mini-PCIe integrates multiple industry standard interfaces and supports various drivers and software functions (such as USB to the serial port driver under operating systems such as Windows 7/8/8.1/10/11, Linux, Android, etc.). It can be applied to Raspberry Pi-powered HMI reTerminal DM – Seeed Studio and EdgeBox RPI 200 Edge Computing Controller with 4GB RAM, 32GB eMMC and 2.4/5GHz WiFi – Seeed Studio
Application
- Industrial Router
- Smart Home
- Industrial Automation
- Green Energy
- Smart security
- Mobile gateway
- Personal tracking
- Environmental monitoring
Specification
|
Specification |
Value |
|
Cellular technology |
LTE Cat 4 |
|
Region/Carrier |
EMEA/Southeast Asia operators |
|

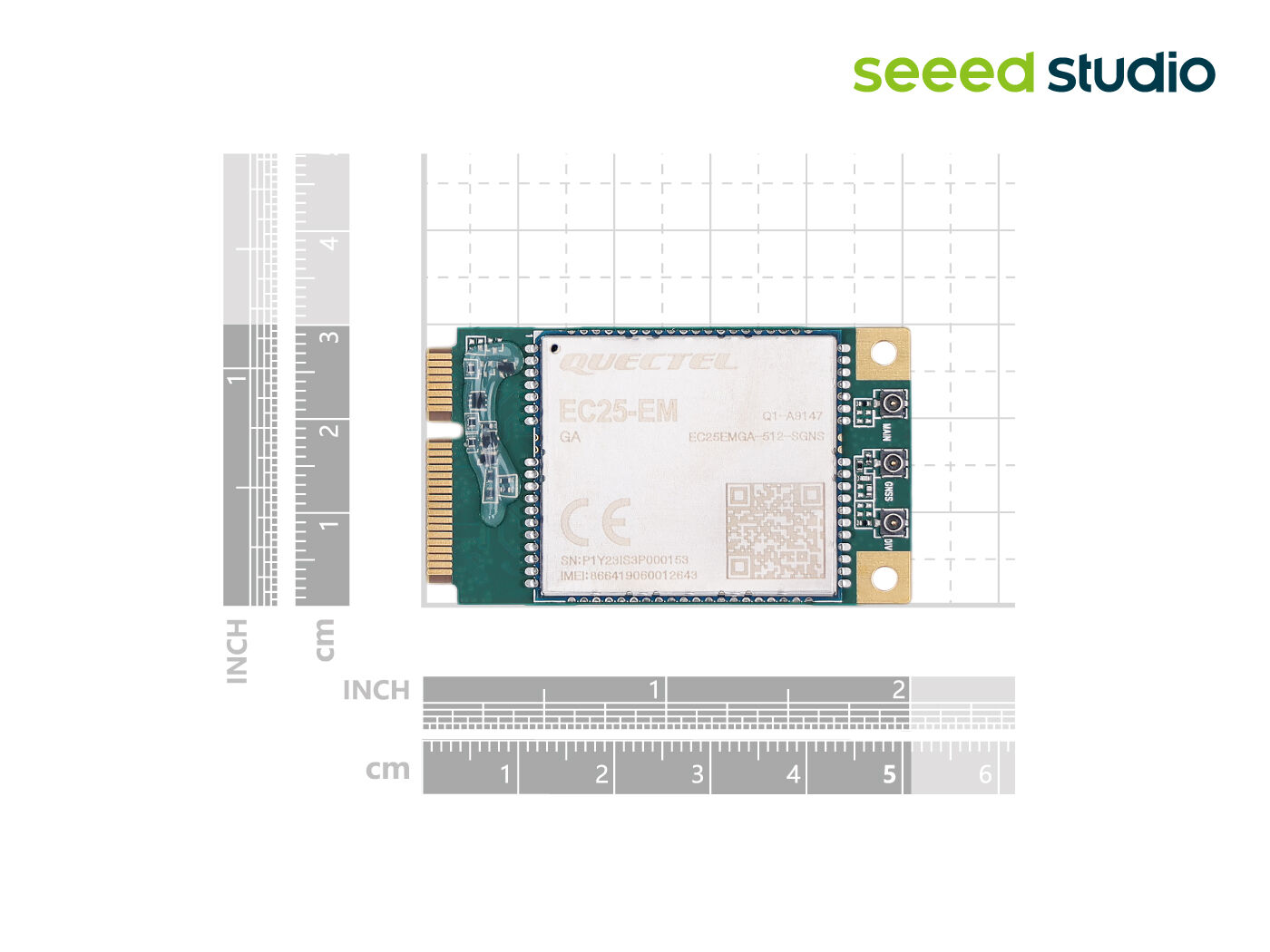

Size |
30.0 x 51.0 x 4.9 mm |
|
Temperature range |
● 35°C to +75°C (operating) ● 40°C to +80°C (extended) |
|
Frequency band Information |
LTE-FDD: B1/3/5/7/8/20/28 LTE-TDD: B38/40/41 WCDMA: B1/5/8 GSM/EDGE: B3/8 |
|
GNSS support |
GPS/GLONASS/BDS/Galileo/QZSS (optional) |
|
Carrier Certification |
– |
|
Compulsory Authentication |
Europe: CE* Australia/New Zealand: RCM* |
|
Other Certification |
RoHS/WHQL |
|
Data rates |
LTE-FDD (Mbps): 150 Mbps (downlink) / 50 Mbps (uplink) LTE-TDD (Mbps): 130 Mbps (downlink) / 30 Mbps (uplink) DC-HSPA+: 42 Mbps (downlink) / 5.76 Mbps (uplink) WCDMA: 384 kbps (downlink/uplink) EDGE: 296 Mbps (downlink) / 236.8 Mbps (uplink) GPRS: 107 Mbps (downlink) / 85.6 Mbps (uplink) |
|
Voice codecs |
HR/FR/EFR/AMR/AMR-WB |
|
Echo algorithm |
Echo cancellation/noise suppression |
|
Voice services |
Digital voice, VoLTE |
|
USB to serial port driver |
Windows 7/8/8.1/10/11, Linux 2.6~5.18, Android 4.x12.x |
|
GNSS and RIL driver |
Android 4.x~12.x |
|
USB NDIS driver |
Windows 7/8/8.1/10/11 |
|
USB GobiNet Driver |
Linux 2.6~5.18 |
|
USB QMI_WWAN Driver |
Linux 3.4~5.18 |
|
Power supply voltage |
3.0~3.6V, typical value 3.3V |
|
Power consumption (typical) |
2.3 mA (sleep), 29.65 mA (idle) |
|
Interface |
Quantity |
|
(U)SIM |
1 |
|
USB 2.0 |
1 |
|
Digital audio (PCM) |
1 |
|
I2C |
1 |
|
LED_WWAN# |
1 |
|
W_DISABLE# |
1 |
|
UART |
1 |
|
PERST# |
1 |
