Description
Features
- Average gain dBi: 3dBi
- Frequency range: 902-928MHz

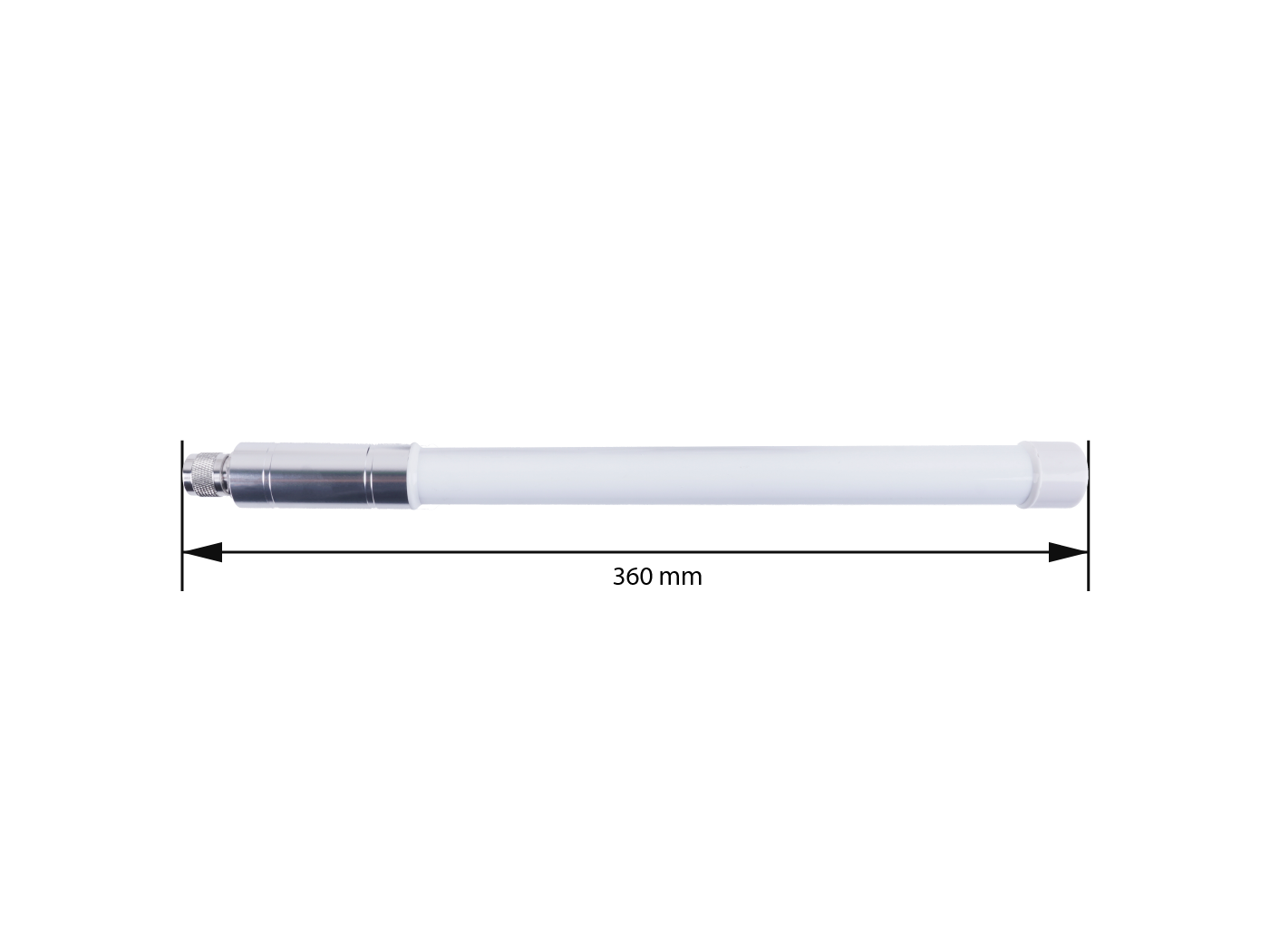

- Length: 360mm
- Robust enough to tolerate outdoor environment and water-proof
- Compatible with SenseCAP M1 Indoor Gateway
- Comes with an antenna base (no magnetic)
Description
For some applications like in an urban environment or where large stretches of land have to be monitored the normal range of Long Range might not be enough. If you need to increase the range for your Long Range devices, then this outdoor Long Range Fiberglass antenna will be the ideal addition to your Long Range system. It’s a robust solution to provide extra power and range for outdoor Long Range Base stations. The antenna has an average gain of 3dBi, a length of 360mm, and a frequency range from 902-928MHz. It comes with an antenna base as well.

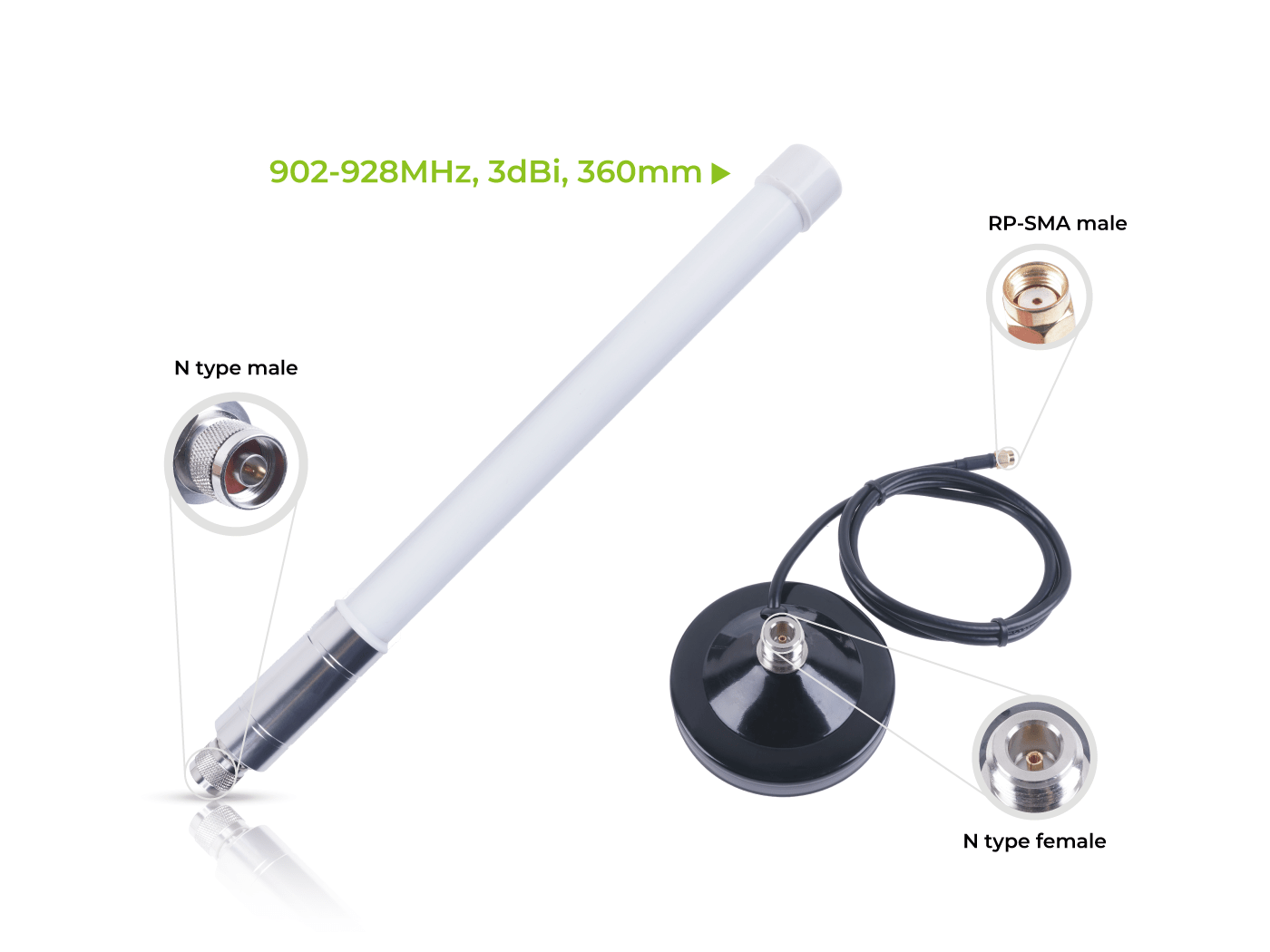

The Antenna has an N-type male connector, and it comes with an N-type Female to RP-SMA male base so it can be easily connected to the SenseCAP M1 Gateways, which has an RP-SMA female connector.
Specification
|
Frequency |
902-928MHz |
|
Impedance |
50Ω |
|
VSWR |
≤2.5 |
|
Gain |
≤3dBi |
|
Efficiency |
60% |
|
Beamwidth |
360° |
|
Connector |
N-Type Male |
|
Material |
Fiberglass |
|
Length |
360mm |
|
Operation Temperature |
-20℃~65℃ |
Efficiency And Gain
|
Frequency(MHz) |
Efficiency(%) |
Gain(dBi) |
|
902 |
79.46 |
3.07 |
|
904 |
79.73 |
3.12 |
|
906 |
80.31 |
3.18 |
|
908 |
80.93 |
3.24 |
|
910 |
80.80 |
3.25 |
|
912 |
80.54 |
3.26 |
|
914 |
80.40 |
3.27 |
|
916 |
80.92 |
3.31 |
|
918 |
80.93 |
3.33 |
|
920 |
79.85 |
3.26 |
|
922 |
79.38 |
3.26 |
|
924 |
79.16 |
3.30 |
|
926 |
78.33 |
3.26 |
|
928 |
76.70 |
3.14 |
Test Unit in Laboratory
Radiation Pattern
