Description

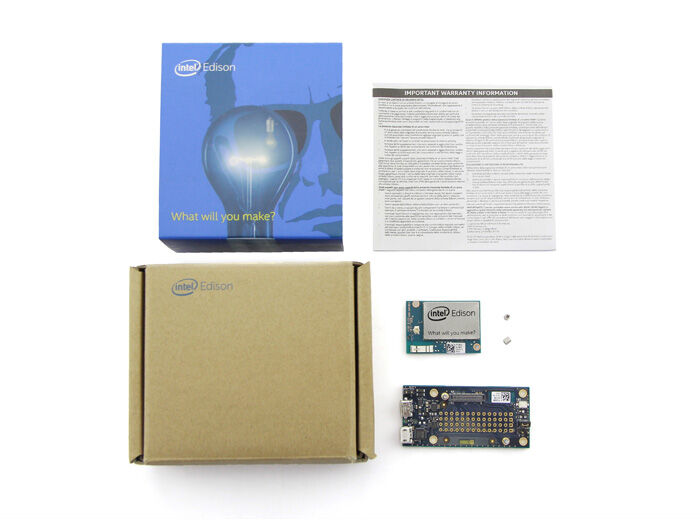

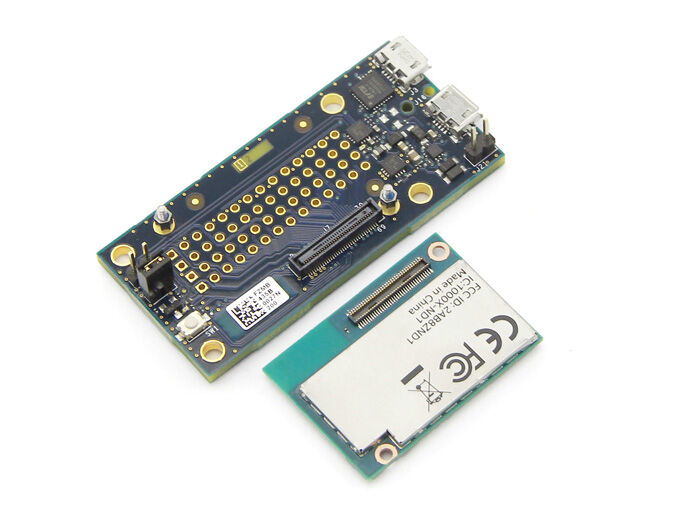

This Kit includes a tiny Edison fits nicely onto a breakout board – sort of like a tiny IoT sparrow into a very small nest, so you can expose the native 1.8 V I/O of the Edison.
And it is for non-Arduino users. This breakout board has a minimalistic set of features and is slightly larger than the Edison module.
Dimensions: 61mm x 29mm x 12mm
Features
• Uses a 22nm Intel® SoC that includes a dual core, dual threaded Intel® Atom™ CPU at 500MHz and a 32-bit Intel® Quark™ microcontroller at 100 MHz. It supports 40 GPIOs and includes 1GB LPDDR3, 4 GB EMMC, and dual-band WiFi and BTLE on a module slightly larger than a postage stamp.
• The Intel Edison module will initially support development with Arduino* and C/C++, followed by Node.JS, Python, RTOS, and Visual Programming support in the near future.
• It includes a device-to-device and device-to-cloud connectivity framework to enable cross-device communication and a cloud-based, multi-tenant, time-series analytics service.

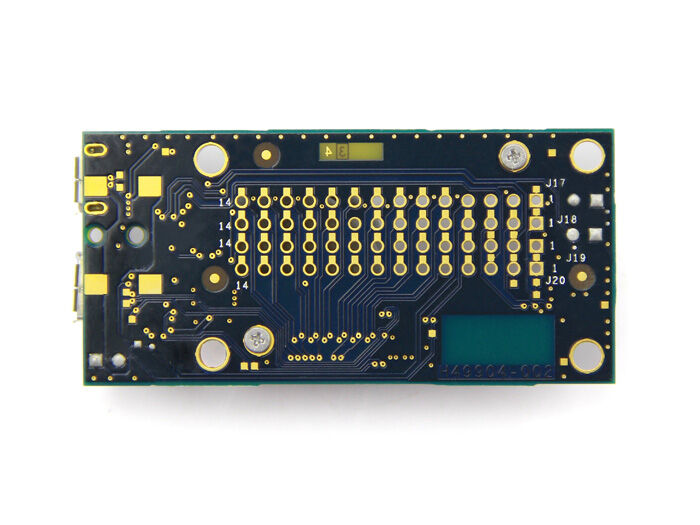

• The breakout board has exposes native 1.8V I/O of edison module. And 0.1'' grid I/O array of through-hole solder points. USB OTG with USB Micro Type-AB connector, USB OTG power switch. Battery Charge, USB to device UART bridge with USB Micro Type-B connector, DC power supply jack (7V – 15V DC input).
Specification
| Physica |
|
| Form factor |
Board with 70-pin connector |
| Dimensions |
61mm x 29mm x 12mm |
| Operating temperature |
0 to 40 degC |
| Connector |

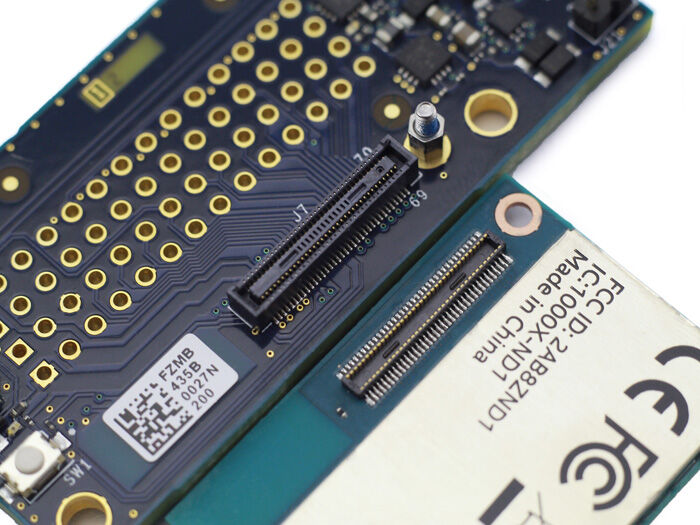

Hirose DF40 Series (1.5mm, 2.0mm, or 3.0mm stack height) |
|
Memory |
|
| Max Memory size |
4GB |
| Memory type |
DDR3, Nand Flash |
| Physical add. Ext. |
32-bit |
| # of DIMMs |
0 |
| ECC Memory supported: |
NO |
| External Interfaces |
|
| Total of 40 GPIOs which can be configured as: |
|
| SD Card |
1 Interface |
| UART |
2 Controllers |
| I2C |
2 Controllers |
| SPI |
1 Controller with 2 chip selects |
| I2S |
1 Controller |
| GPIO |
Additional 12 (with 4 capable of PWM) |
| USB 2.0 |
1 OTG Controller |
| Clock Output |
32 KHz, 19.2 MHz |
| Major Edison Components |
|
| SoC |
22nm Intel SoC includes: a dual core, dual threaded Intel Atom CPU at 500MHz, and a 32-bit Intel Quark microcontroller at 100 MHz |
| RAM |
1 GB LPDDR3 POP memory |
| Flash Storage |
4 GB eMMC |
| WiFi |
Broadcom 43340 802.11 a/b/g/n |
| Dual-band (2.4 and 5 GHz) |
|
| On board antenna or external antenna SKU configurations |
|
| Bluetooth |
BT 4.0 |
| Power |
|
| Input |
3.3V – 4.5V |
| Output |
100ma @3.3V and 100ma @ 1.8V |
| Power |
Standby (No radios): 13mW |
| Standby (BT 4.0): 21.5mW |
|
| Standby (WiFi): 35 mW |
|
| Firmware + Software |
|
| CPU OS |
Yocto Linux v1.6 |
| Development Environments |
Arduino IDE |
| Eclipse supporting: C, C++ & Python |
|
| Intel XDK supporting: Node.JS & HTML5 |
|
| MCU OS |
RTOS |
| Development Environments |
MCU SDK and IDE |
