Note
This product is a camera module without a driver board which can be attached to the Raspberry Pi Camera Module V2. It cannot be directly connected to the Raspberry Pi development board.
Description

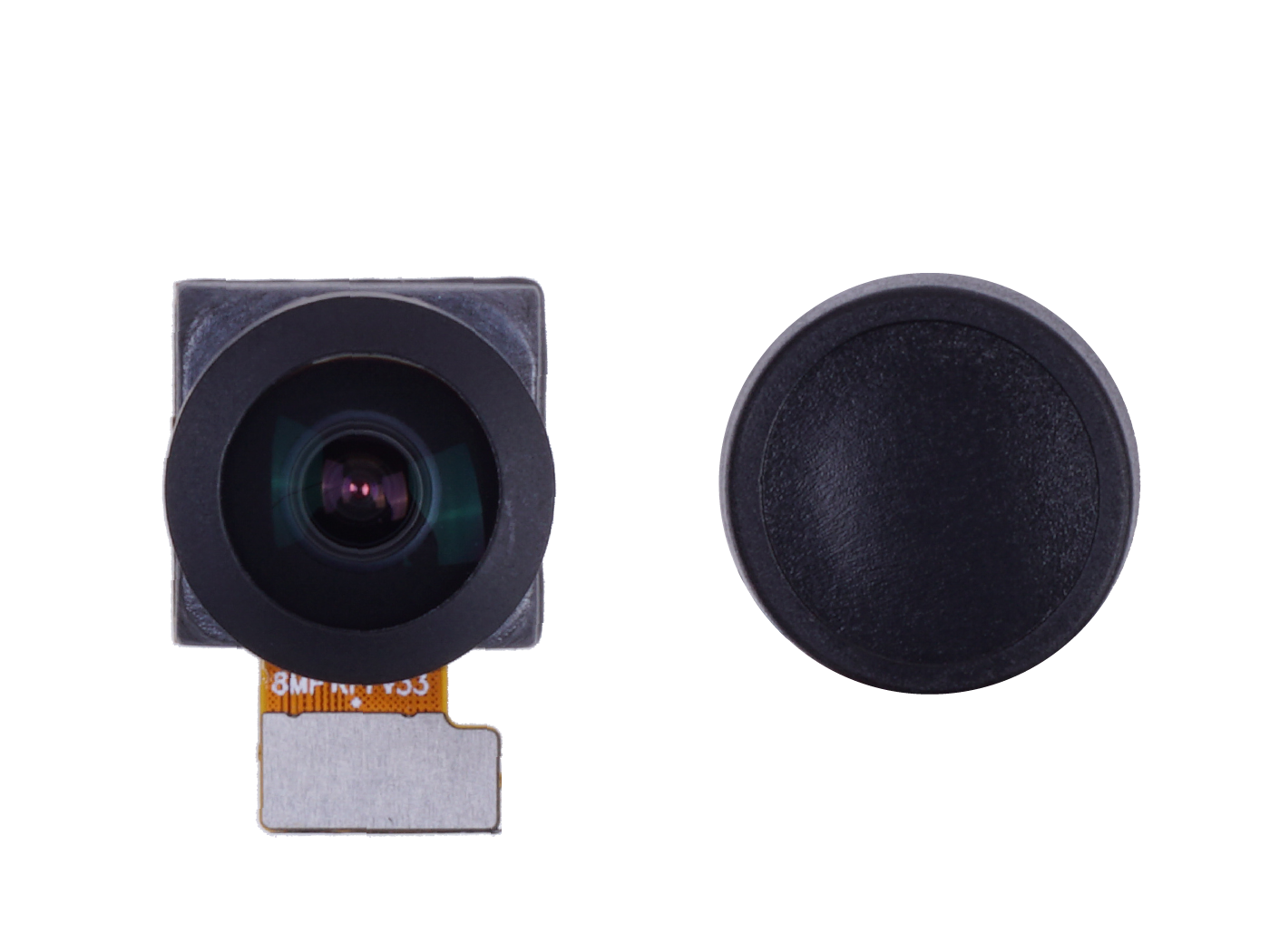

This is an 8-megapixel camera with a FOV (field-of-view) of 160 degrees, which is suitable to use with the Raspberry Pi Camera Module V2.
If you are already using the Raspberry Pi Camera Module V2 which has a FOV of 62.2 degrees and looking for a higher 160-degree FOV, this camera module will be right for you.
By using this camera module, combined with a Raspberry Pi Camera Module V2 and a Raspberry Pi, you can simply realize camera-based projects. Also, you can experience better quality video capture from this camera and build more demanding projects!
Tip
We also offer a 77-degree FOV version of this camera module! Click here to learn more
Connection

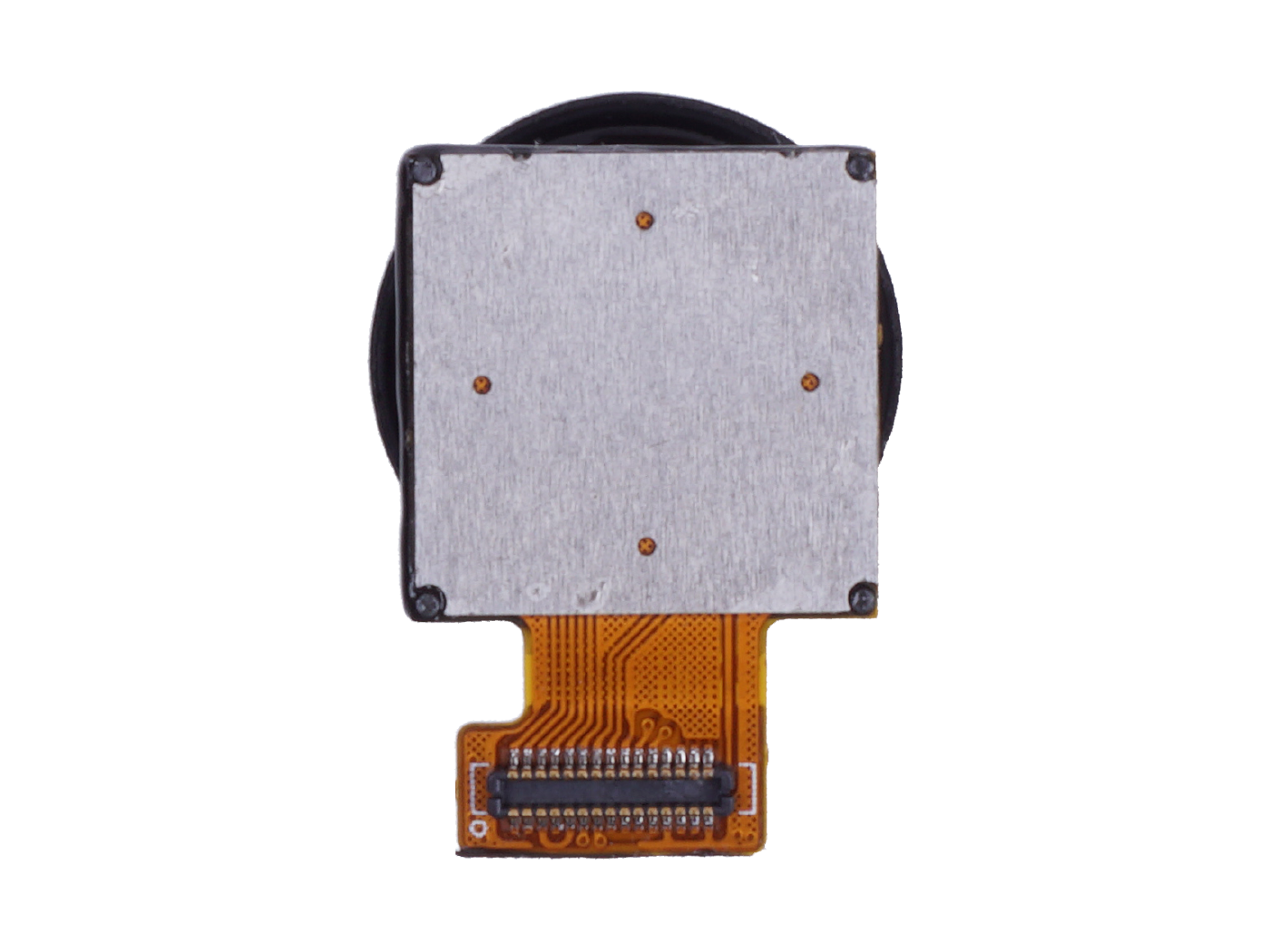

This camera can be connected to the Raspberry Pi Camera Module V2 as follows
Specifications
| Specification | Description |
|---|---|
| Megapixels | 8 Megapixels |
| Photosensitive chip | Sony IMX219 |
| CMOS size | 1/4 inch |
| Aperture (F) | 2.35 |
| Focal Length | 3.15mm |
| Field of view (FOV) | 160 degree |
| Distortion | <14.3% |
| EFL | 3.15mm |
| Depth of Field (Focusing Range) | 20cm ~ infinity |

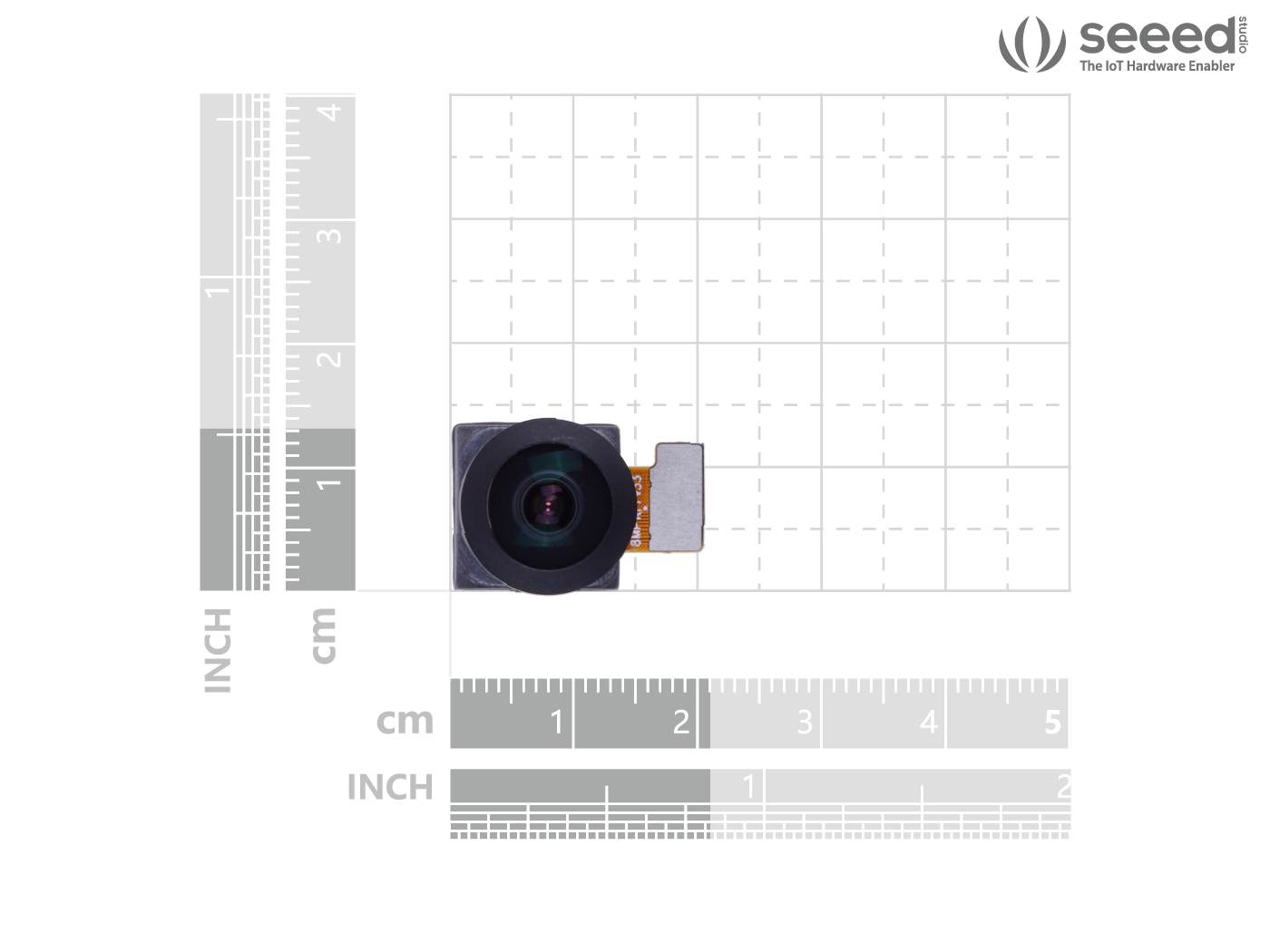

| Lens size | 6.5*6.5mm |
| Static picture resolution | 3280 × 2464 |
| Video Recording | Supports 1080p30, 720p60 and 640 × 480p90 |
| Cable Length | 8cm |
Parts List
1 x IMX219-160 Replacement Camera Module with 160° FOV for Raspberry Pi V2 Camera
