Humble PI – Prototype Board for Raspberry Pi

Description

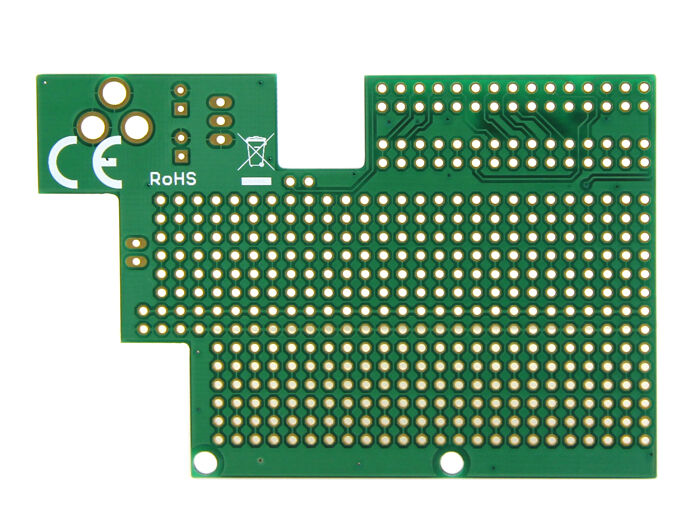

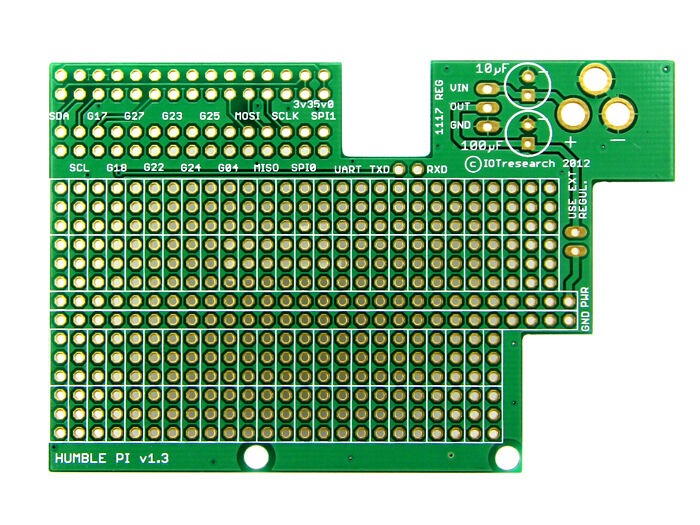

The Humble PI is a full size electronics prototyping board for the popular Raspberry Pi minicomputer. The main specifications are:

• GPIO header is broken out to twin row pads (convenient and fast access for more than single wire hookups)

• Construction is very easy (suitable even for children with basic soldering skills)

• Optional voltage regulator kit (for when you want to use power other than the Pi power)

• Pick up points for the Pi 3.3v and 5v supply (flexible options for powering your project)

• Centre power rails (perfect for powering IC's and it eliminates lots of wiring)

• 2.54mm holes arranged in 3's (a seriously convenient layout)

• Featured in popular publications (good base of knowledge around the board, such as Everyday Practical Electronic's series of projects)

• Available worldwide (many people now stock the board)

Features

• Gold plated finish (Protection against oxidization means your device will outlast normal solder finished boards)

• Comes as a complete "self solder" kit of parts

• Complete with supporting standoff

• Made in the UK

• Compatible with Raspberry Pi A+,B,B+/2.

Dimensions

• 84.6mm x 55.5mm x 11.5mm (14.9 with optional DC jack)

Documents

• Instant get started guide

• Build guide

Projects

• http://raspberrypisquared.com/how-to-bake-a-humble-pi/

• http://raspberrypisquared.com/give-me-a-slice-of-humble-pi/

• http://raspberrypi.werquin.com/post/44815465706/almost-final-hardware-with-the-humble-pi

• http://www.doctormonk.com/2012/08/review-of-raspberry-pi-prototyping.html

• http://averagemanvsraspberrypi.blogspot.co.uk/2013/08/average-mans-raspberry-pi-internet-radio.html

• http://averagemanvsraspberrypi.blogspot.co.uk/2013/08/humble-pi-excel-template.html

If you need to ask questions, please do on the forum at Openmicros.org.
