HPS-167 ToF Infrared Distance Measuring sensor(0.08-35m)

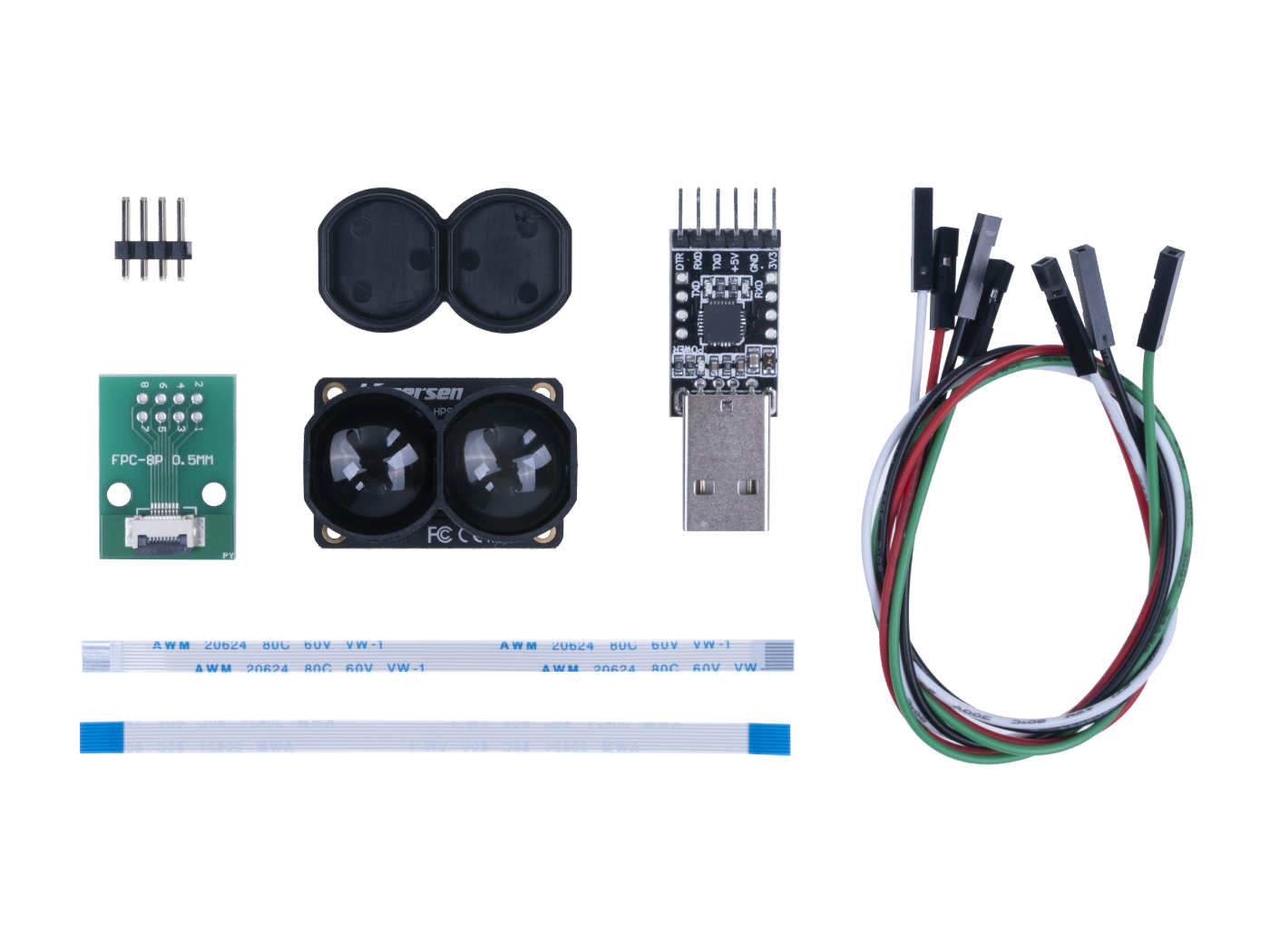

Description

HPS-167 is an upgraded ultra-high-performance
Time-of-Flight (ToF) infrared ranging sensor with
newly-designed emitting & receiving optical lens,
suitable for precise, long-distance measurements.
It provides accurate distance measurement
whatever the target color and reflectivity unlike
conventional technologies. HPS-167 can measure
absolute distances up to 35m on a white target,
setting a new benchmark in ranging performance
levels, opening the door to various new
applications.

HPS-167 integrates a high-power 850nm infrared
LED emitter and a high-sensitivity photodiode (PD)
coupled with internal physical infrared filters,
enables longer ranging distance and higher
immunity to ambient light.

Advanced embedded data processing & filtering
algorithm realizes extremely stable and real-time
measurement outputs.

Features:

• Fast, accurate distance ranging

       – Measures absolute range up to 35m (white
target) with accuracy indication

       – Adaptive output data rate up to 54Hz

       – Measuring result is not sensitive to the target
color and reflectivity

       – Embedded electrical & optical cross-talk
compensation

       – -10℃~+55℃ temperature compensation

       – Ambient light compensation enables accurate
measurement in high infrared ambient light

         levels

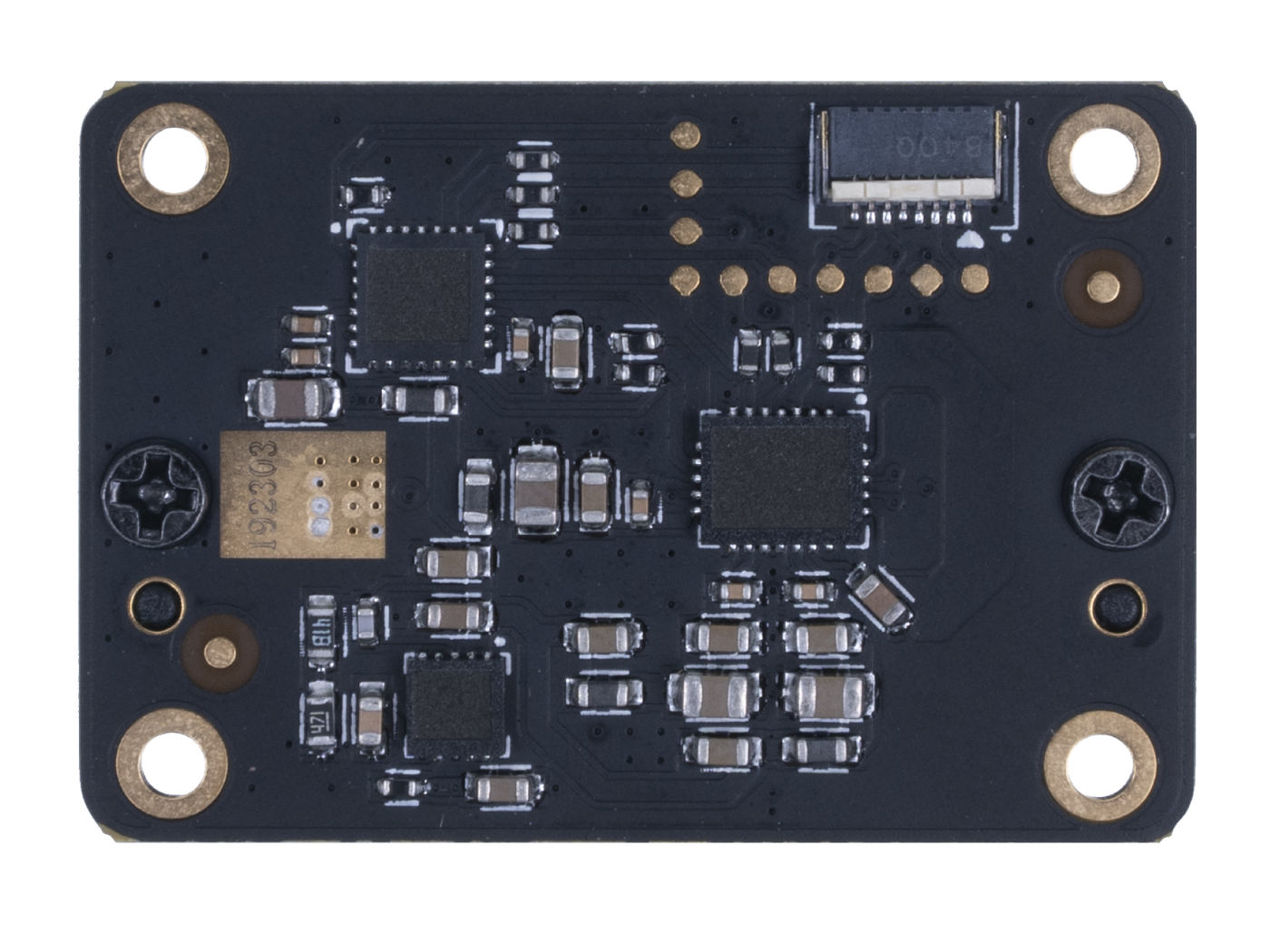

• Fully integrated miniature module

       – 850nm infrared LED emitter

       – Emitter driver

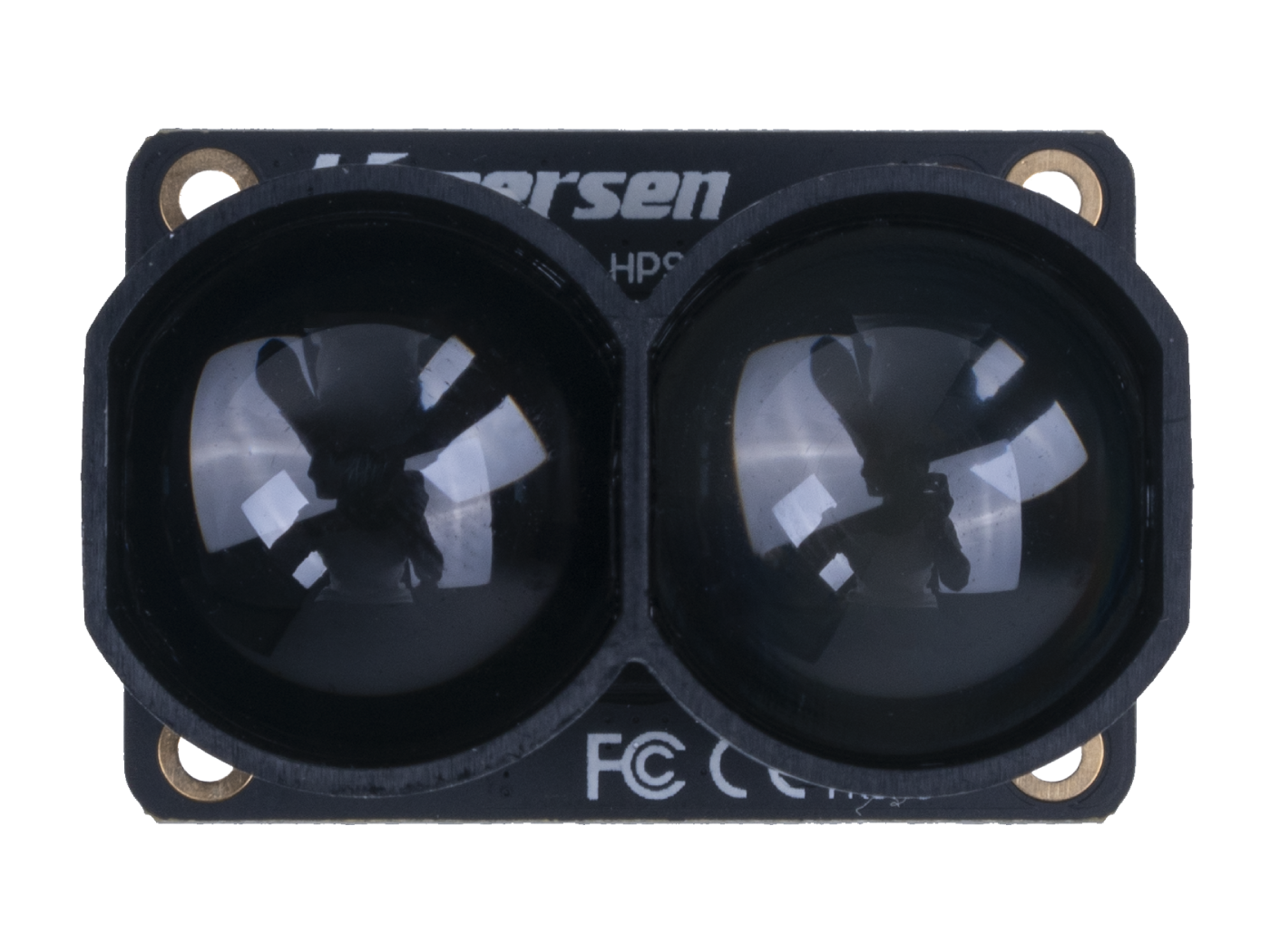

       – Integrated optimally-designed emitting &
receiving optical lens

       – Ranging sensor with advanced embedded
micro controller

       – Advanced embedded data processing &
filtering algorithm

       – 115200bps 3.3V UART interface

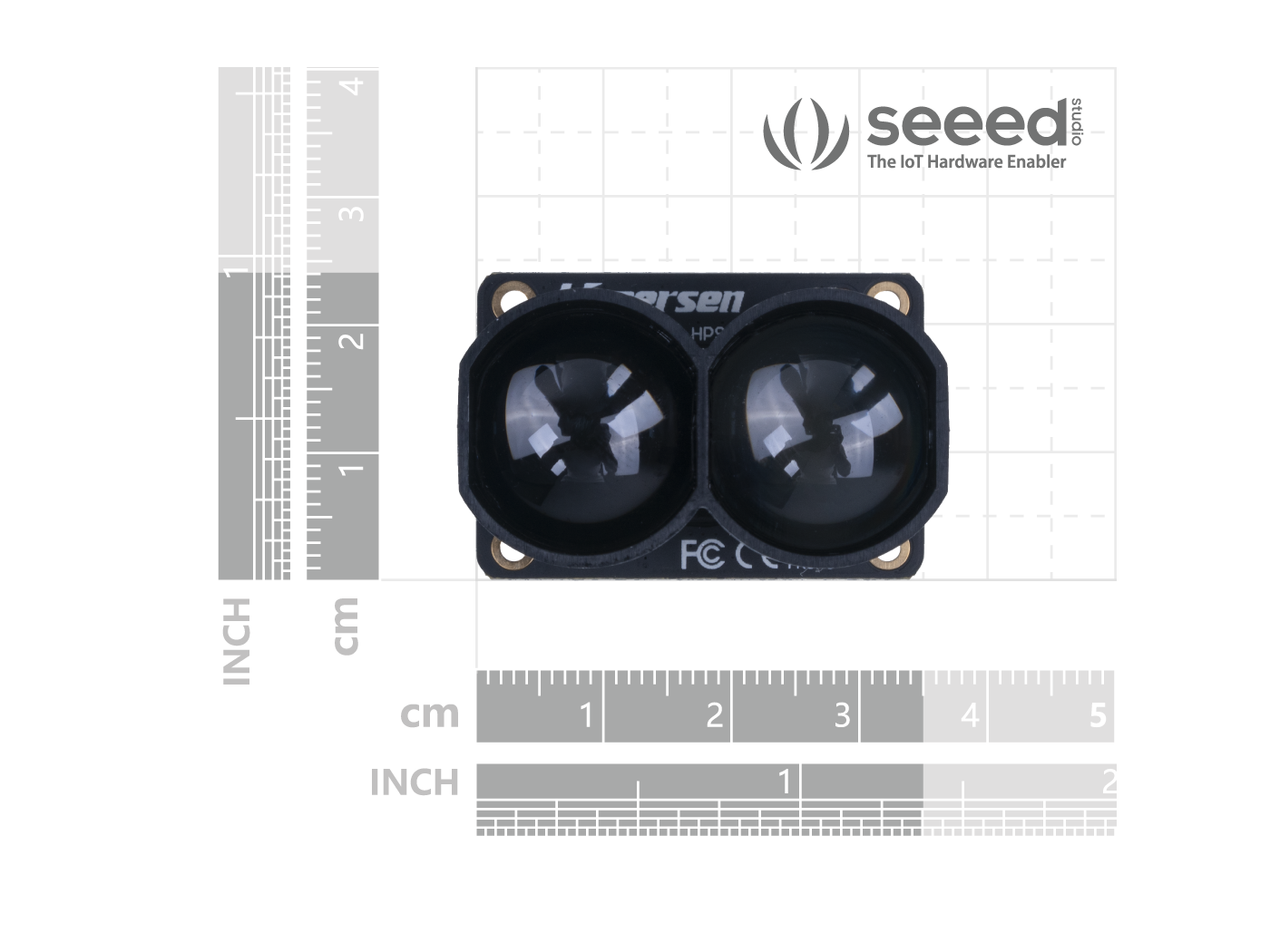

       – 35(W) x 24(H) x 21.5(D) mm, 8g

• Eye safety

       – Compliant with latest Photobiological Safety
of Lamps and Lamp Systems Standard

         IEC62471(Class 0), CE, FCC, RoHS

Mechanical drawing & device pinout

Application schematic
