Home Assistant Yellow Kit with selectable CM5/CM4 & SSD & Panel & Sensor & Actuator

Description

Note

• Seeed Studio is officially proved reseller of Home Assistant Yellow.
• The Home Assistant Yellow Kit with Power-over-Ethernet and Home Assistant Yellow Kit with Power Supply could be purchased individually.
• The 512GB NVMe M.2 PCle Gen3x4 2280 Internal SSD  and 256GB NVMe M.2 PCle Gen3x4 2280 Internal SSD could be purchased individually.
• The SenseCAP Indicator D1, 4-Inch Touch Screen and reTerminal CM4108032, 5-Inch Touch Screen could be purchased individually.

Comparison between Home Assistant Yellow’s different versions

The Home Assistant Yellow Kit with Power Supply is a smart home hub powered by Raspberry Pi CM4 that has over 2,500 built-in integrations and supports hundreds of thousands of devices and services for easy control of various aspects of your home with powerful automation capabilities, energy consumption tracking, and the latest Zigbee radio chip for smart home connectivity.

Feature

• Ready-to-use and Fully-supported Home Assistant: One software controls the integration with over 1,000 different devices and services, making it really help people control various aspects of the home like lights, thermostats, TV, music, and more.
• Powerful Automation Capabilities: Offer automation editor for customization while providing pre-made automation blueprints contributed by the Home Assistant community.
• Energy Consumption Tracking and Management: Pair with supported sensing hardware, enabling people to monitor their energy usage and trends over time.
• High Expandability and Scalability: Equip M.2 slot supporting NVMe SSD hard drive, and provide smart-home wireless that supports Zigbee 3.0, OpenThread, and Matter.
• Dual Power Supply: Support both Power-over-Ethernet power supply and power adapter.

Description

Home Assistant Yellow Kit with Power Supply is a smart home hub powered by Raspberry Pi CM4. It is a ready-to-use and fully supported Home Assistant where it has over 2,500 built-in integrations and supports hundreds of thousands of devices and services Integrations – Home Assistant, making it really help people control various aspects of the home like lights, thermostats, TV, music, and more.

This board has equipped powerful automation capabilities by offering an automation editor to users and helping them create intelligent rooms, buildings, or parks. There are also available Latest Blueprints Exchange topics – Home Assistant Community contributed by the Home Assistant community, for users directly using it.

It only requires one software to manage all the equipment. Meanwhile, there are also services that can be used in the Home Assistant Demo and automation for users to get information about the commute like the air quality in the area, or the latest currency exchange rates. Paired with supported sensing hardware, it enables people to monitor their energy usage and trends over time, offering Home Energy Management – Home Assistant and management.

The Home Assistant Yellow Kit includes the latest Zigbee radio chip from Silicon Labs, which is forward-compatible with the upcoming Matter smart home connectivity standard.

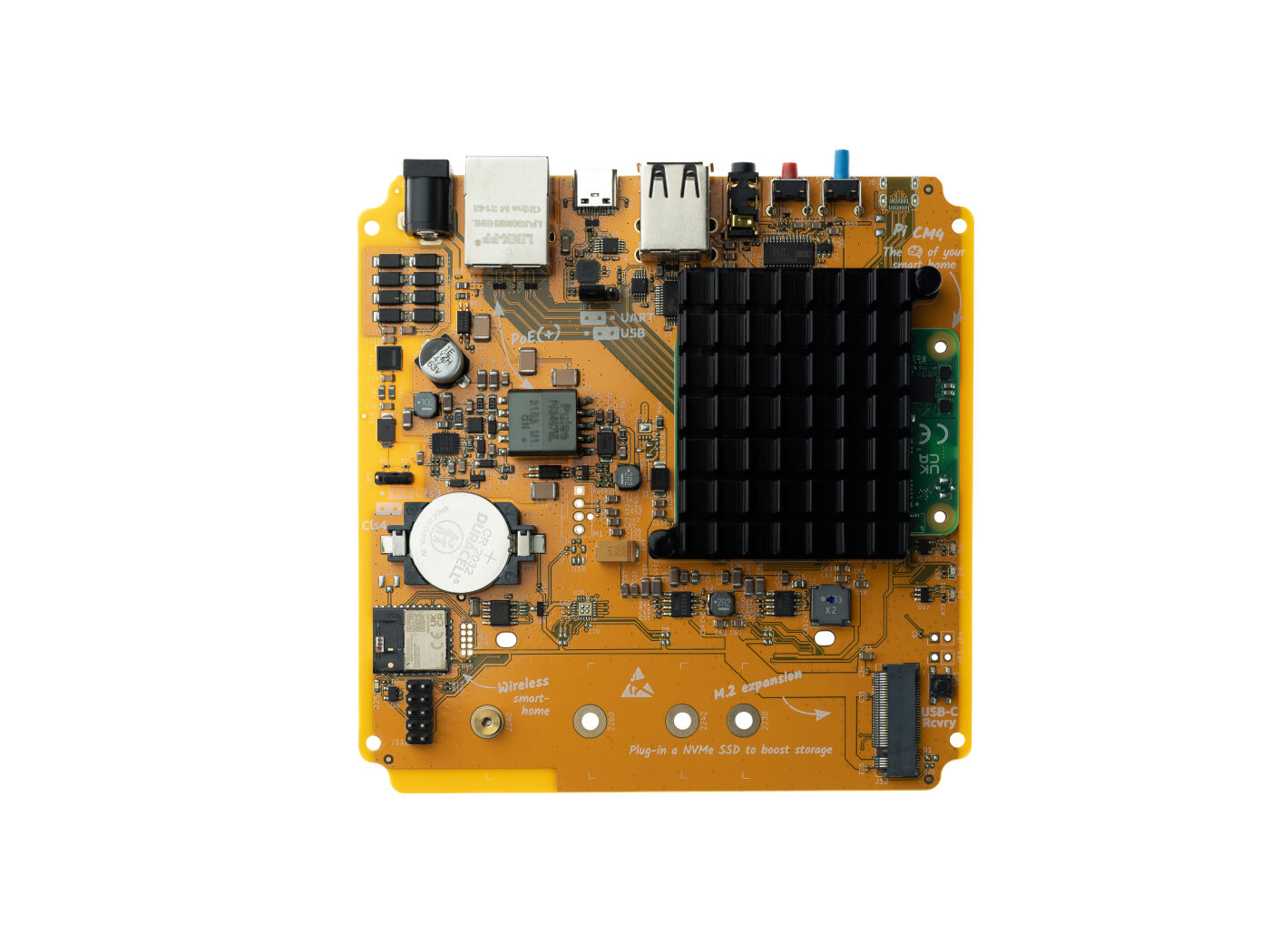

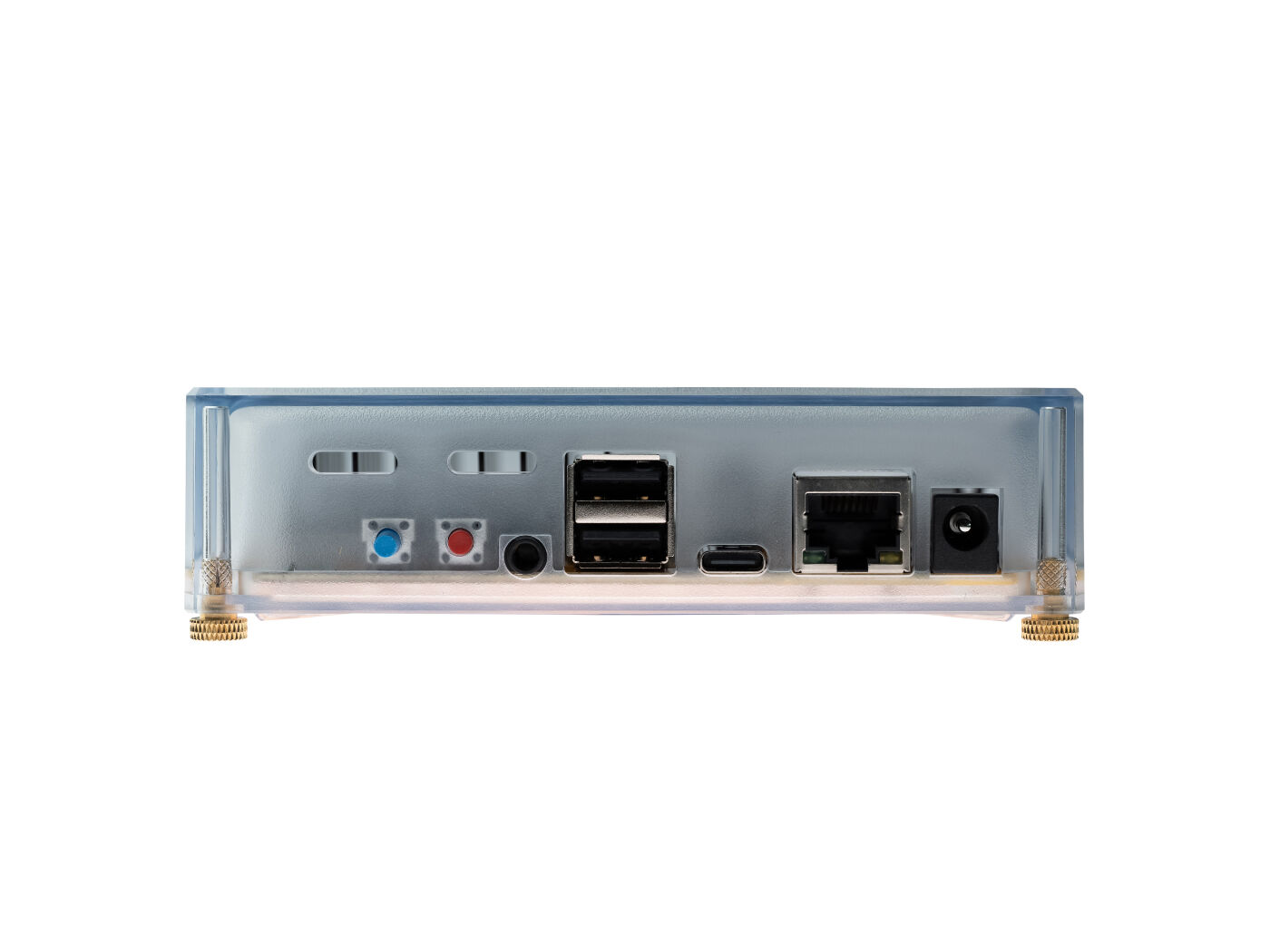

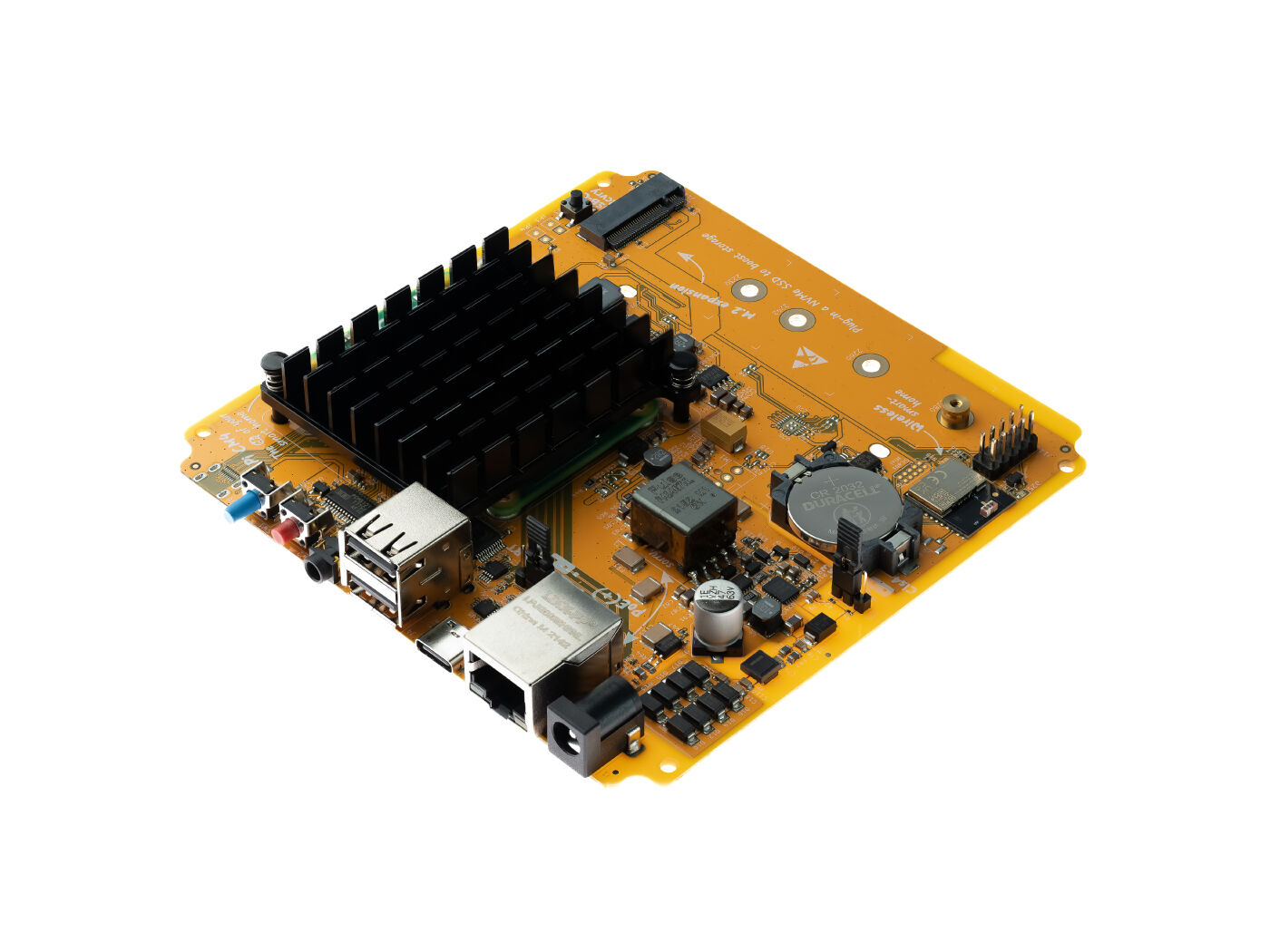

It includes an M.2 expansion port for NVMe SSD hard drive for expanding available space. It contains a gigabit Ethernet, 2 USB 2.0 Type-A host ports, and 1 USB-C 2.0 device port. It also has a high-quality stereo audio DAC with a 2V RMS line out on a 3.5mm audio jack.

The board supports both the Power-over-Ethernet power supply and power adapter. With a PoE-compatible switch or router, you can communicate and power Home Assistant Yellow with a single Ethernet cable.

Application

• Smart Home Automation
• Energy Management
• Home Security
• Health Monitoring
• HVAC automation
• Home entertainment automation
• Environmental monitoring

Specification

Hardware Overview

Bundle İçeriği

Home Assistant Yellow Kit（Out of Stock）

• Home Assistant Yellow Kit with Power-over-Ethernet [SKU: 102060186]
• Home Assistant Yellow Kit with Power Supply [SKU: 102060185]
• Home Assistant Yellow Standard [SKU: 113060066]

Raspberry Pi Compute Module

• Raspberry Pi Compute Module 5 – 2GB RAM, 2.4/5.0GHz Wi-Fi & Bluetooth 5.0 (CM5102000) [SKU: 102111074]
• Raspberry Pi Compute Module 5 – 2GB RAM, 16GB eMMC, 2.4/5.0GHz Wi-Fi & Bluetooth 5.0 (CM5102016) [SKU: 102111075]
• Raspberry Pi Compute Module 5 – 2GB RAM, 32GB eMMC (CM5002032) [SKU: 102111060]
• Raspberry Pi Compute Module 5 – 4GB RAM, 16GB eMMC, 2.4/5.0GHz Wi-Fi & Bluetooth 5.0 (CM5104016) [SKU: 102111038]
• Raspberry Pi Compute Module 5 – 4GB RAM, 32GB eMMC (CM5004032) [SKU: 102111064]
• Raspberry Pi Compute Module 5 – 4GB RAM, 32GB eMMC, 2.4/5.0GHz Wi-Fi & Bluetooth 5.0 (CM5104032) [SKU: 101110141]
• Raspberry Pi Compute Module 5 – 8GB RAM, 32GB eMMC (CM5008032) [SKU: 102111068]
• Raspberry Pi Compute Module CM4002016 [SKU: 102991424]
• Raspberry Pi Compute Module 4 – 2GB RAM, 32GB eMMC, 2.4/5.0GHz Wi-Fi & Bluetooth 5.0 (CM4102032) [SKU: 102991378]
• Raspberry Pi Compute Module 4 – 4GB RAM, 32GB eMMC, 2.4/5.0GHz Wi-Fi & Bluetooth 5.0 (CM4104032) [SKU: 102991379]
• Raspberry Pi Compute Module 4 – 8GB RAM, 32GB eMMC, 2.4/5.0GHz Wi-Fi & Bluetooth 5.0 (CM4108032) [SKU: 102991441]

NVMe SSD

• NVMe M.2 2280 SSD 1TB [SKU: 112990267]

Panel for Home Assistant

• reTerminal – 5‘’ HMI | CM4108032 | All-In-One | Modular Design | IPS multi-touch screen | Rich Interfaces [SKU: 110070108]
• SenseCAP Indicator D1, 4-Inch Touch Screen IoT development platform powered by ESP32S3 & RP2040 [SKU: 114993068]

Sensor Kit for Home Assistant

• Home Assistant Voice Preview Edition [SKU: 110992044]
• reSpeaker Lite 2-Mic Array Voice Kit, Compatible with ESPHome [SKU: 110061601]
• XIAO 2-Channel Wi-Fi AC Relay [SKU: 114993526]
• XIAO 60GHz mmWave Human Breathing and Heartbeat Sensor -MR60BHA2 [SKU: 114993387]
• XIAO 60GHz mmWave Human Fall Detection Sensor-MR60FDA2 [SKU: 114993388]
• Seeed Studio XIAO mmWave Human Detection Sensor Kit- Home Assistant Compatible [SKU: 110061541]

Zigbee and Thread dongle

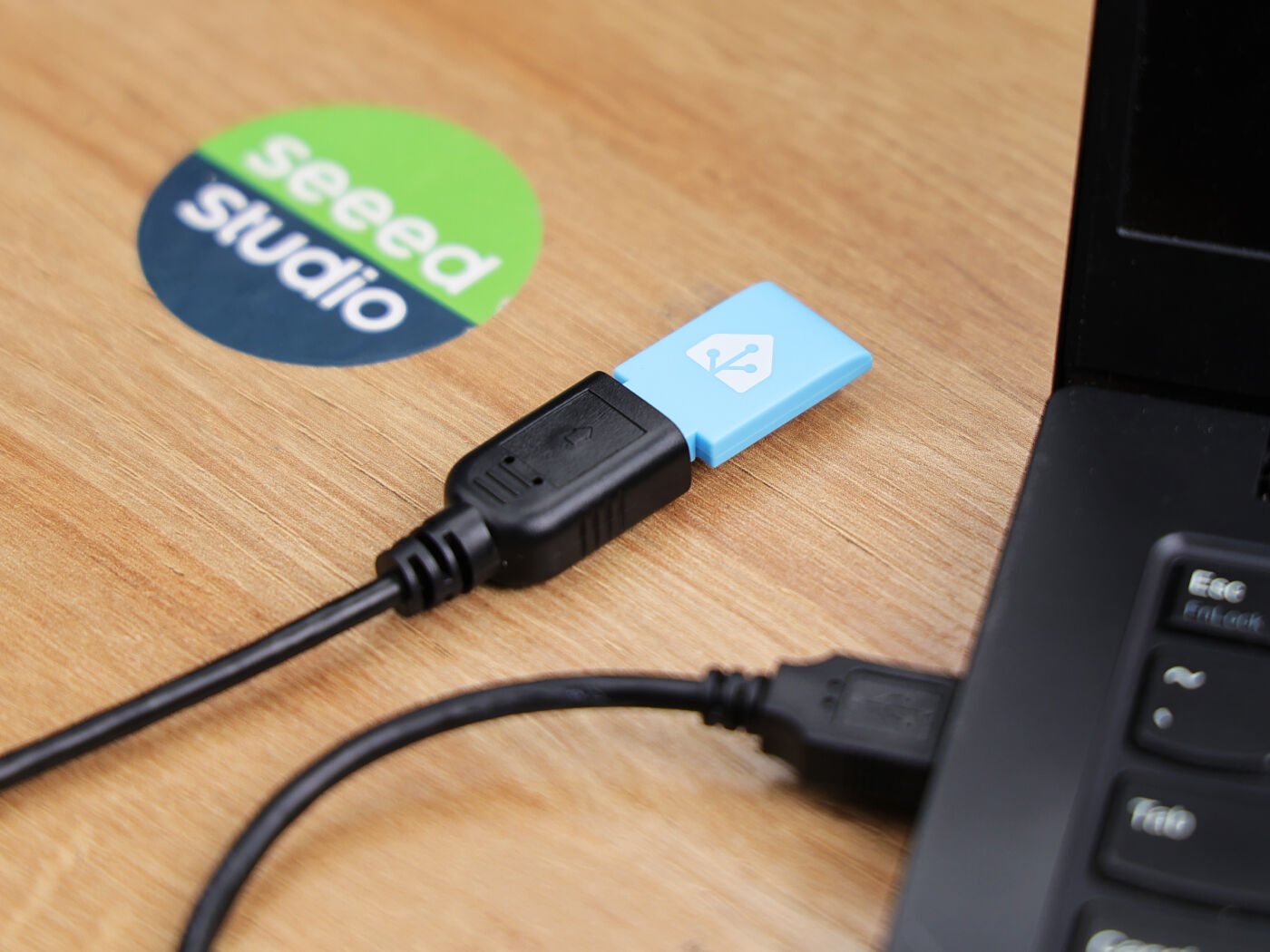

• Home Assistant Connect ZBT-1 [SKU: 114992994]
