Description
The Q Touch Sensor is a high sensitivity and high noise immunity touch input device.It is based on Atmel AT42QT1070. The AT42QT1070 modulates its bursts in a spread-spectrum fashion in order to heavily suppress the effects of external noise, and to suppress RF emissions. The QT1070 uses a dual-pulse method of acquisition. This provides greater noise immunity and eliminates the need for external sampling capacitors, allowing touch sensing using a single pin.
Specification
-
Operating Voltage: 3 ~ 5.5V
-
Operating Current @3.3V: 1mA
-

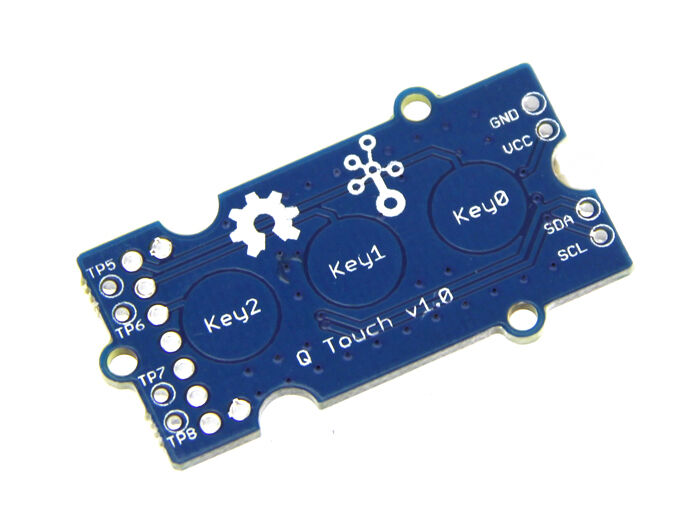

Touch Keys: 7 Keys ; key0 ,key1 ,key2 are on the Grove PCB bottom side
-
Communicating Protocol: I2C
-

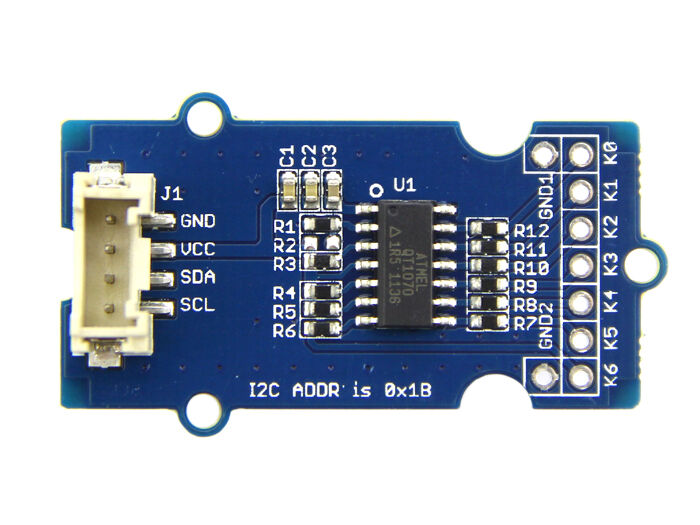

I2C Address: 0x1B
