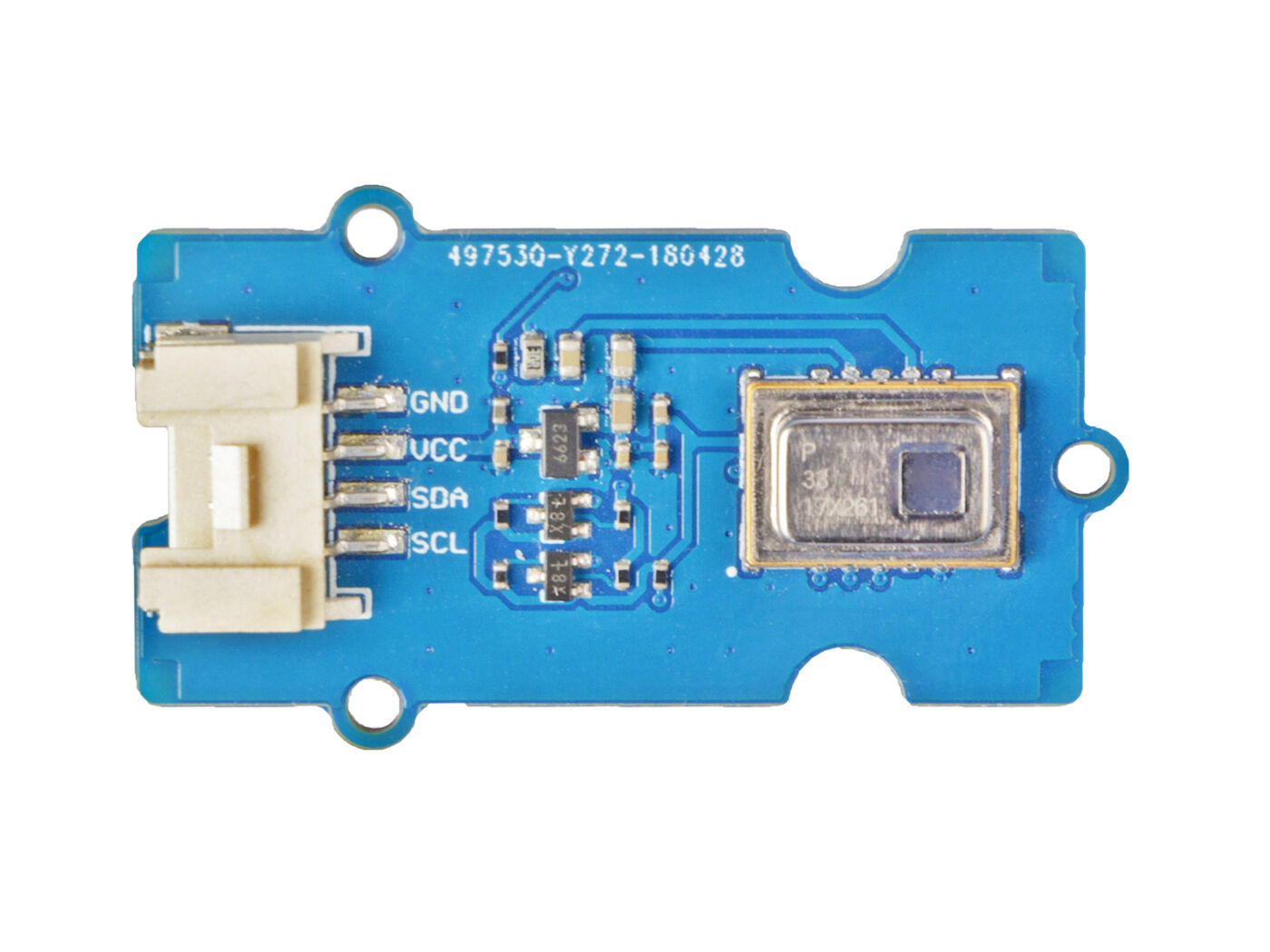

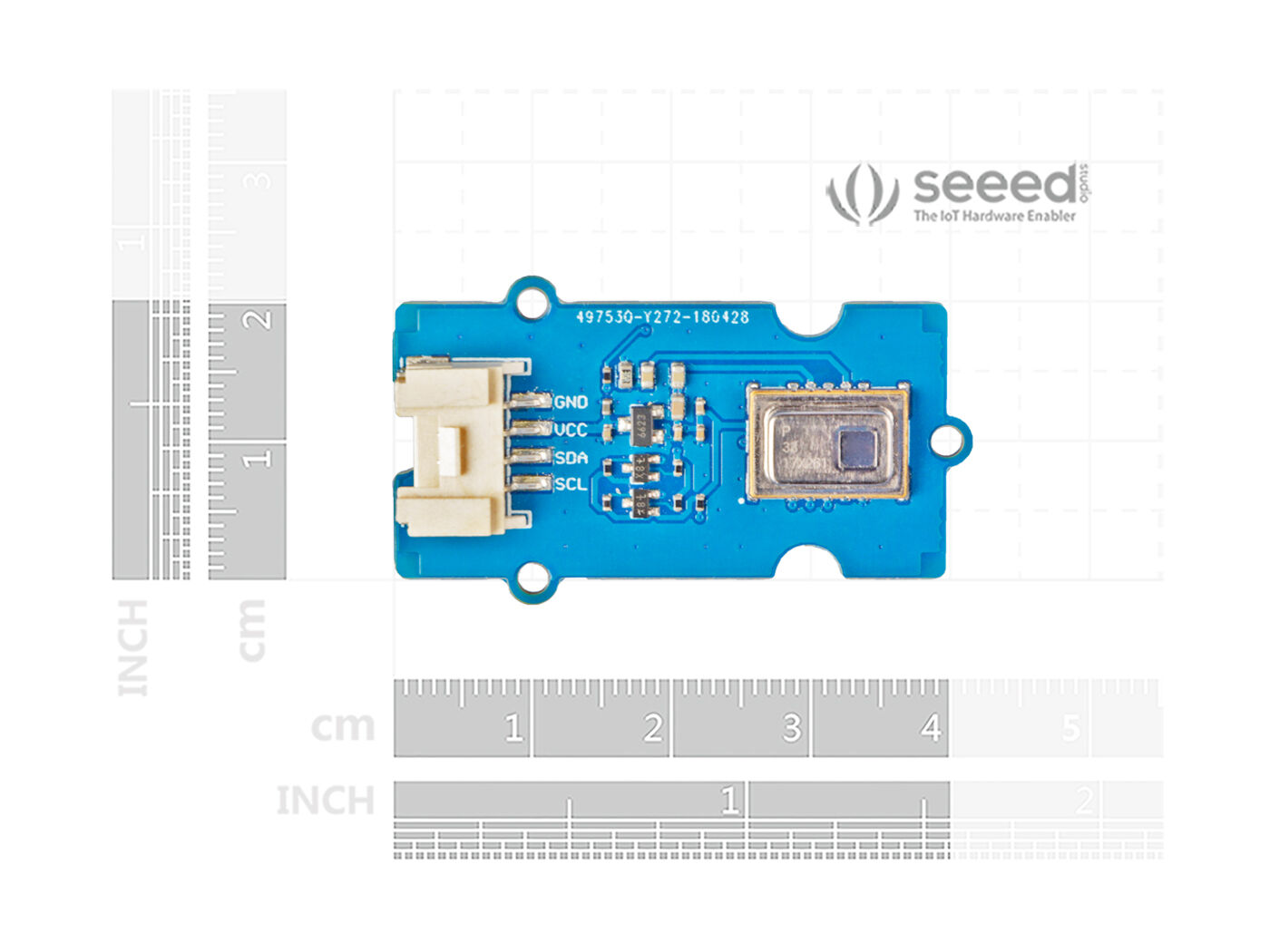

Grove – AMG8833 8×8 Infrared Thermal Temperature Sensor Array

Description

This is a high precision infrared array sensor based on advanced MEMS technology, which can measure temperatures ranging from 0°C to 80°C (32°F to 176°F) and provide the accuracy of +- 2.5°C (4.5°F). It can support temperature detection of the two-dimensional area of 8 × 8 (64 pixels) and a maximum 7 meters detection distance.

Features

• Compact and simple: Temperature detection of the two-dimensional area: 8 × 8 (64 pixels)
• Wide temperature range: Temperature range of measuring object: 0 °C to 80 °C +32 °F to +176 °F
• High precision: Accuracy ± 2.5°C (4.5°F)
• Long detection distance: It can detect people from a distance of up to 7 meters (23) feet
• Grove unified socket: The sensor ensures “Plug and Play” and could be versatile for various applications

Description

Grove – AMG8833 8×8 Infrared Thermal Temperature Sensor Array is a high precision infrared array sensor based on advanced MEMS technology.

This sensor can measure temperatures ranging from 0°C to 80°C (32°F to 176°F) and provide the accuracy of +- 2.5°C (4.5°F). It can support temperature detection of the two-dimensional area of 8 × 8 (64 pixels) and a maximum 7 meters detection distance.

We provide both Arduino and Raspberry Pi demos for this sensor. It will be a perfect module to make your own thermal camera. Please check our wiki to easily get started.

Applications

• High function home appliances (microwaves and air-conditioners)
• Energy saving (air-conditioning/lighting control)
• Digital signage
• Automatic doors/elevators

One More Thing

With the SenseCAP S2110 controller and S2100 data logger, you can easily turn the Grove into a LoRaWAN® sensor. Seeed not only helps you with prototyping but also offers you the possibility to expand your project with the SenseCAP series of robust industrial sensors.

The IP66 housing, Bluetooth configuration, compatibility with the global LoRaWAN® network, built-in 19 Ah battery, and powerful support from APP make the SenseCAP S210x the best choice for industrial applications. The series includes sensors for soil moisture, air temperature and humidity, light intensity, CO2, EC, and an 8-in-1 weather station. Try the latest SenseCAP S210x for your next successful industrial project.

Demo

Specifications

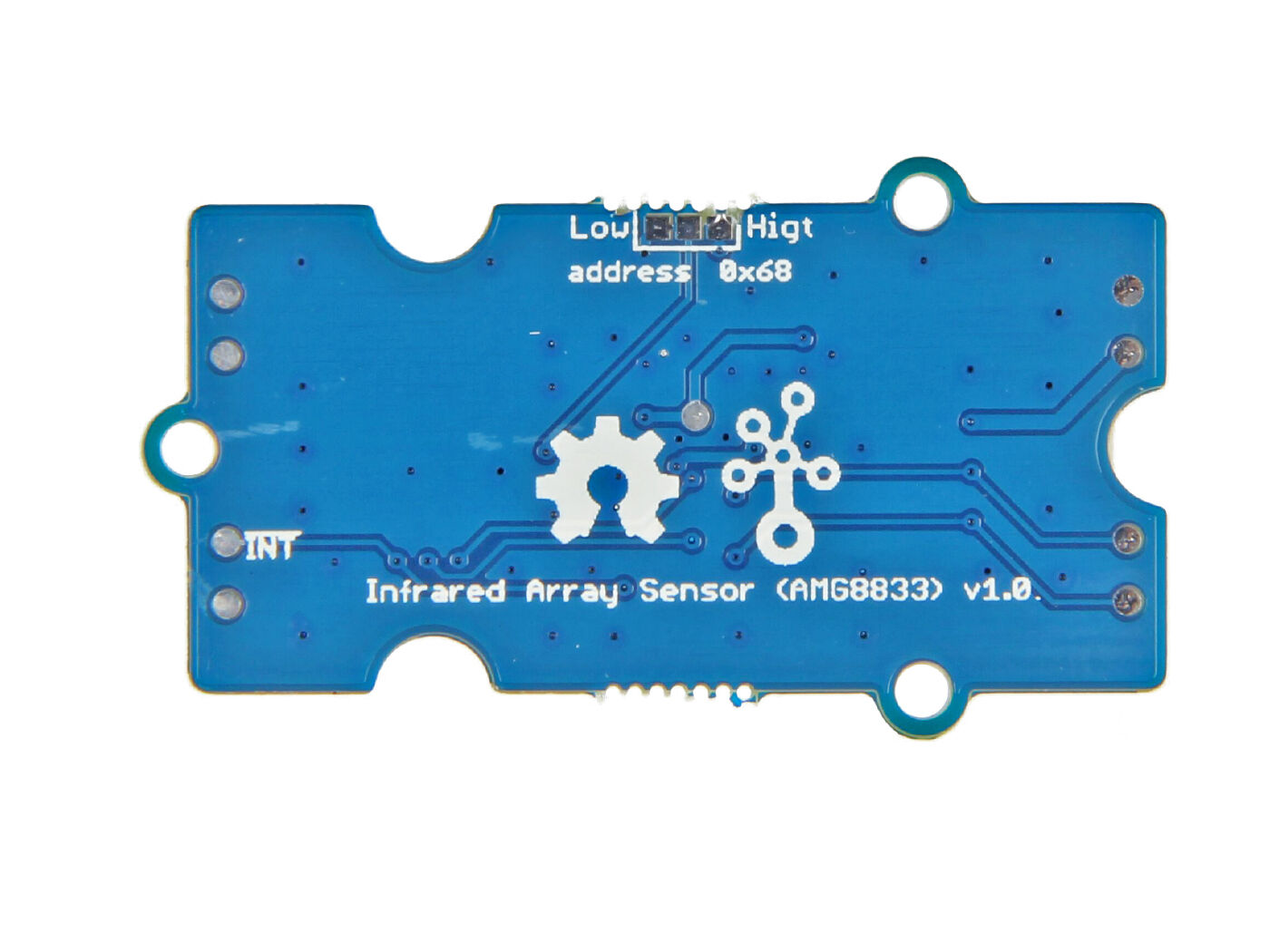

Hardware Overview

Part List
