Grove – Infrared Reflective Sensor

Description

This product is retired, please consider the new version Grove – Infrared Reflective Sensor V1.2 as your alternative choice.

The reflectivity of infrared light varies with the color and distance of the reflecting surface. According to this principle, Grove – Infrared Reflective Sensor utilizes a RPR220 reflective photosensor module to detect color and distance. When a light-colored object approaches,the signal intensity received by infrared reflective sensor increases and the indicator LED on board turns red. When a dark-colored object approaches, the intensity decreases and the LED turns off.

This sensor is a basic and widely used part in applications such as line-following cars, rotary speed detection, auto data logging on utility meters or other situations where color or distance contrast is sharp.

Features

•
  Operating voltage: 3.3 V – 5 V

•
  Digital output, 0 or VCC

•
  High resolution sensor;minimum detectable length: 1mm black line

•
  Effective distance：4-15mm

•
  Indicator LED on board

•
  Sensitivity adjustable via potentiometer

•

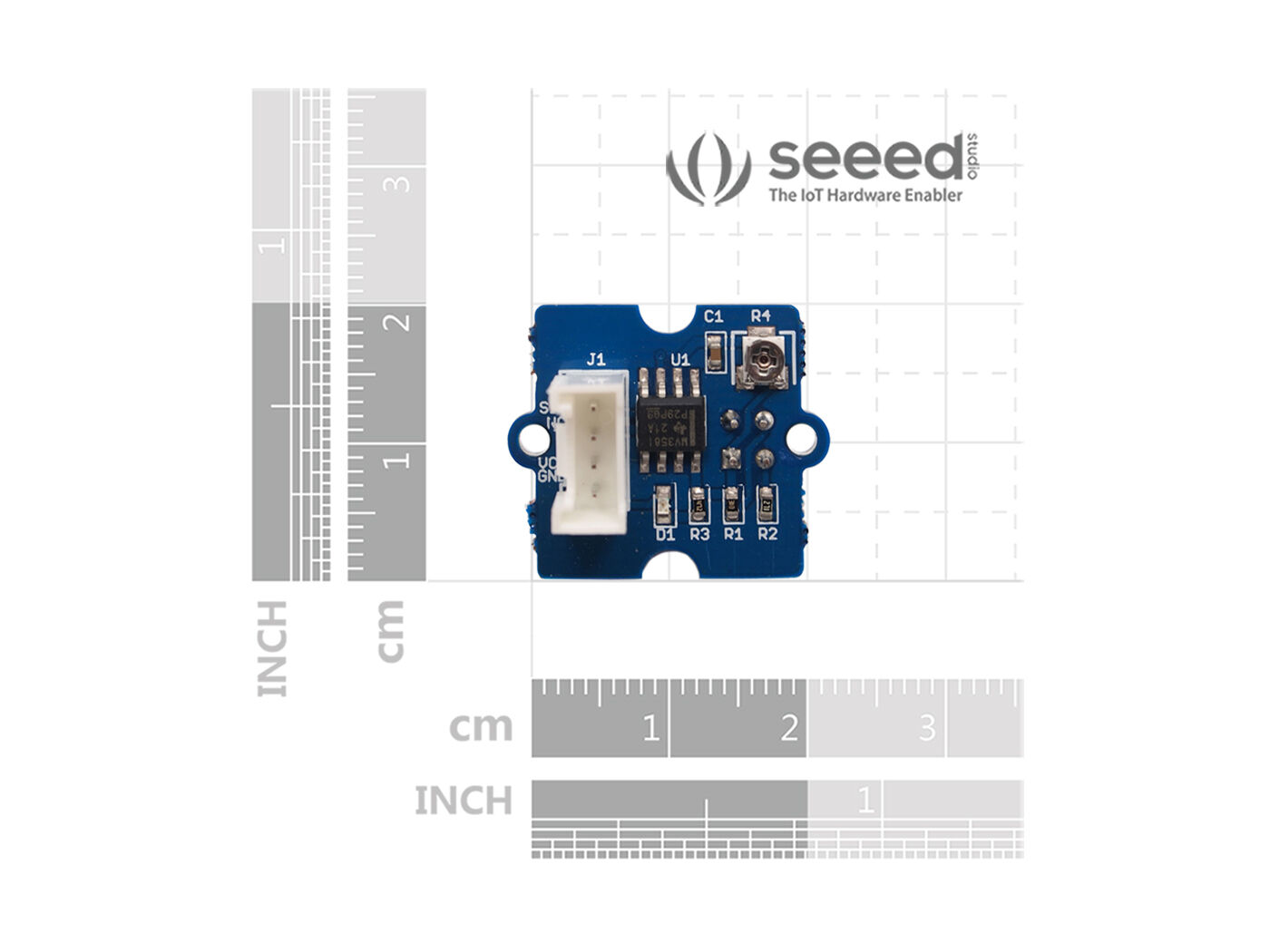

  Small Grove 1X1 compatible interface

For all Grove users (especially beginners), we provide you guidance PDF documents. Please download and read through Preface – Getting Started and Introduction to Grove before your using of the product.
