Grove – IMU 10DOF

Description

This product is discontinued, for new version Grove – IMU 10 DOF V2.0, please click here.

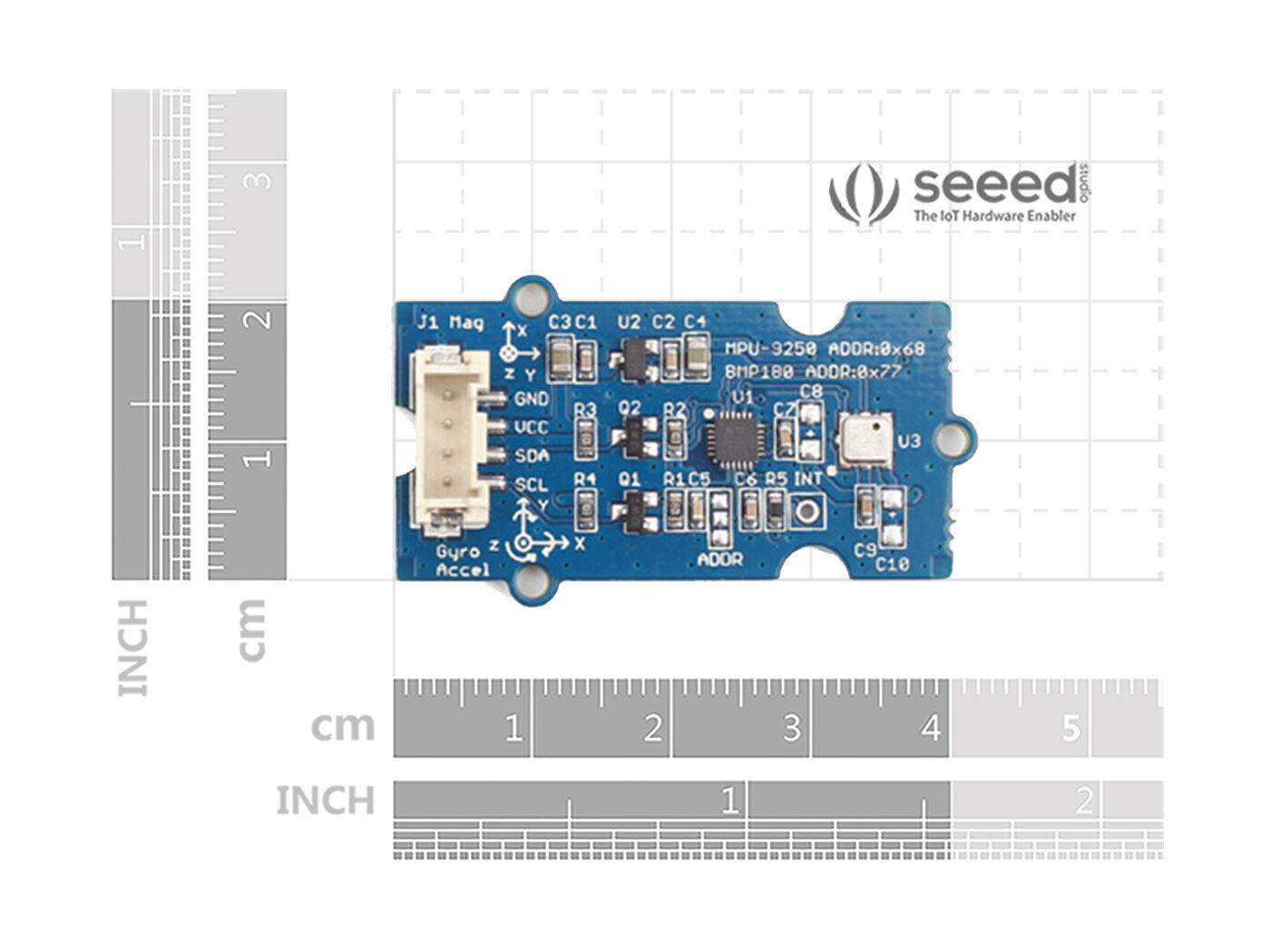

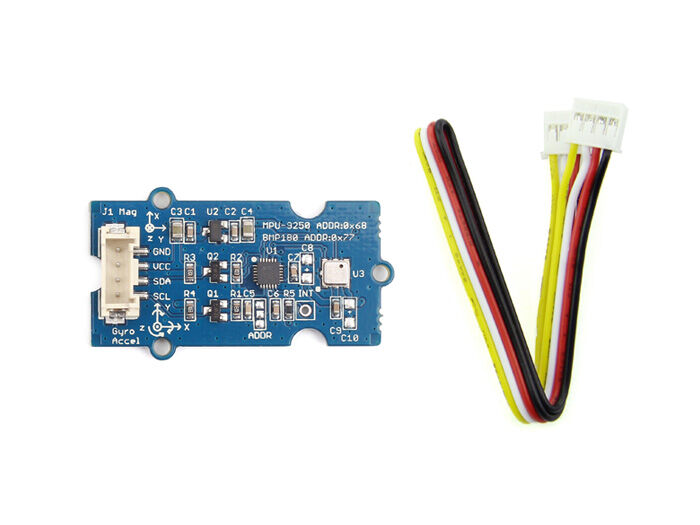

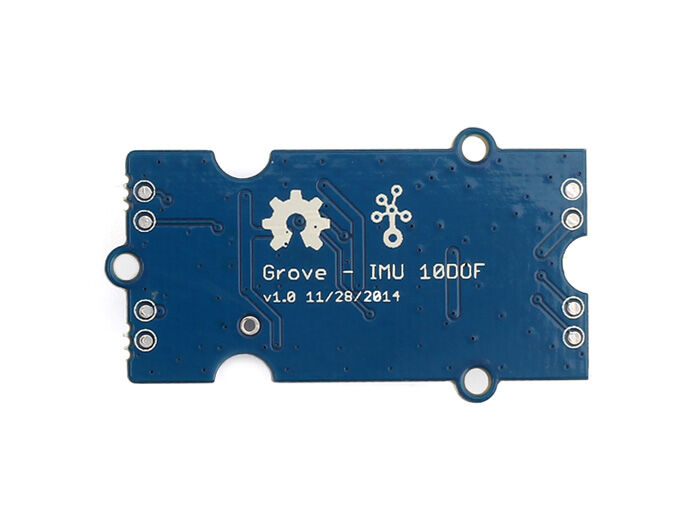

Grove – IMU 10DOF is based on MPU-9250 and BMP180, it combines a 3-axis gyroscope, 3-axis accelerometer, 3-axis magnetometer and barometer in standard Grove module. Total 10 degrees of freedom make it suitable for mobilephone, aircraft, smart watch etc.

Features:

• 10 Degrees of Freedom

• 3-Axis angular rate sensor (gyro) with a sensitivity up to 131 LSB and a full-scale range of ±250, ±500, ±1000, and ±2000dps

• 3-Axis accelerometer with a programmable full scale range of ±2g, ±4g, ±8g and ±16g

• 3-axis compass with a full scale range of ±4800µT

• Wide pressure detecting range of 300~1100hPa(+9000m ~ -500m relating to sea level)

Specification:

• Working Voltage: 5V

• Programmable interrupt

• Low Power

• Control Mode: IIC

• 400kHz Fast Mode I²C serial host interface

• Operating Temperature：-40 ~ +85°C
