Description

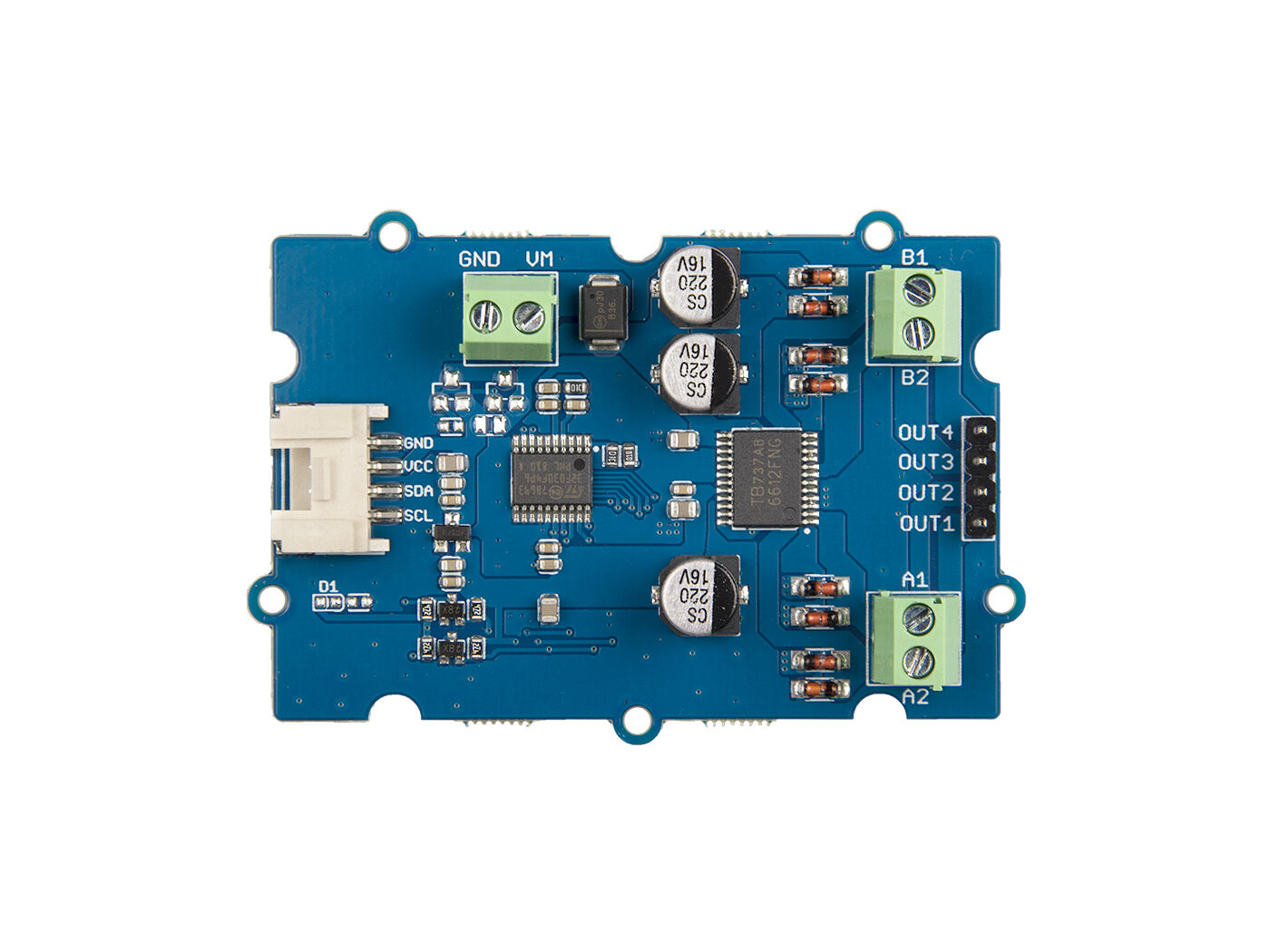

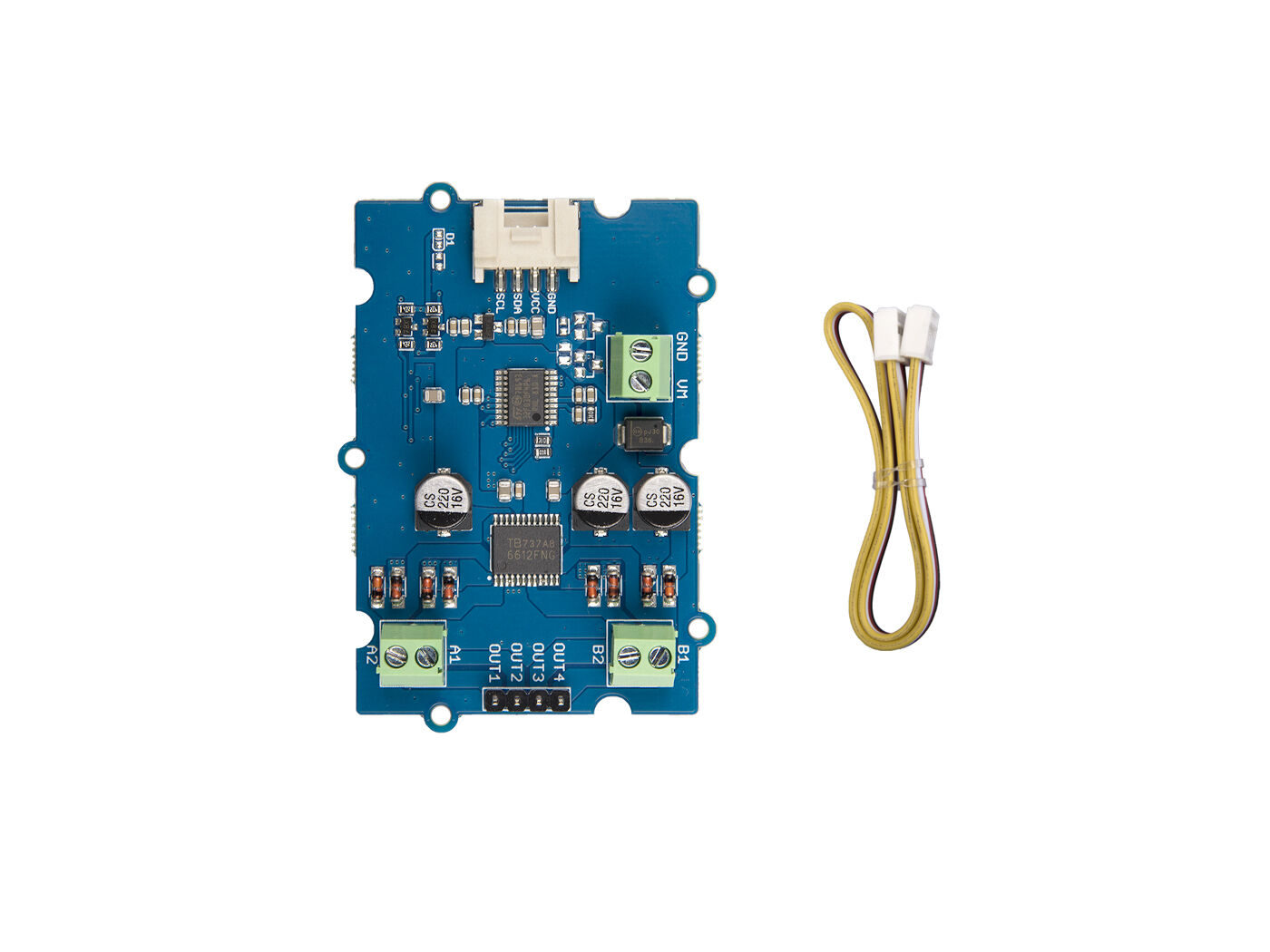

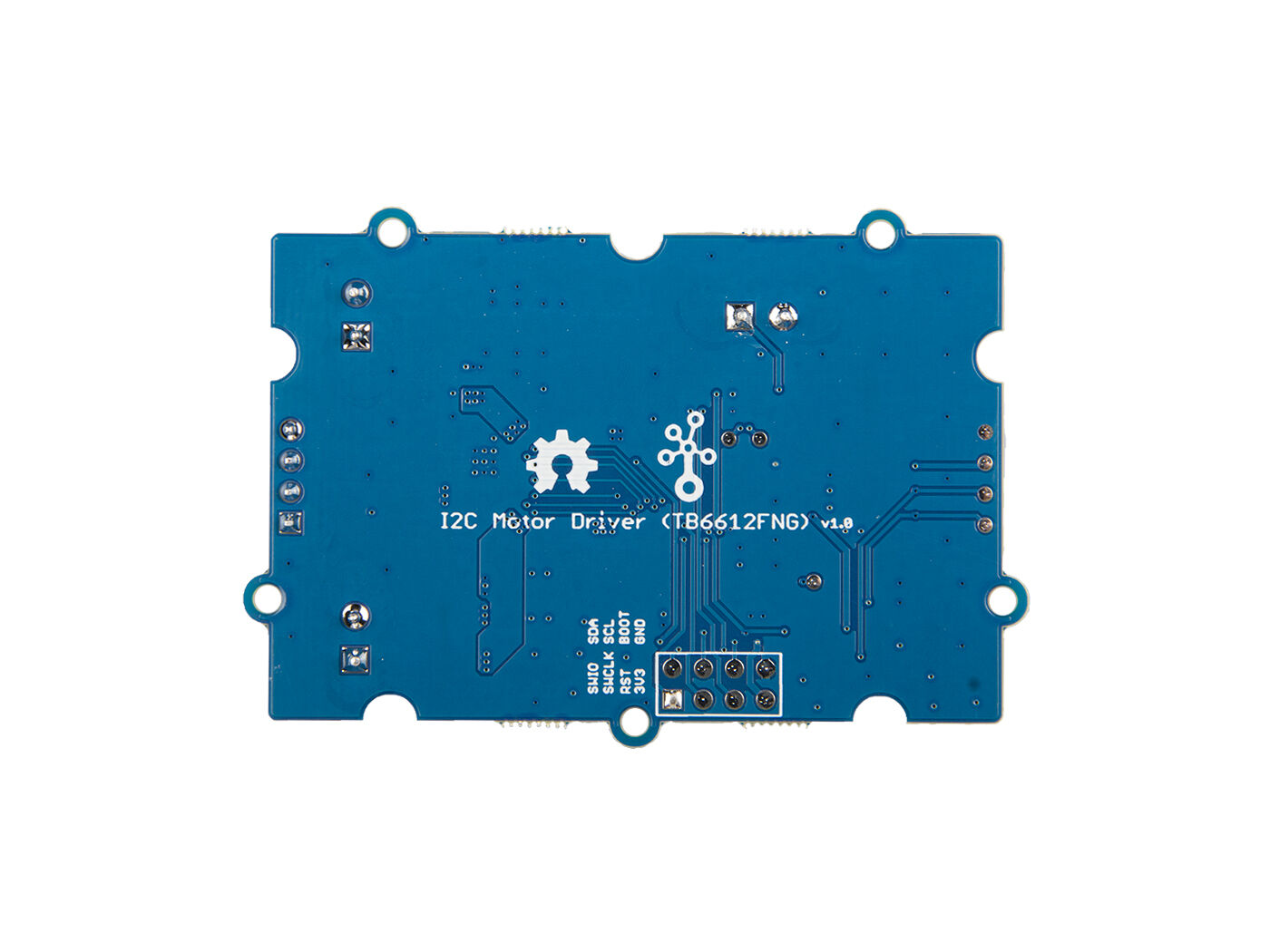

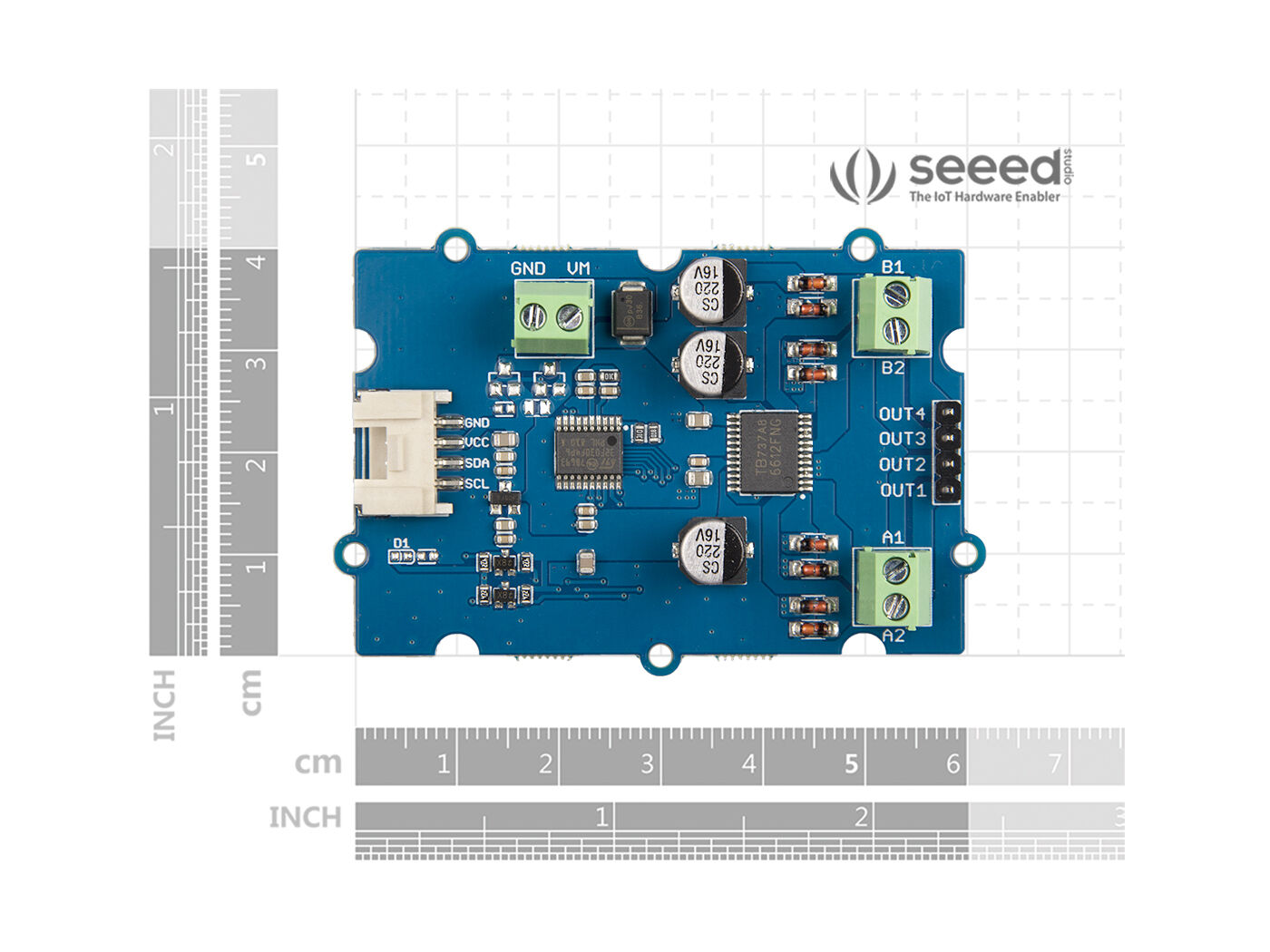

The Grove – I2C Motor Driver (TB6612FNG) can drive two DC motors up to 12V/1.2A or drive one stepper motor up to 12V/1.2A. With the on-board MCU, it can work with Arduino easily via the Grove I2C interface.
This diver board is based on TB6612FNG, which is a driver IC for the DC motor and stepper motor with output transistor in LD MOS structure with low ON-resistor. Two input signals, IN1 and IN2, can choose one of four modes such as CW, CCW, short brake, and stop mode.
Note
- We’ve Released the Grove Selection Guide and hope to help you find the Grove that suits you best.
- We also released a new I2C Motor Driver(L298P), which is a common-use motor driver for the stepping motor and servo motor. It embeds an STM32 chip for burning the code to control the motor driver. Welcome to try~
Features
-
On board MCU
-
CW/CCW/short brake/stop function modes
-
Built-in thermal shutdown circuit and low voltage detecting circuit
-
Standby (Power save) system
Typical applications
-
DC motor control
-
Stepper motor control
Pin Out
Comparison
| Product | DC voltage input | Channel No | MAX Current output for each channel | Price |
|---|---|---|---|---|
| Grove – I2C Motor Driver (TB6612FNG) | 2.5 ~ 13.5 (5V Typical, 15V Max.) | 2 | 1.2 A(ave)/3.2 A (peak) | $6.5 |
| L298 Dual H-Bridge Motor Driver | +5V~+46V | 2 | 2A | $23.5 |
| Grove – I2C Mini Motor Driver | 2.75V – 6.8V | 2 | 1A | $10.9 |
| Grove – I2C Motor Driver with L298 | 6V – 15V | 2 | 0.5A | $16.9 |
| Grove – I2C Motor Driver (L298P) | 6V – 15V | 2 | 1A | $12.9 |
