Grove – Differential Amplifier

Description

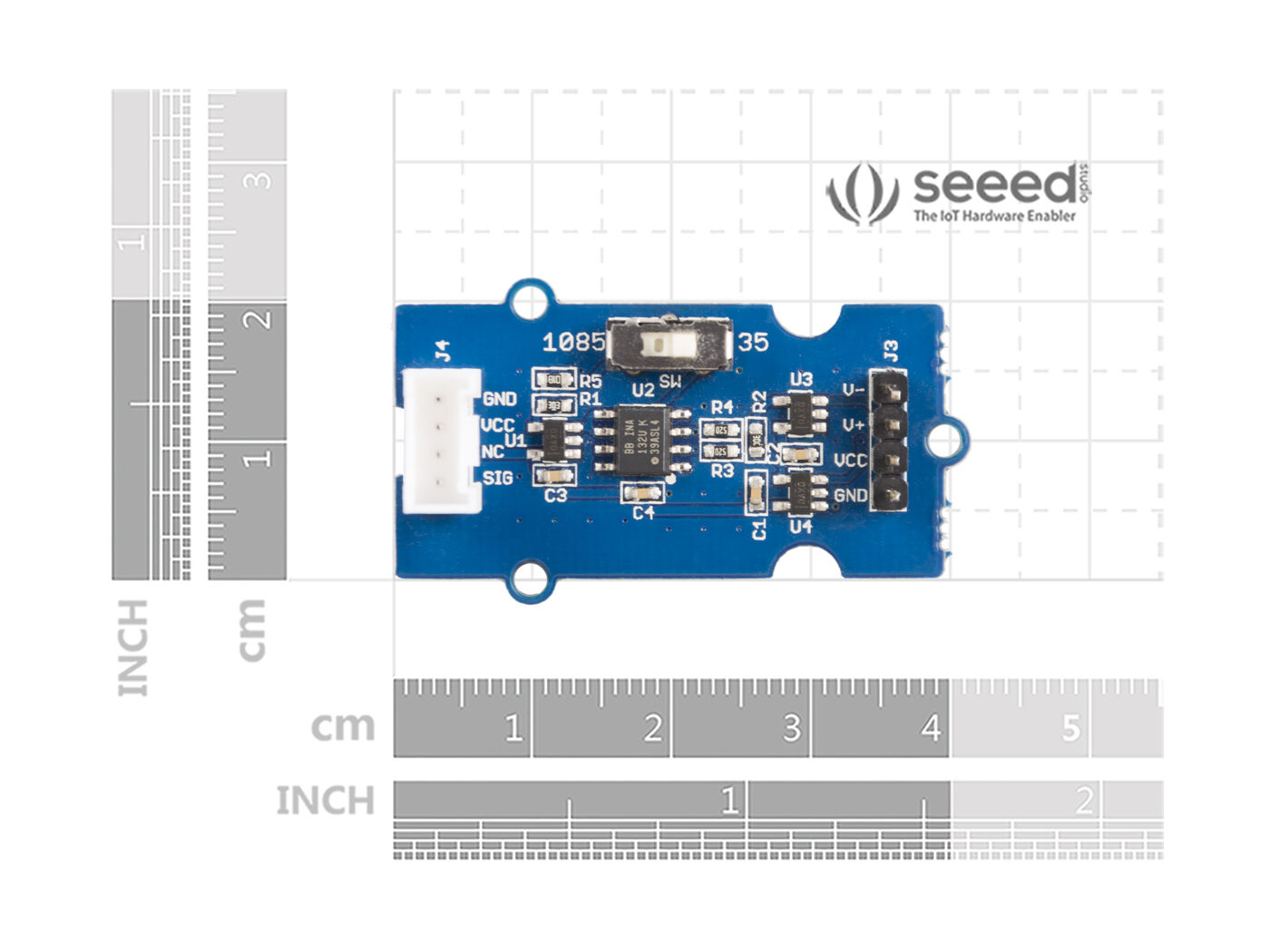

Find setting up an amplifier IC on the breadboard a troublesome and totally no-need-to-repeat job? This Grove module can save you clutter to settle up such an IC by integrating the whole operating circuit. It's designed for precise differential-input amplification. Input the differential signals of your sensor to this module through the male pins, then your Arduino will get a precisely amplified output from the Grove interface. The gain scale factor is selectable. You can get a 35 times or 1085 times amplification via a switch on the board

Features

• High amplifying precision

• Selectable scale factor

• Can be conveniently read by Arduino

• Strong input protection: ±40V

Application Ideas

• Sensor signal amplifier

• Signal comparison

• General purpose amplification

For all Grove users (especially beginners), we provide you guidance PDF documents. Please download and read through Preface – Getting Started and Introduction to Grove before your using of the product.
