Description
Description

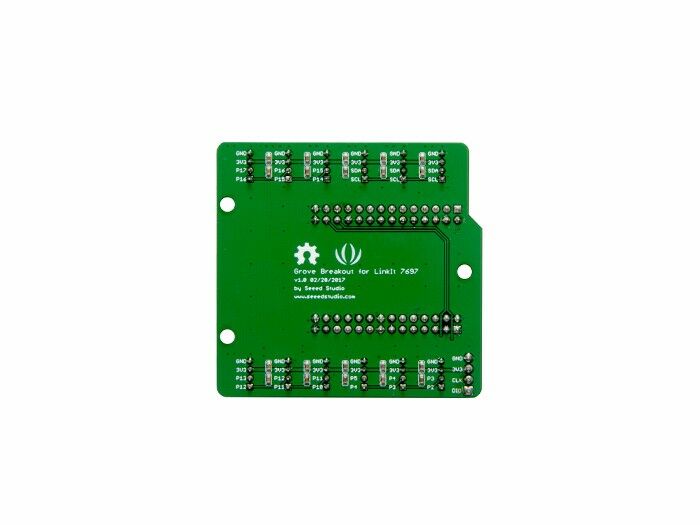

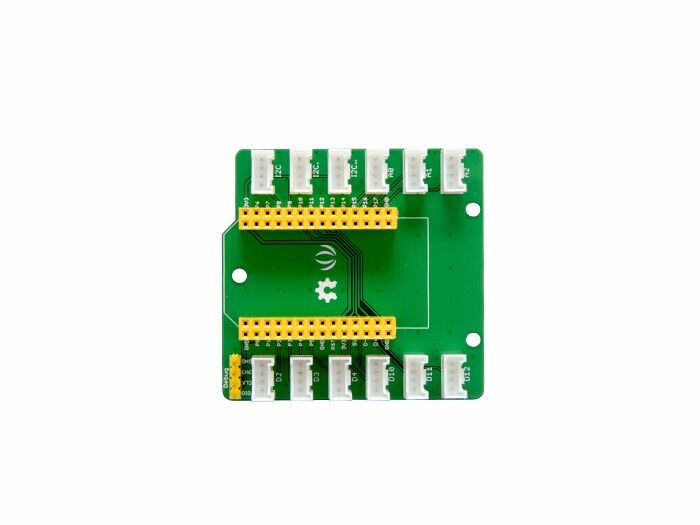

Grove Breakout for LinkIt 7697 is a Grove port integrated and a feature expansion board for LinkIt 7697 development board. The onboard 2×14 pin female header allows you to plug LinkIt 7697 on the board easily. As a Grove breakout board，the 12 plug-and-play Grove socket will save a lot of work for quicker prototyping, especially for novices through simplified wiring procedure.
The grove breakout for LinkIt 7697 is the best expansion board to help a beginner get quick start with LinkIt 7697. We also created a Grove Start kit based on this breakout board.
Features
-
Up to 12 Grove Sockets
-
Easy Mounting with 2×14 Pin Female Header
-
Debug Pin Header Supported
Interface Details
|
Debug Interfaces |
SWD x1 |
|
Digital Interface |
D2,D3,D4,D10,D11,D12 |
|
Analog Interface |
A0,A1,A2 |
|
I2C Interface |
I2C x3 |
Documents
-
For more information please click below link to visit MTK’s official webpage for LinkIt 7697
-
Download the script
