Grove Temperature and Barometer Sensor (BMP280) – Supports I2C and SPI

Description

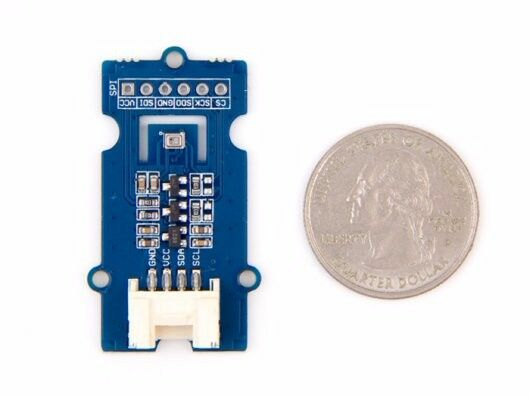

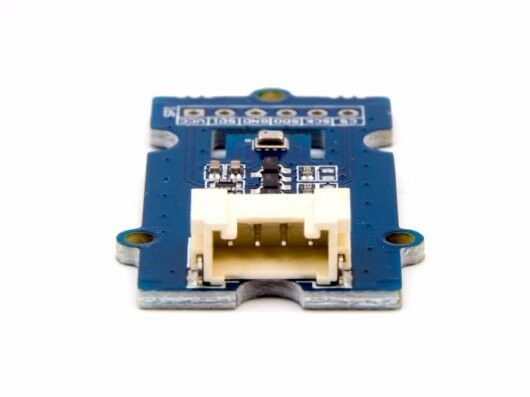

Grove – BMP280 I2C and SPI Barometric and Temperature Sensor is built around Bosch BMP280. It is a low-cost and high-precision environmental sensor that measures the temperature and barometer. Grove – BMP280 supports both I2C and SPI communication and we provide the BMP280 Arduino library.

Features

• High accuracy: the absolute accuracy of ±1.0 hPa for pressure measurement and ±1 accuracy for temperature measurement
• Wide measurement range: Air pressure was measured from 300hpa to 1100hPa
• As altimeter: It can be used as an altimeter with the accuracy of ±1 meter
• Dual communication interface: Supports both I2C and SPI communication
• Grove compatible interface: The product ensures “Plug and Play” and could be versatile for various applications of Grove

Description

The Grove BMP280 Barometer Sensor is built around Bosch BMP280, it is a low-cost and high-precision environmental sensor that measures the temperature and barometer. This sensor supports both I2C and SPI communication and we provide the BMP280 Arduino library.

Grove BMP280 provides precise measurements of barometric pressure and temperature in the environment. The air pressure can be measured in a range from 300 hPa to 1100hPa with ±1.0 hPa absolute accuracy. As for the temperature, the sensor works perfectly for temperatures between – 40℃ and 85℃ with an accuracy of ±1℃.

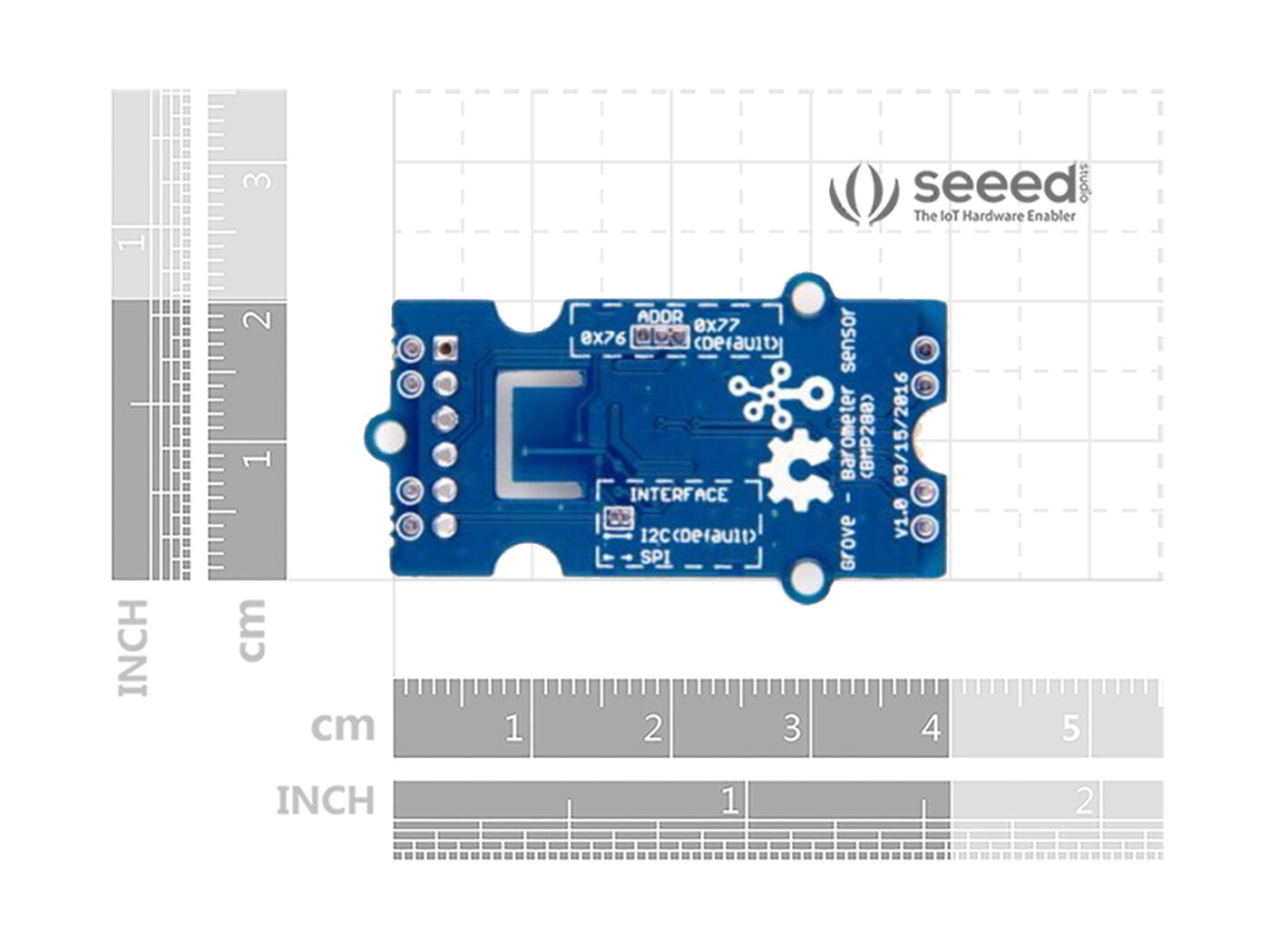

Owing to its high accuracy on measuring the pressure, and the pressure changes with altitude, we can calculate the altitude with ±1 meter accuracy, which makes it a precise altimeter as well. Another great thing about this module is that you don’t even need to worry about the I2C collisions as it provides both I2C and SPI interfaces. To use SPI, simply de-solder the bonding pads on the back. If you go with I2C, the board also provides 2 I2C addresses for you to select as you want.

Get Started with Industrial Sensors

SenseCAP S210x series industrial sensors provide an out-of-box experience for environmental sensing. Please refer to the S2101 Wireless Temperature and Humidity Sensor with higher performance and robustness for air temperature and humidity detection.

BMP280 vs. BME280 vs. DPS310

Application

• Weather Station and Weather Sensing
• Measure Temperature, Pressure, and Altitude

Note

As the sensor is quite sensitive to environmental conditions, please DO NOT touch it with your fingers.

Upgrade to Industrial Solutions

With the SenseCAP S2110 Grove converter and S2100 data logger, you can easily turn the Grove into a LoRaWAN® sensor. Seeed not only helps you with prototyping but also offers you the possibility to expand your project with the SenseCAP series of robust industrial sensors.

The IP66 housing, Bluetooth configuration, compatibility with the global LoRaWAN® network, built-in 19 Ah battery, and powerful support from APP make the SenseCAP S210x the best choice for industrial applications. The series includes sensors for soil moisture, air temperature and humidity, light intensity, CO2, EC, and an 8-in-1 weather station. Try the latest SenseCAP S210x for your next successful industrial project.

Specification
