Description

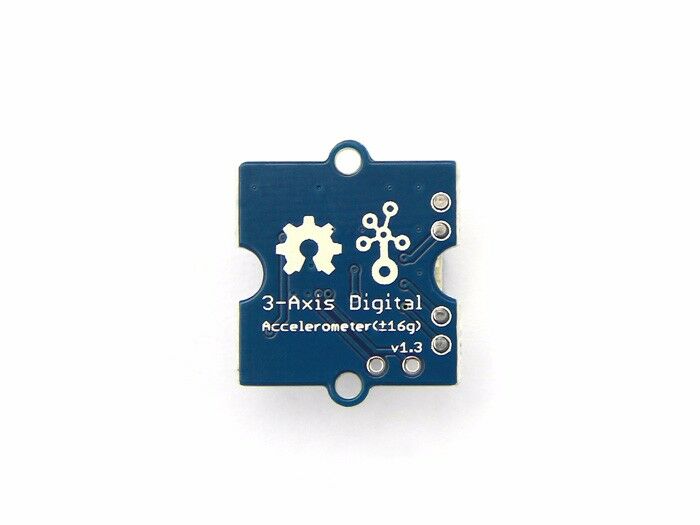

Grove – ADXL345 is a small, thin, ultra low power 3-axis accelerometer, providing high resolution (13-bit) measurement at up to ±16 g. It measures the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion or shock. Its high resolution (3.9 mg/LSB) enables measurement of inclination changes less than 1.0°.
Features
- 3-axis sensing: Provides Activity and inactivity sensing, Tap sensing and Freefall sensing detects
- Ultralow power: As low as 23 μA in measurement mode and 0.1 μA in standby mode at VS = 2.5 V (typical)
- Multiple interface standard output options: Grove I2C interface, SPI interface supported digital output
- Strong compressive strength: 10,000 g shock survival
- Grove compatible interface: The product ensures “Plug and Play” and could be versatile for various applications of Grove
Description
Compare different ADXL accelerometers
We have developed more than 400 Grove modules, covering a wide range of applications that can fulfil various needs. Click to explore the Grove Sensor family and get started to Grove your Idea. For all Grove users (especially beginners), we provide you guidance PDF documents. Please download and read through Preface – Getting Started and Introduction to Grove before your use of the product.
Application
Based on the excellent ADXL-345, this digital 3-axis accelerometer has excellent EMI protection. Its variable output makes it suitable for a wide range of applications:
- HDD shock protection
- Vibration sensor
- Game controller input
- Robotics
- Smart vehicles
- Anywhere you need to obtain motion-sensing & orientation information.
Specification

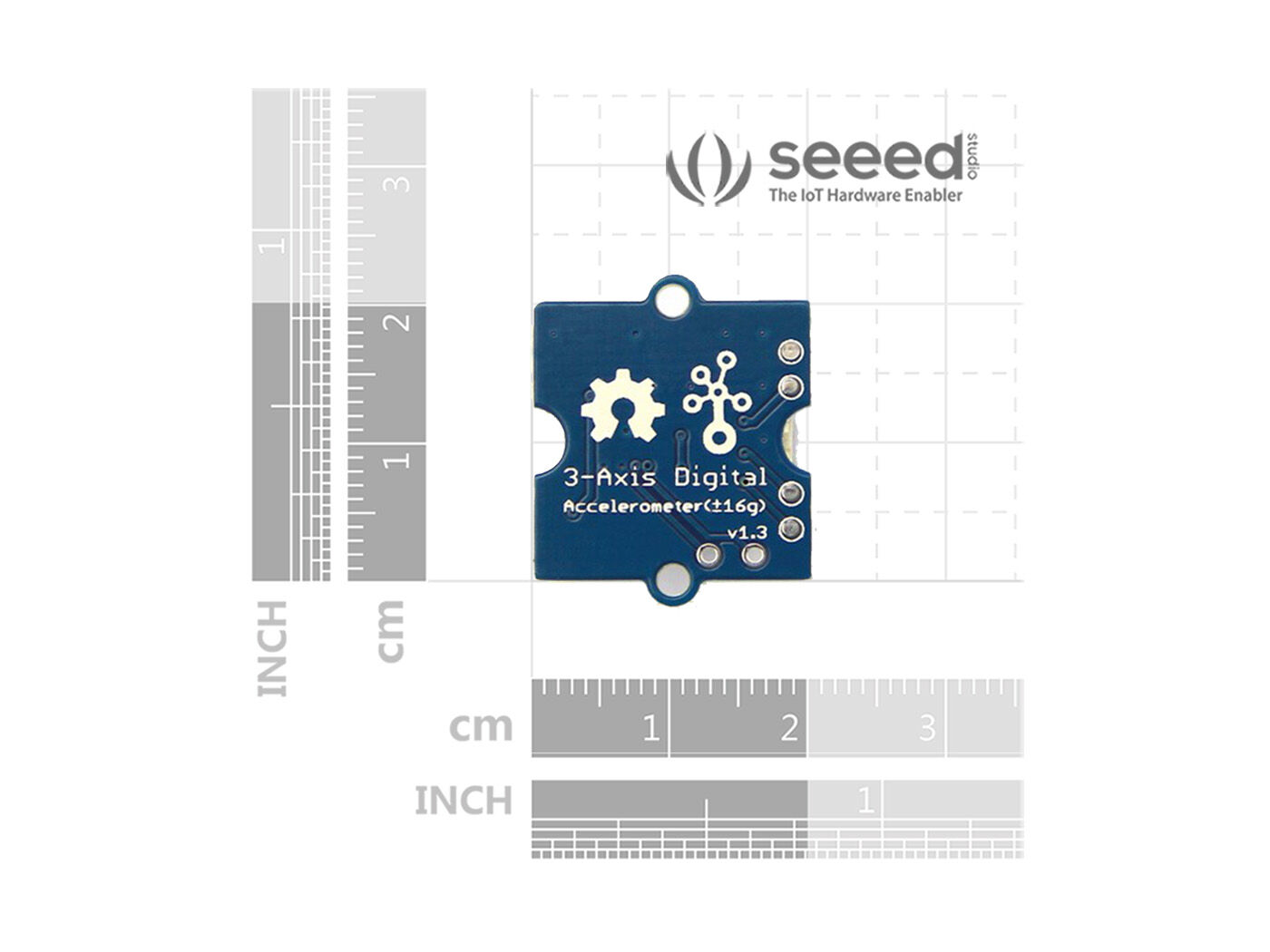

| Dimensions | 130mm x90mm x10mm |
| Weight | G.W 9g |
| Battery | Exclude |
Part List

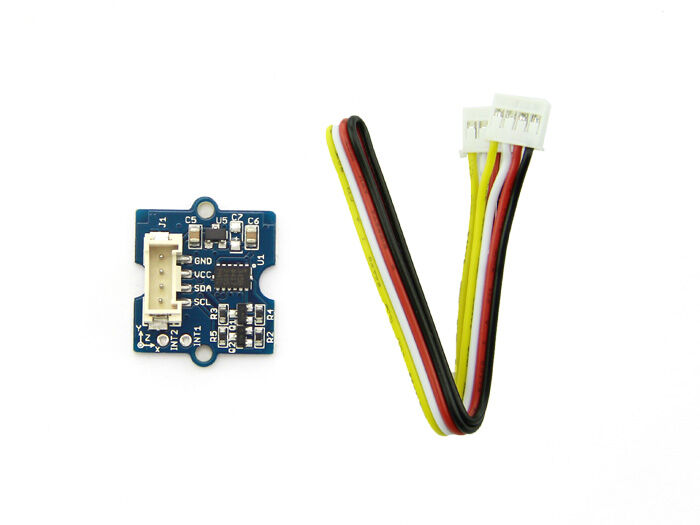

| Grove – 3 Axis Digital Accelerometer(±16g) | 1 |
