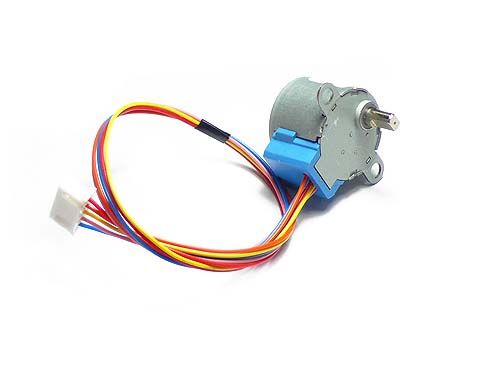

Gear Stepper Motor 12V

Mainly used in air conditioner louver, small cooling and heating fan etc. Stable and all technic parameters are qualified for national electronic standard of SJ/T10689-95.



Specifications

• Rated Voltage: DC 12V
• Number of Pole: 4
• Speed Variation Ratio: 1/64
• Stride Angle: 5.625° /64
• DC Resistance: 200Ω ± 7%(25°C)
• Idle In-traction Frequency: > 600Hz
• Idle Out-traction Frequency: > 1000Hz
• In-traction Torque: > 34.3mN.m(120Hz)
• Self-positioning Tor: > 34.3mN.m
• Insulated Resistance: > 10MΩ(500V)
• Insulated Electricity Power: 600VAC/1mA/1s
• Insulation Grade: A
• Rise in Temperature: < 40K(120Hz)
• Noise: < 40dB(120Hz, No load, 10cm)



Documents

• Datasheet
