Description

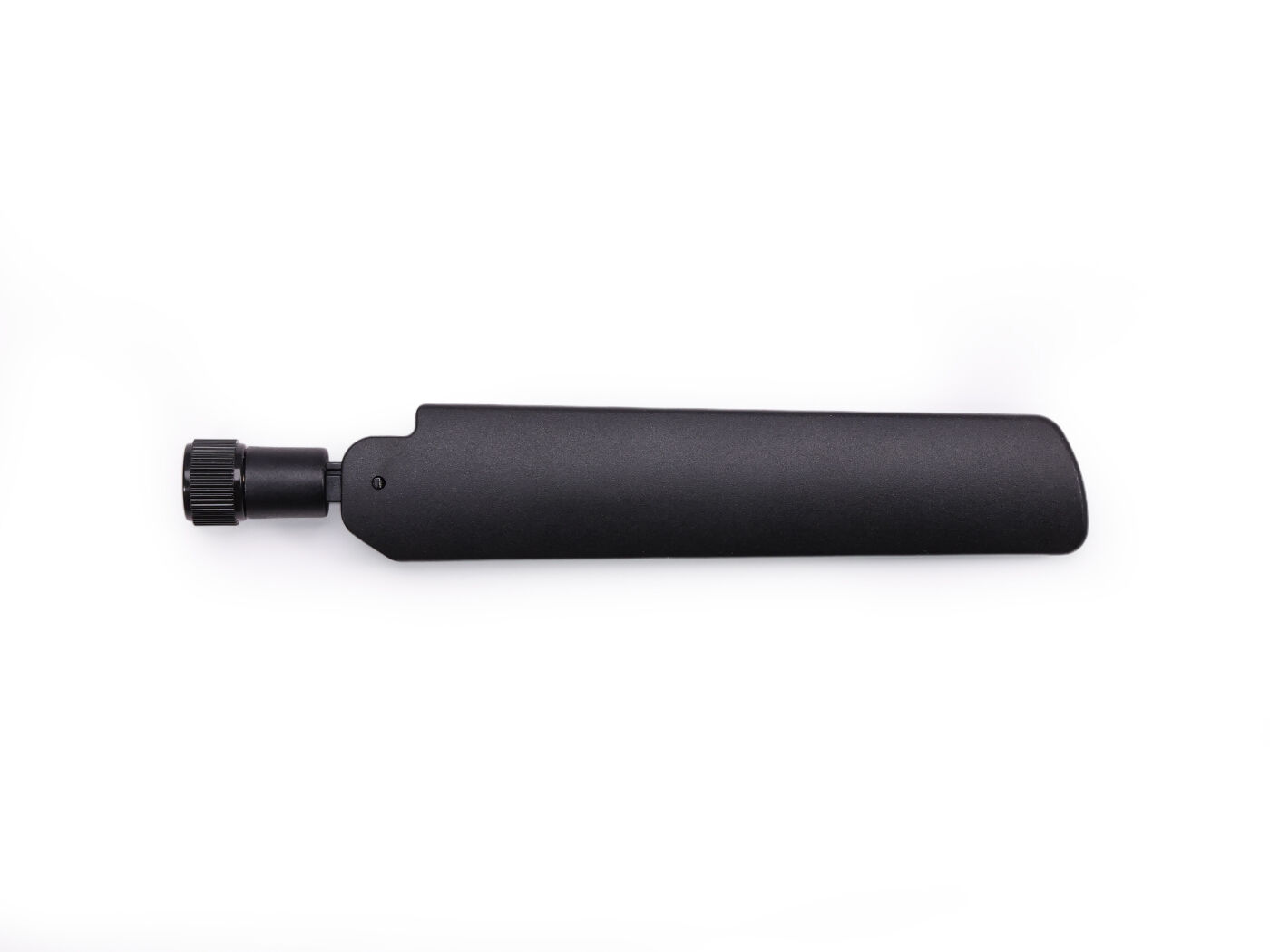

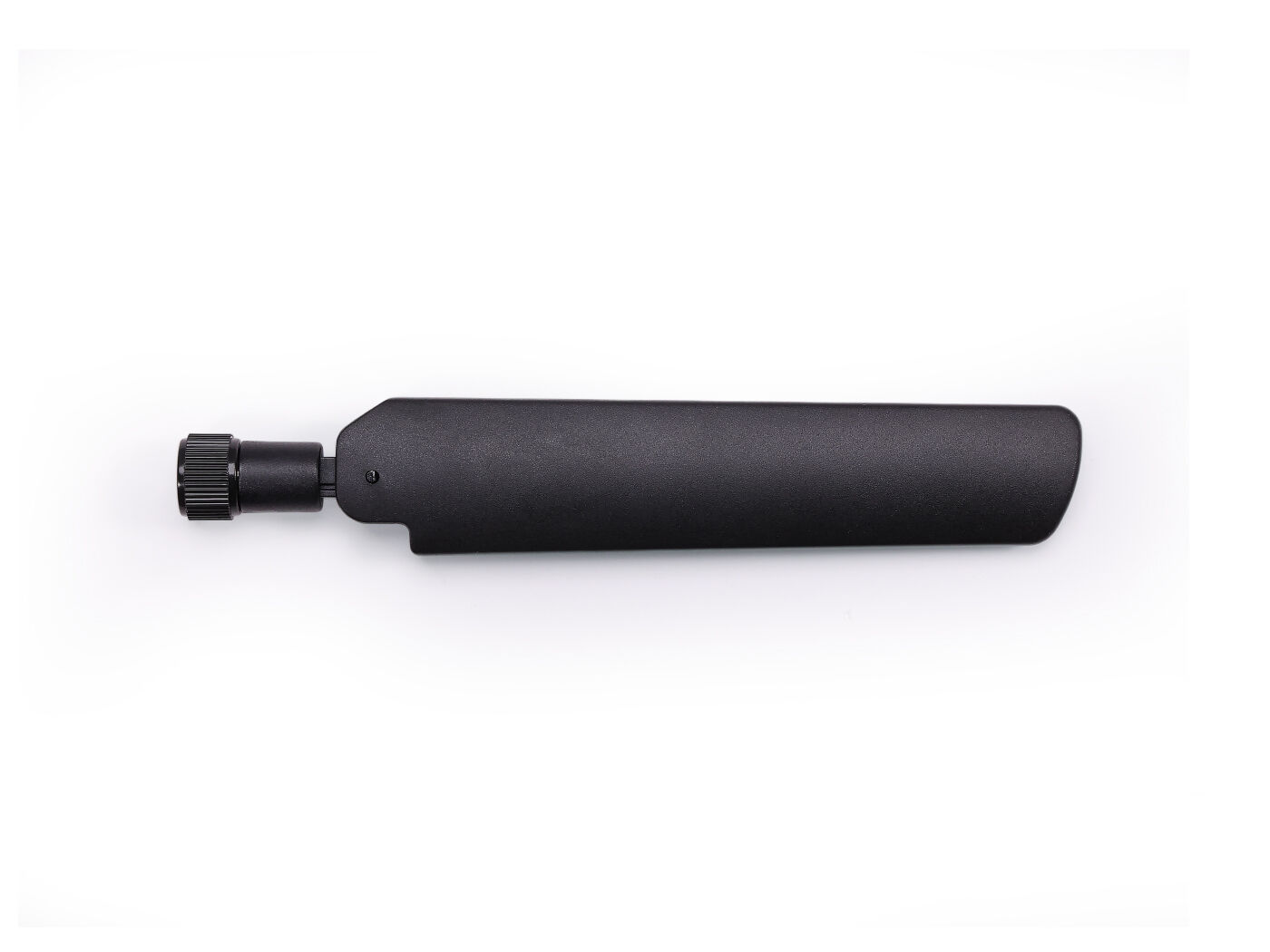

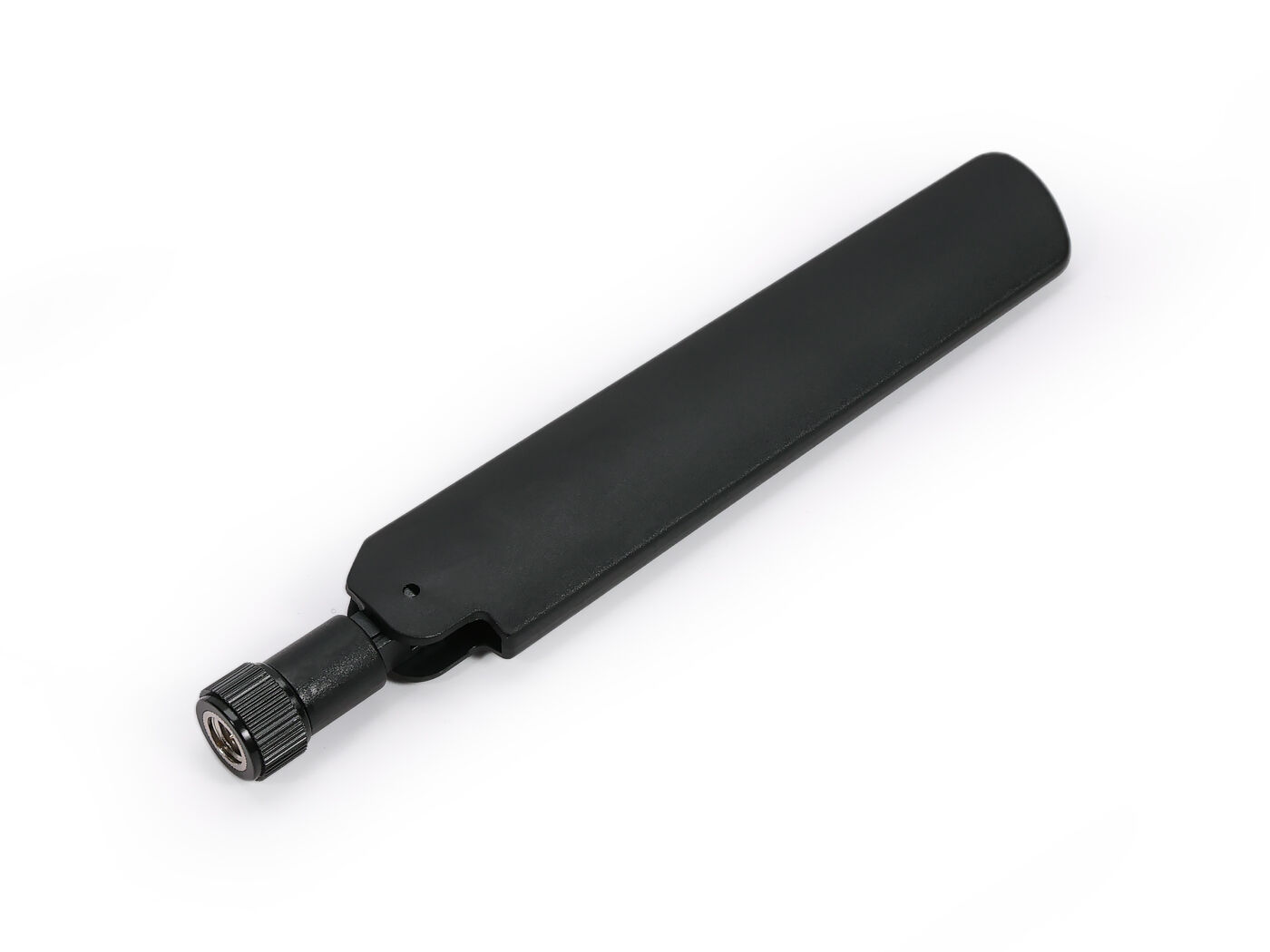

This antenna is perfect for use with all RF Explorer®️models in the 900MHz-6GHz frequency range, specially RF Explorer®️Pro and 6G Combo PLUS models. It is designed to provide a strong and effective antenna. It has a hinged structure and has better performance in vibration environment. And it is easy to install and requires no maintenance throughout its life cycle. The antenna provides independent ground plane omnidirectional performance, and its efficient element design ensures fast first-time connection rates and a consistently strong communication link, providing stable communication connections even in problematic coverage areas.
Key Features
- Powerful frequency band support: Supports 900MHz-6GHz frequency band.
- Sturdy and efficient design:Equipped with a hinged structure and solid ABS covering for better performance in vibration environments.
- Efficient signal connection quality: Provide independent ground plane omnidirectional performance, fast first connection rate and continuously strong communication link.

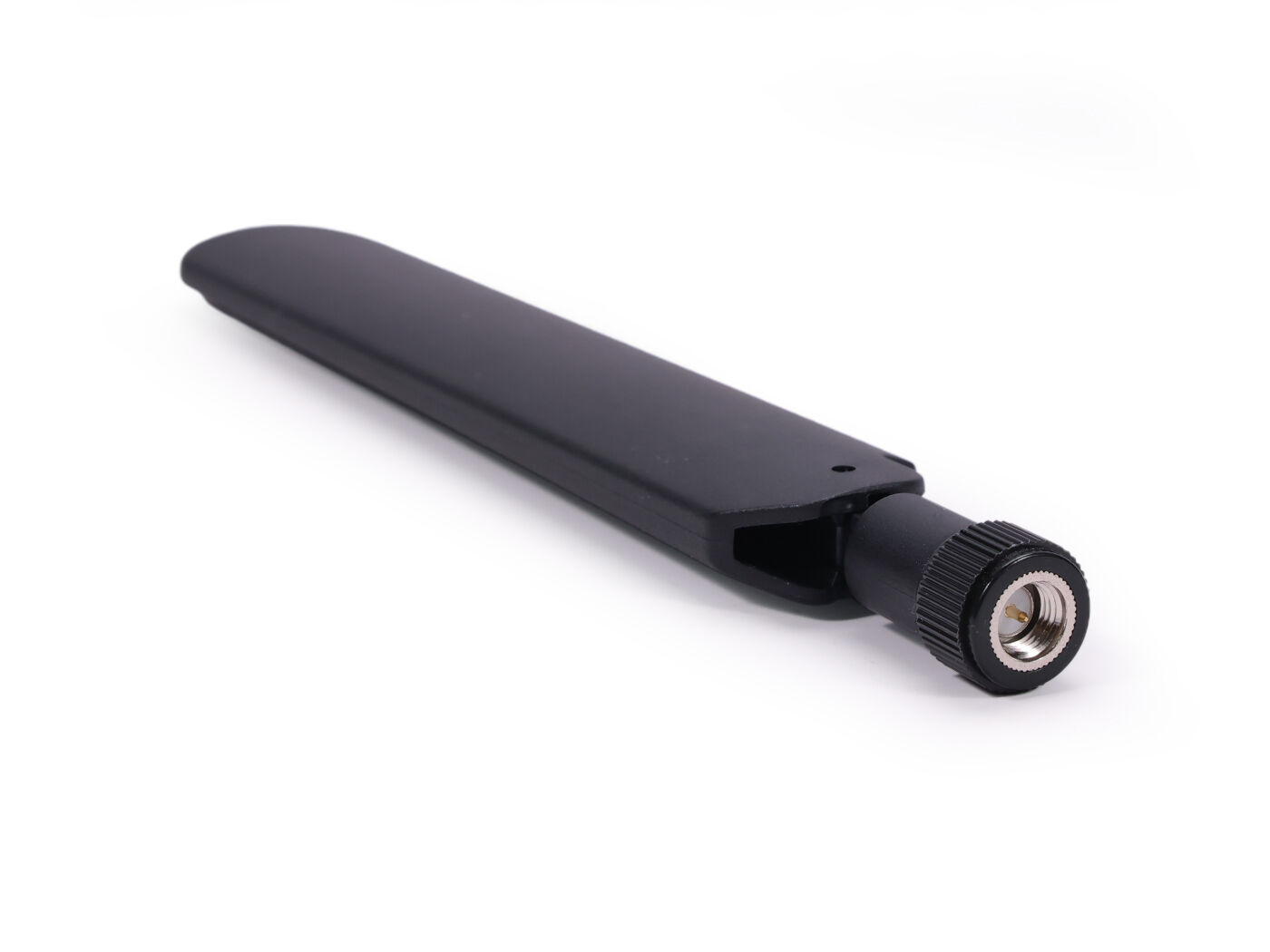

- Convenient and quick installation: Equipped with standard SMA connector, it can be quickly installed on the device.
- Authoritative certification: This product complies with RoHS certification and meets environmental protection requirements.
Specifications
|

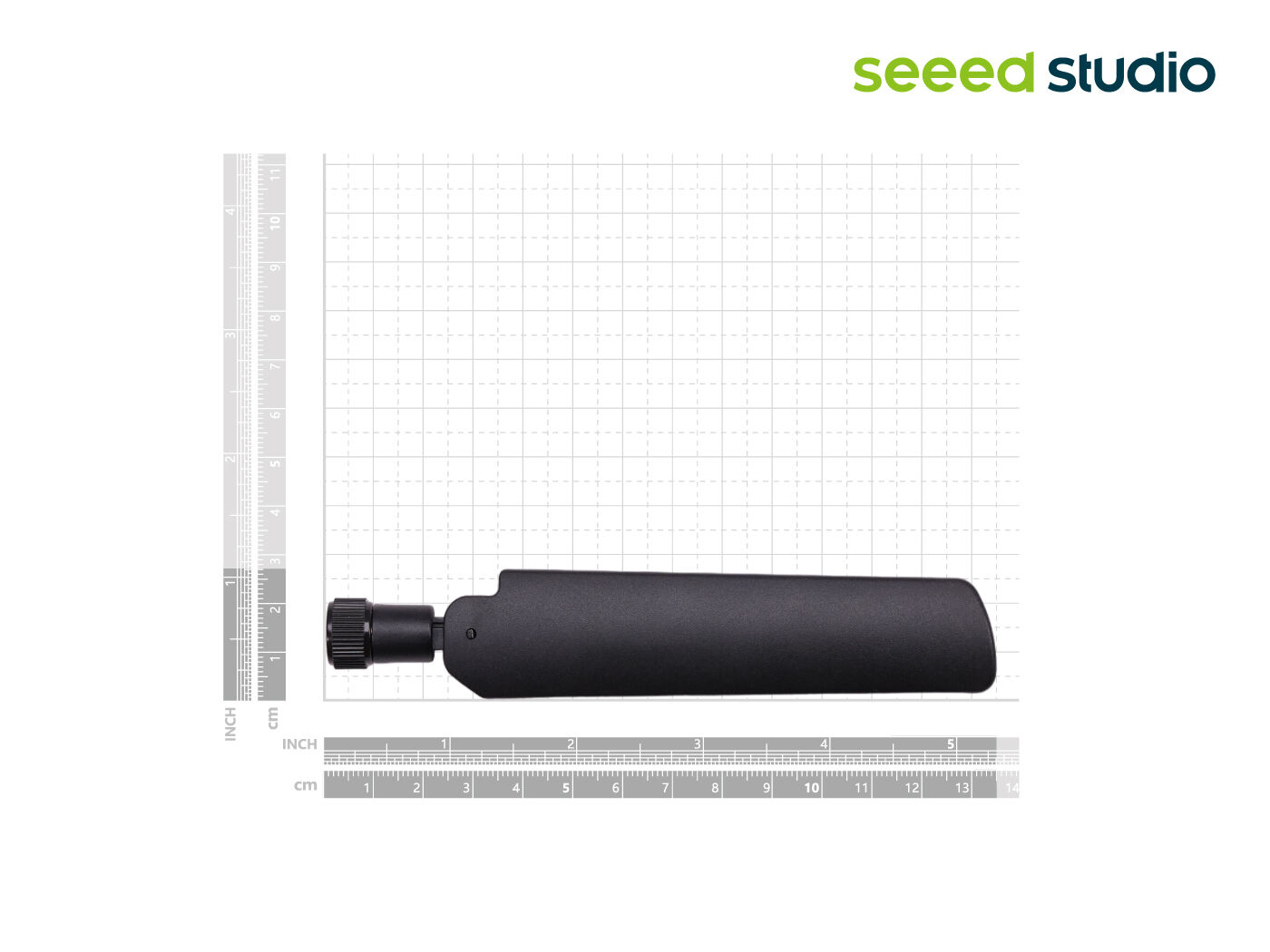

Dimensions (mm) |
15*135*24 |
||
|
Net Weight (g) |
16 |
||
|
Connector |
SMA-Male |
||
|
Radome |
Black ABS |
||
|
Frequency Bands (MHz) |
698-960 |
1710-2690 |
5150-5850 |
|
VSMR Max |
7.0 : 1 |
3.0 : 1 |
3.0 : 1 |
|
Peak Gain, Typical (dBi) |
Up to 418 |
||
|
Nominal Impedance |
50Ω |
||
|
Max Power at 25℃ (W) |
10 |
||
|
Azimuth Beam Width (deg) |
Omnidirectional |
||
|
Polarization |
Linear, Omnidirectional |
||
|
Storage Temperature Range (℃) |
-40 to 85 |
||
|
Operational Temperature Range (℃) |
-40 to 85 |
||
|
Material Substance Compliance |
RoHS |
||
Hardware Overview
Part List
|
External Antenna for RF Explorer®️Pro |
x1 |
