Description

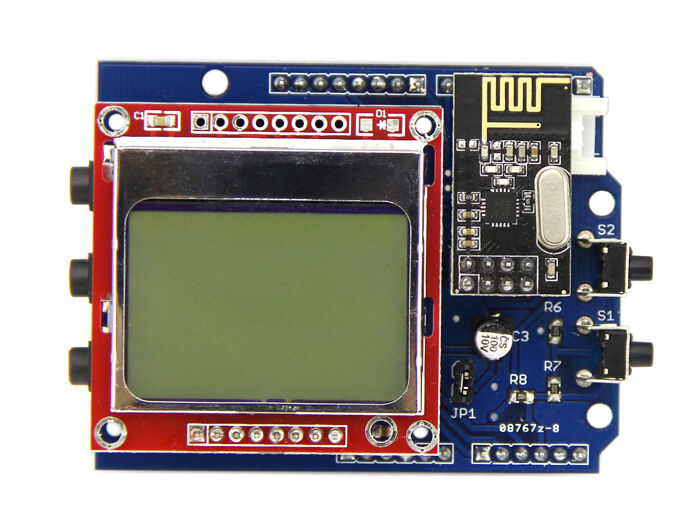

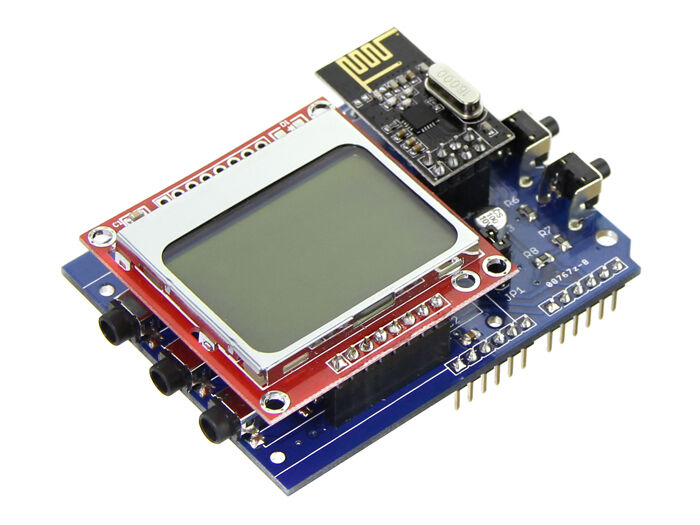

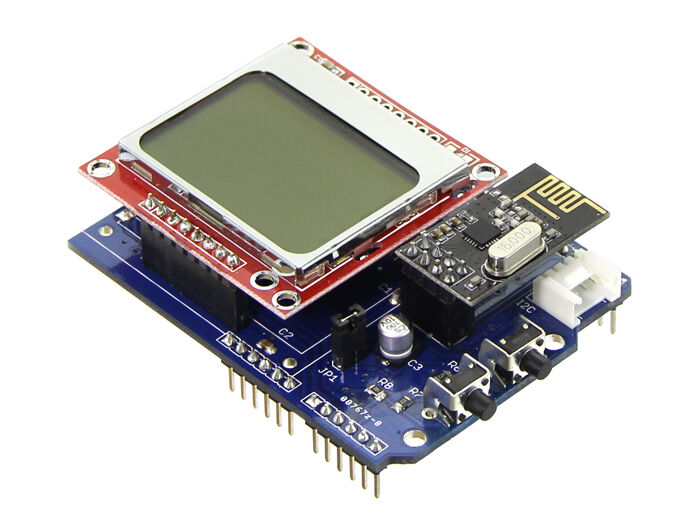

Energy Monitor Shield is an Arduino-compatible expansion card designed for building energy monitoring system with LCD screen and an interface for connecting the wireless transceiver nRF24L01 +.
Features
-

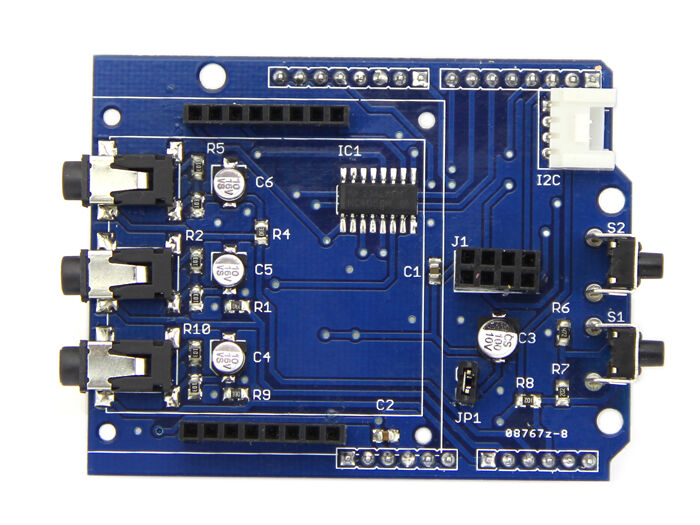

Connect up to three sensors AC (30-100A).
-
Support for LCD Screen Nokia LCD5110
-
Turn off the LCD backlight with a jumper
-
Two buttons to control (operate one analog pin)
-
Interface to connect the transceiver to 2.4G nRF24L01 +
-
GROVE-compatible connector: I2C
-
Fully compatible with Ethernet Shield

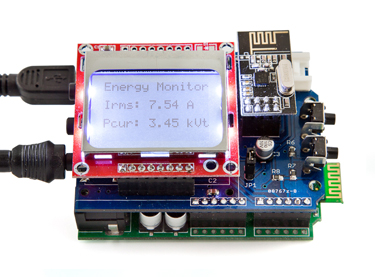

Application
Packing List
-

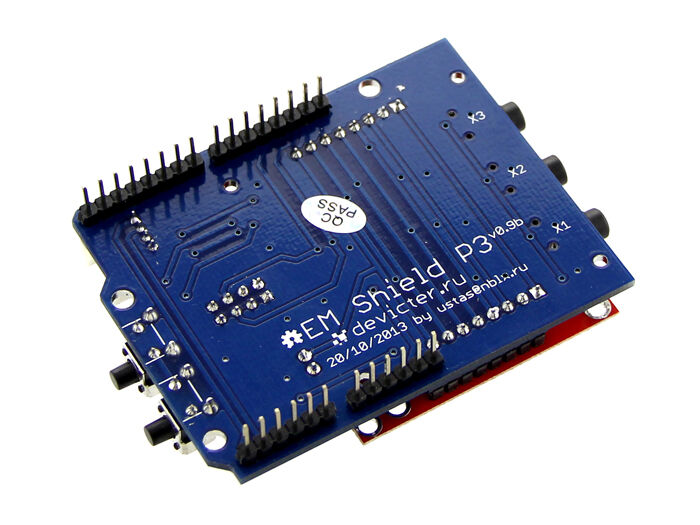

EM Shield P3 X 1
-
Display Nokia 5110 X 1
-
Wireless module nRF24L01 + X 1
Documentation
Please visit the wiki page for more information about this product. We will be very grateful to you for helping us improve our documentation. Add more description or demo code. For technical support, please publish your question on our blog.
Support
If you have any further question for technical support, please contact support@devicter.ru.
