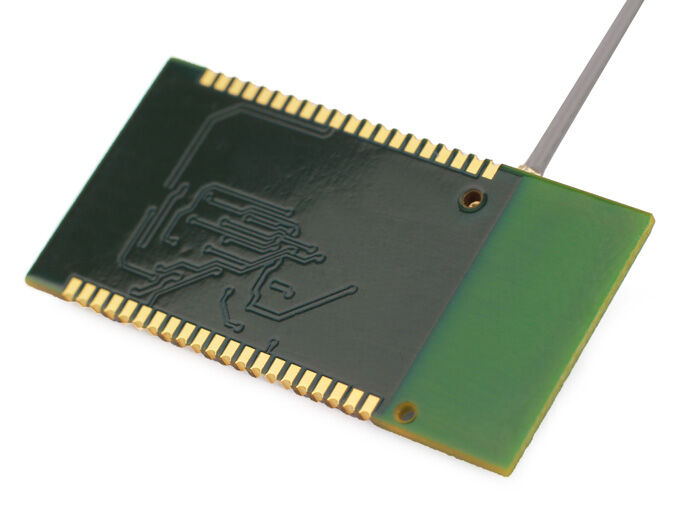

EMW3165-Cortex-M4 based WiFi SoC Module (External IPEX antenna)

Description

EMW3165 is a low-power embedded Wi-Fi module integrates a wireless LAN MAC/baseband /radio, and a Cortex-M4 microcontroller STM32F411CE that runs a unique "self-hosted" Wi-Fi networking library and software application stack.

EMW3165 is also a MiCOTM  platform, users can  build their own embedded Wi-Fi applications based on  MiCOTM   library which manage all of the Wi-Fi MAC and TCP/IP stack processing.

Features

Consists of a Cortex-M4 microcontroller and an IEEE 802.11™  b/g/n chip

• Cortex-M4 core at 100MHz


• 2M bytes on-board SPI flash and 512K bytes on-chip flash


• 128K bytes RAM


• Operation voltage:3.0V~3.6V


Peripherals

• 22 GPIOs


• JTAG/SWD debug interface


Wi-Fi connectivity

• 802.11b, 802.11g, 802.11n (single stream)


• WEP, WPA/WPA2 PSK/Enterprise


• 16.5dBm@11b, 14.5dBm@11g 13.5dBm@11n


• Receiver Sensitivity: -87 dBm


• Station, Soft AP and Wi-Fi direct


• Support EasyLink

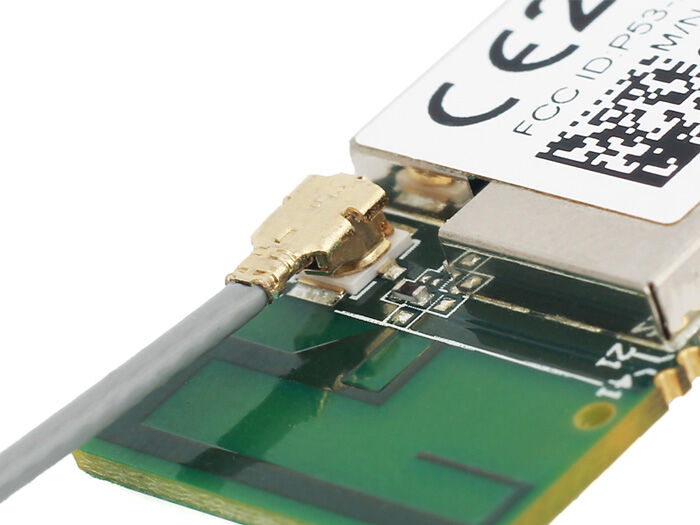

• On-board PCB antenna，IPEX connector for external antenna


• CE, FCC compliant


Specification

Hardware Block

Applications

• Building Automation / Access Control


• Smart home appliances


• Medical/Health Care


• Industrial Automation Systems


• Point Of Sale system (POS)


• Auto electronics


We also have the built-in aerial module: EMW3165 – Cortex-M4 based WiFi SoC Module and the evaluation board: EMWE – 3165 – A Development Board on sale.

Part List

•

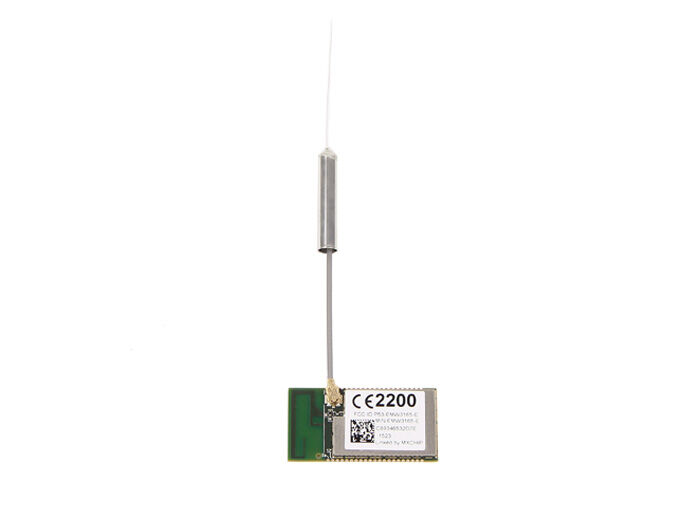

  1x EMW3165

• 1x IPEX antenna

Documents

• Datasheet

• FCC certification

• Code is available on Github

There is a forum for you to discuss and show your idea: www.emw3165.com

For any technical support or suggestion, please kindly go to our forum.

If you have any technical problem, please contact sales@mxchip.com.
