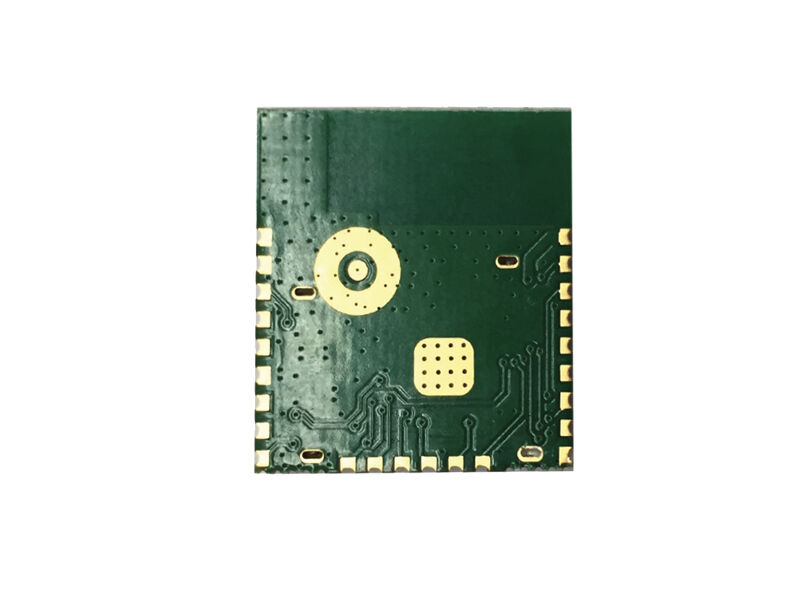

EMW110 WiFi Module

Description

Note

Seeed fusion offers PCB/ PCBA manufacturing service for customized products based on EMW110 WiFi Module with an online instant quote and fast delivery. Furthermore, business users can enjoy a free prototype and engineer support as well. Click here to learn more!

EMW110  is a cost-effective embedded Wi-Fi module released by MXCHIP with high integrating ARM9. Maximum frequency 120MHz with 256KB SRAM and 2MB FLASH. Power supply is DC 3.3V. Peripherals: UART×2，SPI×1，USB×1，ADC×1, Up to 15 GPIOs.

Features

Wireless:

• Certification: SRRC/FCC/CE
• Wi-Fi protocol: 802.11 b/g/n
• Frequency: 2412MHz ~ 2472MHz

Hardware:

• Interface: UART×2，SPI×1，USB×1，ADC×1
• Operating voltage: 3.0V ~ 3.6V
• Current: Average:80 mA
• Operating temperature: -20°C ~ 70°C
• Storage temperature: -40°C ~ 85°C

Software:

• WiFi mode: Station，SoftAP，SoftAP + Station
• Encyption: WPA/WPA2/WEP/TKIP/AES
• Firmware programming: SPI/UART/OTA/
• Software development: AT command Develop by SDK
• Network protocol: IPv4/IPv6，TCP/UDP/HTTP/FTP/HTTPS/SSL/MQTT
• IOT Cloud support: Aliyun, Amazon, JD, Suning, Huawei, Microsoft

Application

• Intelligent lighting
• Intelligent Transportation
• Smart Home Application
• industrial automation
• Intelligent Security
