EMB1061 BLE Module

Description

Note

Seeed fusion offers PCB/ PCBA manufacturing service for customized products based on EMB1061 BLE Module with an online instant quote and fast delivery. Furthermore, business users can enjoy a free prototype and engineer support as well. Click here to learn more!

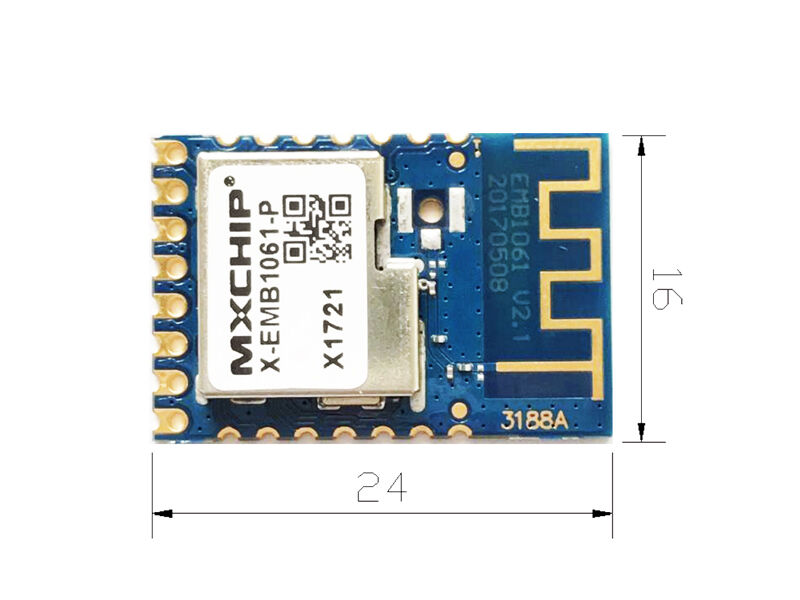

EMB1061 is an embedded BLE module by MXCHIP. It integrates a BLE4.2 single mode SOC, including ARM Cortex-M0 Core, BLE/2.4G Radio, 24KB RAM, 160KB Flash and rich peripherals. EMB1061 uses half-hole package which is easy for soldering.

Hardware diagram is shown below with three main parts:

• 32-bit Cortex-M0 Core
• BLE 2.4GHz RF
• Power management

With:

• Up to 16MHz ARM Cortex-M0 MCU with 24KB RAM , 160KB FLASH, UART，I2C，SPI，ADC，Timer/PWM
• RF part: support PCB antenna or IPEX connector
• Power management: DC3.3V power supply, operating voltage range: 1.7V~3.6V

Features

• Based on an ultra-low power BLE SOC

– ARM Cortex-M0 Core 32MHz
– 24KB RAM
– 160KB Flash

• Operating Voltage: 1.7V～3.6V
•  Bluetooth Features

– Support Bluetooth 4.2 (BLE single mode)
– Max TX power: 8dBm
– Min RX sensitivity: -87dBm
– Support BLE Master/ Slave mode
– Support broadcasting, data encryption,and adaptive frequency hopping

• Operating Temperature：-40℃ to +105℃
• Antenna: PCB antenna or IPEX connector (Optional)

Application

• Intelligent lighting
• Smart Home Application
• Wearables
• Smart healthcare
• Portable devices
