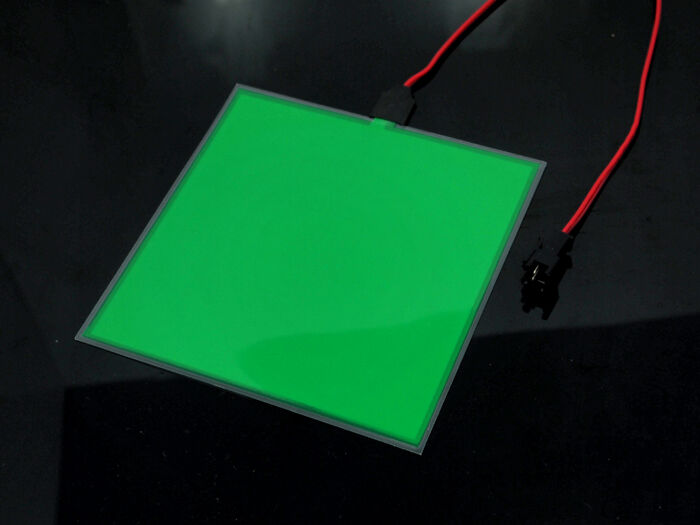

EL Panel – Green 10cm x 10cm

Description

A big sister to our EL tape, the EL panel is a similar item that comes in a 10 cm square format.  You’ll notice when working with it that it shares some of the same features as the EL tape:  flexibility, portability, and a beautiful soft glow.  It can be used as backlight for an illuminated device, or a platform for paper-cutting artwork.  Post it on a flat surface or wrap it around a curved surface.  Use it in a project as a lighting element or attach it to a shirt.  The options are amazing.

You need an inverter to drive the EL light, to control it, please pick up an EL Shield.

Features

• No heat loss

• Great backlight material

• High efficiency (97%)

• Does not emit UV light

• Soft light that is not harsh on the eyes

• Waterproof, except the connecter

• The higher voltage EL USB inverter is recommended because it produces a stronger light

• Able to be cut into other shape

Specifications

• Dimension:  10 cm x 10 cm

• Thickness:  0.4 mm – 1.0 mm

• Operating Voltage:  100 V~ 220 V  Optimum :  120 V

• Operating Frequency:  50 Hz~ 5000 Hz   Optimum:  1500 Hz – 2000 Hz

• Static Capacitance:  6 nf/m (20 &deg; C, the RH <80%)

• Brightness:   30 cd/m2 ~ 126 cd/m2 (at 120 V, 200 Hz ~ 2000 Hz)

• Power:  108 mw m ~ 1032 mw/m (at 120 V, 200 Hz ~ 2000 Hz)

• Life:  approximately 8000 hours

• Operating Temperature/Humidity:  -10 &deg;C ~ + 60 &deg;C/RH < 90%

• Storage Temperature/Humidity:  -10 &deg;C ~ + 60 &deg;C/RH < 65%
