EdgeBox RPi 200 – Raspberry Pi IoT Edge Device | IoT Gateway | 4GB RAM,16GB eMMC, WiFi

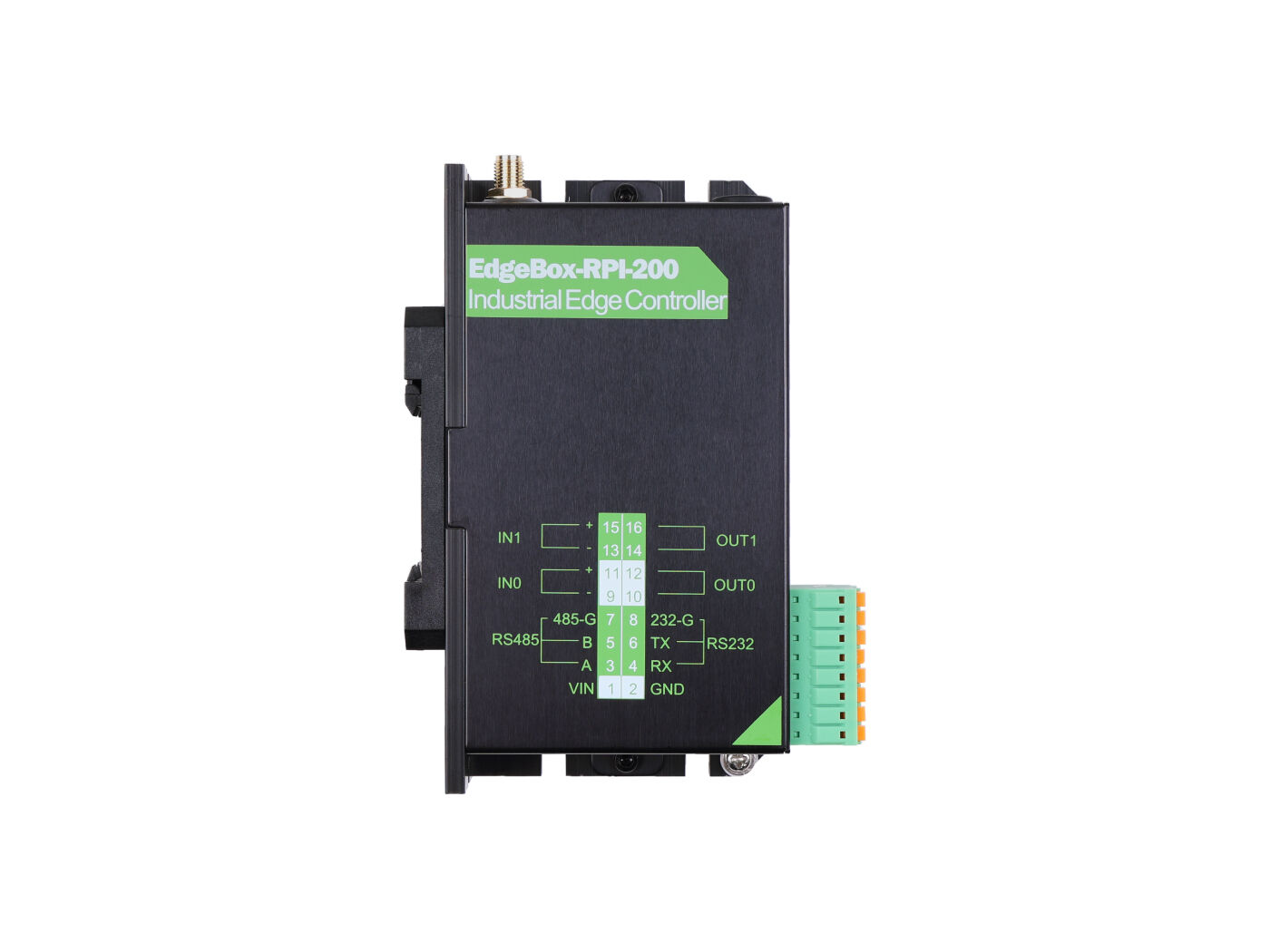

Name: EdgeBox RPi 200 - Raspberry Pi IoT Edge Device | IoT Gateway | 4GB RAM,16GB eMMC, WiFi
SKU: 102110771
Price: 294 USD
Availability: InStock

$294,00

EdgeBox-RPI-200 is not only an industrial raspberry pi/linux gateway and IIoT gateway, but also an all-in-one Raspberry Pi-based edge computing controllers that combines multiple industrial purposes. Designed as high-scalability and rugged industrial hardware, mounted with rich IO resources, and supported by the great Raspberry Pi industrial software ecosystem, it is an ideal choice for smart automation and Industrial Internet of Things(IIoT) solutions.

999 in stock

SKU: 102110771 Categories: Edge Controllers, Raspberry Pi

Description

Note:

Price Increase Announcement
Date: March 2, 2026
Due to increased demand for modules and SSDs, reComputer (Raspberry Pi) and EdgeBox Series‘ pricing is expected to rise by approximately $20–$80 in the coming weeks. Please confirm your orders and requirements accordingly to help secure availability.

Key Features

All-in-one IIoT Edge Gateway

More than just a PLC, PAC, also an IoT edge Gateway, edge computing controller and Industry PC.

Powerful and Flexible Processors

Multiple Communication Capabilities

Support multiple industrial iot protocols and standards on phoenix connector and a RJ45 Gigabit Ethernet; Carry full-featured wireless interconnectivity with both cecullar and LoRa, supported by AWS, Azure cloud services

Rugged Industrial-grade Hardware Design

Integrated thermal management with full Aluminum heatsink enclosure, supporting 35mm DIN rail and wall mounting

Supported with Rich Industrial Software Ecosystem

Support rich industrial platforms and also fleet management, including Codesys, N3uron, balena, Node Red, Ignition and etc.

Description

The EdgeBox-RPI-200 series controllers offer versatile solutions for enhancing edge automation and industrial control. Compact yet powerful, they support real-time operations and multi-process control for various industrial applications, serving as PLC, IIoT Gateway, OPC UA Server, and Industry PC.

For a detailed comparison and to find the best fit for your projects, you can check our EdgeBox Series Comparision Table, or directly email us at edge@seeed.cc.

Powerful and Flexible Processors

EdgeBox-RPI-200-CM4104016 leverages the processing power of the AI-enabled Raspberry Pi Compute Module 4(CM4), running up to 1.5GHz, equipped with 4GB RAM and 16 GB eMMC, compiling in Linux, with Debian Operate System.

Rich IO Industrial Interfaces while Supporting Extensive Bus Protocols and Standards

This highscalability equipment has been engineered with multiple isolated industrial interfaces, which adhere to various industrial bus protocols and standards to achieve data transmission in a variety of situations. It even offers extended SSD storage and enhanced display output, for more data acquisition and improved visual presentation.

Protocols and standards Support

● RS485/RS232

● TCP IP

● Modbus

● OPC UA

● IEC 61131-3 compliant

Multiple Communication Capabilities, Multiple Cloud Services Support

The EdgeBox-RPI-200 employs high integration of communication, which integrates with wireless capabilities supported by multiple cloud services. It is greatly qualified for IIoT, which you can utilize to build IoT Gateway.

Cloud Services Support

● AWS

● Azure

Great Raspberry Pi Industrial Software Ecosystem

With the great Raspberry Pi industrial software ecosystem, you will find that EdgeBox-RPI-200 has plentiful software and autonomous platforms supported. With massive documentation and open communities, troubleshooting can be precise and expeditious.

There are some platforms and brokers EdgeBox-RPI-200 working on, kindly click for detailed instruction and wiki:

Note

The EdgeBox-RPi-200 can’t directly flash the OS. An additional carrier board is required to flash the OS.

Robust Hardware Design

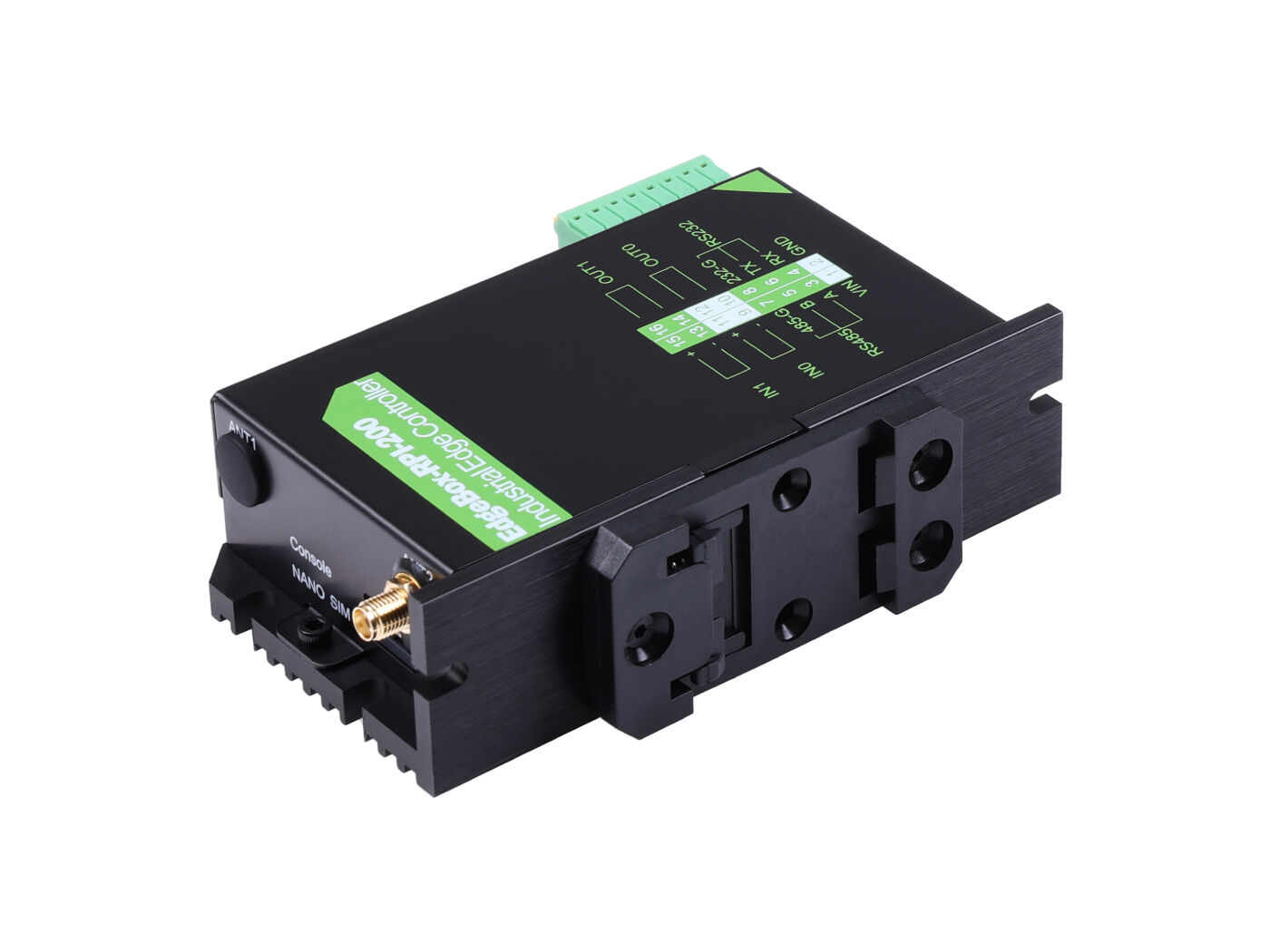

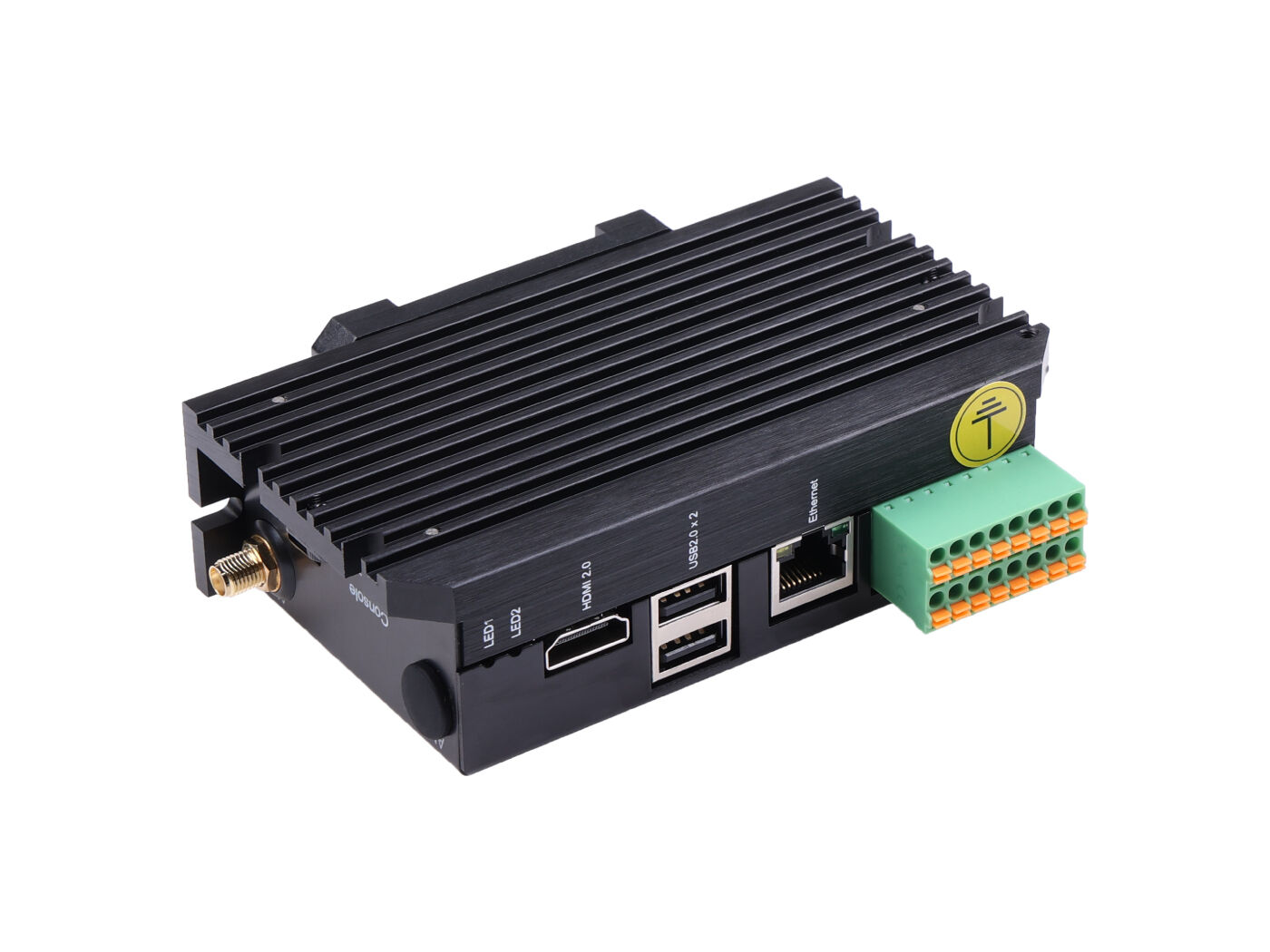

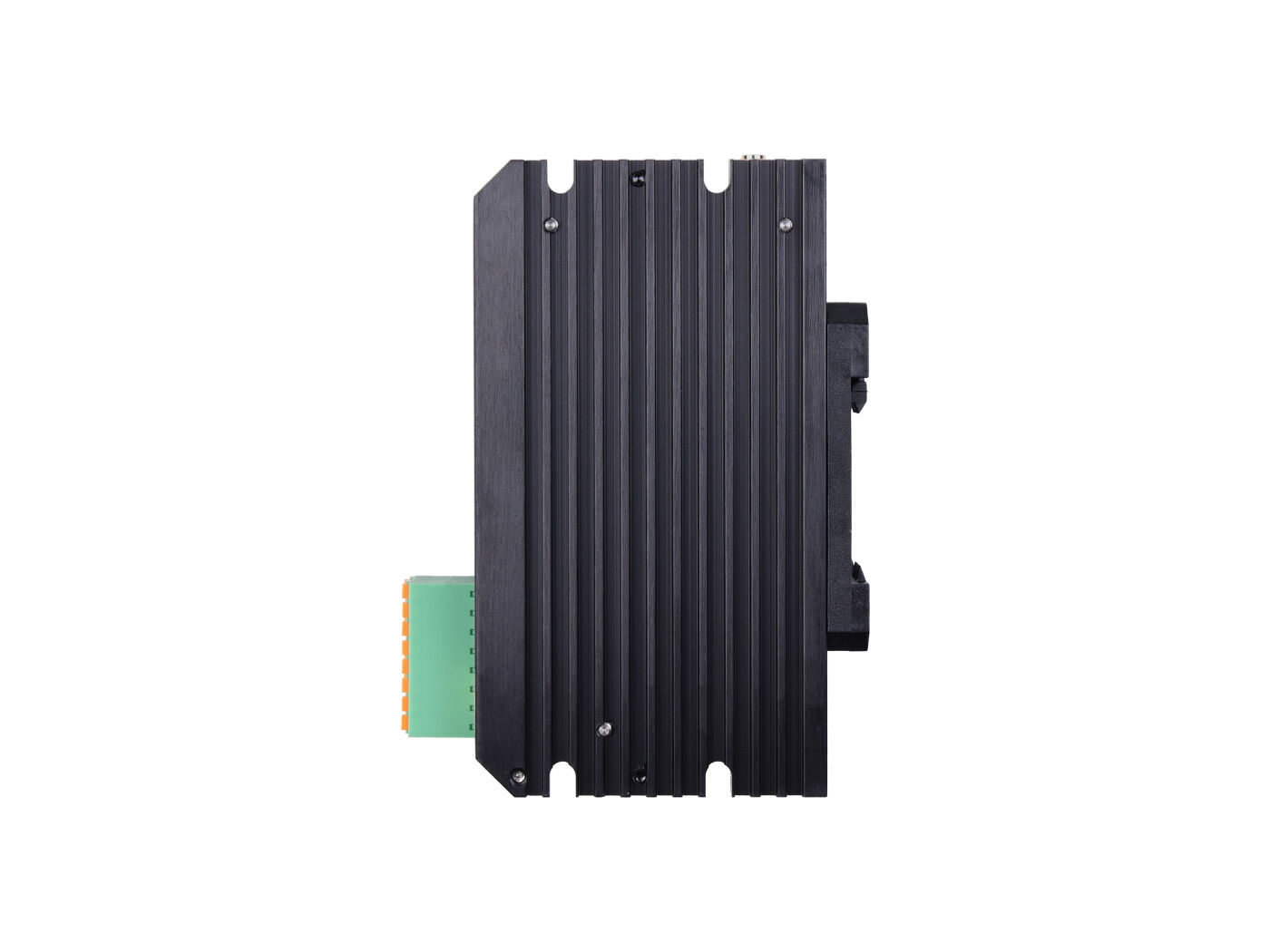

The overall structure of Edge Box is rugged, maintenance-reducing and fanless, as it integrates thermal management with full Aluminum heatsink enclosure. It is ultra-lightweight and supports 35mm DIN rail and wall mounting, all of which make it suitable for limited space and extreme conditions including in-vehicle and in-rack applications.

Application

Smart Building: Building Management System(BMS), Building Automation System(BAS), Building Automation and Control system(BACS)
Smart Farming: smart irrigation system, greenhouse conditions adgjustment, localized control and automation
Energy Management: power management system, home energy management system, microgrid control system
Manufacturing: defect detection, workplace safety, smart packing
Industry Automation: water management, forest monitoring, smart packing, fire detection and prevention system

We welcome you to explore and inquire about this product(edge@seeed.cc), unlocking the potential of EdgeBox-RPI-200 across various industries. Embrace the power of digital transformation in your sector with EdgeBox-RPI-200, empowering your business and industry with cutting-edge solutions.

Specification

Parameter	Description
Basic
CPU	Raspberry Pi CM4, Quad-core Cortex-A72@ 1.5GHz
RAM	1GB/2GB/4GB/8GB
eMMC	Lite/8GB/16GB/32GB
Operating System	Raspbian, Debian
Wireless
WiFi	2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac equipped*
Bluetooth	Bluetooth 5.0, BLE equipped*
Cellular	Mini-PCIe support 4G LTE(Quectel EC20/EC25 tested)*
LoRa®	Mini-PCIe support LoRaWAN®(加链接）(Seeed WM1302 LoRaWAN Gateway Module (SPI) – EU868, based on SX1302 – Seeed Studio tested)*

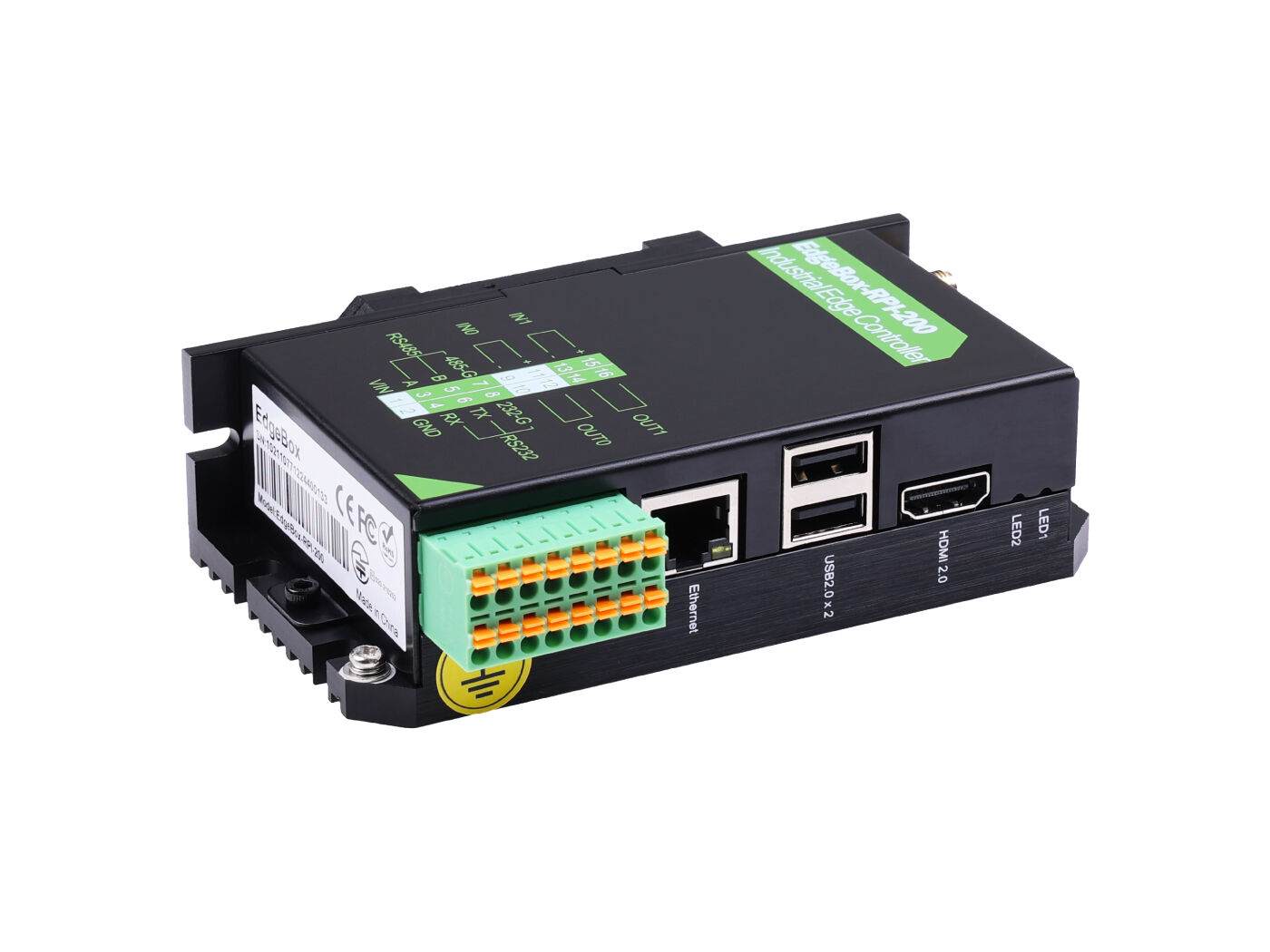

Interface
Ethernet	1 x 1000M RJ45
HDMI	HDMI 2.0 up to 4k@60fps
USB	2 x USB2.0 A
RS Serial	1 x RS485 (isolated)
RS Serial	1 x RS232
M.2 socket	2242 NVME SSD card
DI	2 x isolated DI ports
DI	Input Voltage: 24V DC; Current: 1000mA
DO	2 x isolated DO ports
DO	Output voltage: <60 V; Current: 500 mA
Extra features
Power Supply	DC 12V – 36V
RTC	RTC
Watchdog Timer	Stand alone
Encryption Chip	ATECC608A*
Uninterrupted Power Supply	UPS*
Operation temperature	-20 ~ 60 °C
Certification	RoHS, CE, FCC, TELEC, UKCA

Note

Options marked with * require additional purchase of module or antenna according to accerrories list. If you want to customize features, feel free to email us at edge@seeed.cc.

Note

4G and LoRa® cannot be used at the same time, because EdgeBox have only one Mini-PCIe slot.

Accessories List

SKU	Product Name	How to buy
114992364	Raspberry Pi Compute Module 4 Antenna Kit	buy online
110061501	LoRa Antenna Kit	buy online
114992969	Wio-WM1302 LoRaWAN Gateway Module (SPI) – US915	buy online
114993268	Wio-WM1302 LoRaWAN Gateway Module Without SX1262(SPI) – EU868	buy online
110061502	4G Antenna Kit	buy online
110061521	GPS Antenna Kit for 4G Module	buy online
113991135	LTE Cat 4 EC25-EUX-mini-PCIe	buy online
113991134	LTE Cat 4 EC25-AFXGA-mini-PCIe	buy online
113991174	LTE Cat 4 EC25-AUXGR-mini-PCIe	contact order@seeed.cc
113991214	LTE Cat 4 EC25-EFA-mini-PCIe	contact order@seeed.cc
113991234	LTE Cat 4 EC25-EMGA-mini-PCIe	contact order@seeed.cc
112990267	NVMe M.2 2280 SSD 1TB	buy online

FAQ

Q.How can I get started with EdgeBox?

Edgeboxes, pre-loaded with Debian Buster, can be powered up with HDMI and ethernet for first boot. Also you can access it remotely with SSH for initial configuration without a monitor. Once set up, switch to VNC for a graphical interface.

Q.What kinds of 4G and LoRa® modules can I use?

You can input Quectel EC20/EC25 module for 4G LTE usage.

You can use Seeed WM1302 module for LoRaWAN® applications.

Q.Can I use 4G and LoRa® at the same time?

Sorry, this box does not support 4G and LoRa® use at the same time.

Q.How to reflash OS?

When you need to install your preferred OS, you will need some additional hardware to burn it. Remove the CM4 from the Edge box and place it on the Dual Gigabit Ethernet Carrier Board to burn your OS. Then, remount the CM4

Q.What are the software we can communicate with external world ?

The Edge box is an open-source hardware solution for industries. It supports protocols such as RS485, RS282 Modbus, Ethernet/IP, TCP/IP, and wireless networks. Therefore, you can interact with the external world using third-party software such as Codesys, Node-RED, N3uron, and Ignition Edge, as well as cloud services like AWS and Azure.

Discover our range of edge devices powered by Raspberry Pi, including all-in-one edge computing controllers and versatile HMIs. They are open source and adaptable to your specific requirements. Explore the complete series of Raspberry Pi-based edge devices today.

Additional information

Weight	0,35 kg
