Description
Note:
-
Please kindly note that the package does not include an SD card and batteries. It is necessary for you to purchase these items independently.
-
This product is developed and produced by our partner EcoNect, and Seeed Studio only provides sales services. Please read the product details and usage instructions carefully. Returns and replacements are not supported unless there is a quality issue. If a quality issue occurs, EcoNect will provide a replacement within one year; repairs are not offered. Please purchase carefully based on your actual needs.
Description
The ecoEye camera is a portable, low-power camera with a water resistance housing. It protects the OpenMV Cam H7 Plus OpenMV Cam H7 Plus module for on-board machine vision. Powered by 3 rechargeable lithium-ion batteries, an intelligent power management module can provide a continuous power supply and enables system deep sleep through an integrated real-time clock and the soft latch circuit that can be controlled by the user through the external push button. Recharging and data exchange can be done through the external USB-C connector. A multi-pin connector can accommodate an 18V solar panel, I2C and analog sensors, and various other external devices, making it suitable for long-term usage and multi-sensor data integration.

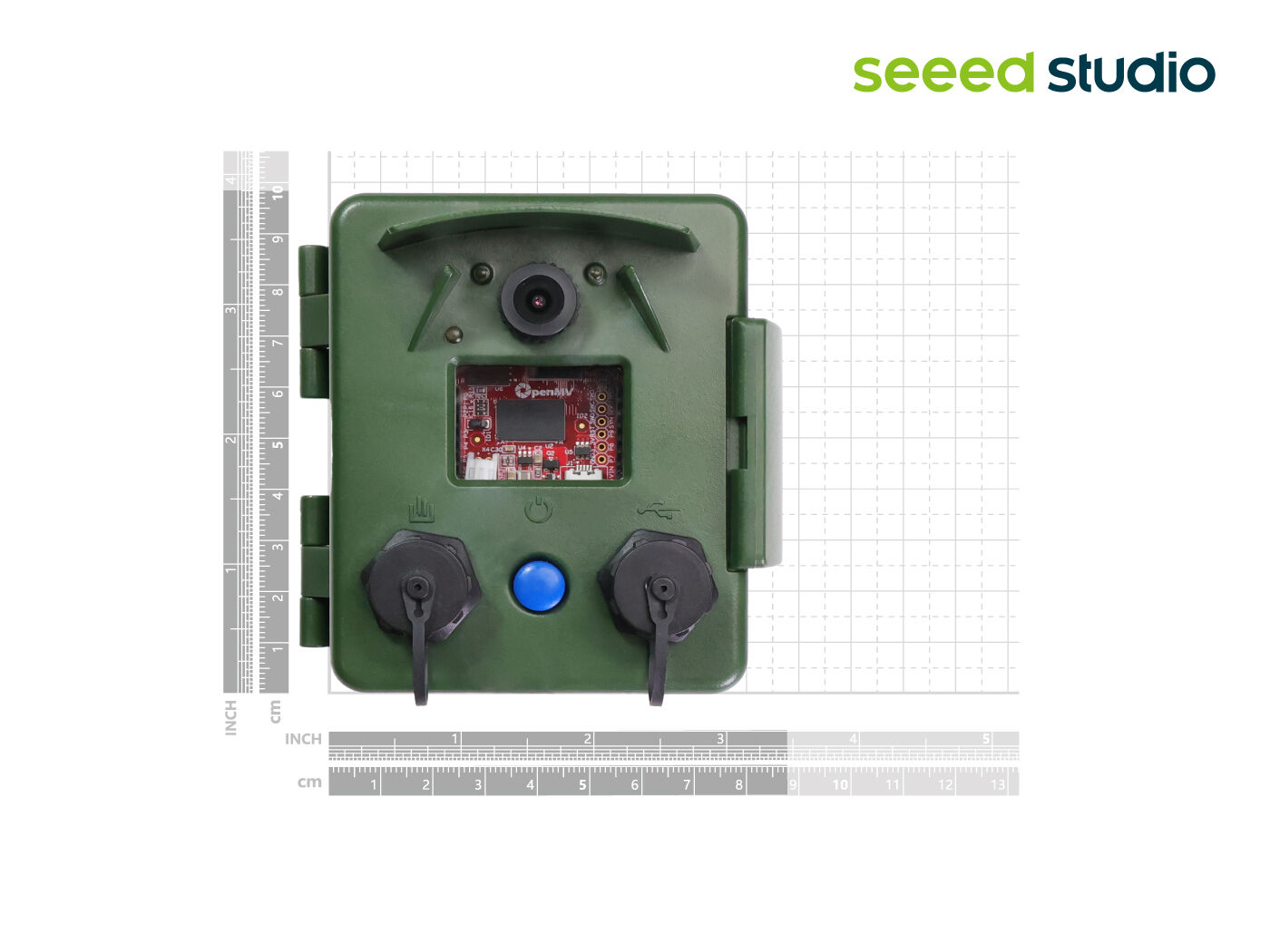

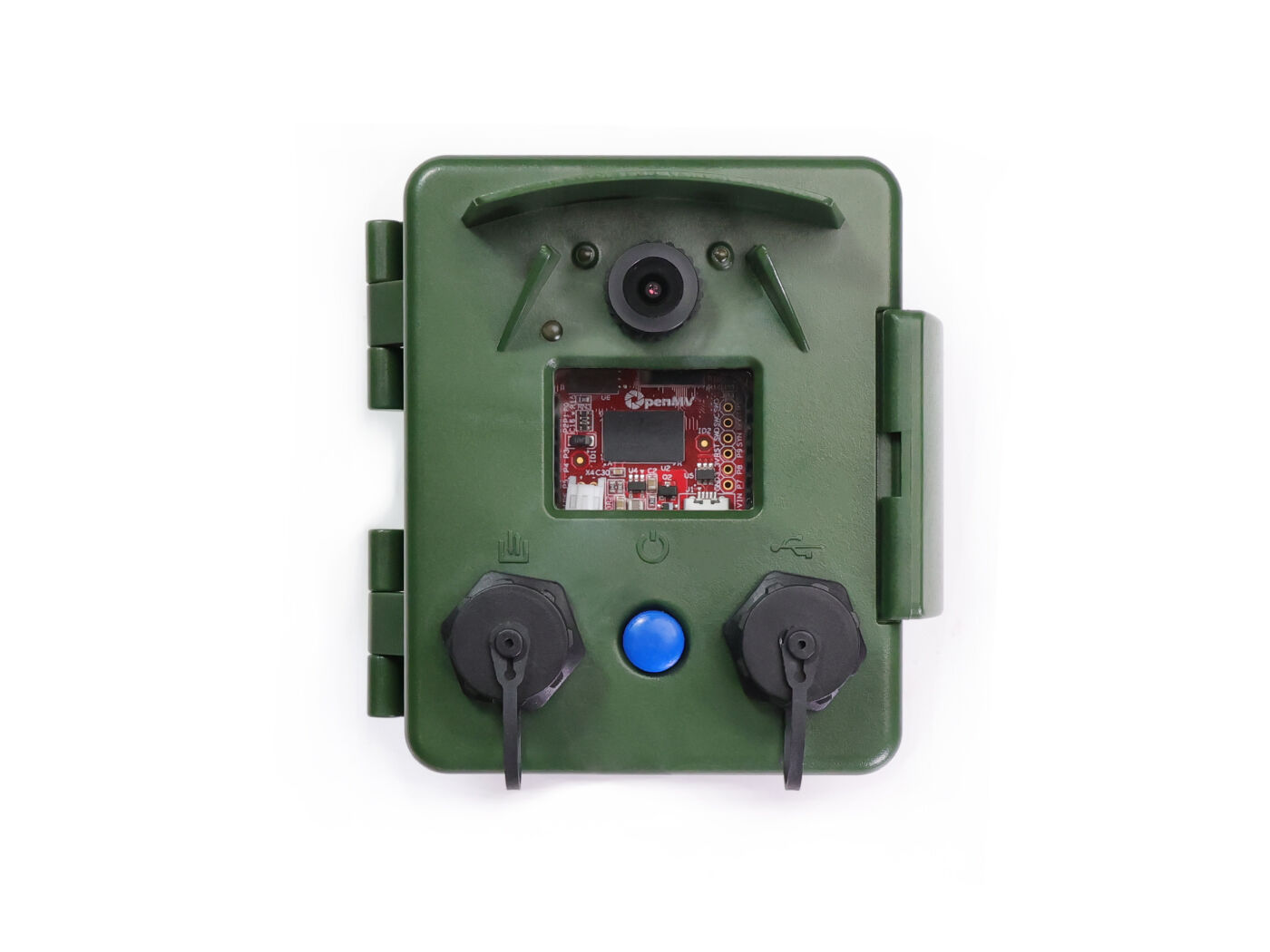

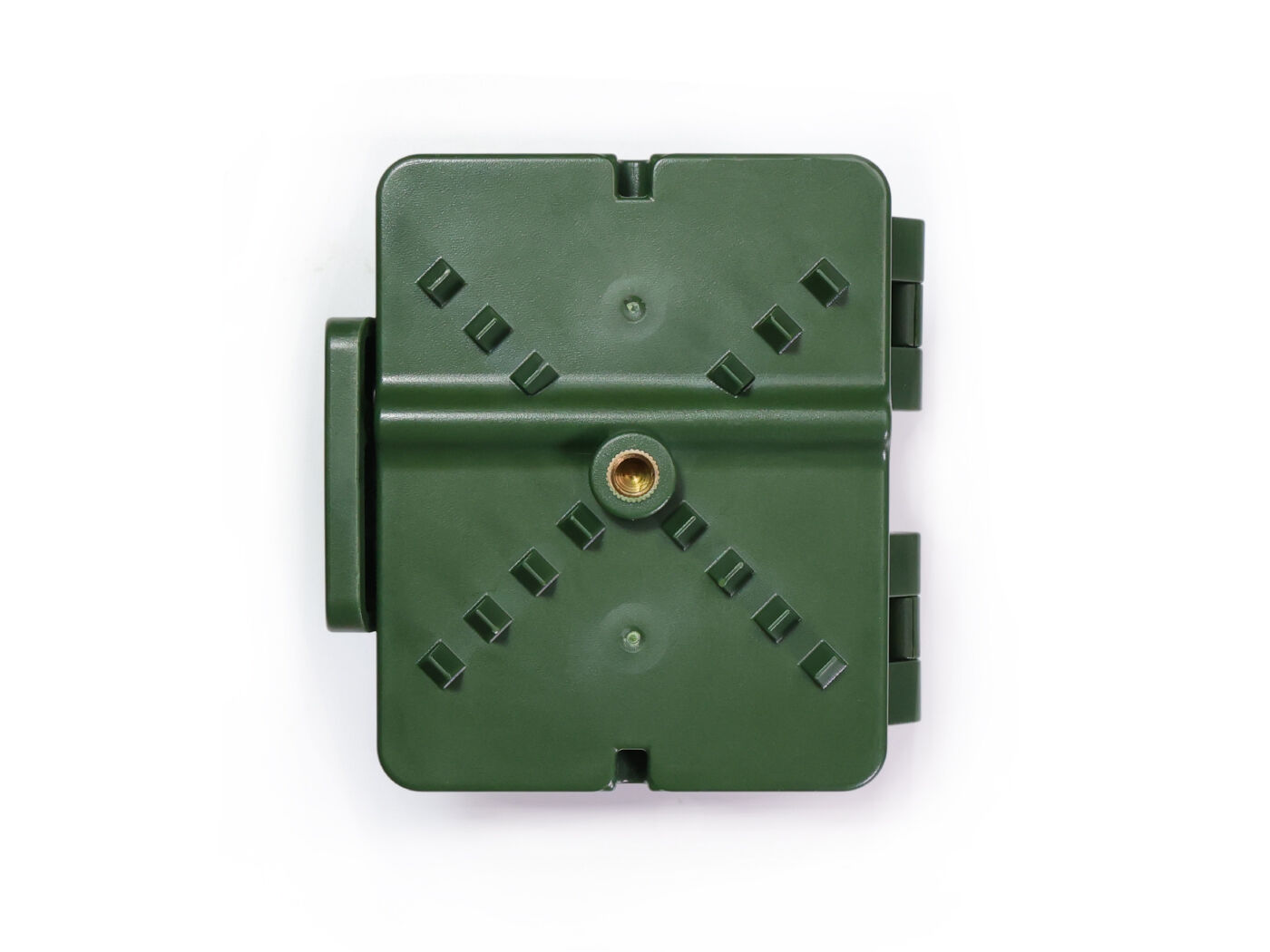

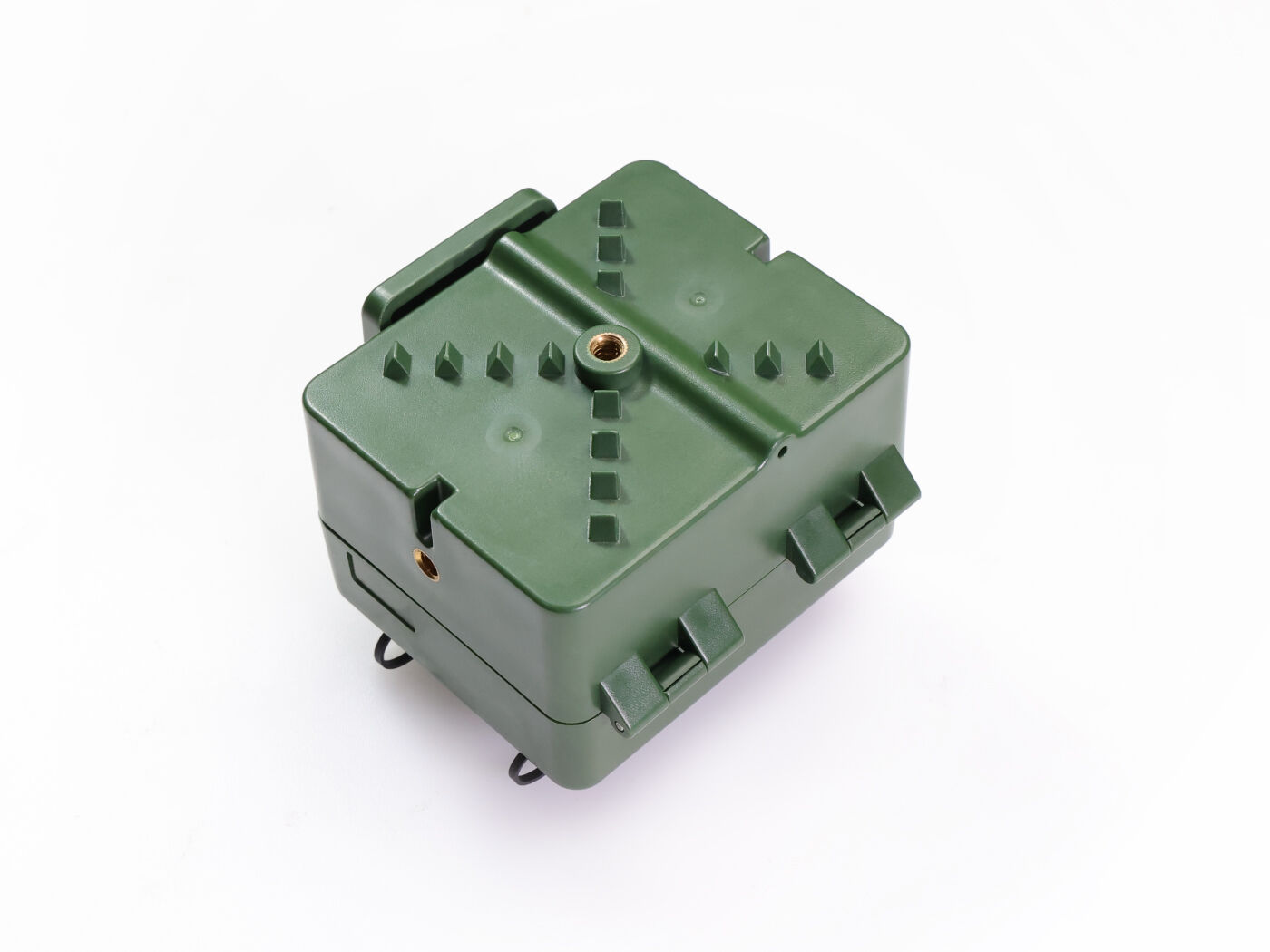

The ecoEye housing is carefully designed to accommodate all components and provides extra space for expansion boards and shields. It features water resistance seals and a secure latch for the door, allowing the camera to operate outdoors even in rainy and harsh conditions. The camera can be easily mounted on a regular tripod using four threads in each direction. The front face of the housing includes the image sensor lens, two IR LEDs for night illumination, an RGB LED indicator, a clear window for light shield expansions on the openMV board, and external connectors with the power switch. The lens is protected from sun glare and water droplets, and the well-designed cap structures prevent water accumulation when the camera is placed facing upwards.
Using the openMV IDE, you can program the camera in Python using available examples or custom code. The IDE provides a simple interface with a serial terminal and real-time image frame buffer, making it easy to write, run, debug, and set up the camera. The provided script code offers a user-friendly way to configure the camera for various monitoring applications without needing advanced knowledge of micropython or board functions. Basic parameters can be configured by the user, while most other settings are automatically handled in the background.
