DSCope

Description

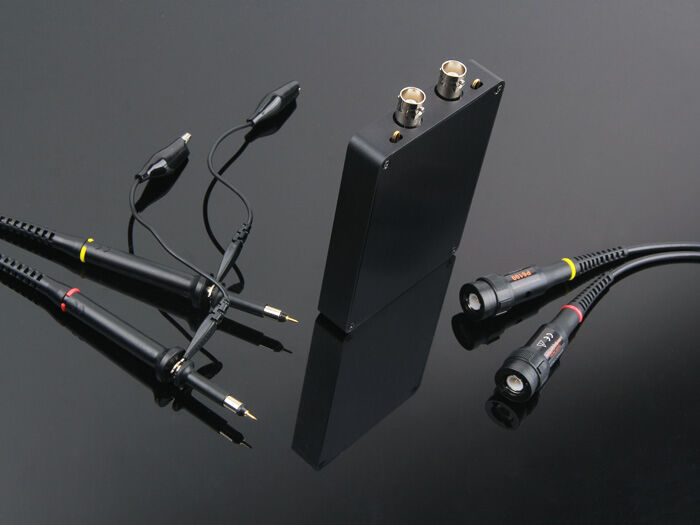

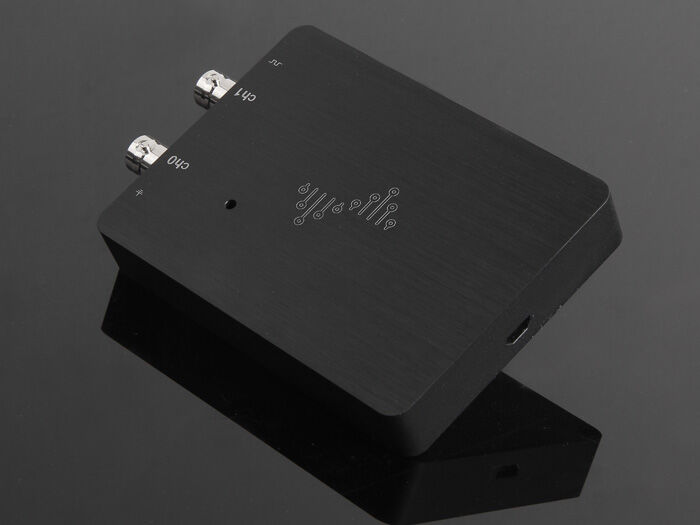

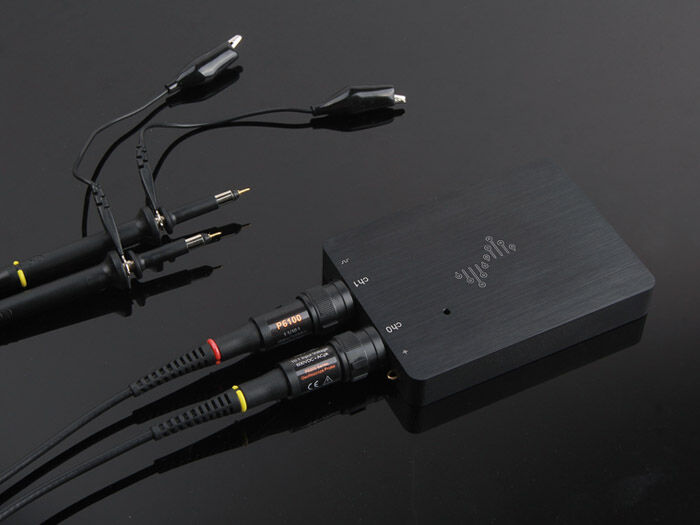

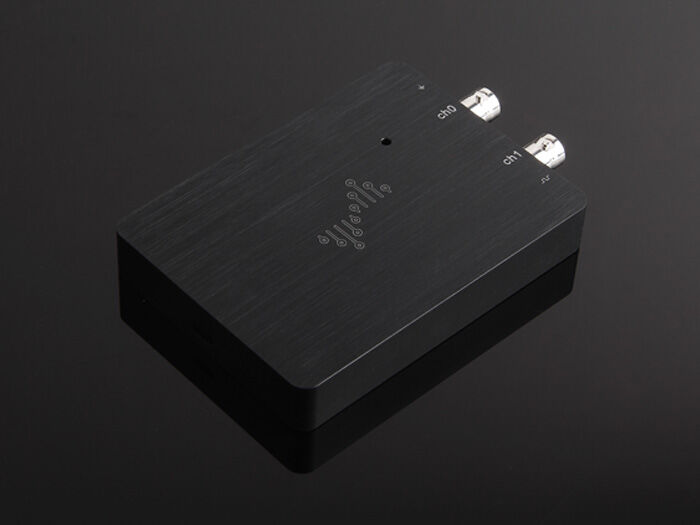

DSCope is an open source USB-based oscilloscope. It's specially designed for makers with professional specifications and an affordable price. DSCope can be used in academic, experiment, electronics maintenance, engineering task etc.

DSCope has a pocket size (101mm*74mm*16mm), which make it to be an ideal replacement to clunky traditional oscilloscope, and help you to save a big area for your working desktop.

DSCope works with your PC, MAC or even windows tablet through USB interface, which bring a big screen oscilloscope to you without any extra cost.

Features

•
  Open source

•
  Unibody aluminum shielded case

•
  Auto zero skew adjustment

•
  upgradable Hardware

•
  Advanced digital trigger

•
  Deep sample depth

•
  USB interface, USB powered

•
  Two channels

•
  Signal Generator

Specification

•
  Analog Bandwidth: 50MHz

•
  Max Sample rate: 200MHz @ 1 Channel / 100MHz @ 2 Channels

•
  Max Sample Depth: 1M(real-time mode) / 16M(single mode)

•
  Coupling: AC / DC / Ground

•
  Input Characteristics: 1MΩ // ~15 pF

•
  Protected Voltage: ±100 V (DC+AC peak)

•
  Vertical Sensitivity: 10mV/div ~ 2V/div (x1) / 100mV/div ~ 20V/div (x10)

•
  Horizontal Sensitivity: 10nS/div ~ 10S/div

•
  Triggering Mode: Auto, Single, And, Or

•
  Rising/Falling Edge trigger

•
  Vertical precise, horizontal precise measurement

•
  Waveform functions auto measurement: max, min, frequency, period

•
  Support OS: windows, Linux, OS X

•
  Dimension: 101 x 74 x 16 mm

Support

This product is designed by DreamSourceLab, for any document and techsupport, please go to:

• Website

• Wiki

• Forum
