DB9 to OBD2 Cable With Switch

Description

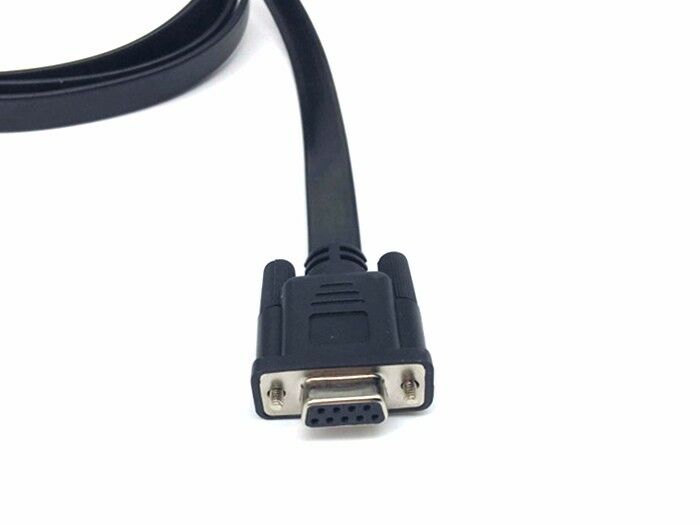

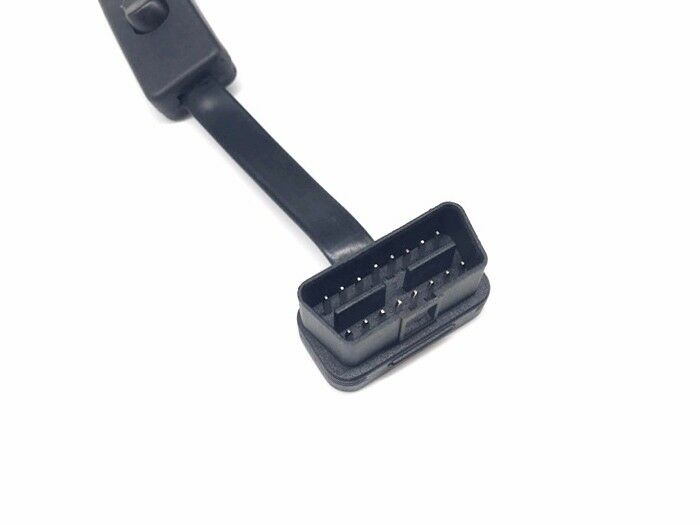

While we have been offering very popular CAN-Bus Shield, this DB9 to OBD2 cable is a wonderful mate with the CAN-Bus shield and any device that owns a DB9 connector. There is a DB9 connector on one side and a OBD2 connector on the other side. A power switch is also added closed to the OBD2 side so that you can manage the power more conveniently. It is only 150mm long, 179g wight, suitable for projects that space is limited. It is also very high quality and cost effective, if you plan to hack your car, please don't hesitate to get one!

Specifications

• Length: 150cm

• Weight: 179g

• Cable Material: Plastic

• 24AWG

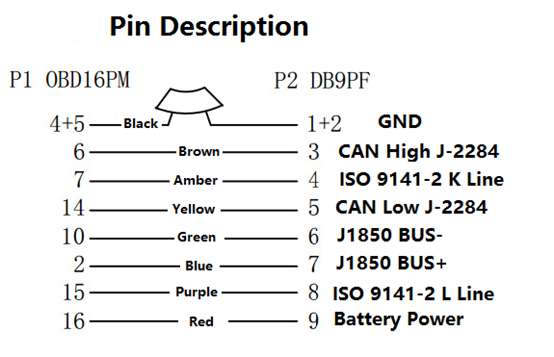

Pin Description

Part List

1 x Connect cable

Documentation

For how to get started with this cable, please visit the wiki of CAN-Bus Shield.
