Cubietruck Kit – Dual Core Single-board Computer

Description

While A10/A20-cubieboard very suitable for student, software/hardware hackers, A20-cubietruck is suitable for us to make real product.

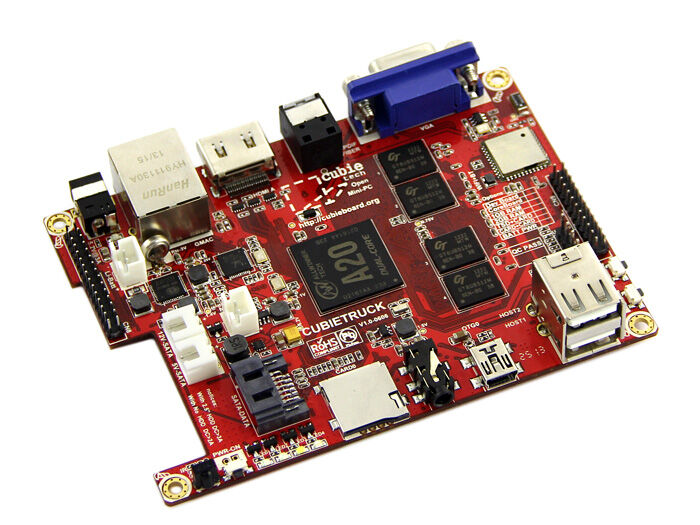

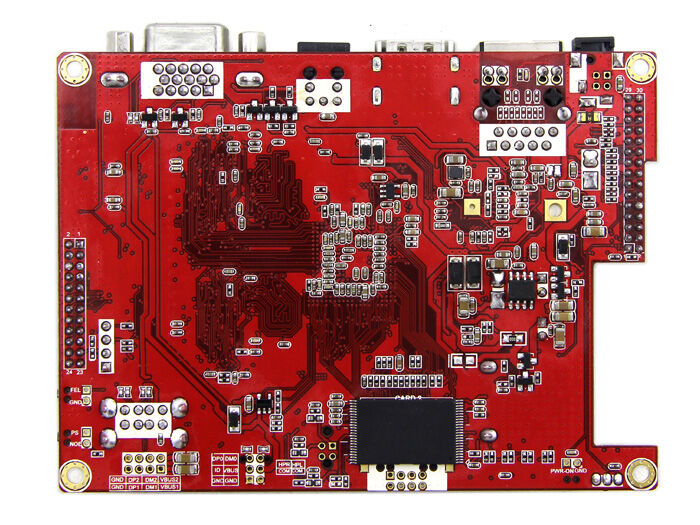

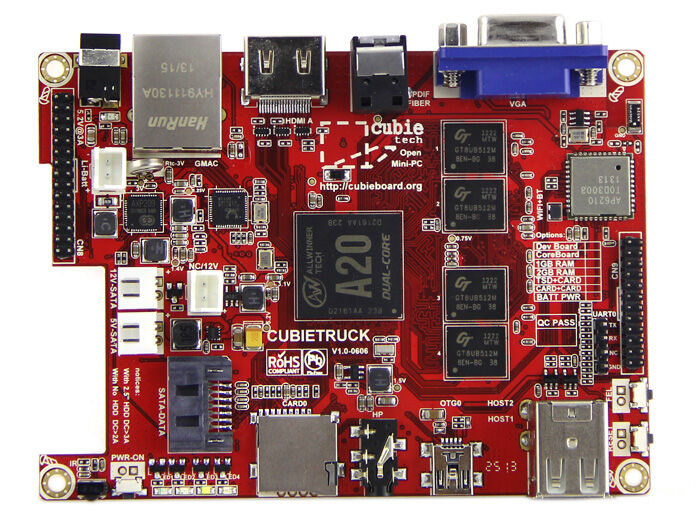

Cubietruck is the 3rd board of Cubieteam, we also name it Cubieboard3. It's a new PCB model adopted with Allwinner A20 main chip, the same with Cubieboard2. But it is enhanced with some features, such as 2GB memory, VGA display interface on-board, 1000M NIC, WIFI+BT on-board, support Li-battery and RTC, SPDIF audio interface.

FEATURES

• Allwinner Tech A20 SOC

• SATA supported

• 54 extended pins

• Built-in HDMI/ VGA display interface

• Built-in WIFI+BT module

• 2GB DDR3 RAM

• Built-in IR receiver

• SPDIF audio interface

SPECIFICATION

• Allwinner Tech SOC A20 ARM Cortex -A7 Dual-Core ARM  Mali400 MP2 Complies with OpenGL ES 2.0/1.1

• 2GB DDR3@480MHz

• HDMI&VGA 1080P display output on-board

• 10M/100M/1G Ethernet

• WIFI + BT wireless connection with antenna on-board

• SATA 2.0 interface support 2.5’ HDD (for 3.5" HDD, only need another 12V power input)

• Storage solution NAND + MicroSD

• 2 x USB HOST, 1 x OTG, 1 x SPDIF, 1 x IR, 4 x LEDs, 1 x Headphone, 3 x Keys

• Power DC5V@2.5A with HDD support Li-battery & RTC

• 54 extended pins including I2S, I2C, SPI, CVBS, LRADC x2,UART, PS2, PWM x2, TS/CSI, IRDA, • LINEIN&FMIN&MICIN, TVIN x4 with 2.0 pitch connectors

• PCB size 11cm *8cm*1.4mm

• Operating temperature: -10℃ ~ 70℃.

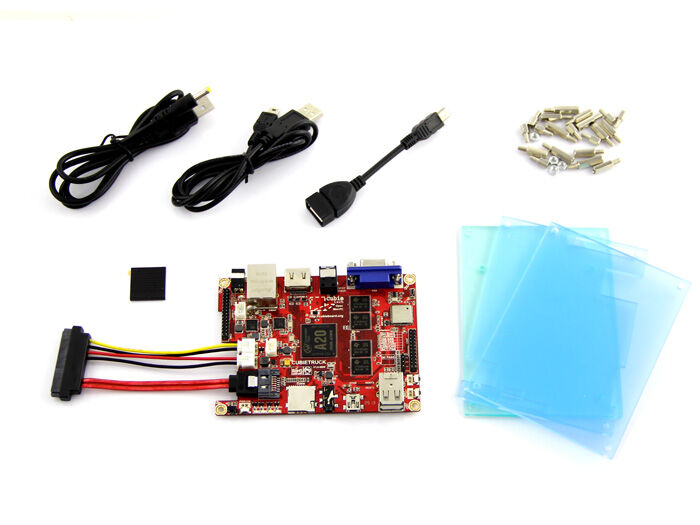

PART LIST

• Cubietruck main board x1

• SATA 2.0 cable x1

• Mini USB to OTG x1

• Mini USB cable x1

• USB to 1.7 mm DC jack cable x1

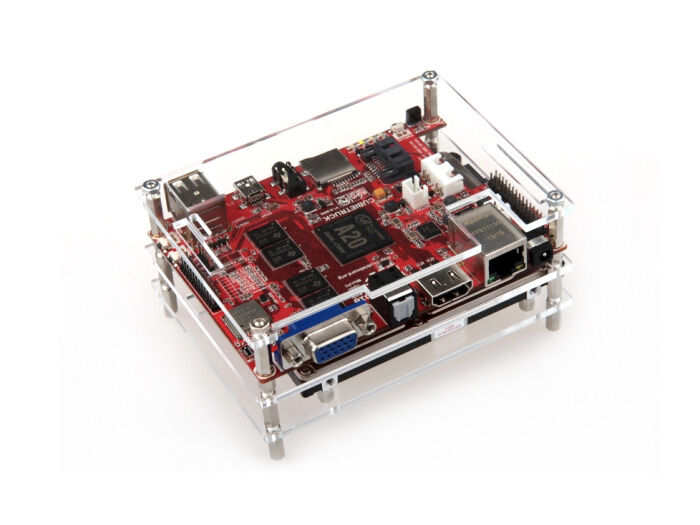

• Acrylic shell x1

• Ultrathin Heat Sink x1

DOCUMENTS

• Cubietruck Hardware Detail

• Install Lubuntu

• Lubuntu-12.10-Desktop Nand Installation Guide(20131015-build)

• Lubuntu-12.10-Desktop SD Card Installation Guide

• Install Lubuntu Desktop/Server Rootfs to SATA drive

• Install Android

• A20-Compiling Android image for Cubietruck

• A20-Install Nand Boot Android for Cubietruck

• Install Fedora

• Fedora19(r3) SD Card Installation Guide

Software

• Images for Cubietruck(A20)( The linaro’s usrname and password should be linaro/linaro)

• More software download from Cubieboard download website

For more product information and technical support, please contact support@cubietech.com.
