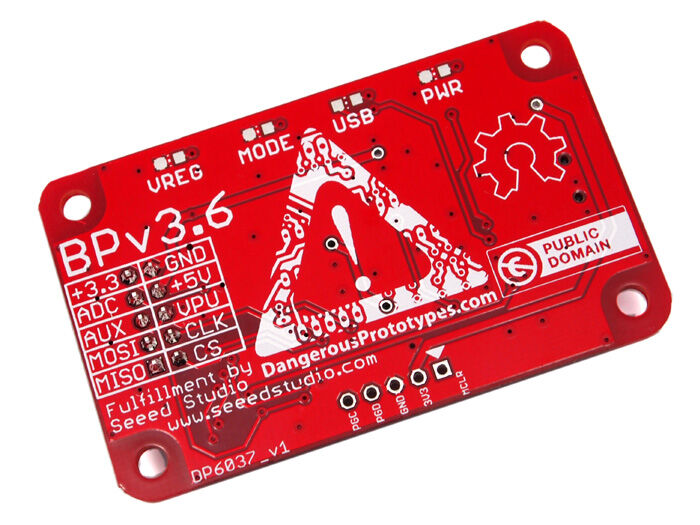

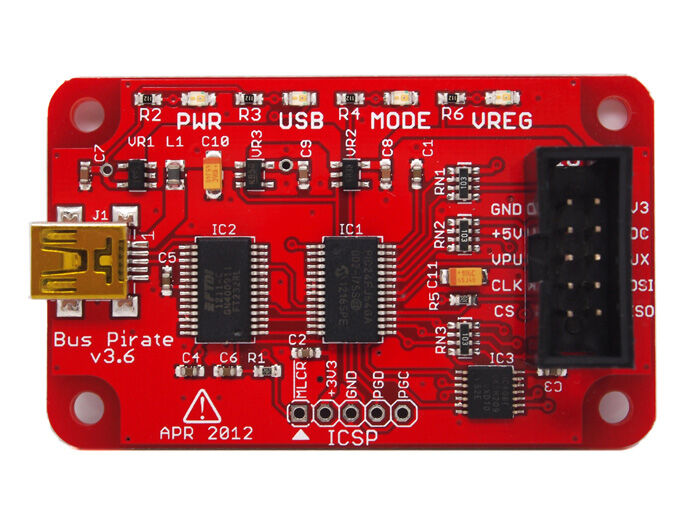

Bus Pirate v3.6 universal serial interface

Description

Bus Pirate v3 is a universal bus interface that talks to electronics from a PC serial terminal. Get to know a chip without writing code. Eliminates a ton of early prototyping effort with new or unknown chips. A laser cut acrylic case for Bus Pirate v3.6 is also available.

This board provides 1-Wire, I2C, SPI, JTAG, asynchronous serial (UART), MIDI, PC keyboard, HD44780 LCDs, and generic 2- and 3-wire libraries for custom protocols.

Features

• USB interface, USB powered

• 5-volt tolerant pins-0-6volt measurement probe

• 1Hz-40MHz frequency measurement

• 1kHz-4MHz pulse-width modulator, frequency generator

• On-board multi-voltage pull-up resistors

• On-board 3.3volt and 5volt power supply with software reset

• Macros for common operations

• Bus traffic sniffers (SPI, I2C)

• Transparent USB to serial bridge mode

• 10Hz-1MHz low-speed logic analyzer

• Custom support in AVRDUDE , Flashrom , OpenOCD

• AVR STK500 v2 programmer clone

• Scriptable from Perl, Python, etc.

• A bootloader for easy USB firmware updates

• Uses  DP6037 standard PCB layout

• Open source (CC 0/Public Domain)
