Description

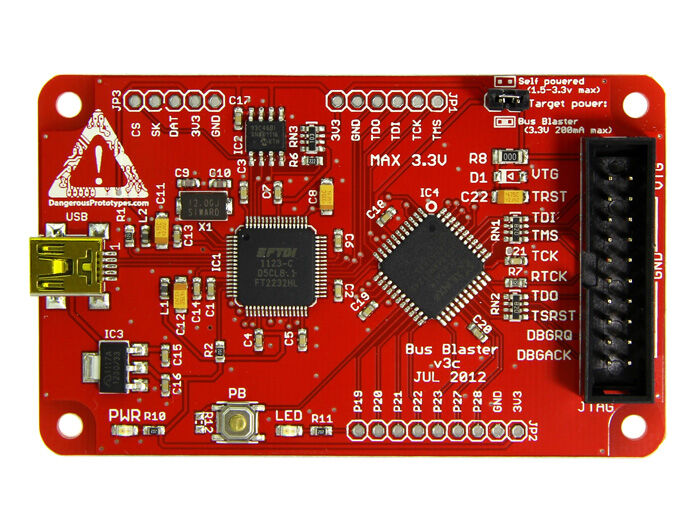

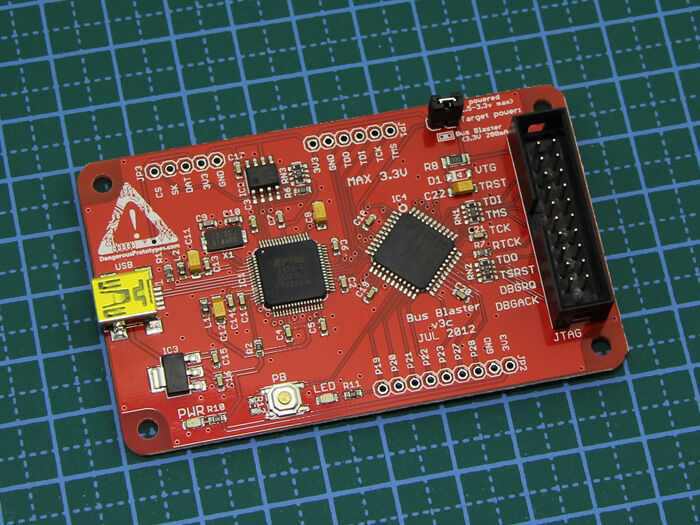

Bus Blaster v3 is an experimental, high-speed JTAG debugger from Dangerous Prototypes. Thanks to a reprogrammable buffer, a simple update over USB makes Bus Blaster compatible with many different JTAG debugger types in the most popular open source software.
-
Based on FT2232H with high-speed USB 2.0
-
Buffered interface works with 3.3volt to 1.8volt targets
-
Reprogrammable buffer is compatible with multiple debugger types
-
Compatible with 'jtagkey', 'KT-link' programmer settings in OpenOCD, urJTAG, and more ships with JTAGkey compatible buffer image pre-programmed
-
Should support Serial Wire Debug when available
-
Mini-CPLD development board: self programmable, extra CPLD pins to header
-
Open source (CC-BY-SA)
-

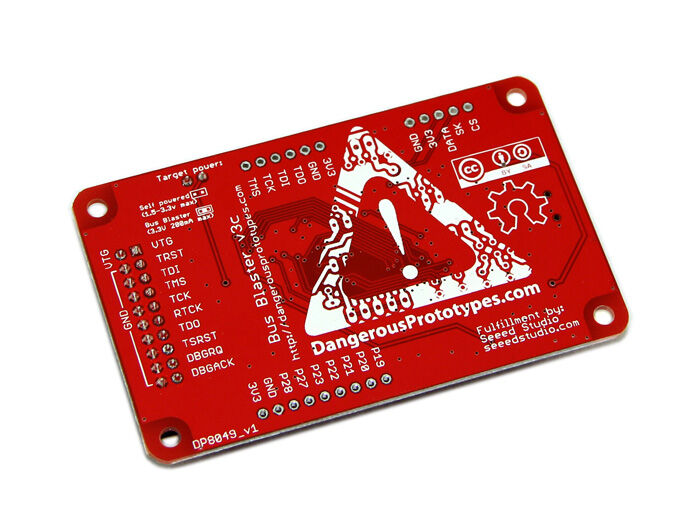

Fitted in a DP8049 (80×49 mm) standard PCB, case available here
-
Added series resistors to input and output pins to protect against damage and noise
-
Swapped FT2232 clock output to CPLD pin with global clock feature for potential logic analyzer mode
