Description

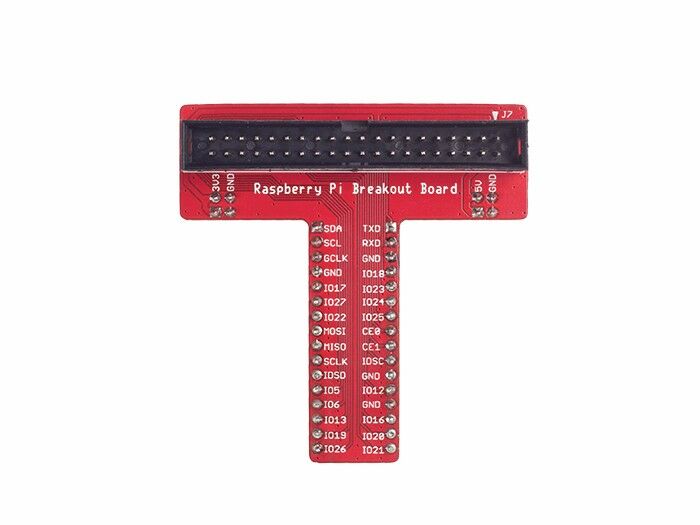

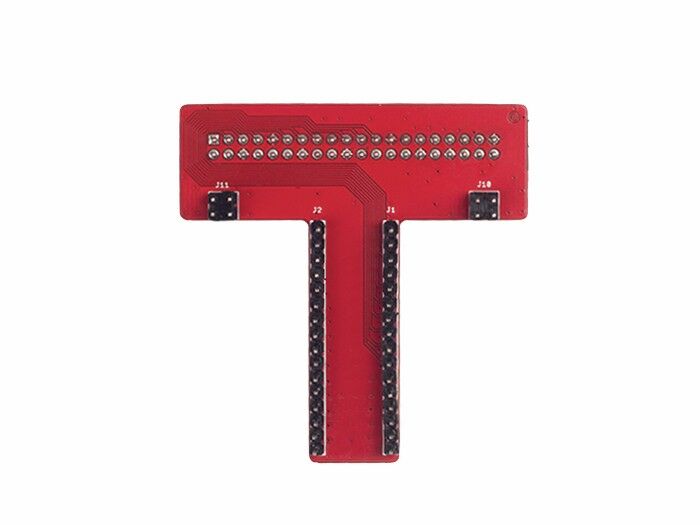

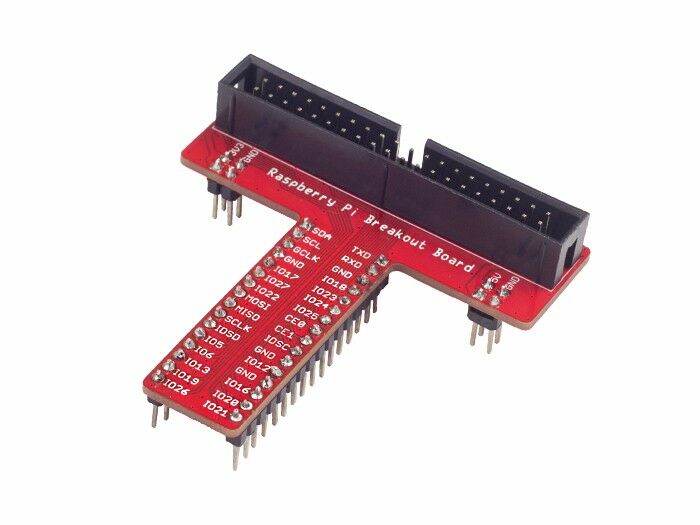

This is a T-type breakout kit used for extending the GPIO interface on Raspberry Pi B+ to breadboard. It helps you to make the connections between Raspberry Pi and breadboard become simple.
Compatible with Raspberry Pi A+,B+/2.
Here is the breakout kit for Model B.
Corresponding Interface:
Pin1 – 3V3
Pin2 – 5V
Pin3 – SDA
Pin4 – 5V
Pin5 – SCL
Pin6 – GND
Pin7 – GPIO4
Pin8 – TXD
Pin9 – GND
Pin10 – RXD
Pin11 – GPIO17
Pin12 – GPIO18
Pin13 – GPIO27
Pin14 – GND
Pin15 – GPIO22
Pin16 – GPIO23
Pin17 – 3V3
Pin18 – GPIO24
Pin19 – SPIMOSI
Pin20 – GND
Pin21 – SPIMISO
Pin22 – GPIO25
Pin23 – SPISCLK
Pin24 – SPICS0
Pin25 – GND
Pin26 – SPICS1
Pin27 – EEDATA
Pin28 – EECLK
Pin29 – GPIO5
Pin30 – GND
Pin31 – GPIO6
Pin32 – GPIO12
Pin33 – GPIO13
Pin34 – GND
Pin35 – GPIO19
Pin36 – GPIO16
Pin37 – GPIO26
Pin38 – GPIO20
Pin39 – GND
Pin40 – GPIO21
Specification:

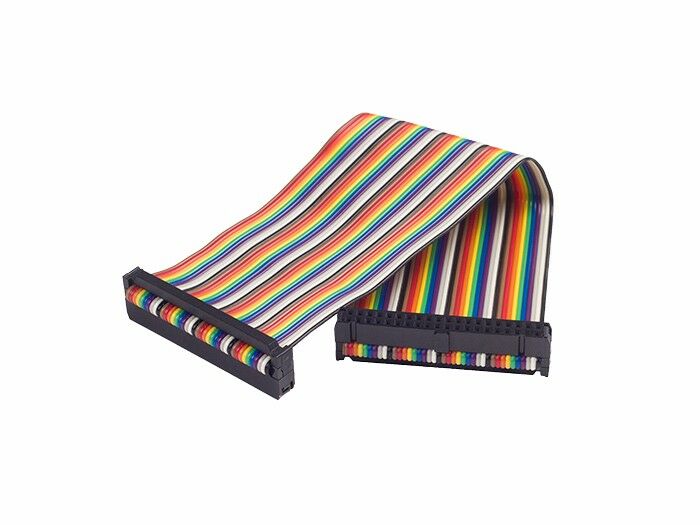

wire length：19cm
PCBA size：59*69*19mm
PCBA color：Black
Pin：40pin
