Description
Feature
- Open-source RISC-V and FPGA Single Board Computer: Powered by Microchip’s PolarFire® MPFS025T FCVG484E 5x core RISC-V SoC with FPGA fabric, operating at up to 667 MHz
- Power-efficient and highly flexible: Contain low-power FPGA fabric that is highly flexible and can accommodate custom instructions and peripherals
- Onboard Storage: Include 2GB LPDDR4 and Kingston 16GB eMMC on the board
- Versatile Connectivity: Offer a Gigabit Ethernet interface, an integrated Host / Device / Power Supply functions in one USB 2.0 Type-C port, and one SYZYGY High speed connector
- Rich Extensions: Provide 1x M.2 Key E supported wireless module, 1x CSI supported 4-lane camera, 1x microSD card slot, 2* 46 pins BeagleBone Header, 12x user LEDs, 1x Reset button, and 1x User button
Description
BeagleV® – Fire is a compact and powerful device that is designed to meet your computing needs with its impressive features and specifications. Powered by Microchip’s PolarFire® MPFS025T FCVG484E 5x core RISC-V SoC with FPGA fabric, it is operating at up to 667 MHz. It ensures power-efficient and highly flexible operation and instruction with low-power FPGA fabric.
It is equipped with onboard 2GB LPDDR4 and Kingston 16GB eMMC. In addition to the internal storage, the device offers a microSD card slot, allowing you to expand the storage capacity as per your needs.
Featuring a Gigabit Ethernet interface, an integrated Host / Device / Power Supply function in one USB 2.0 Type-C port, and one SYZYGY High-speed connector, this board allows expanded connectivity options with compatible modules.
Coming with rich extensions, this development board provides the CSI connector with 22 pins and provides support for a 4-lane camera. It also supports a Wi-Fi module through the M.2 Key E slot to enable wireless connection. With the standard 2*46 pins BeagleBone® Header, the device offers GPIO pins for connecting external devices. Additionally, it includes a 6-pin UART debug connector and a 10-pin JTAG port for debugging purposes.
Comparison between BegaleV – Fire and BeagaleV – Ahead
|
BeagleV® – Fire |
BeagleV® – Ahead |
|
|
Processor |
Microchip’s PolarFire® MPFS025T FCVG484E ( 5x core RISC-V SoC with FPGA fabric) |
T-Head TH1520 (quad-core Xuantie C910 processor) |
|
USB Port |
1* USB 2.0 TypeC ( Host / Device / Power) |
1* USB3.0 Micro-B OTG |
|
Multimedia |
1*CSI |
2*CSI,1*DSI, 1*HDMI |
|
Other Connector |
1* M.2 Key E, support 2.4GHz/5GHz WiFi module 1* SYZYGY High speed connector |
1* MikroBus |
Application
- Edging Computing
- Embedded Systems
- RISC-V Dev Kit
- FPGA Dev Kit
- Education
Specification
|
Parameters |
Description |
|
Processor |
Microchip’s PolarFire® MPFS025T FCVG484E |
|
5x core RISC-V SoC with FPGA fabric: 4x Application core, 1x monitor/boot core |
|
|
Memory |
2GB, LPDDR4 |
|
Storage |
Kingston 16GB eMMC |
|
Wireless |
1 x M.2 Key E, support 2.4GHz/5GHz WiFi module |
|
LAN |
1 x Gigabit Ethernet |
|
USB Port |
Connectivity: Host / Device Power Input: 5V |
|
SD Card |
1 x microSD card slot |
|
CSI |
1 x CSI connector (22 pins), support 4 lanes Camera |
|
LEDs |
12 x User LEDs |
|
1 x Power LED |
|
|
Buttons |
1 x User button |
|
1 x Reset button |
|
|
Power |
5V Screw terminal / USB C |
|
GPIO |
2*46 pins BeagleBone® Header |
|
Debug |
6 pins UART debug connector |
|
10 pins JTAG port |
|
|
Cerfication |
CE,FCC, RoHS, REACH |
|
Other Connectors |
1 x SYZYGY High speed connector, designed for:
|
|
Working Temperature |
0°C~70°C |
|

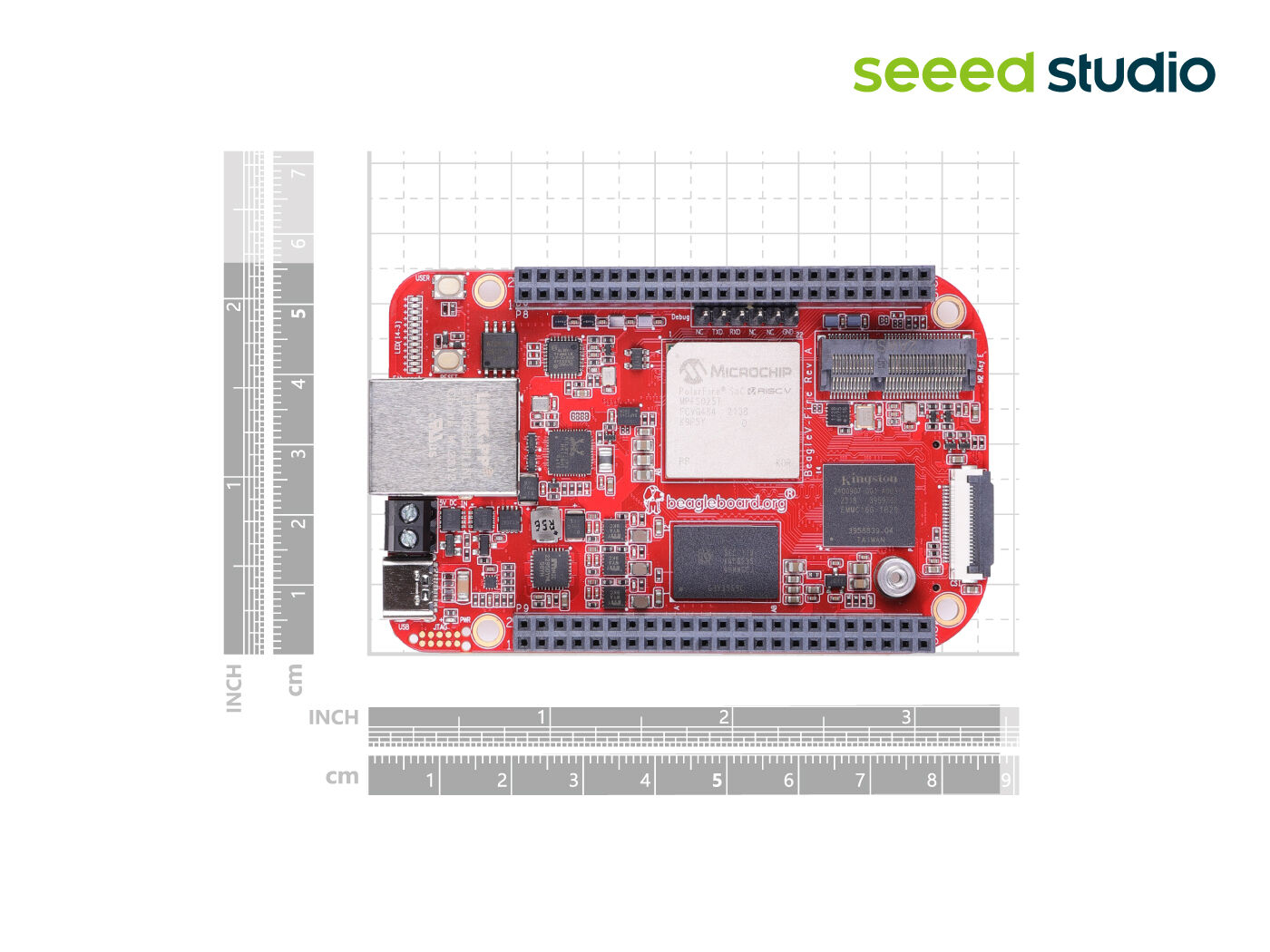

Board Dimension |
86.38*54.61*18.8mm |
|
Gross Weight |
106g |
|
Net Weight |
45.8g |

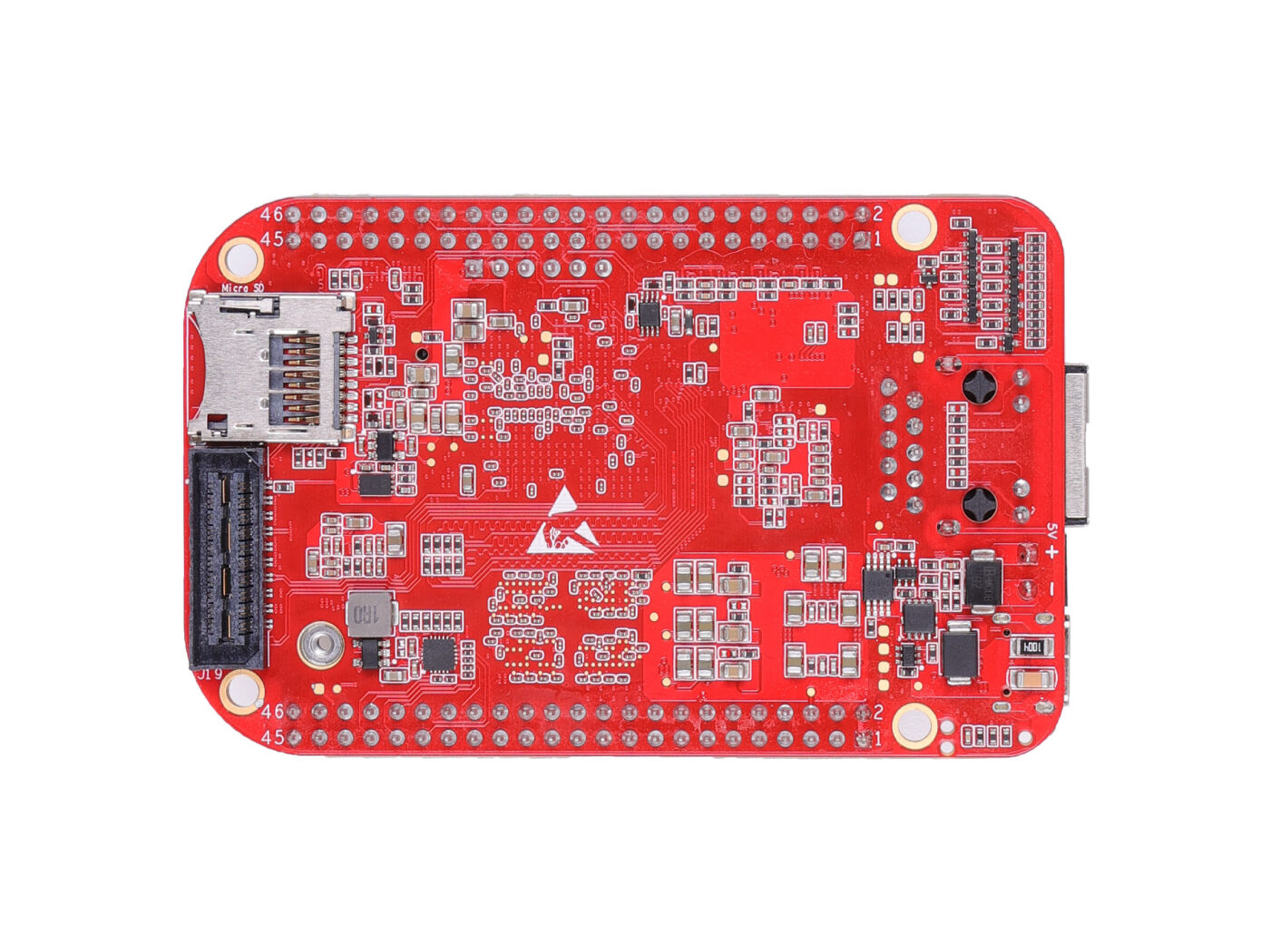

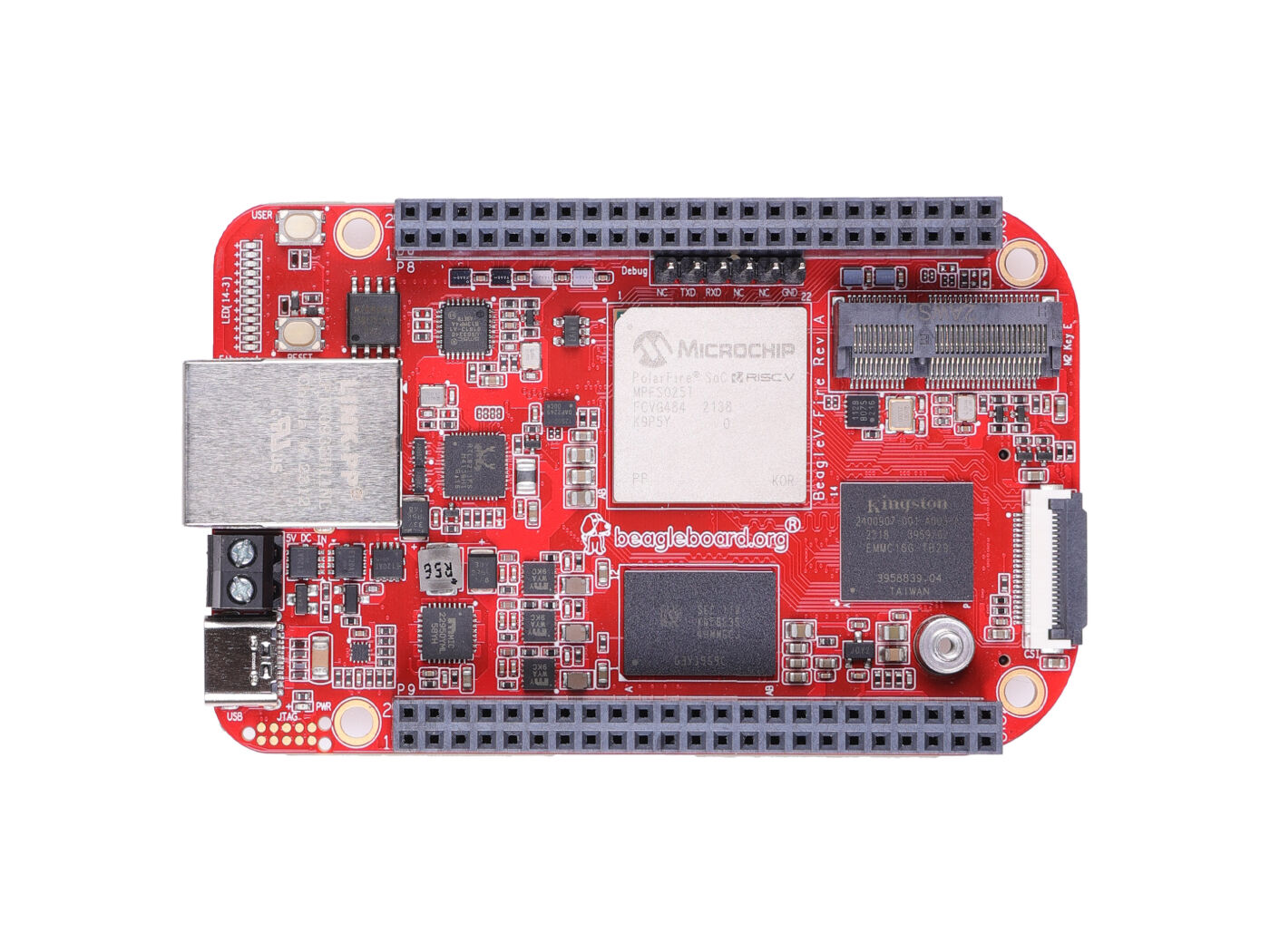

Hardware Overview

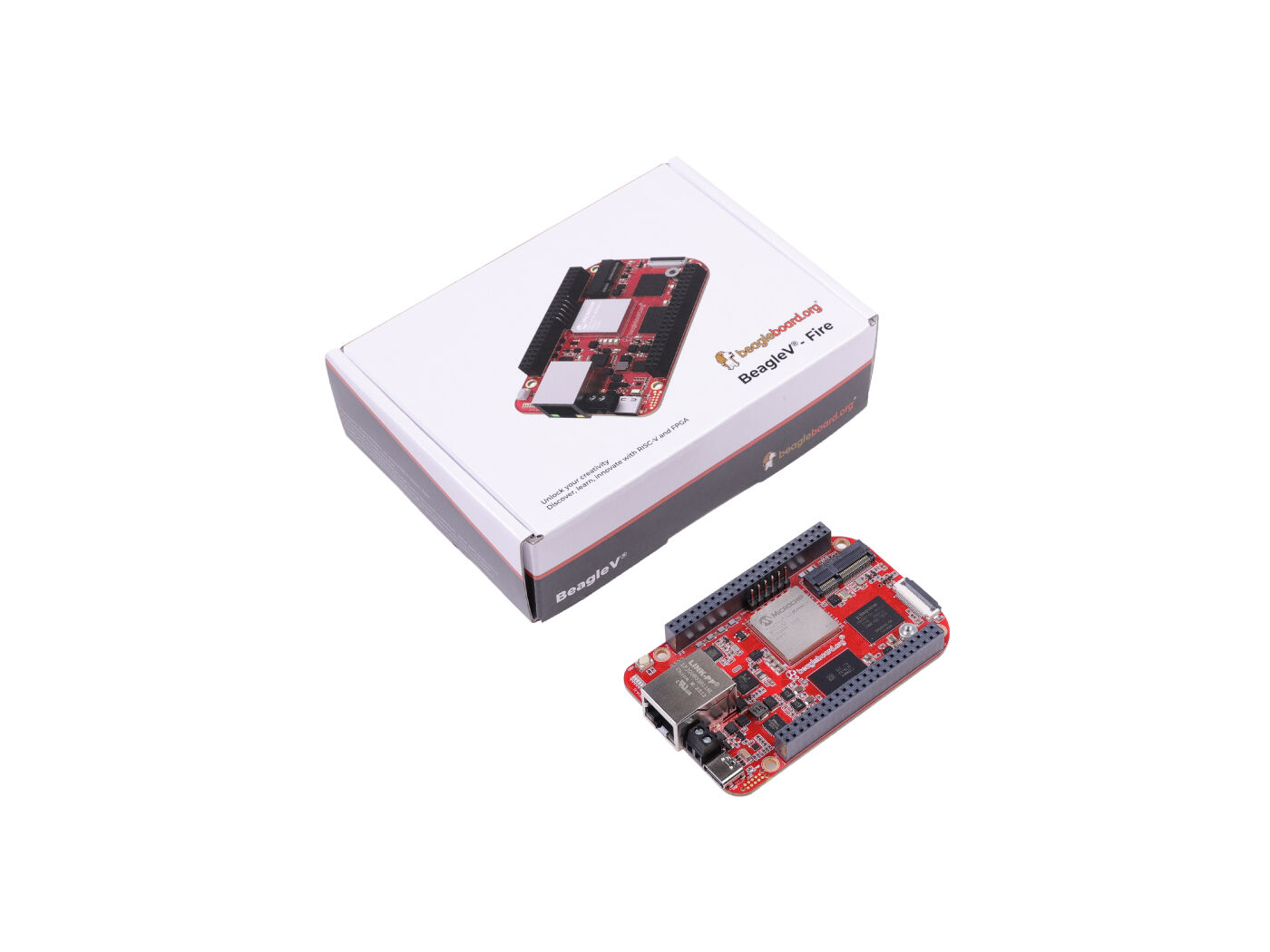

Part List
|
BeagleV®-Fire Boards |
x1 |
|
Quick start card |
x1 |
