Description
Attention
This product is EOL now, we’ve released the Seeeduino Nano which is fully compatible with this board, and also the Grove Shield for Arduino Nano is available now.

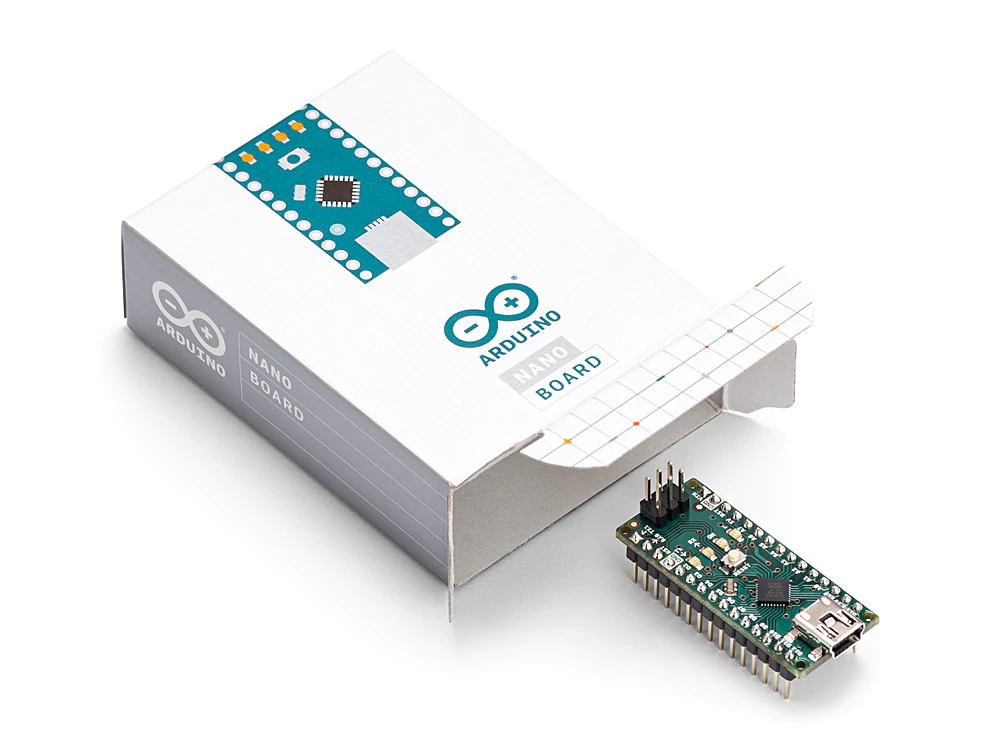

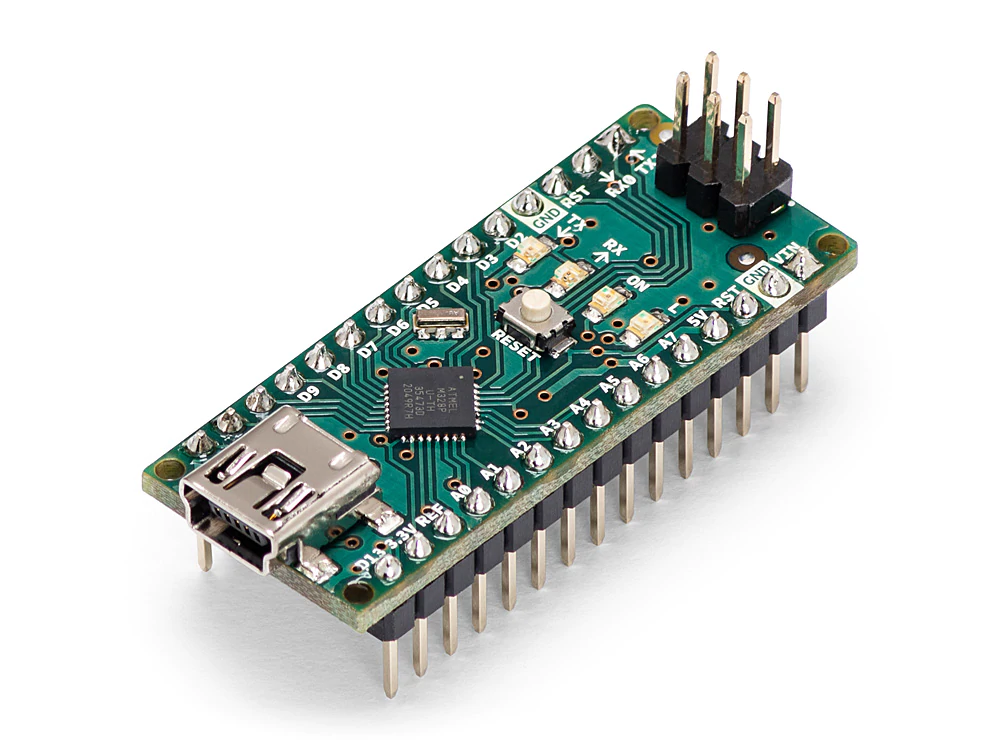

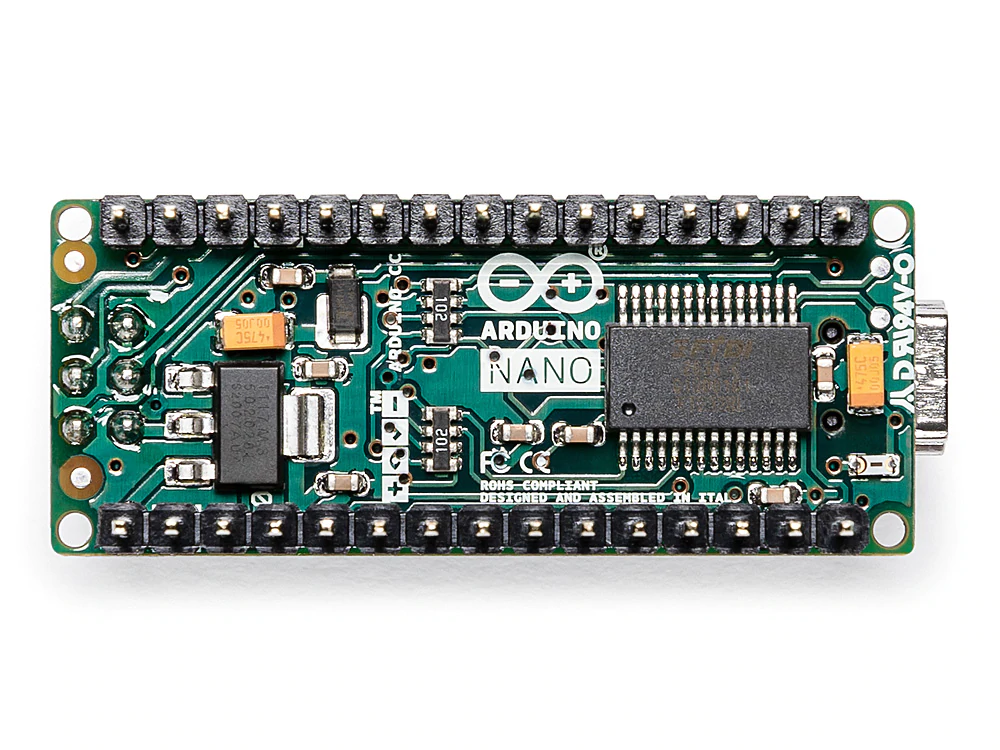

The Arduino Nano is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano 3.0). It has more or less the same functionality of the Arduino Duemilanove, but in a different package. It lacks only a DC power jack, and works with a Mini-B USB cable instead of a standard one. The Nano was designed and is being produced by Gravitech.
Technical specifications
| Microcontroller | ATmega168 or ATmega328 |
| Operating Voltage | 5V |
| Input Voltage (recommended) | 7-12 V |
| Input Voltage (limit) | 6-20 V |
| Digital I/O Pins | 14 |
| PWM Digital I/O Pins | 6 |
| Analog Input Pins | 8 |
| DC Current per I/O Pin | 40 mA |
| Flash Memory | 16 kB (ATmega168) or 32 kB (ATmega328) |
| Flash Memory for Bootloader | 2 kB |
| SRAM | 1 kB (ATmega168) or 2 kB (ATmega328) |
| EEPROM | 512 bytes (ATmega168) or 1 kB (ATmega328) |
| Clock Speed | 16 MHz |
