Description
Arch Mix is a thin, lightweight development board based on NXP i.MX RT1052 processor. Which makes it suitable for industrial control, especially for scenes with large code and high real-time application requirements.
The i.MX RT1052 is a new processor family featuring NXP’s advanced implementation of the Arm Cortex®-M7 core. Currently, the i.MX RT1052 is the highest performing Cortex-M7 solution delivering 3036 CoreMarks, which is 13 times better than the LPC1788 microcontroller. In addition to the high-speed performance it provides fast real-time responsiveness. The i.MX RT1050 also has rich audio and video features, including LCD display, basic 2D graphics, camera interface, SPDIF, and I2S audio interface.
Features
- ARM® Cortex®-M7 528MHz microcontroller(NXP i.MX RT1052)
- Powerful Arduino Dev Board
-
Ultra-fast system loading speed
-
Rich peripheral interface: RMII, CAN, I2C, UART, CSI, I2S, ADC, SPDIF IN/OUT, SWD
-

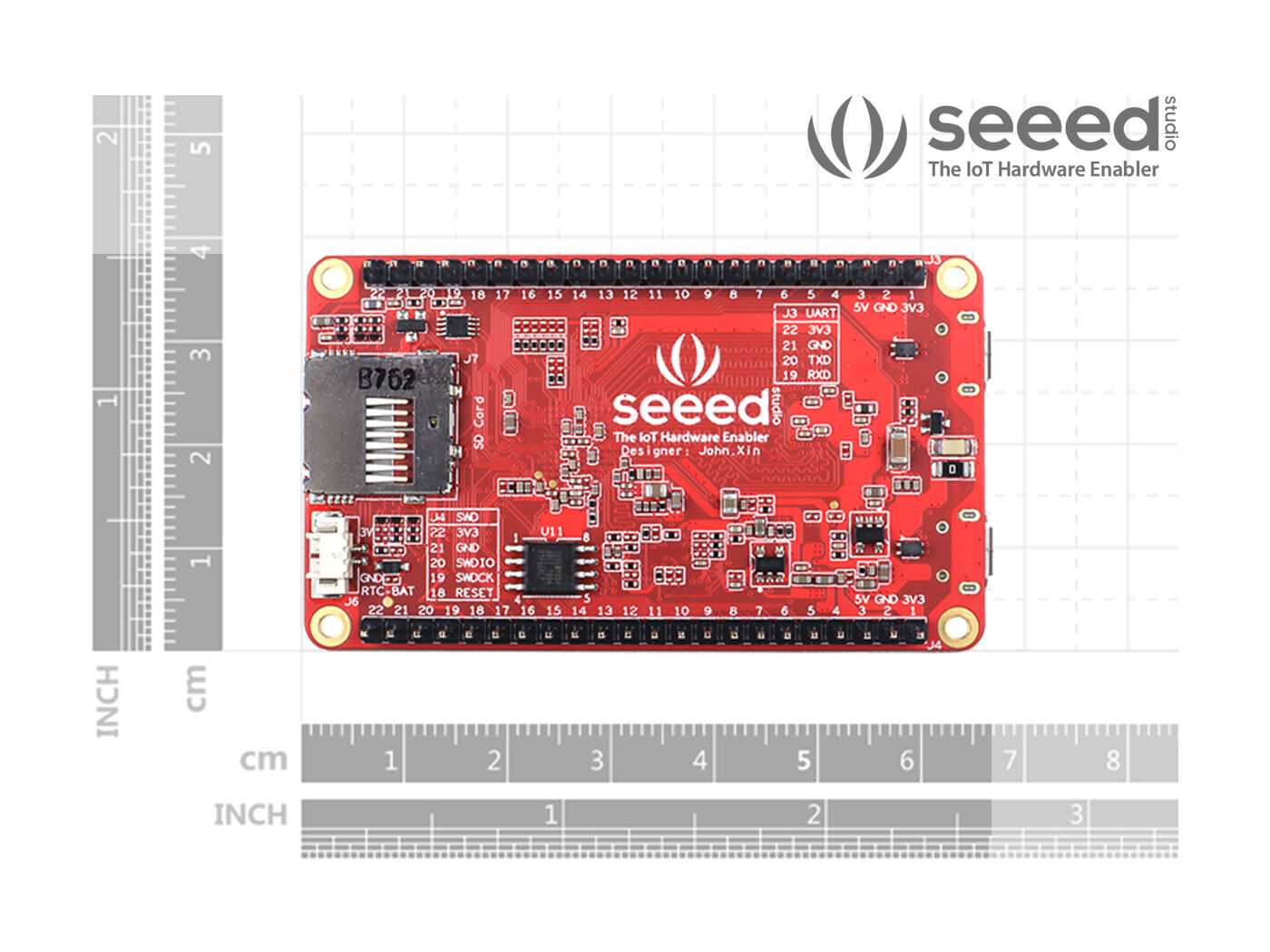

Smaller than other Demo boards of RT1052/1050: 67mm x 39mm
Application Ideas
-
Industrial Control
-
Smart Building
-
Industrial Human Machine Interfaces
-
Automation & Process Control
-
Robot

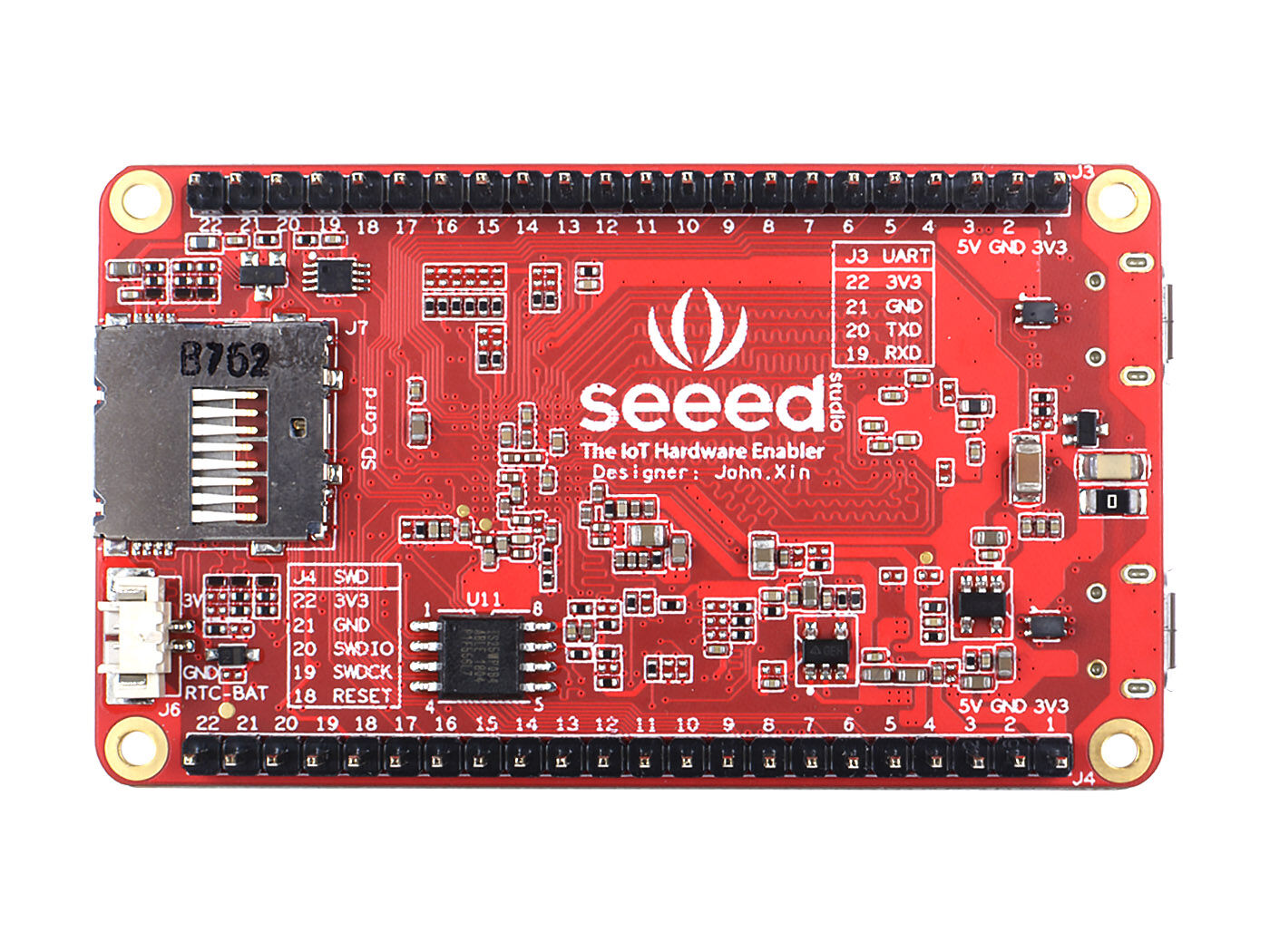

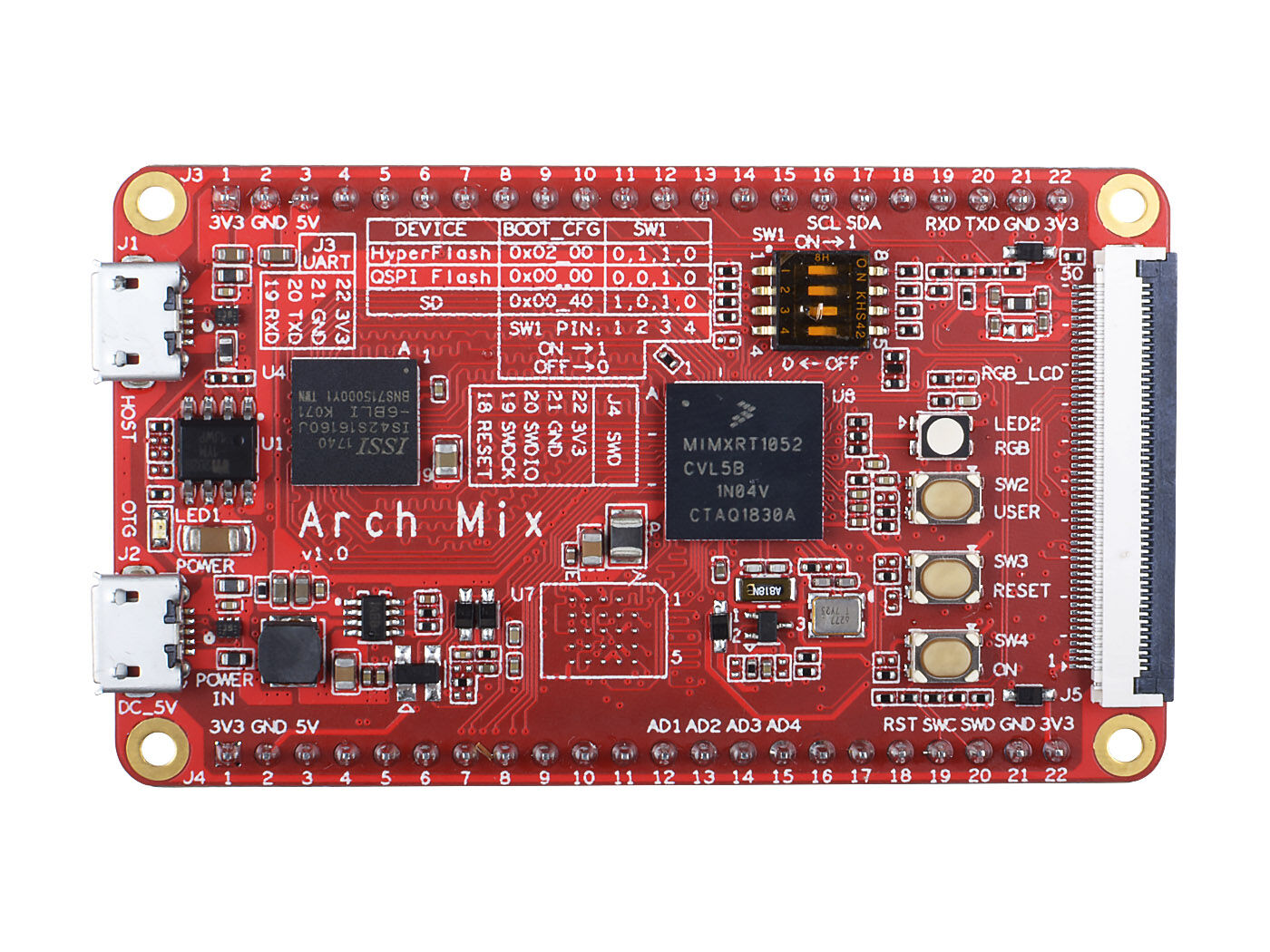

Hardware Overview
Pinout
Block Diagram
