Arch Max v1.1

Description

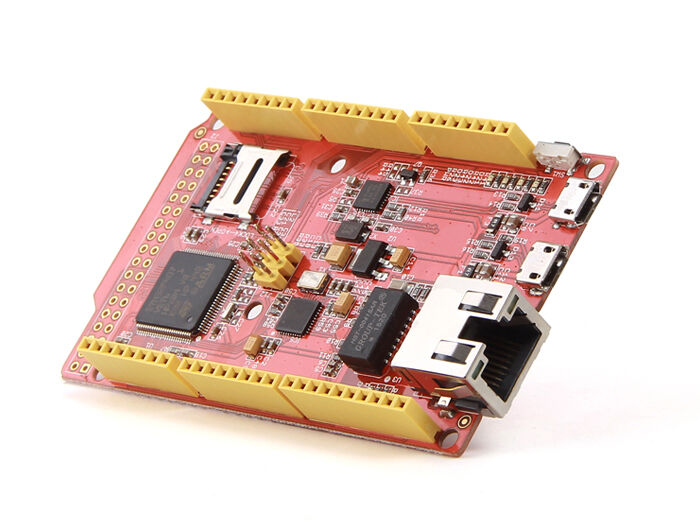

The Arch Max v1.1 is an mbed enabled development board, especially for rapid prototyping. It’s based on a STM32F407VET6 microcontroller with an ARM Cortex-M4F core running at 168MHz. It provides serial wire debug](SWD) debug, drag-and-drop programming and USB serial communication. It provides a complete and straightforward development document for your projects.

Features

• mbed enabled

• Online development tools(include IDE)

• Complete and straightforward C/C++ SDK

• Massive examples and tutorials

• High-performance STM32F407VET6

• ARM Cortex-M4 MCU with FPU of 168MHz

• 512 KB Flash memory, 192 KB RAM

• Onboard programming and debug

• Drag-and-drop programming

• USB serial communication

• SWD debug with GDB+ pyOCD/OpenOCD, Keil or IAR

• Arduino form factor, compatible with lots of shields

• Built-in Ethernet port, USB and SD card slot for Internet connectivity and data exchange

Specification

• Work Voltage: 5V

• Microcontroller: STM32F407VET6

• Flash Memory: 512kB

• RAM: 192kB

• UART: 4

• I2C: 3

• SPI: 3

• CAN: 2

• SDIO: 1

• Camera interface: 1

• Eth: 1

• ADC Channels: 8

• I/O pins: 40

• Digital I/O Max Input Voltage: 5.0V

• Diameter: 90mm x 44mm
