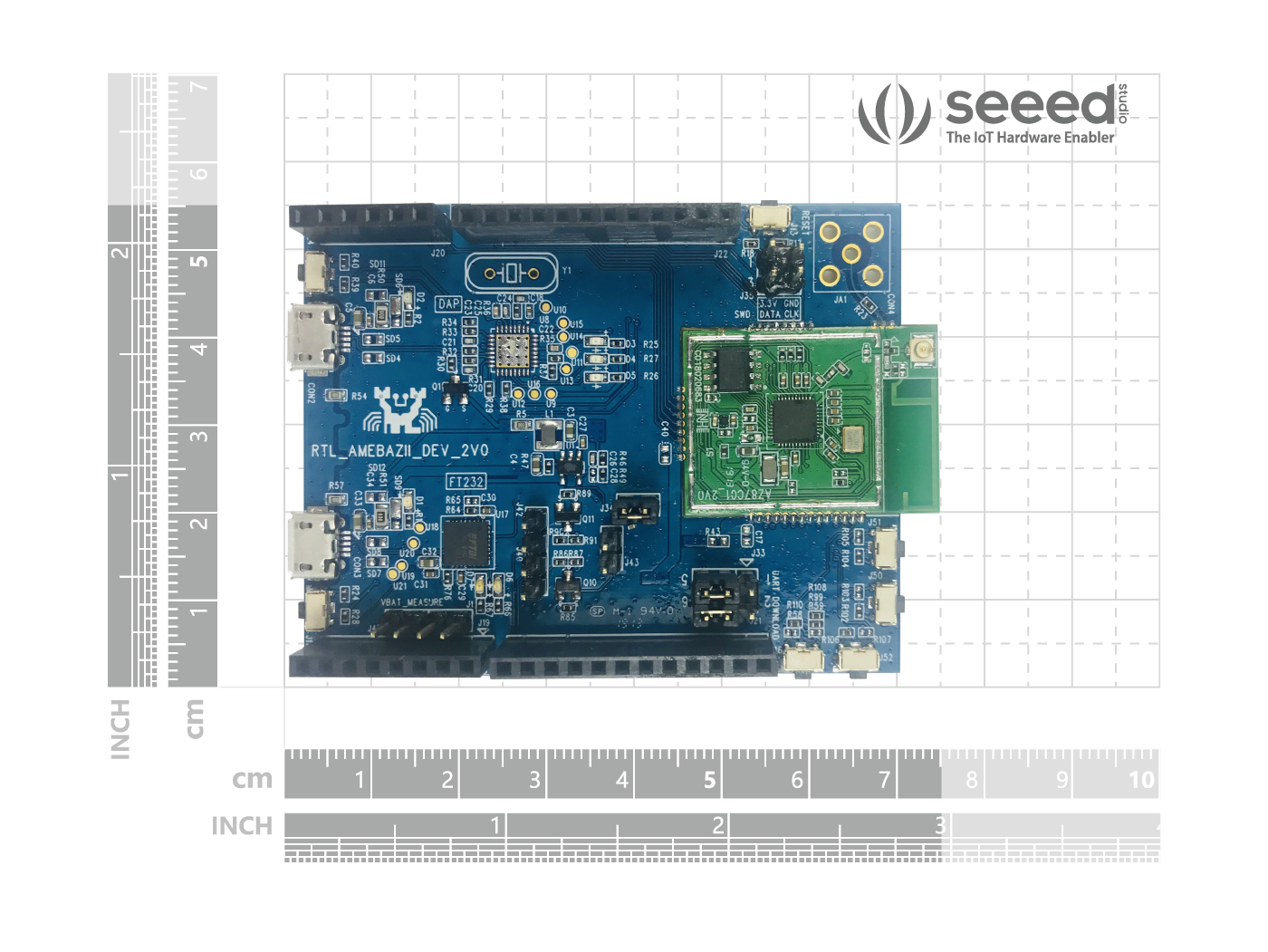

Ameba RTL8720CM IoT Development Board

Description

Ameba Z2 RTL8720CM is a highly integrated single-chip with low power consumption mechanism for IoT (Internet of Things). It combines an arm® new architecture Armv8M KM4 MCU, Wi-Fi, Bluetooth and provides a bunch of configurable GPIOs which are configured as digital peripherals for different applications and control usage.

RTL8720CM SoC also integrates internal 4MB RAM memory to minimize IoT end-product size and reduce your development cost.

RTL8720CM IoT development board is a convenient starter kit for makers. It integrates with Amazon FreeRTOS and provides many Wi-Fi antenna types on Dev. board to meet the multiple functions required of IoT applications.

Features

MCU

• ARMv8M KM4, 100MHz

Memory

• 4.2MB internal RAM on SoC and 2MB external flash on Dev. Board

Wi-Fi

• 802.11 b/g/n 1×1 Wi-Fi (20/40MHz)
• Wi-Fi simple config

Bluetooth

• BLE 4.2
• SIG Mesh (optional)

Security

• Cryptographic operation
• Secure boot (optional)
• Wi-Fi WEP, WPA, WPA2, WPS

Interface

• 3 UART including 2 HS-UART and 1 log UART
• 1 SPI (Master/Slave)
• 1 I2C (Master/Slave)
• 1 SDIO 2.0
• 8 PWM
• Max. 16 GPIOs

8720CM Dev Board pinout
