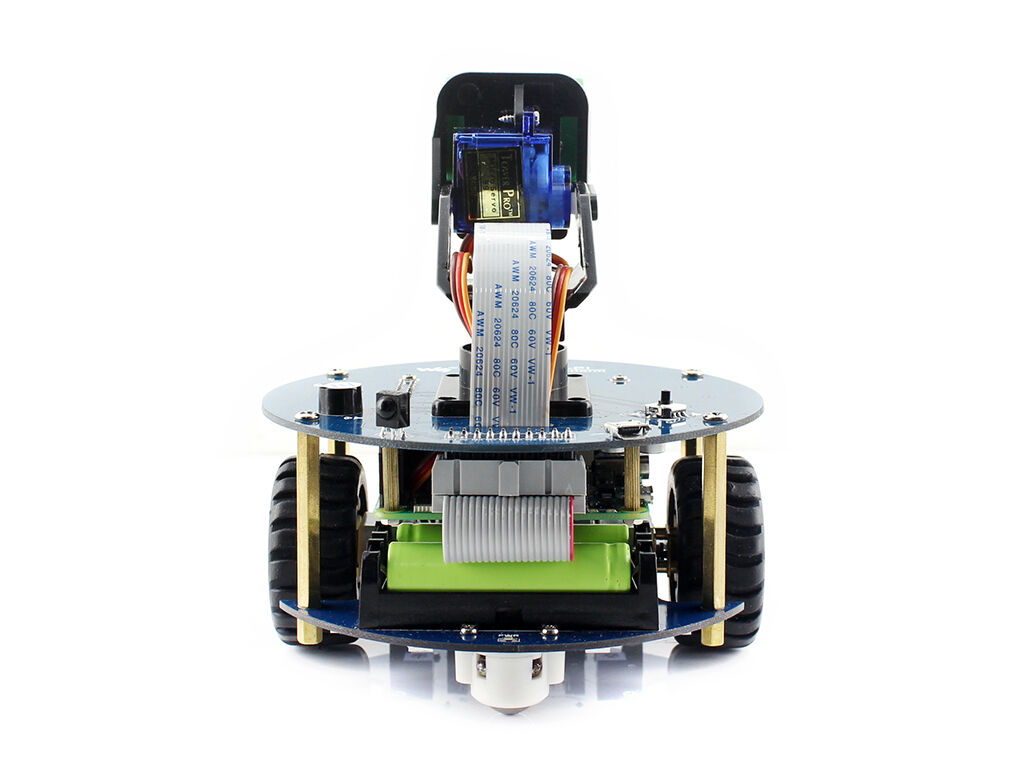

AlphaBot2 robot building kit for Raspberry Pi 3 Model B (no Pi)

Description

Note: Raspberry Pi is NOT included.

This AlphaBot2 robot kit is designed to use with Raspberry Pi 3 Model B (not included). It features rich common robot functions including line tracking, obstacle avoiding, Bluetooth/infrared/WiFi remote control, video monitoring, etc.

Thanks to the highly integrated modular design, it is fairly easy to assemble by a snap, no soldering, no wiring. After a few minutes spent on hardware assembing, you're almost there, our open source demo codes is ready to help you get started fast.

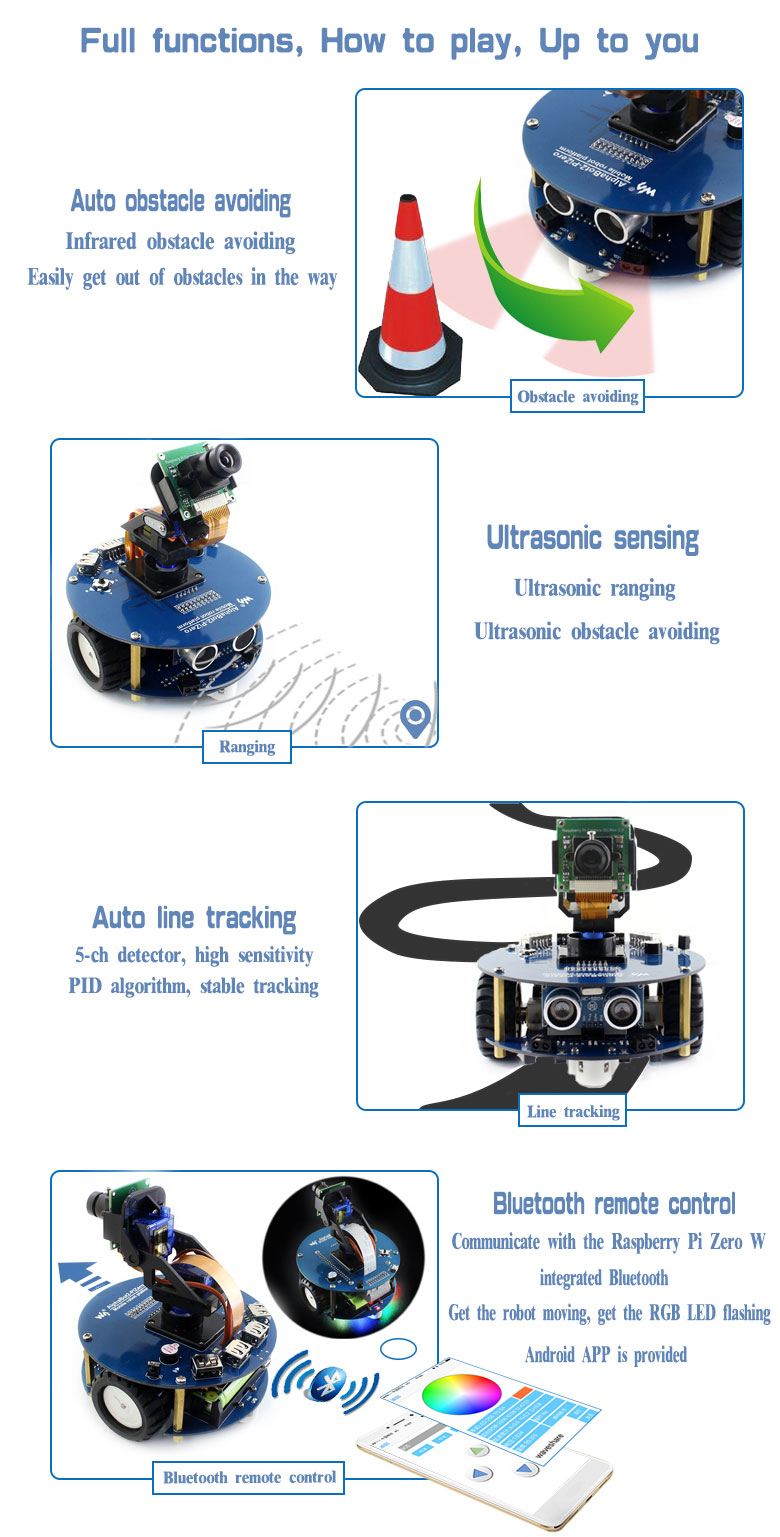

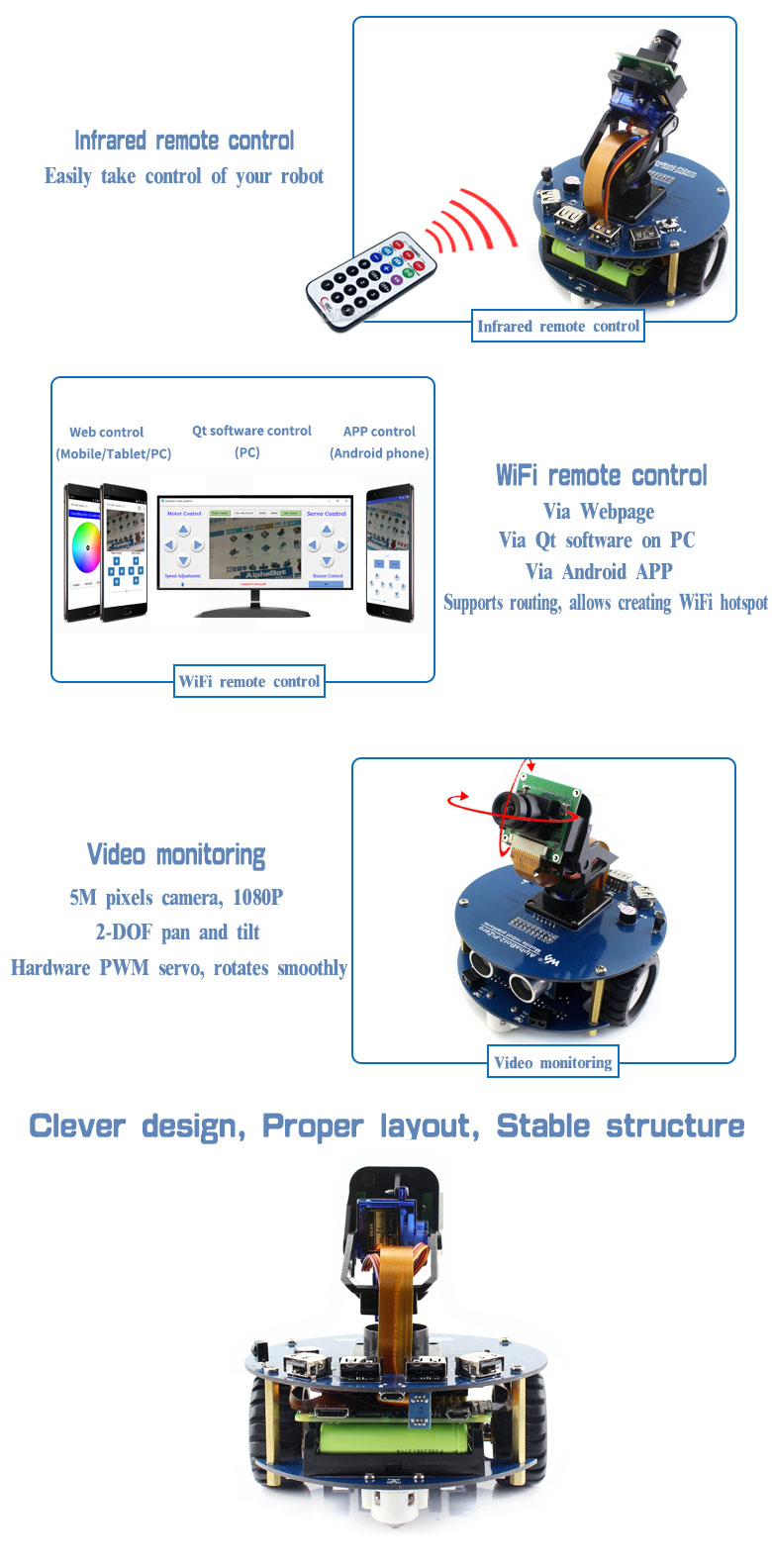

AlphaBot2 Features

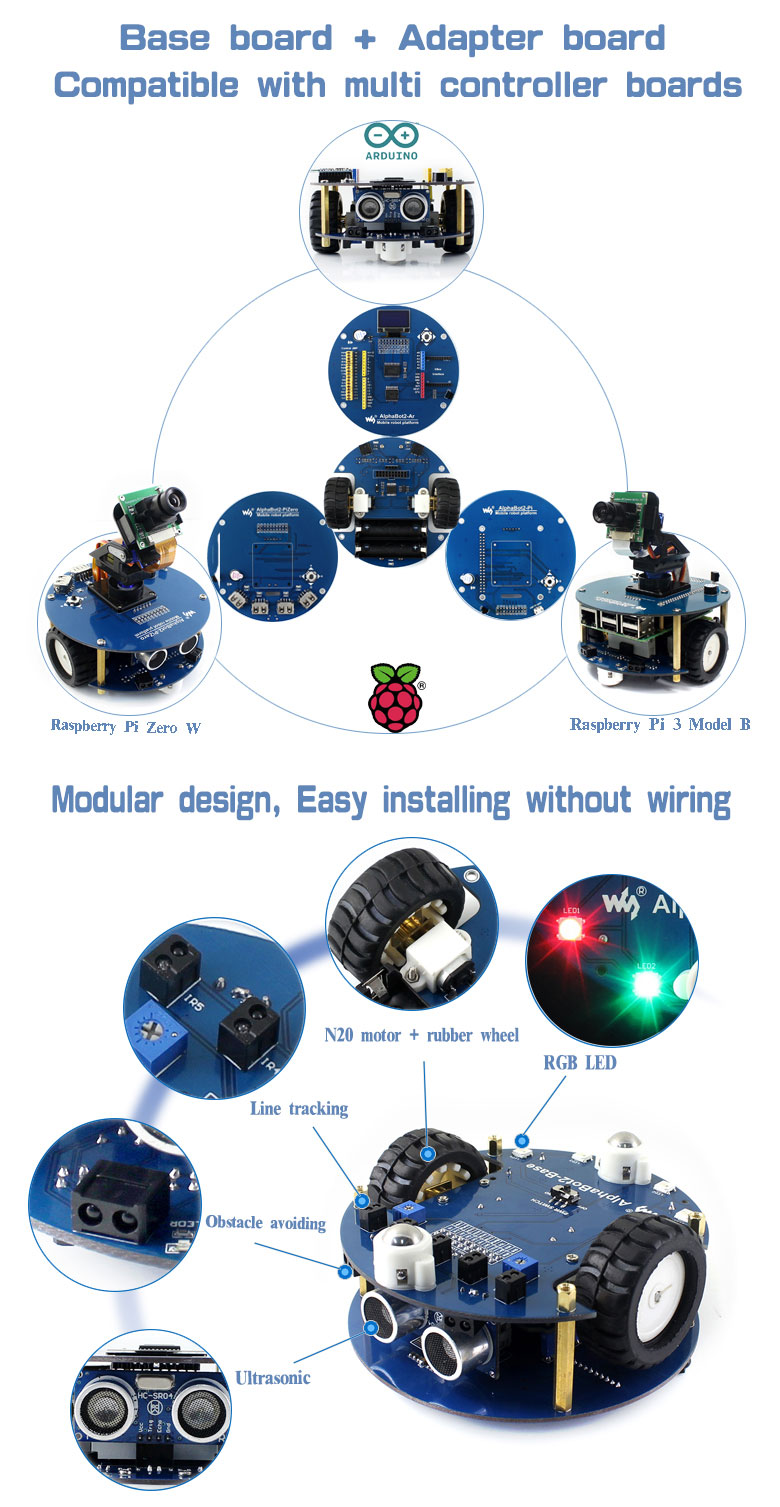

AlphaBot2 employs a 2-layer structure to provide excellent stability and compatibility.

AlphaBot2-Base, the lower base chassis:

• 5-ch infrared sensor, analog output, combined with PID algorithm, stable line tracking

• Onboard modules like line tracking, obstacle avoiding, needs no messy wiring

• TB6612FNG dual H-bridge motor driver, compared with L298P, it's more efficient, more compact, and less heating

• N20 micro gear motor, with metal gears, low noise, high accuracy

• Onboard RGB LEDs, true color lighting, pretty cool

AlphaBot2-Pi, the upper adapter board for controller:

• LM2596 voltage regulator, provides the Pi with stable 5V power

• TLC1543 AD acquisition chip, allows the Pi to use analog sensors

• PCA9685 servo controller, make it more smoothly to rotate the pan head

• CP2102 UART converter, easy for controlling the Pi via UART

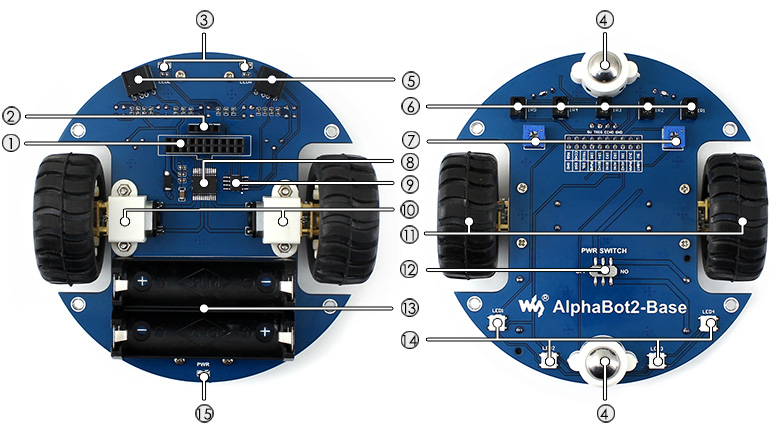

What's on the AlphaBot2-Base

1. AlphaBot2 control interface: for connecting sorts of controller adapter board

2. Ultrasonic module interface

3. Obstacle avoiding indicators

4. Omni-direction wheel

5. ST188: reflective infrared photoelectric sensor, for obstacle avoiding

6. ITR20001/T: reflective infrared photoelectric sensor, for line tracking

7. Potentiometer for adjusting obstacle avoiding range

8. TB6612FNG dual H-bridge motor driver

9. LM393 voltage comparator

10. N20 micro gear motor reduction rate 1:30, 6V/600RPM

11. Rubber wheels diameter 42mm, width 19mm

12. Power switch

13. Battery holder: supports 14500 batteries

14. WS2812B: true color RGB LEDs

15. Power indicator

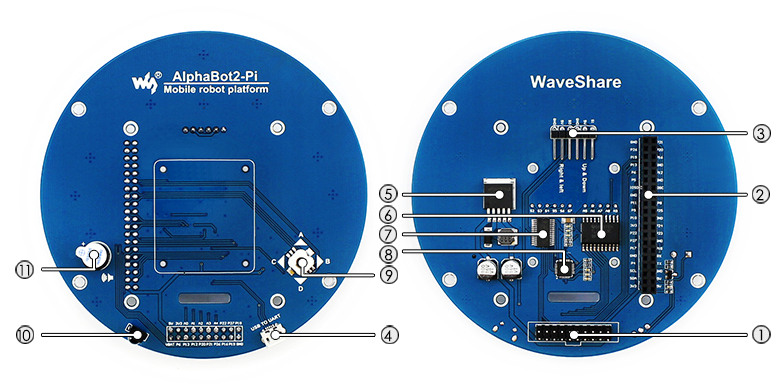

What's on the AlphaBot2-Pi

1. AlphaBot2 control interface: for connecting AlphaBot2-Base

2. Raspberry Pi interface: for connecting Raspberry Pi 3 Model B

3. Servo interface

4. USB TO UART: easy for controlling the Pi via UART

5. LM2596: 5V voltage regulator

6. TLC1543: 10-bit AD acquisition chip, allows the Pi to use analog sensors

7. PCA9685: servo controller, make it more smoothly to rotate the pan head

8. CP2102: USB TO UART converter

9. Joystick

10. IR receiver

11. Buzzer

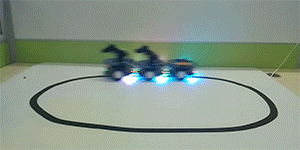

Examples

Note: photos are FOR REFERENCE ONLY, the other boards/modules/accessories are NOT included in the price.
