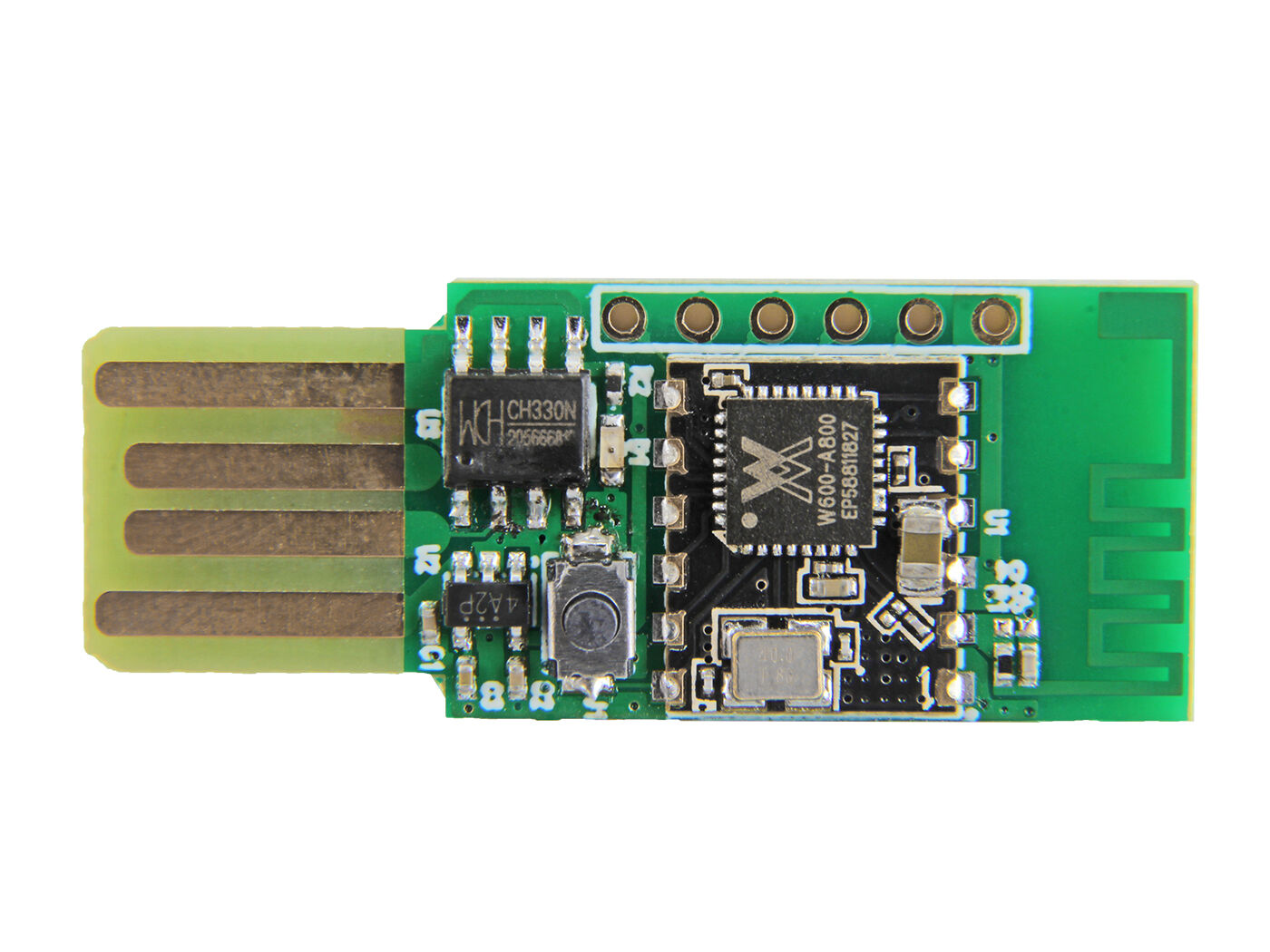

Air602 WiFi Development Board

Description

The Air602 WiFi Development Board is based on Air602 Wi-Fi module and integrated USB interface and Antenna. If you plug this board into your computer, it will be recognized as an Ports (COM & LPT), so that you can code it with Serial port tool. This module support IEEE802.11b/g/n and AT command.

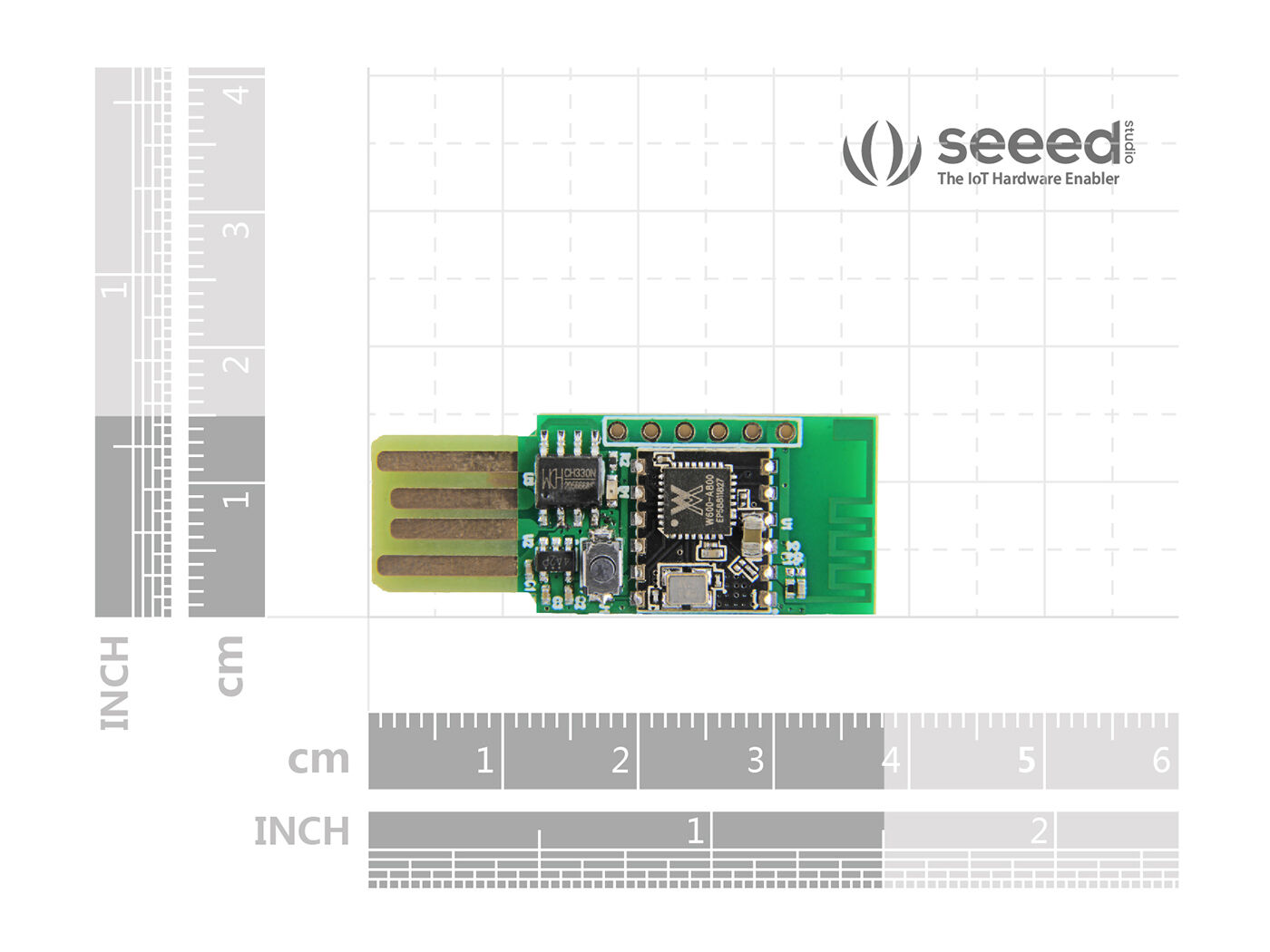

Meanwhile, if you do not need the USB, you can consider the Air602 Wi-Fi module. The size of which is only 12mm*10mm.

Note

The Air602 forum is available now, you can find more resource here, and you can leave a message or discuss here.

Air 602 forum

Features

1. Interface

   • USB interface

   • UART/SPI

   • Integrated GPIO device controller

2. Wireless

   • Support IEEE802.11 b/g/e/i/d/k/r/s/w/n

   • Support 2.4~2.4835 GHz

   • Support Wi-Fi WMM/WMM-PS/WPA/WPA2/WPS

   • Support Wi-Fi Direct

   • STBC、GreenField、Short-GI

   • Support multiple network protocols: TCP/UDP/ICMP/DHCP/DNS/HTTP

Typical Applications

• intelligent home appliances

• smart home

• wireless audio and video

• smart toys

• medical monitoring

• industrial control

• other Internet of Things applications

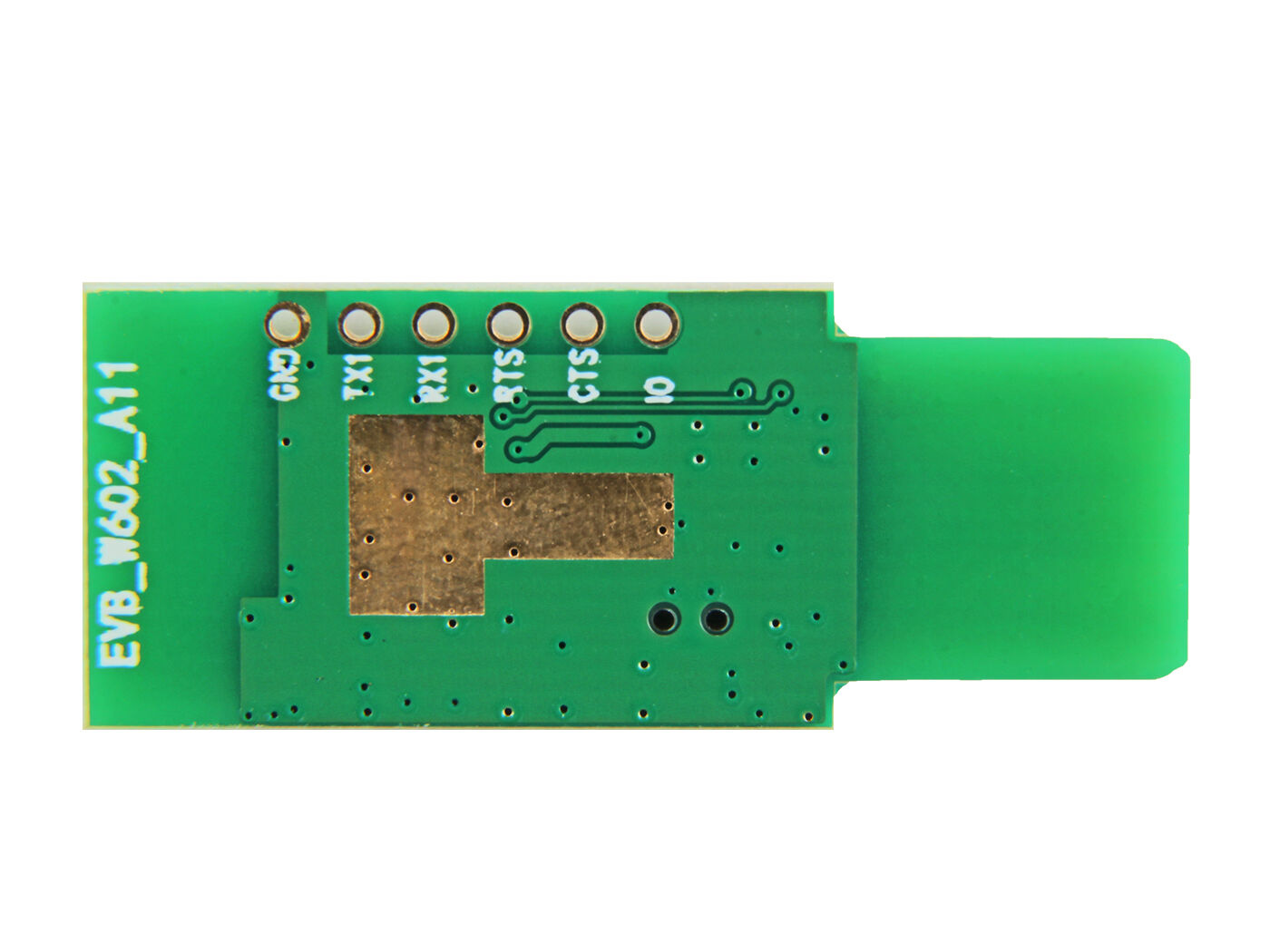

PIN MAP

Chip Function Block Diagram
