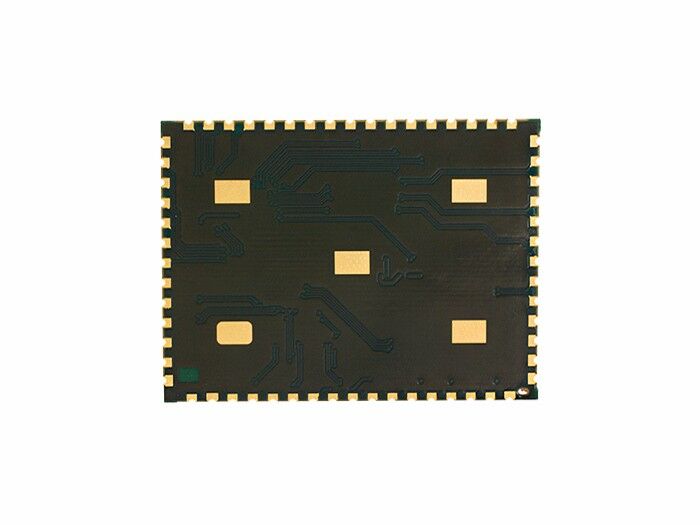

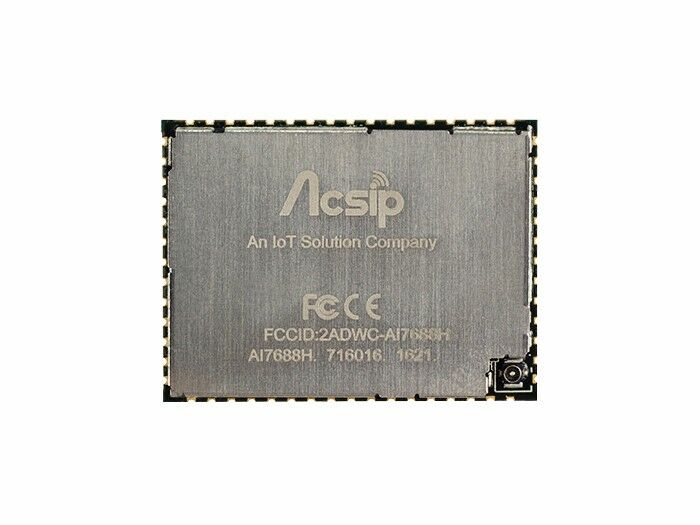

AI7688H

Description

Note

Seeed fusion offers PCB/ PCBA manufacturing service for customized products based on AI7688H with an online instant quote and fast delivery. Furthermore, business users can enjoy a free prototype and engineer support as well. Click here to learn more!

AI7688H is a Linux, Wi-Fi, SOC, open development platform based on the OpenWrt Linux distribution designed to enable the prototyping of IoT devices. These devices include Wi-Fi security web cam and sensors for the home or office, real time camera monitor for toddler and seniors as well as cloud-based applications. AI7688H provides generous memory and storage to enable rich application developments. The platform also offers options to create device applications using Python, Node.js or C.

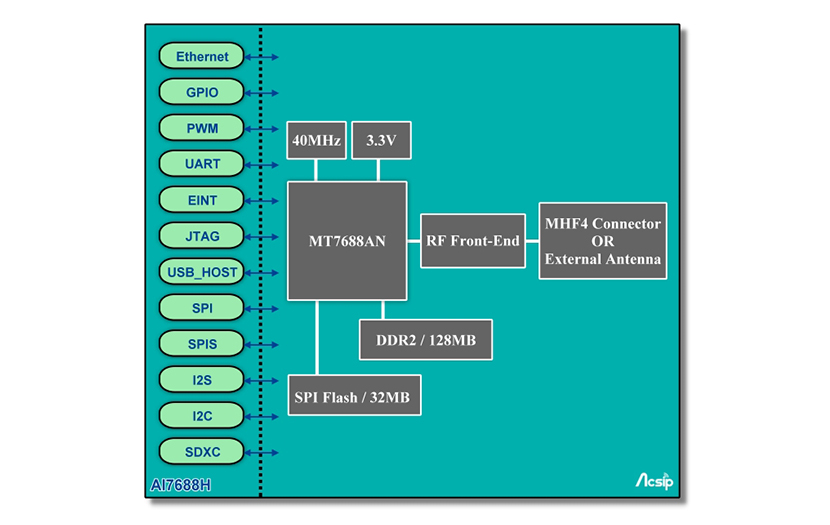

Block diagram

Key-feature

• Embedded MIPS24KEc (575/580 MHz) with 64 KB I-Cache and 32 KB D-Cache

• 1T1R 2.4 GHz with 150 Mbps PHY data rate

• Legacy 802.11b/g and HT 802.11n modes

• 20/40 MHz channel bandwidth

• 802.11v

• Green AP/STA – Intelligent Clock Scaling (exclusive) – DDRII: ODT off, Self-refresh mode

• 1-port 10/100 FE PHY

• x1 USB 2.0 Host

• SPI/SD-XC/eMMC

• SPI,I2C, I2S,PCM, UART, JTAG, GPIO

• Internet Of Thing

• An optimized PMU

• 16 Multiple BSSID

• WEP64/128, TKIP,AES, WPA, WPA2, WAPI

• QoS: WMM, WMM-PS

• AP/STA Firmware: Linux 2.6.36 SDK, OpenWrt 3.10

Part List:

1 x AI7688H module
