Description
Features

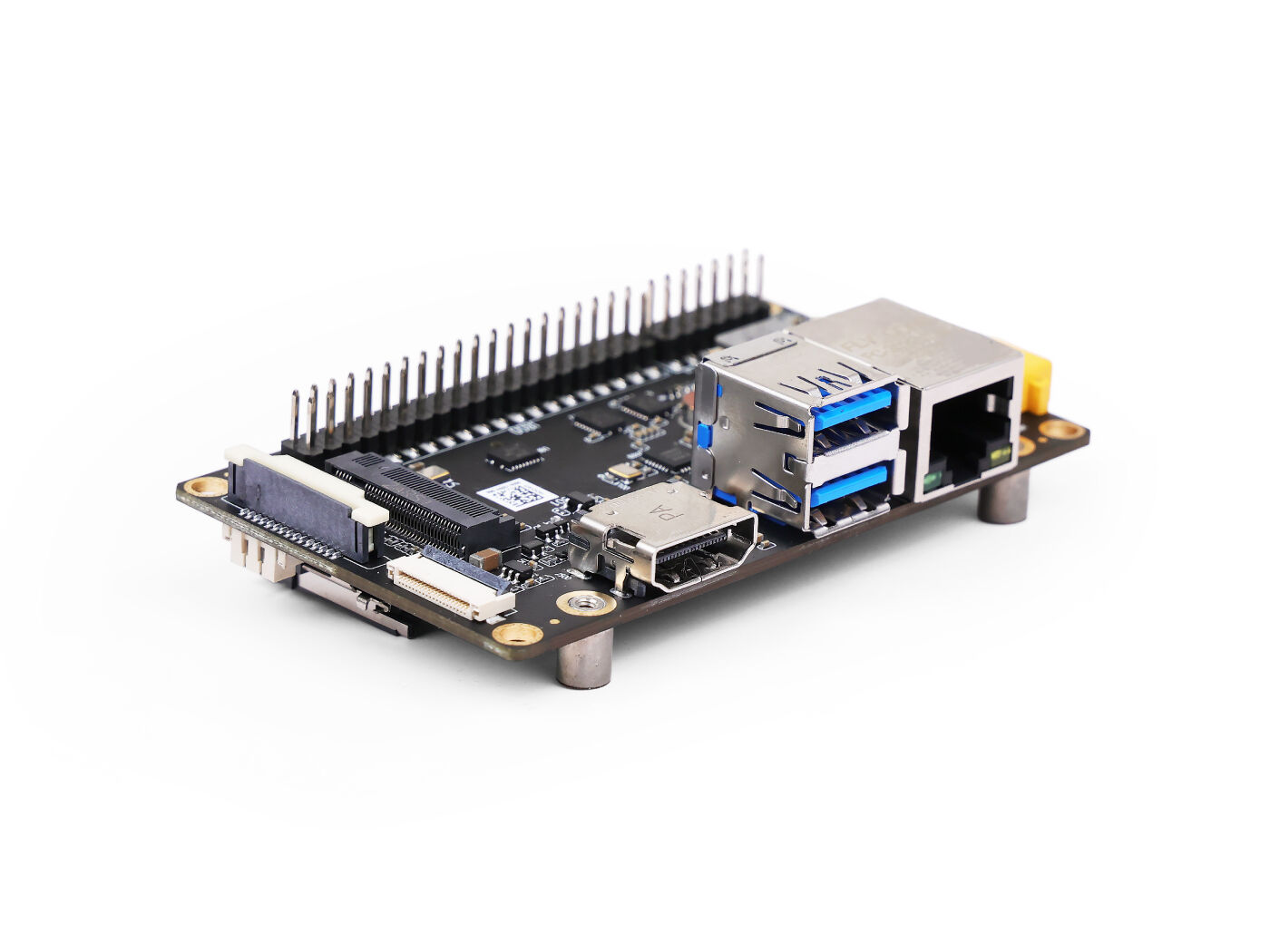

- NVIDIA Jetson Carrier Board: Support NVIDIA Jetson Orin™ NX/ Orin™ Nano
- Versatile Connectivity: Offer 1x Gigabit Ethernet for networking, 2x USB 3.0 Type A, 1x USB 3.0 0.5mm pitch 20P ZIF, and 1x USB 2.0 Micro-AB for data transfer.

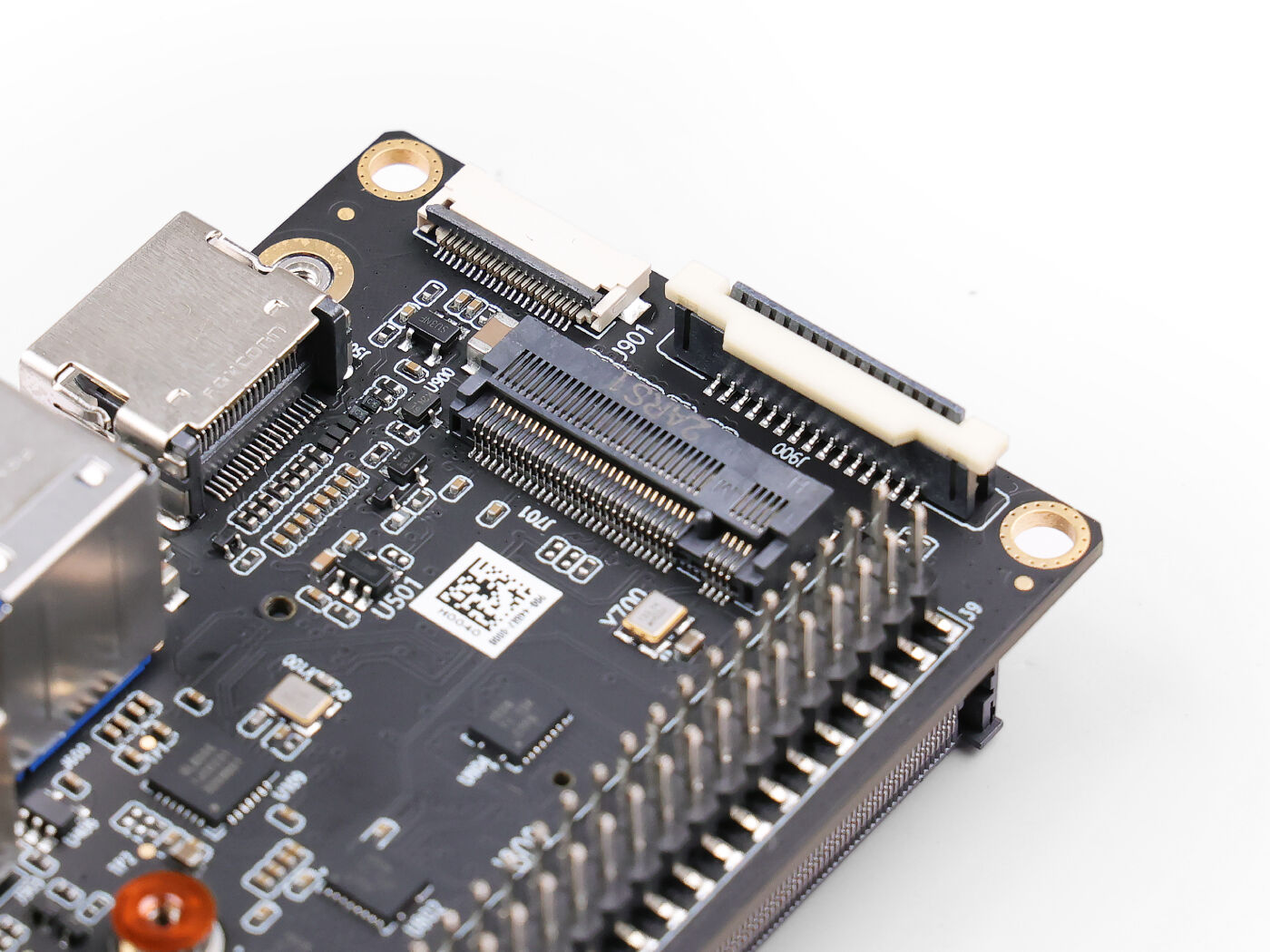

- Advanced Peripherals Supported: Assemble 1x 15 pins CSI camera connector and 1x HDMI display for high-quality video content capturing and displaying, 1x fan, 1x RTC,1x M.2 PCIe Key E and 1x M.2 Key M interface for flexible storage and wireless connection.

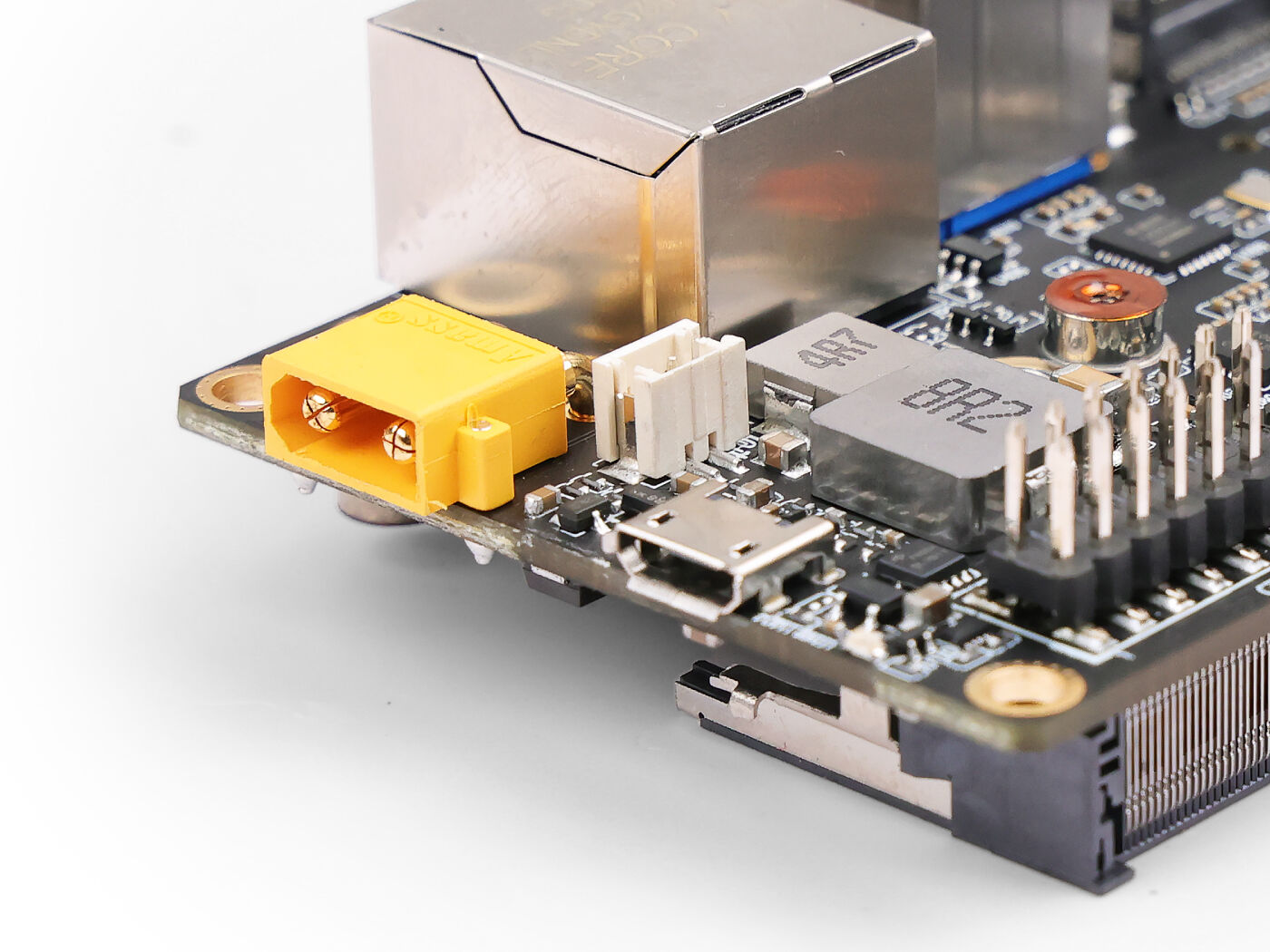

- Wide Range of Input Voltages: From 9-20V DC with input @ 7A, providing flexibility in power supply options.

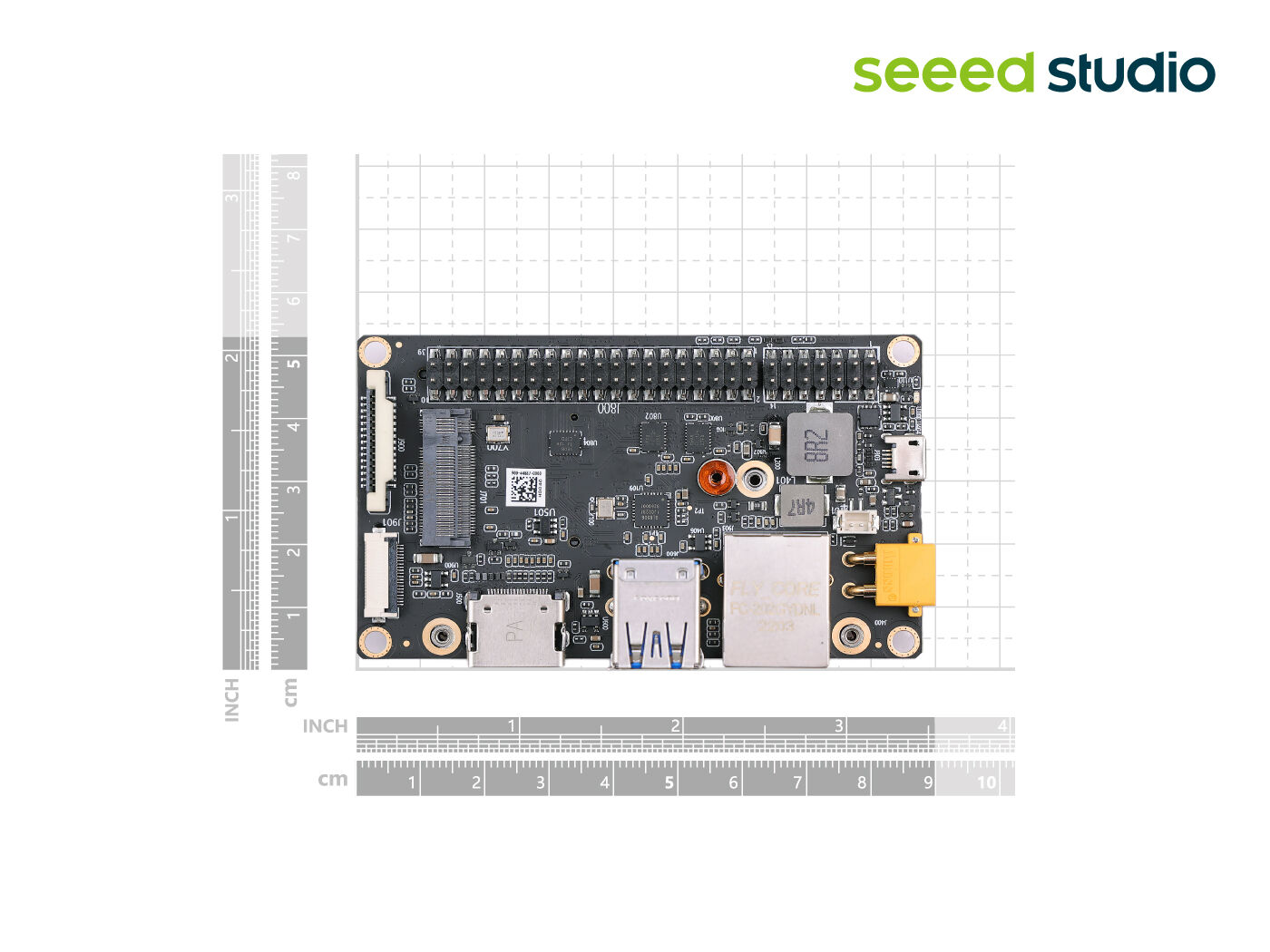

- Compact and Durable during Operation: Design in small size of 87mmx 52mmx 26mm to save operation space, maintaining function in the temperature range from -25°C to 65℃.
Specification
● Carrier Board
|
Storage |
1x M.2 Key M 2242 Interface for NVMe SSD |
|
|
Networking |
Ethernet |
1x Gigabit Ethernet (10/100/1000M) |
|
M.2 KEY E |
1x M.2 Key E PCIe 2230 |
|
|
I/O |
USB |
2x USB 3.0 Type A (Integrated USB 2.0) 1x USB 3.0 0.5mm pitch 20P ZIF 1x USB 2.0 Micro-AB |
|
Camera |
1x 15pin CSI |
|
|
Display |
1x HDMI |
|
|
Fan |
1x Fan Connector (5V PWM) |
|
|
Multifunctional Port |
1x 40-Pin Expansion header (2x I2C, 1x UART, 1x I2S, 2x SPI) 1x 14-Pin header (1x UART, 1x CAN) |
|
|
RTC |
1 x RTC socket(rechargeable 3V Lithium Battery Connector) |
|
|
Power |
9-20V DC @7A |
|
|
Mechanical (W x D x H) |
87mm x 52mm |
|
|
Operating Temperature |
-25℃~65℃ |
|

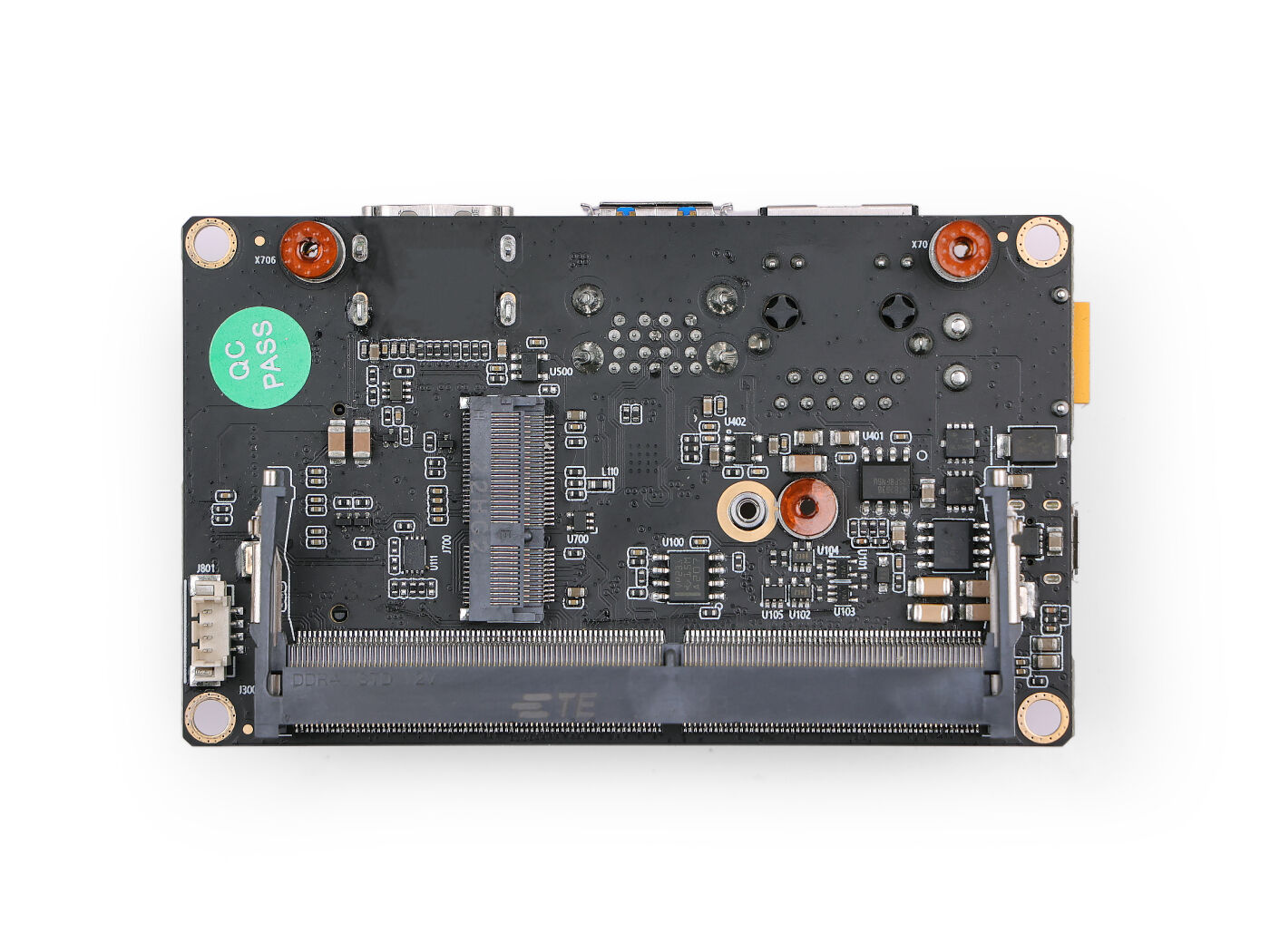

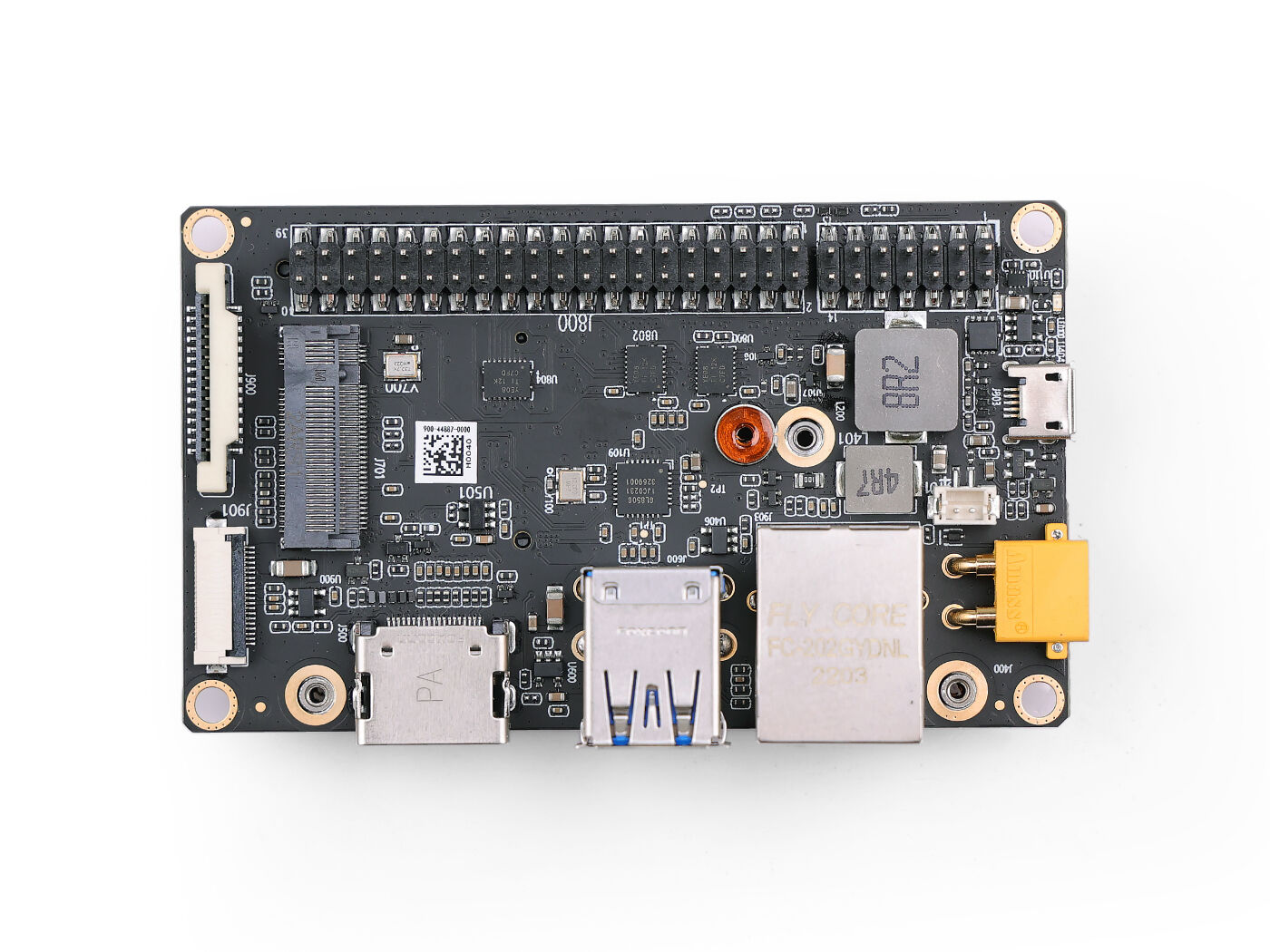

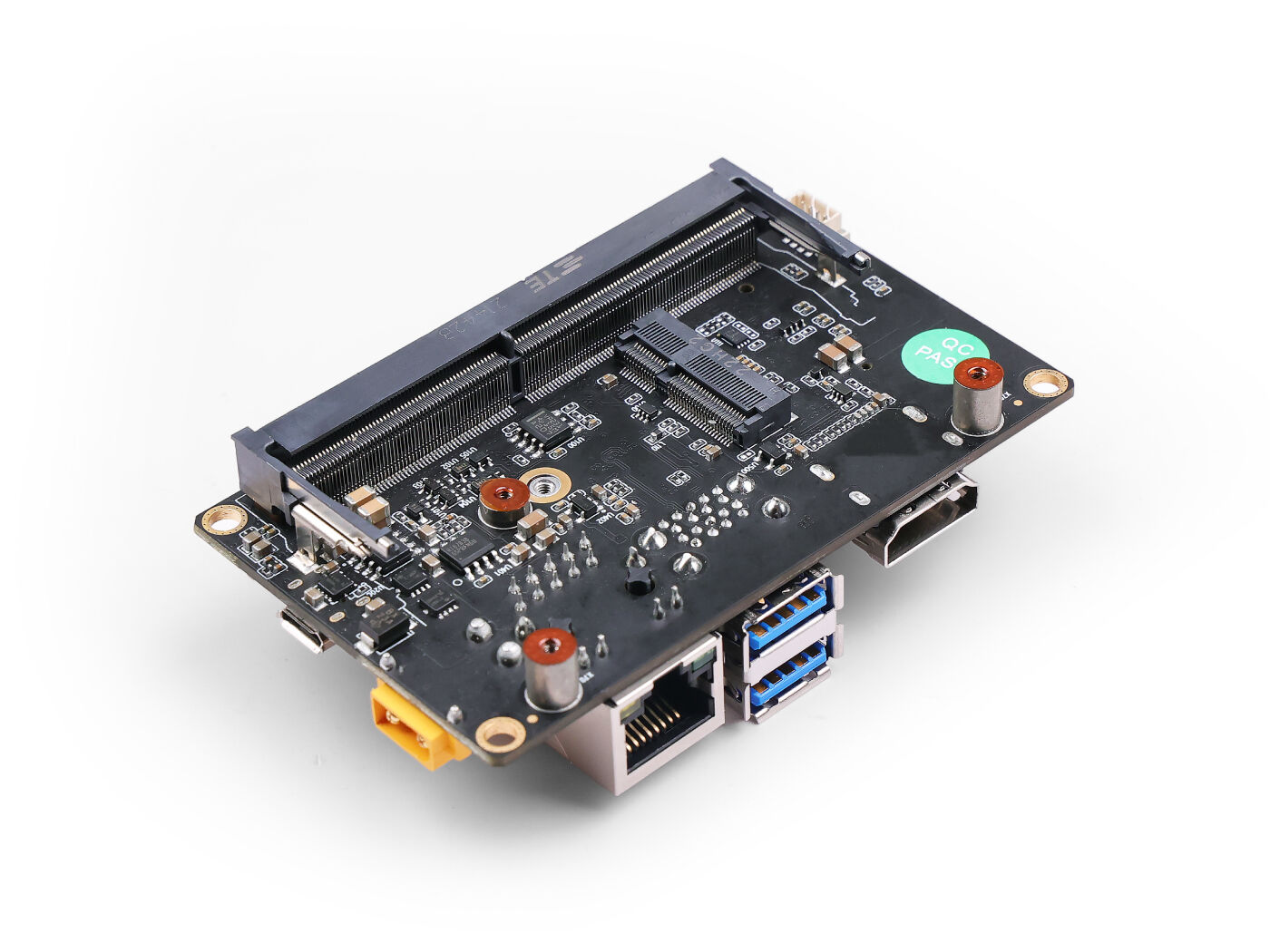

Hardware Overview
Application
Application Fields:
- Autonomous Mobile Robot (AMR)
- AI Video Analytics
- Machine Vision
- Generative AI
