Description
Description

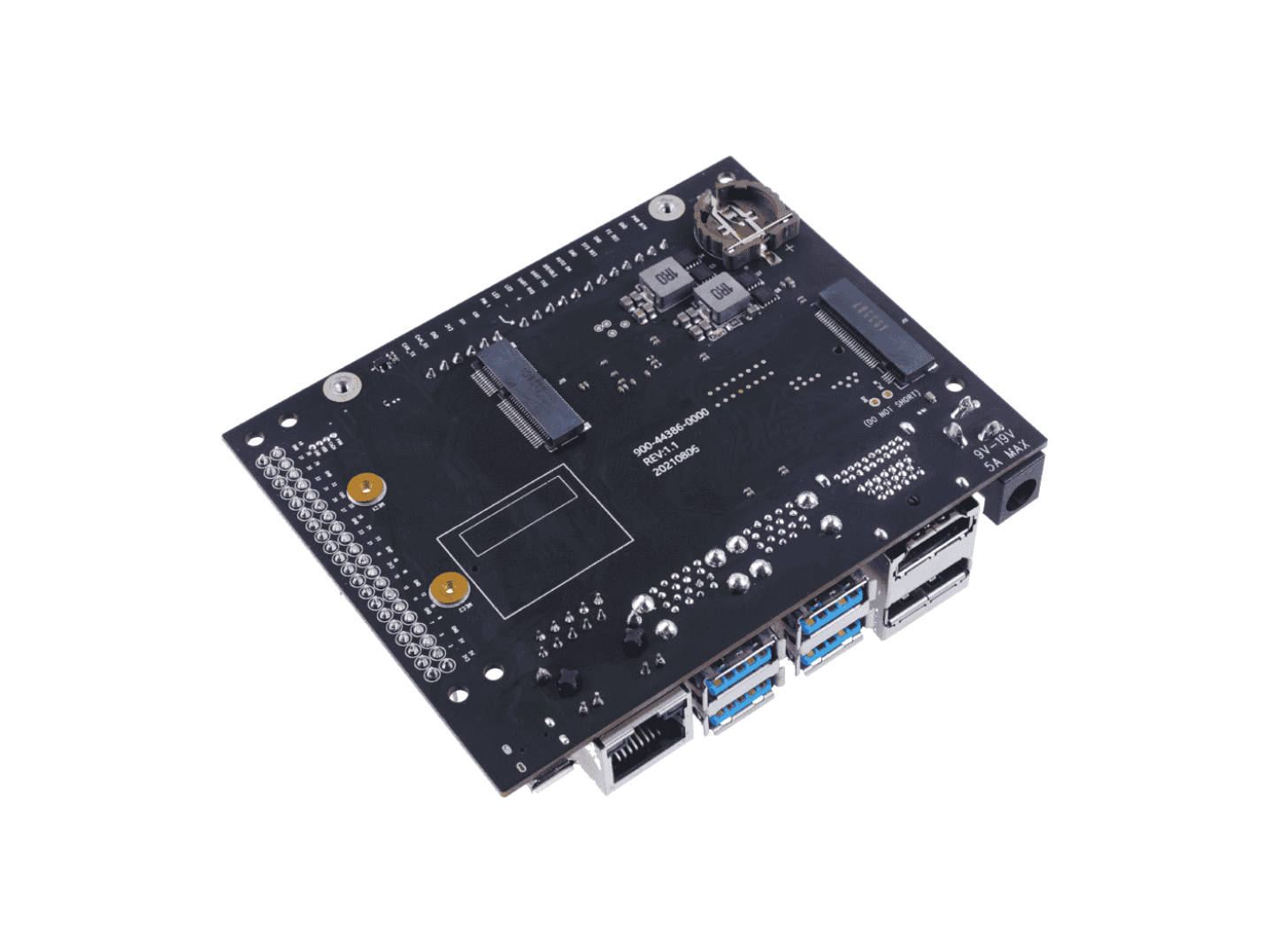

A206 is a high-performance, interface-rich NVIDIA Jetson Nano / Xavier NX/ TX2 NX compatible carrier board, providing HDMI 2.0, Gigabit Ethernet, USB3.0, M.2 key E wifi / BT, M.2 key M, CSI camera, CAN, GPIO, I2C, I2S, fans, and other rich peripheral interfaces. It has the same functional design and size as the carrier board of NVIDIA® Jetson Xavier™ NX Developer Kit.
The latest J202 carrier board with 4 USB 3.1, M.2 Key E + Key M, RTC, CAN, GPIO is available now, starting from $131, check it out!
For pre-installed Jetpack Edge AI Device with carrier board and heatsink, we recommend checking out:
- reComputer J1020 built with Jetson Nano Production Module
- reComputer J2011 built with Jetson Xavier NX Production Module
Please check out all NVIDIA Jetson-powered devices and carrier boards comparison table here.
Features
- Exact same size and functional design as NVIDIA’s official Jetson Nano/Xavier NX carrier board
- Higher performance stability consists of 4 USB ports, HDMI+DP, M.2 key E wifi / BT, M.2 key M, CSI camera, CAN, GPIO
- Data can be saved for 24 hours after the power is cut off if batteries are increased
- Ideal for developing edge intelligent solutions with accurate, multi-modal AI inference across industries.
- Certificate: FCC, CE, RoHS
Note: When using with Jetson Nano module, the M.2 E KEY cannot work, but instead, M.2 KEY M could.
With the NVIDIA Jetson module assembled, it could support NVIDIA JetPack, which includes a board support package (BSP), Linux OS, NVIDIA CUDA®, cuDNN, and TensorRT™ software libraries for deep learning, computer vision, GPU computing, multimedia processing, and much more. With its multiple camera connectors, it is suitable for running multiple neural networks in parallel for applications like image classification, object detection, segmentation, and speech processing.
Note
If use some GPIO libraries that causes floating voltage 1.2V~2V , GPIO issues on the carrier board could happen as the normal voltage should be 3V.
This is a common situation on the carrier boards, for both the reComputer series and official Nvidia Jetson developer kit.
Thus, aftersales / warrenty does not come into effect regarding this isssue.
For further information, refer to NVIDIA official document.
Edge AI Applications
Powered by AI performances from 475 GFLOPS to 21TOPS provided by the Jetson Module, it delivers the capability to develop and test power-efficient, small form factor intelligent solutions with accurate, multi-modal AI inference across industries.
-
Hard hat detection and build custom PPE detection
Find in the Jetson Community Resources page tools and tutorials the community has created to power your development experience, and check out the Community Projects page to inspire your next project!
Seeed Carrier board for NVIDIA Jetson Comparison Chart
| Feature |
reComputer J202 carrier board for NVIDIA® Jetson™ Nano/NX/TX2 NX |
A203 V2 carrier board for NVIDIA® Jetson™ Nano/NX/TX2 NX |
A205 carrier board for NVIDIA® Jetson™ Nano/NX/TX2 NX |
A206 carrier board for NVIDIA® Jetson™ Nano/NX/TX2 NX |
| Module Compatibility | NVIDIA® Jetson™ Nano/NX/TX2 NX | NVIDIA® Jetson™ Nano/NX/TX2 NX | NVIDIA® Jetson™ Nano/NX/TX2 NX | NVIDIA® Jetson™ Nano/NX/TX2 NX |
| PCB Size / Overall Size | 100mm*80mm | 87mm*52mm | 170mm*100mm | 100mm*80mm |
| Display | 1*HDMI+1*DP | 1*HDMI | 2*HDMI |
1*HDMI+1*DP |
| CSI Camera | 2*CSI | 1*CSI | 6*CSI | 2*CSI |
| Ethernet | 1x Gigabit Ethernet (10/100/1000M) | 1x Gigabit Ethernet (10/100/1000M) | 2x Gigabit Ethernet (10/100/1000M) | 1x Gigabit Ethernet (10/100/1000M) |
| USB | 1* USB 3.0 0.5mm pitch 20Pin ZIF | |||
| 4* USB 3.1 Type-A (Integrated USB 2.0); | 2* USB 3.0 Type-A (Integrated USB 2.0); | 4* USB 3.0 Type-A (Integrated USB 2.0); | 4* USB 3.0 Type-A (Integrated USB 2.0); | |
| 1* USB Type C(Not support power input) | 1* USB Micro B(Not support power input) | 1* USB 2.0 Type C(Support OTG) | 1* USB Micro B(Not support power input) | |
| SATA | 5 SATA | |||
| M.2 Key M | 1*M.2 Key M | 1*M.2 Key M | 1*M.2 Key M | |
| M.2 Key E | 1*M.2 Key E | 1*M.2 Key E | 1*M.2 Key E | 1*M.2 Key E |
| TF_Card Slot | 1* TF_Card Slot | 1* TF_Card Slot | ||
| USB WIFI Mode | 1* Standard USB WIFI Mode(4 pin interface) | |||
| Audio | 1* Audio Jack; | |||
| 2* Microphone interface; | ||||
| 2* Speaker interface | ||||
| SPI Bus | 2* SPI Bus(+3.3V Level) | 2* SPI Bus(+3.3V Level) | 2* SPI Bus(+3.3V Level) | 2* SPI Bus(+3.3V Level) |
| FAN | 1* FAN(5V PWM) | 1* FAN(5V PWM) | 2* Fan(12V/5V); | 1* FAN(5V PWM) |
| 1* FAN(5V PWM) | ||||
| CAN | 1* CAN | 1* CAN | 1* CAN | 1* CAN |
| Multifunctional port | 1* 40-Pin | 1* 40-Pin | 1* 40-Pin | 1* 40-Pin |
| RTC | Battery not included | Battery not included | Battery not included | Battery not included |
| Power supply | 12V/5A power cord only | 19V/4.74A power cord only | 19V/4.74A power cord only | 19V/4.74A power cord only |
Hardware Overview
Part List
1 x A206 Carrier Board
1 x Power Adapter 90W 19V (Power cable not included)
Note:
-
The 3V RTC battery will not include.
-
We will not include a power cord, please choose a suitable one according to your country.
