9 Degrees of Freedom – Razor IMU

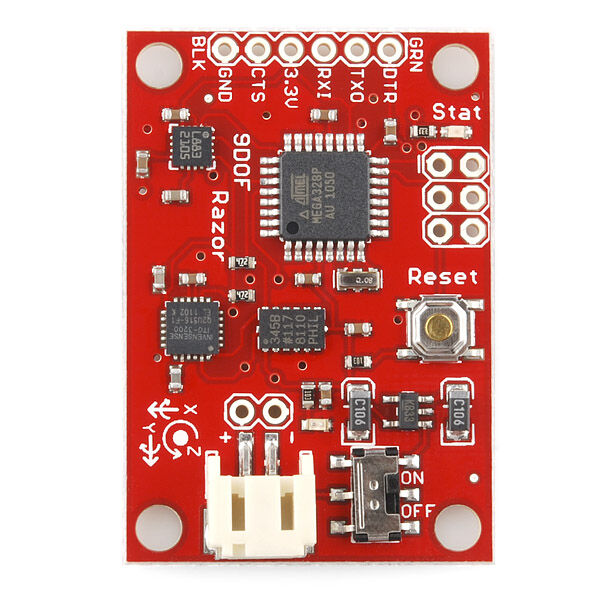

The 9DOF Razor IMU incorporates three sensors – an ITG-3200 (triple-axis gyro), ADXL345 (triple-axis accelerometer), and HMC5883L (triple-axis magnetometer) – to give you nine degrees of inertial measurement. The outputs of all sensors are processed by an on-board ATmega328 and output over a serial interface. This enables the 9DOF Razor to be used as a very powerful control mechanism for UAVs, autonomous vehicles and image stabilization systems.



Note: This product is a collaboration with Jordi Munoz of 3d Robotics. A portion of each sales goes back to them for product support and continued development.



Features:

• 9 Degrees of Freedom on a single, flat board:
• ITG-3200 – triple-axis digital-output gyroscope
• ADXL345 – 13-bit resolution, ±16g, triple-axis accelerometer
• HMC5883L – triple-axis, digital magnetometer
• Outputs of all sensors processed by on-board ATmega328 and sent out via a serial stream
• Autorun feature and help menu integrated into the example firmware

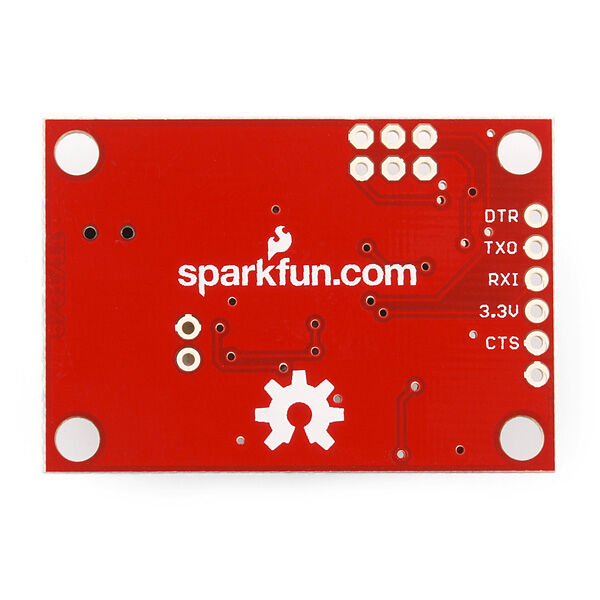

• Output pins match up with FTDI Basic Breakout, Bluetooth Mate, XBee Explorer
• 3.5-16VDC input
• ON-OFF control switch and reset switch

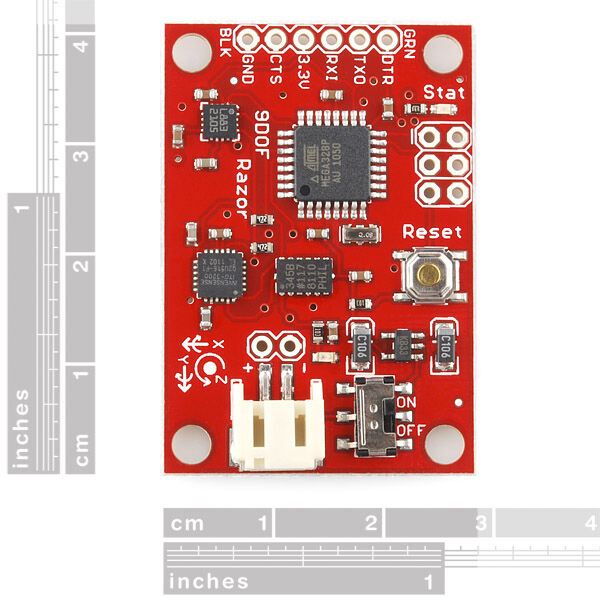

• Dimensions: 1.1" x 1.6" (28 x 41mm)

Documents:

• Schematic
• Eagle Files
• Test Firmware
• Datasheet (ITG-3200)
• Datasheet (ADXL345)
• Datasheet (HMC5883L)
• Python Graphic interface
• AHRS Code
