Description

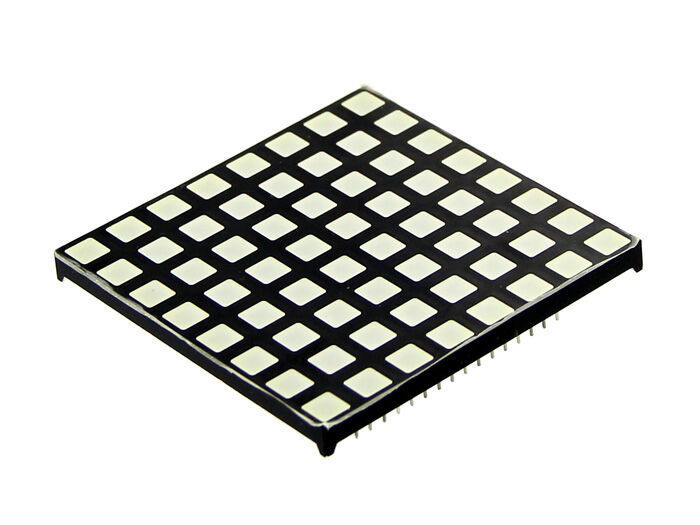

This a new 8×8 RGB LED matrix, also compatible with Rainbowduino. Compare to the old 8×8 RGB LED matrix, this new LED matrix features square LED dot and its only half thickness.
Features:
- Fully compatible with Rainbowduino
- Full color RGB variation
- Square LED point source
- Ultrathin
Specification：
- Dot Size: 5.0mm
- Pixel Array: 8×8
- Luminous Intensity: 40mcd
- Package Dimension: 60mm×60mm
- Reverse Voltage(Max): 5V
- Forward Current(Max): 25mA
- Peak Forward Current(Max): 100mA
- Power Dissipation(Max): 100mW
- Operating Temperature(Max):-35~+85℃
- Storage Temperature(Max): -35~+85℃
- Lead Solder Temperature(Max): 260℃ for 5 seconds
Compatibility：
Document:
