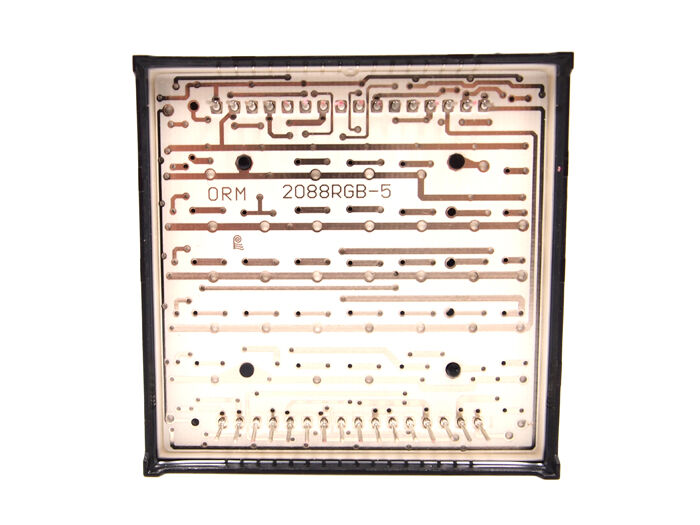

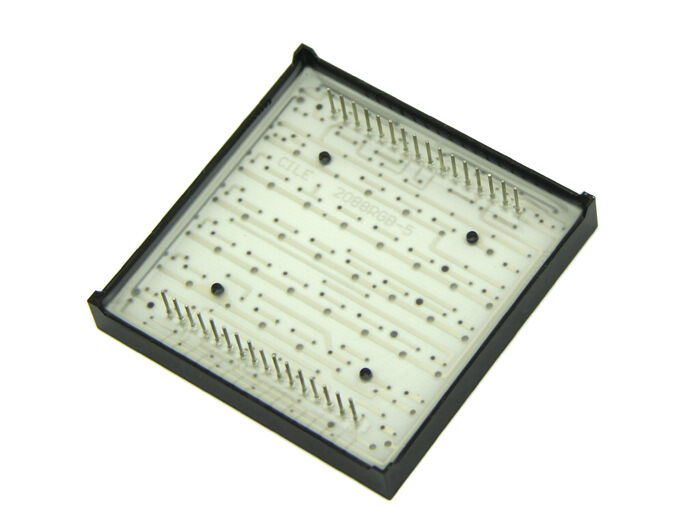

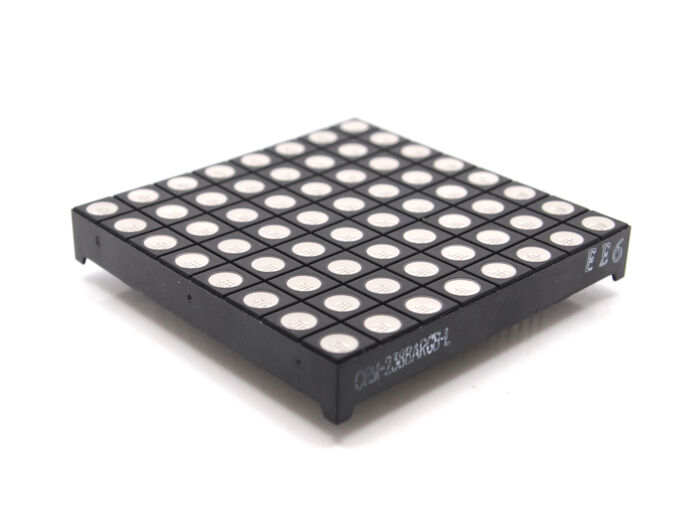

8×8 RGB LED Dot Matrix – Compatible with Rainbowduino

Description

Do you know how is the cool advertising display made? It is exactly composed of these small RGB LED matrix. If you want to make a similar display, this RGB LED matrix will meet you need. The 8×8 LED matrix has 32 of pins, you may need a driver to control it. It sounds quite complex, but don't worry, we have provided a driver board Rainbowduino for this LED matrix as your reference. Make it easy for you to start your project.

Features

• Fully compatible with Rainbowduino

• Full color RGB variation

• Circular LED point source

Specifications (IF = 20mA)

• Forward voltage(RED): DC 2.2V

• Forward voltage(GREEN): DC 3.3V

• Forward voltage(BLUE): DC 3.3V

• Luminous intensity(RED): 140mcd

• Luminous intensity(GREEN): 280mcd

• Luminous intensity(BLUE): 80mcd

• Wavelength(RED): 620～622.5nm

• Wavelength(GREEN): 520～522.5nm

• Wavelength(BLUE): 465～467.5nm

Documents

• Datasheet
