Description

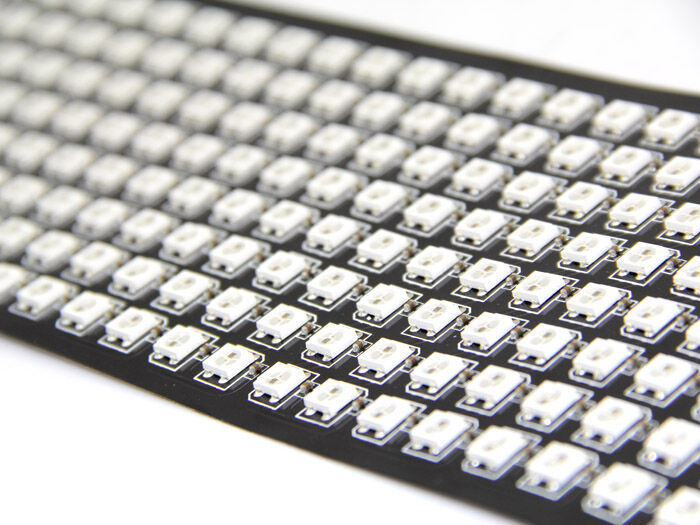

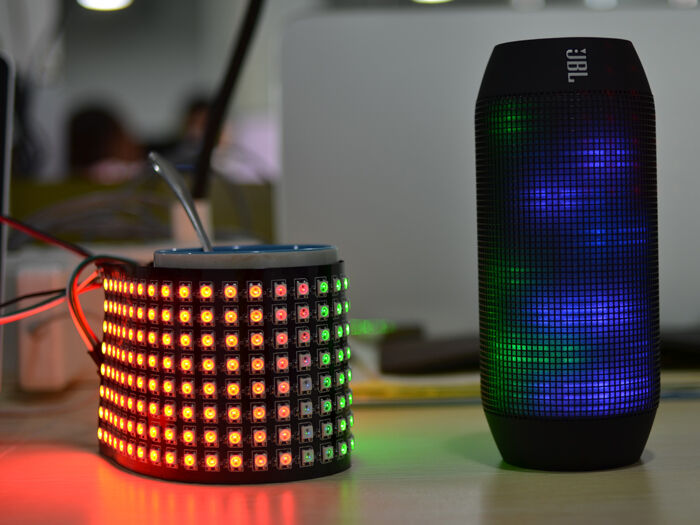

8*32 Digital RGB LED Matrix is consist of WS2812B RGB LED. WS2812B is a 5050 components that integrate control circuit and RGB chip in a package.

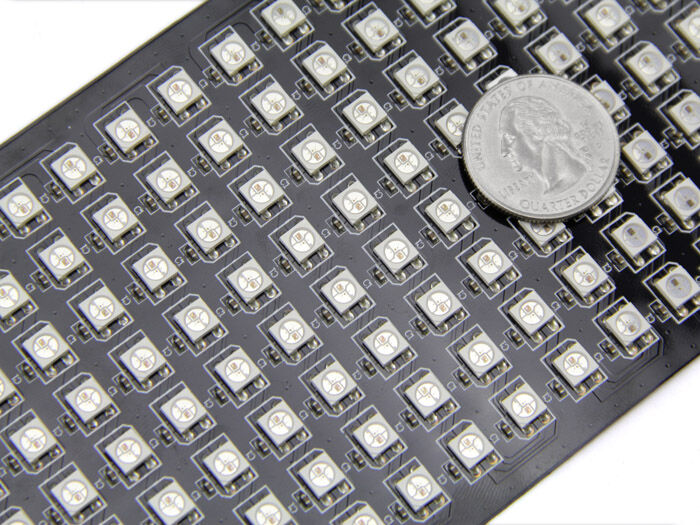

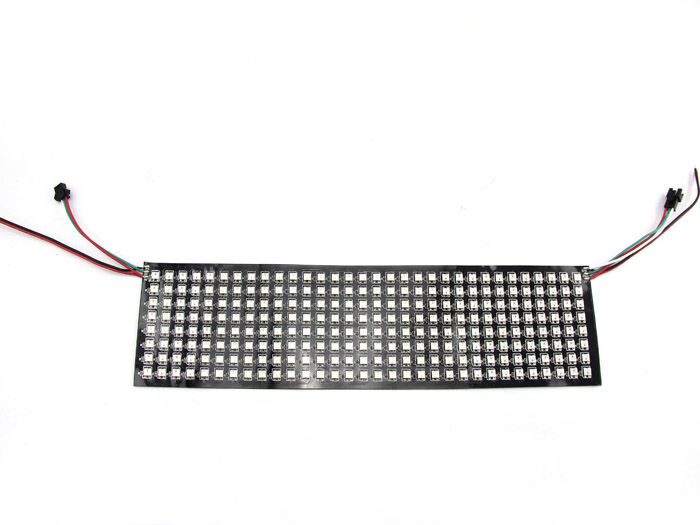

The LED Matrix are placed 32 Pixels each line, and there are 8 lines on each panel. The space between each pixel is 1cm.
Features

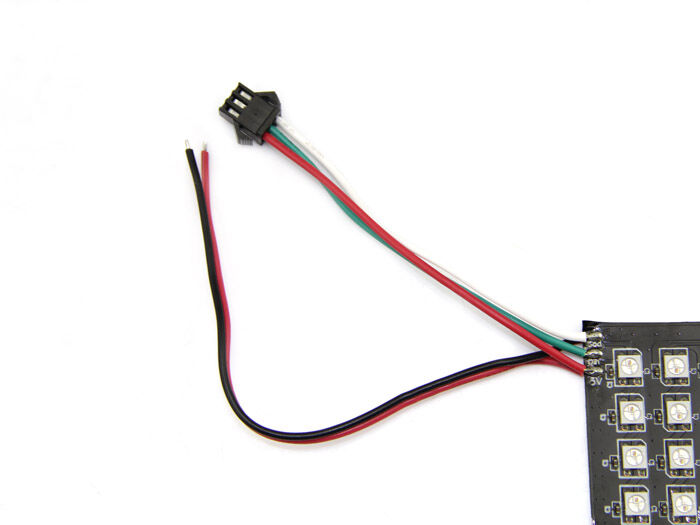

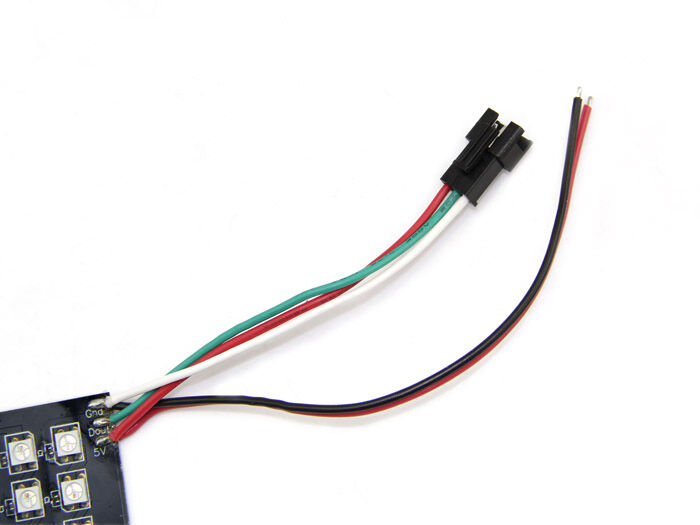

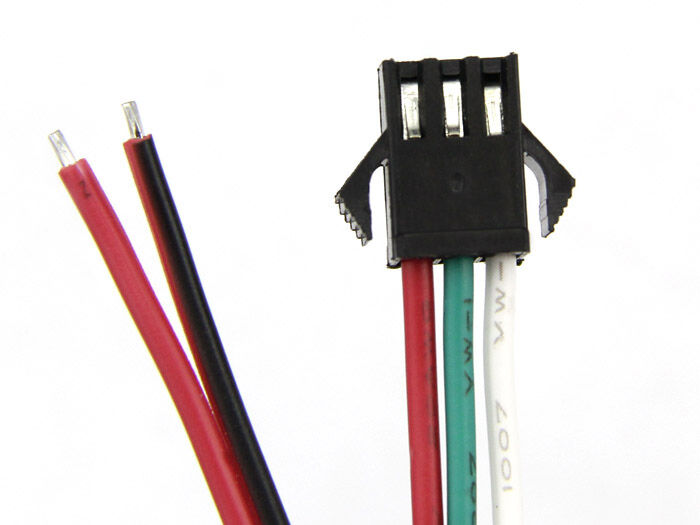

PIN Function:
|
No. |
Symbol |
PIN |
Function Description |
|
1 |
+5V |
Power |
5V power supply |
|
2 |
DIN |
Data Input |
Input the control signal |
|
3 |
GND |
Ground |
Earthing |
|
4 |
DOUT |
Data Output |
Output the control signal, and connect to next panel’s DIN |
Specification
| Item Model | WS2812 320*80mm |
| LED Quantity | 256 |
| IC Type | WS2812 (IC Built in LED) |
| Wattage | 76.8W/M |
| Pixel/m | 32*8 |
| PCB Width | 32*8cm |
| Length of cable | 100mm |
| Working Voltage | DC 5V |
| PCB Color | black |
| Light Color | Multi-Color, digital RGB,Every LED individual Contro |
For any technical support or suggestion, please kindly go to our forum.
